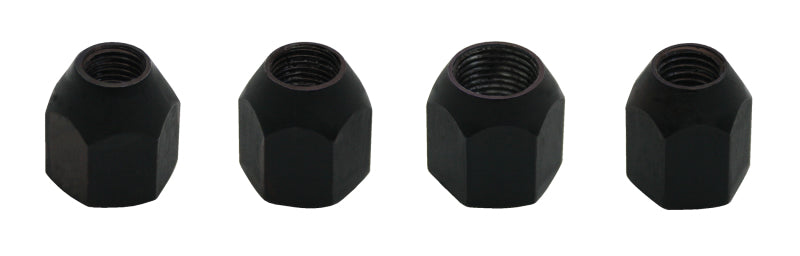

Moroso Lug Nut, 7/16"-20
Lug Nuts, 7/16" -20, 3/4" Hex for Nos. 46150 & 46160
Fits our Press-in Wheel Studs
- Manufactured from high grade steel for resistance to fatigue and stress
- Meets NHRA 5.2 rule of hex being length of diameter of stud
- 60° Seat
- Black Oxide finish
- 5 per package
- Made in the U.S.A.
PRESS-IN WHEEL STUD & LUG NUT APPLICATION CHART | ||||
| APPLICATION DESCRIPTION | STANDARD HOLE SIZE | WHEEL STUD PART # | LUG NUT PART # | COMB. WHEEL STUD/LUG NUT PART # |
| 7/16" -20 x 2-7/8", .480" diameter knurled stud, 3/4 hex nut Fits: Most late model GM drum brake applications | .472" to .479" | 46150 | 46320 | 46450 |
| 7?16" -20 x 2-7?8", .560" diameter knurled stud, 3?4" hex nut Fits: Most late model GM disc brake and early drum applications | .552" to .559" | 46160 | 46320 | 46460 |
| 1?2" -20 x 3", .615" diameter knurled stud, 1-3?16" hex nut Fits: Most late model Ford front and rear disc brake, 2005-Up Mustang rear and Chrysler front | .606" to .613" | 46180 | 46330 | 46480 |
| 1?2" -20 x 3", .594" diameter knurled stud, 1-3?16" hex nut Fits:1979-04 Mustang, 2005 and up Mustang front. Also has a flat on head for front hubs with ABS | .590" (15mm) | 46185 | 46330 | 46485 |
| 1?2" -20 x 3", .685" diameter knurled stud, 1-3?16" hex nut Fits: Most Chrysler rears with 1?2" stud | .676" to .683" | 46190 | 46330 | 46490 |
| 1?2" -20 x 3", .563" diameter knurled stud, 1 3?16" hex nut Fits: 1?2" Frankland hubs | .554" to .561" | 46220 | 46330 | 46420 |
| 5?8"- 18 x 3", .672" diameter knurled stud, 7?8" hex nut For: Circle Track applications | .663" to .670" | 46240 | 46340 | 46440 |
| 12 mm x 1.5 x 3.25", .509" diameter knurled stud, 19mm hex nut Fits: Late model Corvette, Camaro & Firebird | .482" to 492" | 46245 | 46345 | 46445 |
Moroso Lug Nut, 7/16"-20
Sale price$18.99 USD
