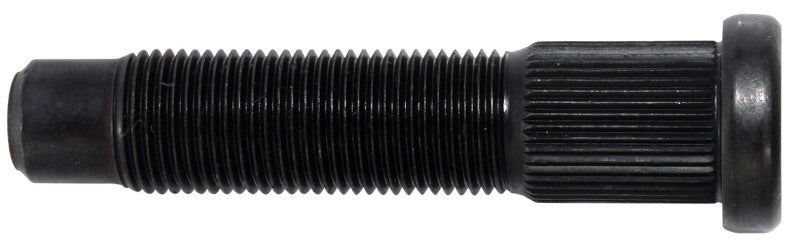

Moroso Press-In Wheel Studs, 5/8"-18 x 3", .672" dia.
Press-In Wheel Studs, 5/8"-18 x 3", .672" dia.
Description:
- Exceeds santioning bodies requirements on the use of extra long wheel studs with thick-hub racing wheels
- Manufacturing from high grade SAE 8740 steel to withstand sheet loads of 190,000 psi (which exceeds Grade 8 specifications)
- Feature a "quick start dog end" for easier starting of lug nut installation
- 5 per package
- Made in the U.S.A.
- All stud lengths are measured from the base of the knurl to the end of the stud
Press-In Wheel Stud & Lug Nut Application Chart
| APPLICATION DESCRIPTION | STANDARD HOLE SIZE | WHEEL STUD(5 Per pack)PART # | WHEEL STUD(100 Per pack)PART # | LUG NUT(5 Per pack)PART # | COMB. WHEEL STUD/LUG NUT (5 Per pack)PART # |
| 7/16" -20 x 2-7/8", .480" diameter knurled stud, 3/4 hex nut Fits: Most late model GM drum brake applications | .472" to .479" | 46150 | 46151 | 46320 | 46450 |
| 7?16" -20 x 2-7?8", .560" diameter knurled stud, 3?4" hex nut Fits: Most late model GM disc brake and early drum applications | .552" to .559" | 46160 | N/A | 46320 | 46460 |
| 1?2" -20 x 3", .615" diameter knurled stud, 1-3?16" hex nut Fits: Most late model Ford front and rear disc brake, 2005-Up Mustang rear and Chrysler front | .606" to .613" | N/A | 46180 | 46330 | 46480 |
| 1?2" -20 x 3", .594" diameter knurled stud, 1-3?16" hex nut Fits:1979-04 Mustang, 2005 and up Mustang front. Also has a flat on head for front hubs with ABS | .590" (15mm) | 46185 | N/A | 46330 | 46485 |
| 1?2" -20 x 3", .685" diameter knurled stud, 1-3?16" hex nut Fits: Most Chrysler rears with 1?2" stud | .676" to .683" | 46190 | N/A | 46330 | 46490 |
| 1?2" -20 x 3", .563" diameter knurled stud, 1 3?16" hex nut Fits: 1?2" Frankland hubs | .554" to .561" | 46220 | N/A | 46330 | 46420 |
| 5?8"- 18 x 3", .672" diameter knurled stud, 7?8" hex nut For: Circle Track applications | .663" to .670" | 46240 | 46241 | 46340 | 46440 |
| 12 mm x 1.5 x 3.25", .509" diameter knurled stud, 19mm hex nut Fits: Late model Corvette, Camaro & Firebird | .482" to 492" | 46245 | N/A | 46345 | 46445 |
Moroso Press-In Wheel Studs, 5/8"-18 x 3", .672" dia.
Sale price$40.99 USD
