• Moroso Press-In Wheel Studs, Ford 1/2" -20 x 3", .594" dia 46185 Photo - Primary
1 1
Moroso Authorized Dealer

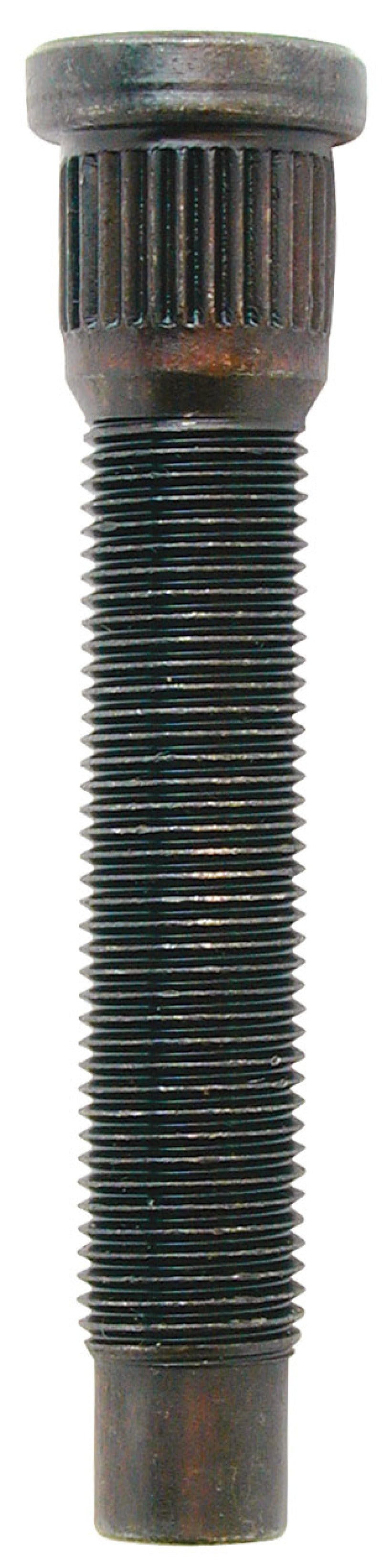

Moroso Press-In Wheel Studs, Ford 1/2" -20 x 3", .594" dia

Moroso Press-In Wheel Studs, Ford 1/2" -20 x 3", .594" dia

sku: 0B26F | mpn: 46185
$35.63
$35.63
Sale Sold out

Shipping calculated at checkout.

64 in stock

Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy
Return policy

Press-In Wheel Studs, Ford 1/2" -20 x 3", .594" dia

Description

  • Exceeds santioning bodies requirements on the use of extra long wheel studs with thick-hub racing wheels
  • Manufacturing from high grade SAE 8740 steel to withstand sheet loads of 190,000 psi (which exceeds Grade 8 specifications)
  • Feature a "quick start dog end" for easier starting of lug nut installation
  • 5 per package
  • Made in the U.S.A.
  • All stud lengths are measured from the base of the knurl to the end of the stud

Press-In Wheel Stud & Lug Nut Application Chart

APPLICATION DESCRIPTION

STANDARD HOLE SIZE

WHEEL STUD(5 Per pack)PART #

WHEEL STUD(100 Per pack)PART #

LUG NUT(5 Per pack)PART #

COMB. WHEEL STUD/LUG NUT (5 Per pack)PART #
7/16" -20 x 2-7/8", .480" diameter knurled stud, 3/4 hex nut Fits: Most late model GM drum brake applications .472" to .479" 46150 46151 46320 46450
7?16" -20 x 2-7?8", .560" diameter knurled stud, 3?4" hex nut Fits: Most late model GM disc brake and early drum applications .552" to .559" 46160 N/A 46320 46460
1?2" -20 x 3", .615" diameter knurled stud, 1-3?16" hex nut Fits: Most late model Ford front and rear disc brake, 2005-Up Mustang rear and Chrysler front .606" to .613" N/A 46180 46330 46480
1?2" -20 x 3", .594" diameter knurled stud, 1-3?16" hex nut Fits:1979-04 Mustang, 2005 and up Mustang front. Also has a flat on head for front hubs with ABS .590" (15mm) 46185 N/A 46330 46485
1?2" -20 x 3", .685" diameter knurled stud, 1-3?16" hex nut Fits: Most Chrysler rears with 1?2" stud .676" to .683" 46190 N/A 46330 46490
1?2" -20 x 3", .563" diameter knurled stud, 1 3?16" hex nut Fits: 1?2" Frankland hubs .554" to .561" 46220 N/A 46330 46420
5?8"- 18 x 3", .672" diameter knurled stud, 7?8" hex nut For: Circle Track applications .663" to .670" 46240 46241 46340 46440
12 mm x 1.5 x 3.25", .509" diameter knurled stud, 19mm hex nut Fits: Late model Corvette, Camaro & Firebird .482" to 492" 46245 N/A 46345 46445
View full details

Vehicle fitment
