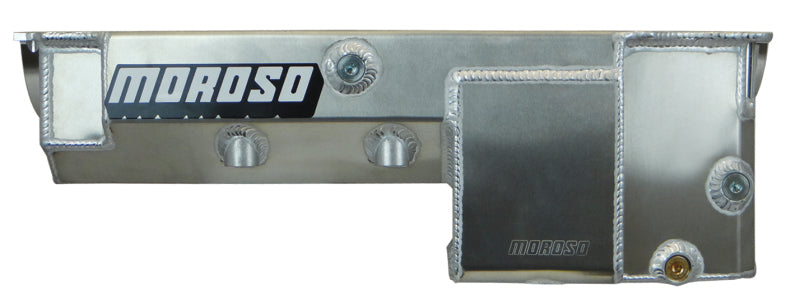

Moroso Oil Pan, BBC Gen IV, W/S, W/DIV.Tray, 8 In

Moroso Oil Pan, BBC Gen IV, W/S, W/DIV.Tray, 8 In

sku: 10N0P | mpn: 20485
$1,063.74
$1,063.74 $1,063.74
Sale Sold out
Shipping calculated at checkout.

23 in stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Fits: Competition Eliminator, Super Gas, Super Comp and Bracket cars. Installation may require modifications to cross-member check dimensions carefully before ordering. BBC GEN IV ALUMINIUM OIL PAN, 8.00" DEEP, WITH DIVIDED TRAY

Fits: Competition Eliminator, Super Gas, Super Comp and Bracket cars. Installation may require modifications to cross-member check dimensions carefully before ordering. BBC GEN IV ALUMINIUM OIL PAN, 8.00" DEEP, WITH DIVIDED TRAY

Aluminum, Wet Sump, 6 Quart Capacity, w/ Standard Volume Pump, 7 Quart Capacity w/ High Volume Pump, 8" Deep

Engine Application: Mark IV style (except Gen V and Gen VI)

Fits: Fits: Competition Eliminator, Super Gas, Super Comp and Bracket cars. Installation may require modifications to cross-member; check dimensions carefully before ordering

  • Fully fabricated aluminum with billet end seals to ensure consistent sealing surface to billet front covers and rear main caps
  • Utilizes "race" pan rail bolt pattern, recommended oil pan gasket, Fel Pro Part No. 1863
  • Double kick-out design ensures up to 4.75" stroke with aluminum rods, wide main cap clearance and maximum horsepower
  • Solid louvered windage tray w/main cap partitions for maximum power and oil control
  • Sump design works with Moroso spur gear and gerotor billet oil pumps
  • Features two O-ring magnetic drain plugs, two -8AN drain backs, alternator notch
  • For use with 168-tooth flywheel combination
  • Pump adjustment bung with plug
