Moroso Oil Pan, Chevrolet Big Block 8", STR Side

Moroso Oil Pan, Chevrolet Big Block 8", STR Side

sku: 0B1L3 | mpn: 20408
$572.49
$572.49 $572.49
Sale Sold out
Shipping calculated at checkout.

24 in stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Oil Pan, Chevrolet Big Block 8", STR Side

Fits: Most Chassis (except 1962-'67 Chevy II, V-8 Vega/Monza, and 1955-'57 Chevy). Oil Pan, Steel, Clear Zinc.

Engine Application: Mark IV Style (except for Gen V and Gen VI) Steel, Wet Sump, 6.5 Quart Capacity, 8" Deep, 10" Long Sump

Description

  • Designed with a sump that has flat sides to alleviate header clearance problems with some exhaust header brands
  • Flat sides eliminate the need to change headers or perform fabrication work to the kicked-out sump of the oil pan
  • Accepts up to a 4.25" stroke with steel rods and a 4.090" stroke with aluminum rods

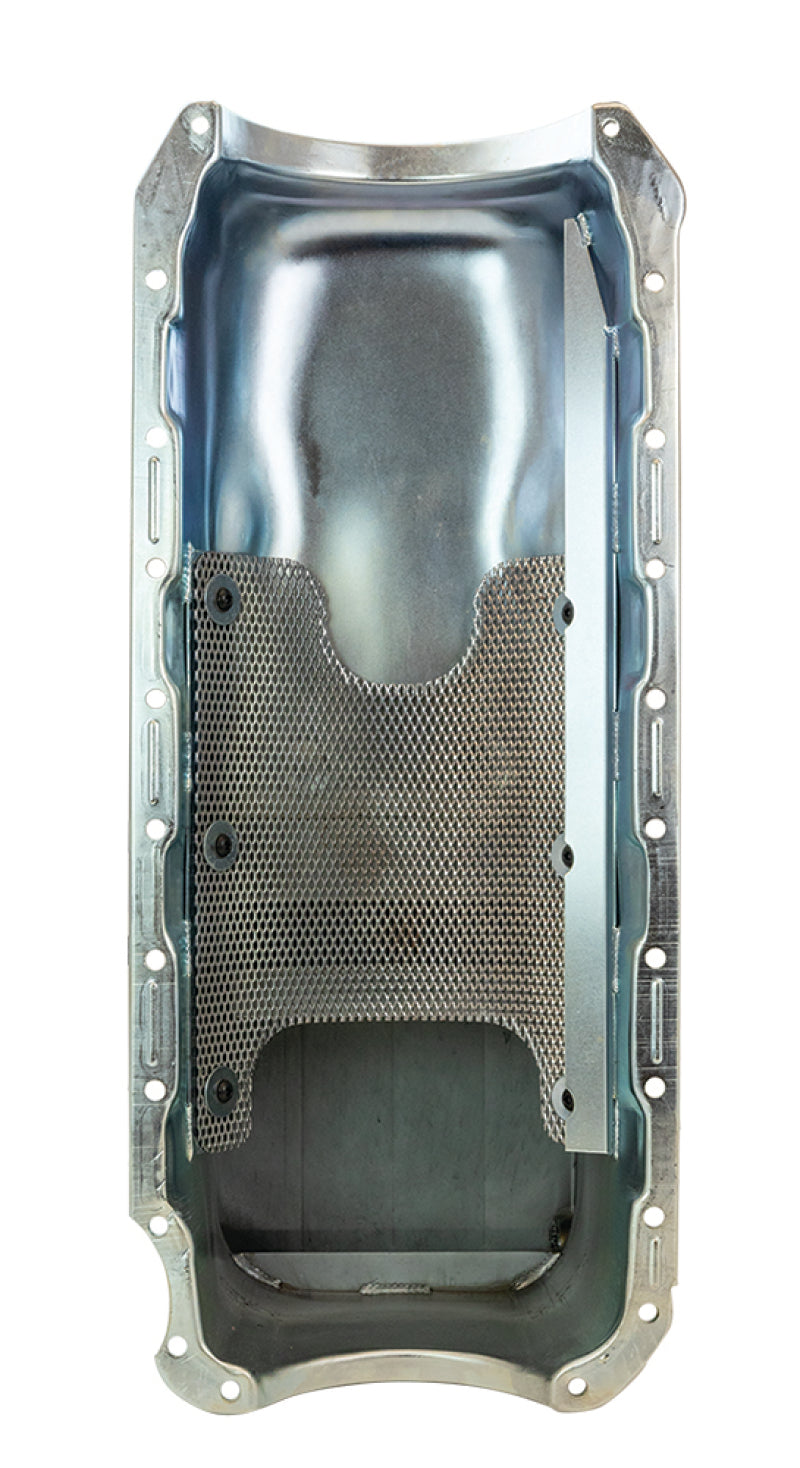

  • Features a crank scraper and uni-directional windage tray for horsepower
  • Trap door baffling and an anti-climb baffle for oil control under hard acceleration and deacceleration
