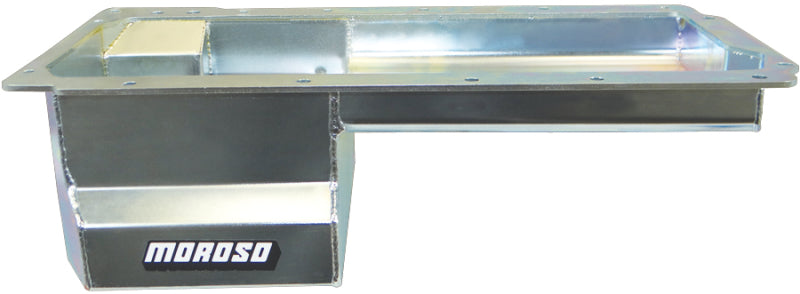

• Moroso Oil Pan GM LS Camaro/Swap, Road Race, Remote Filter 20148 Photo - Primary
1 1
Moroso Authorized Dealer

Moroso Oil Pan GM LS Camaro/Swap, Road Race, Remote Filter

Moroso Oil Pan GM LS Camaro/Swap, Road Race, Remote Filter

sku: 10N3R | mpn: 20148
$603.59
$603.59
Sale Sold out

Shipping calculated at checkout.

Low stock: 5 left

Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy
Return policy

GM LS SERIES, REAR SUMP SWAP, ROAD RACE BAFFLED, REMOTE FILTER Fits: ' 68-'72 Nova, '65-'72 Chevelle, '67-'69 Camaro, Can also be used in additional applications check dimensions for clearance

Steel, Wet Sump, 7 Quart Capacity, 6" deep

Fits: Early F-Body

  • Oil pan has a thick precision laser cut steel rail with a clear zinc finish
  • Clears 4.25" stroke with most steel rods and can be used with Moroso No. 22941 Windage Tray
  • Front of the oil pan is 1 7/8" deep to the beginning of the 6" deep sump
  • The sump is 9-11/16" long and 10 ¼" wide
  • Features a race proven diamond shape four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pick up area during road racing and drag racing
  • The 7 Quart Capacity moves the oil away from the rotating assembly for oil control and horsepower saving
  • Included billet aluminum adapter with Two straight -10AN fittings for remote filter installation
  • Uses stock dipstick
