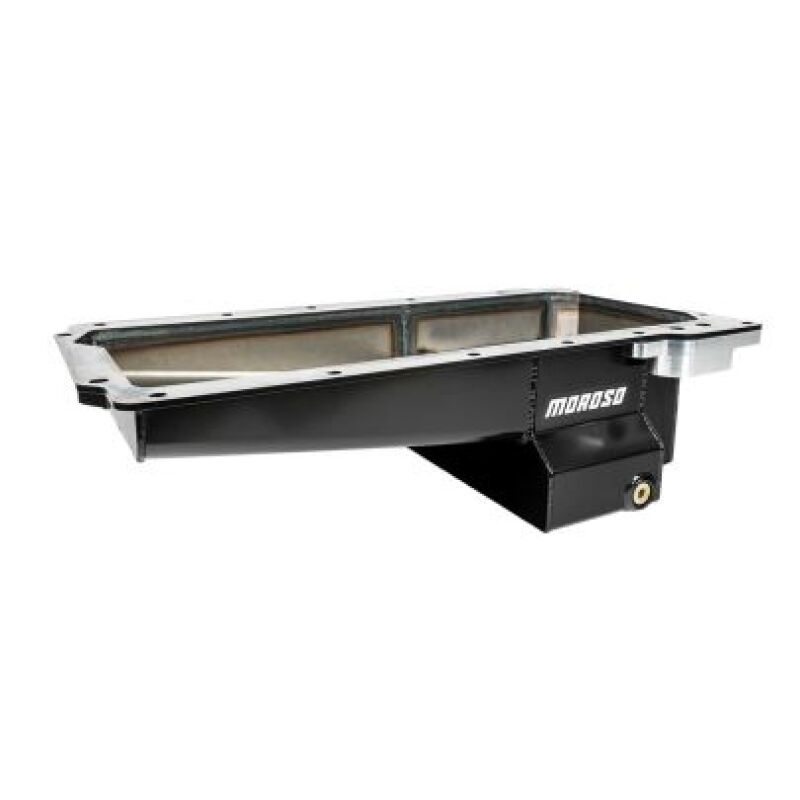

Read the shipping policyOil Pan, Chevrolet LS Series Swap Road Race
Fits: 1967-92, 2010-15Camaro, 1968-88 G-Body and GM S10/S15 Two Wheel Drive Blazer/Truck. Can also be used in additional applications: check dimensions for clearance Engine Conversion Race Baffl ed, Angled Sump, Fully Fabricated Steel Oil Pan Engine Application: GM LS Series, Engine Conversion Race Baffl ed, Angled Sump, Fully Fabricated Steel Oil Pan
Description
- Oil pan has a thick precision laser cut steel rail and a clear zinc finish
- Clears 4.25" stroke with most steel rods and can be used with Moroso Part No. 22941 Windage Tray
- The sump is 8 3?8" long and 10 ¼" wide
- Features a race proven diamond shape four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pick up area during road racing and drag racing
- The 7 Quart Capacity moves the oil away from the rotating assembly for oil control and horsepower saving
- Features a billet aluminum adapter that allows a 13?16" thread Moroso Part No. 22462 or O.E.M. oil filter to be mounted in the stock location, no need to run a remote oil filter
- Included billet aluminum oil filter adapter has a ¼" N.P.T. sensor port
- Uses stock dipstick
- Accepts GM Part No. 12558253 Windage Tray with modification
