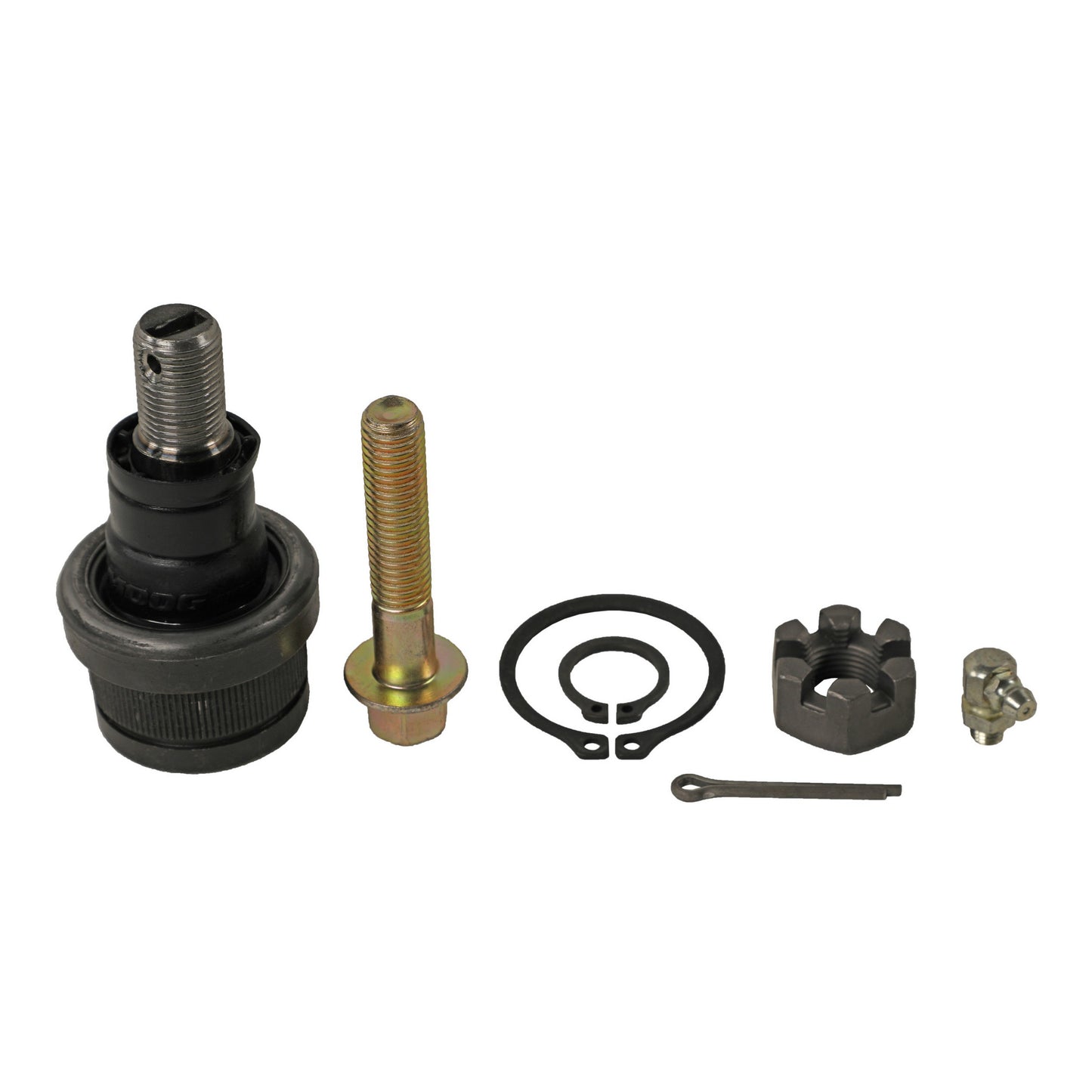

Moog Ball Joint:Lower,Ford,Mazda,Pickup,SUV,4WD
Ball Joint
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Hardened ball stud made of OE equivalent or better materials to withstand higher loads.
- Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
- Premium forged housing with increased cross section of up to 52% more material in key areas.
- Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance.
- Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants.
Ball Joint Specifications
Ball Joint Attachment Type: Press In
Mount Type: Press In
Greasable Design: Yes
Includes Grease Fitting/s: Yes
Includes Bolts: Yes
Includes Nuts: Yes
Includes Castle Nut: Yes
Includes Cotter Pin: Yes
Includes Cotter Pin Hole: Yes
Includes Hardware: Yes
Includes Bushings: No
Quantity of Bushings: 0
Includes Mount Plate: No
Includes Washers: No
Adjustable: No
Bolt Length (Inch): 2.810
Bolt Thread Size: M12x1.75
Boot Material: Neoprene
Heavy Duty: No
Height (Inch): 3.180
Outer Diameter (Inch): 1.870
Inner Diameter (Inch): 1.630
Length (Inch): 3.180
Stud Taper Per Foot: 0.047
Stud Thread: 0.625-18
Type of Suspension: Standard
Meets/Exceeds OE Manufacturer Specs: Yes
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993 | Ford | Explorer | Base, 4x4 |
| 1993 - 1994 | Ford | Explorer | XL, Limited, Eddie Bauer, XLT, Sport |
| 1993 - 1997 | Ford | Ranger | Splash, Sport, XLT, STX, XL |
| 1995 | Ford | Ranger | XL Sport |
| 1995 - 1996 | Mazda | B2300 | Base, SE |
| 1994 - 1997 | Mazda | B3000 | Base |
| 1994 - 1996 | Mazda | B3000 | SE |
| 1997 | Mazda | B4000 | Base |
| 1994 - 1996 | Mazda | B4000 | LE |
| 1994 - 1997 | Mazda | B4000 | SE |
| 1993 - 1994 | Mazda | Navajo | LX, DX |
Moog Ball Joint:Lower,Ford,Mazda,Pickup,SUV,4WD
Sale price$48.20 USD
