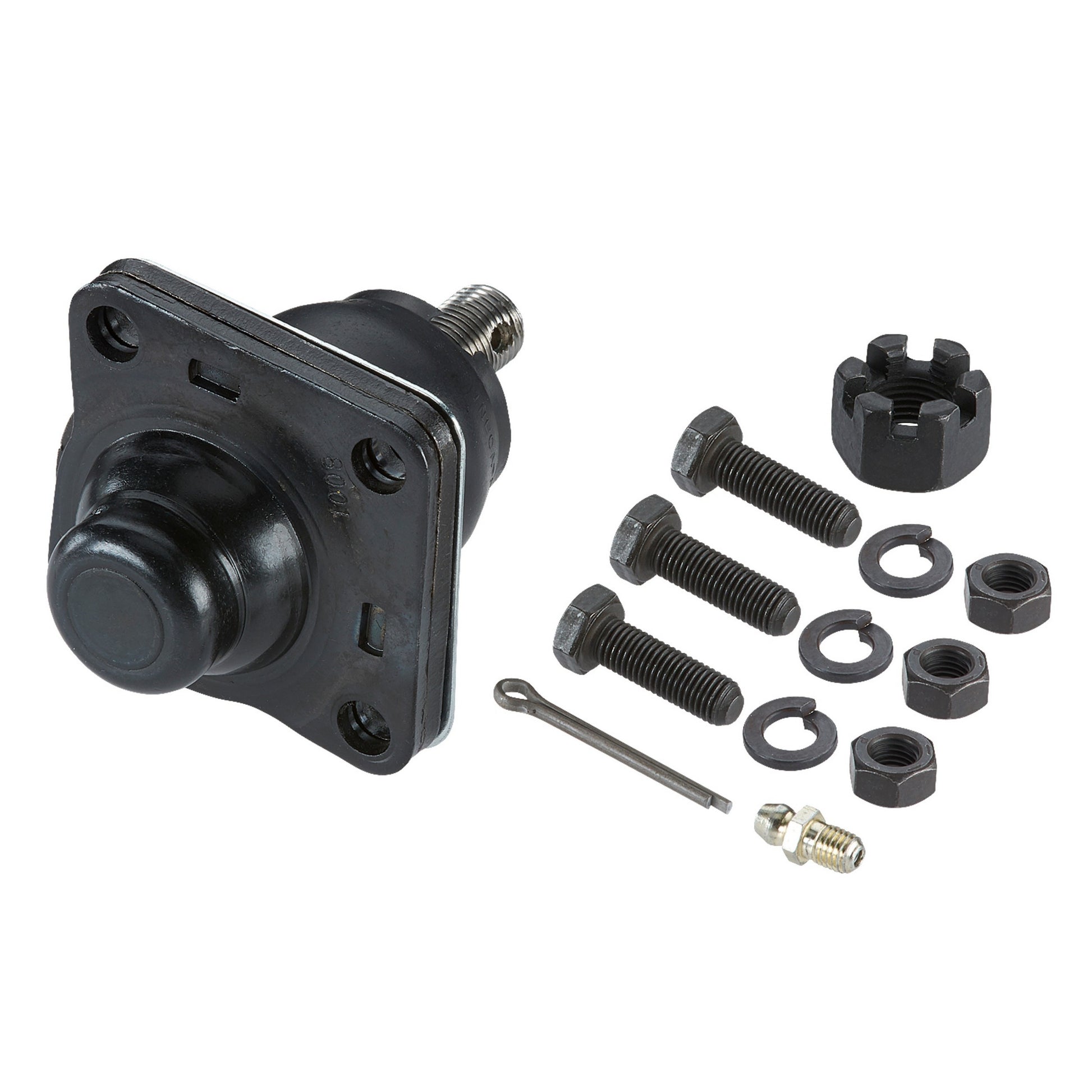

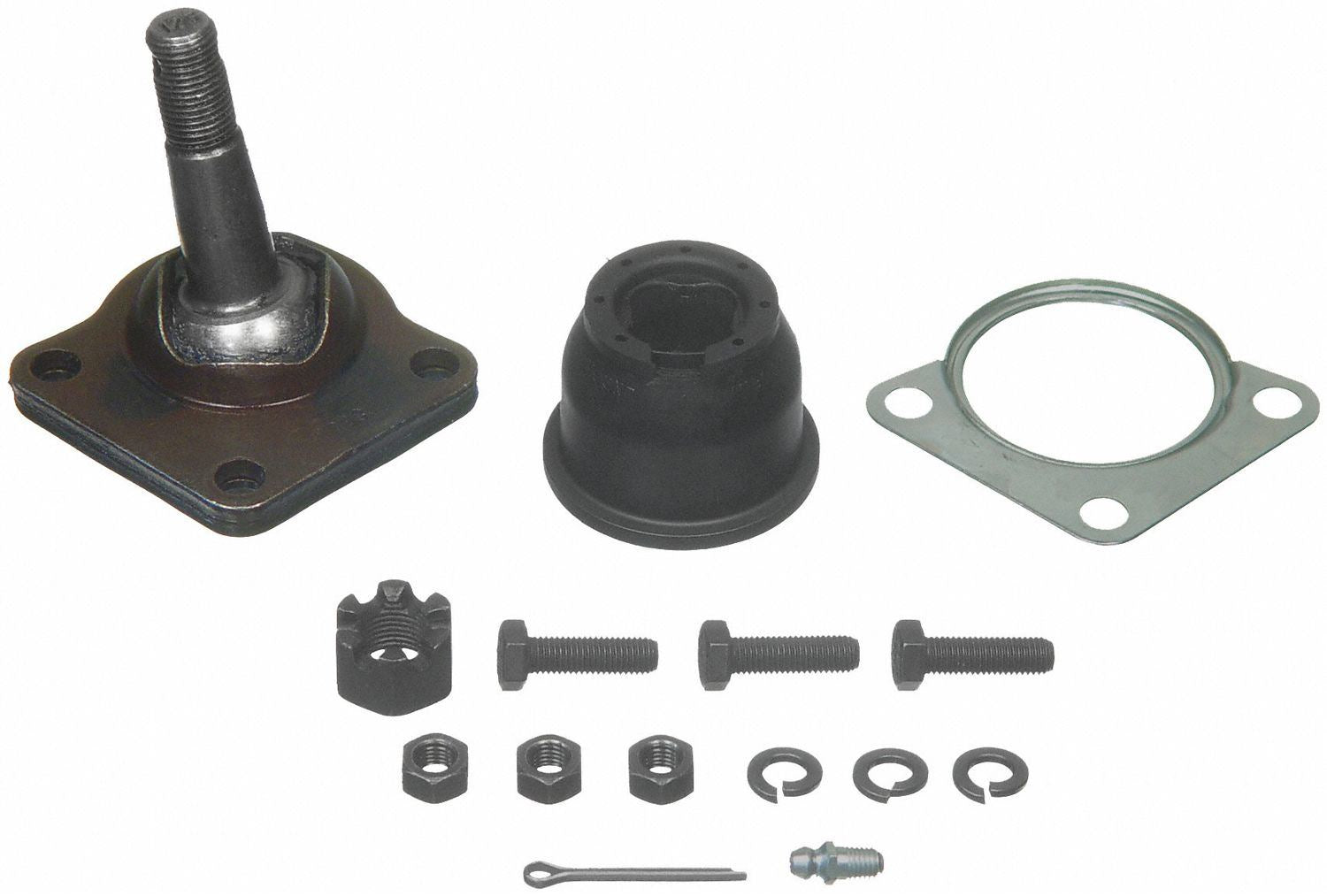

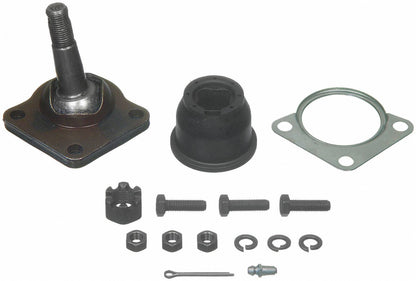

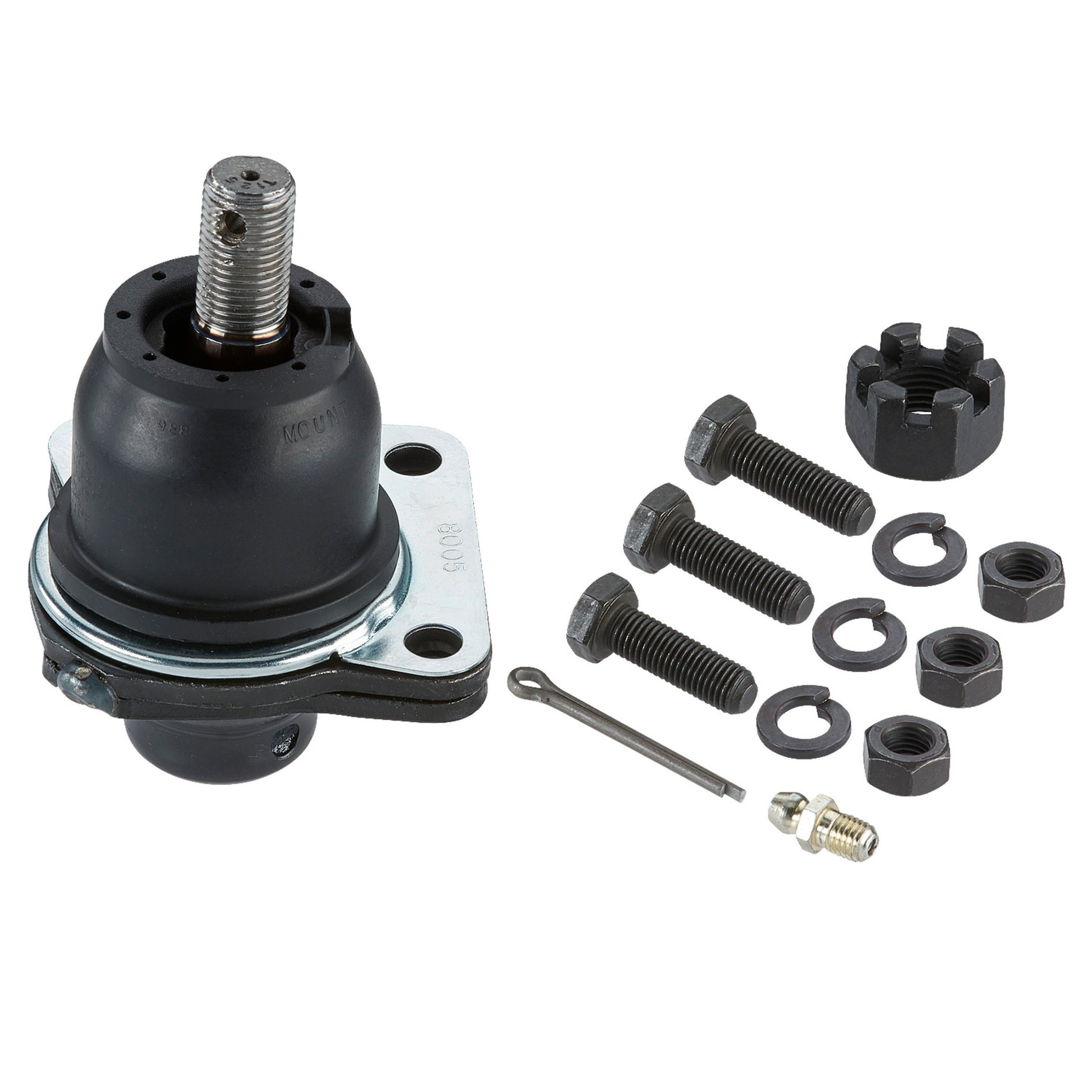

Moog Ball Joint
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Hardened ball stud made of OE equivalent or better materials to withstand higher loads
- Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
- Premium forged housing with increased cross section of up to 52% more material in key areas
- Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance
- Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants
Specifications
| Ball Joint Attachment | Bolt-On |
| Mount Type | Bolt-On |
| Greasable Design | Yes |
| Includes Grease Fitting/s | Yes |
| Includes Bolts | Yes |
| Includes Nuts | Yes |
| Includes Castle Nut | Yes |
| Includes Cotter Pin | Yes |
| Includes Cotter Pin Hole | Yes |
| Includes Hardware | Yes |
| Includes Bushings | No |
| Quantity of Bushings | 0 |
| Includes Mount Plate | Yes |
| Mount Hole Quantity | 3 |
| Includes Washers | Yes |
| Adjustable | No |
| Bolt Length (Inch) | 1.000 |
| Bolt Thread Size | 0.312-24 |
| Boot Material | Neoprene |
| Heavy Duty | No |
| Height (Inch) | 3.900 |
| Length (Inch) | 3.620 |
| Stud Taper Per Foot | 0.047 |
| Stud Thread | 0.562-18 |
| Type of Suspension | Standard |
| Meets/Exceeds OE Manufacturer Specs | Yes |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1970 | Ford | Fairlane | 500 |
| 1970 | Ford | Falcon | Futura, Base |
| 1970 - 1977 | Ford | Maverick | Base |
| 1975 - 1977 | Ford | Maverick | Grabber |
| 1964 - 1973 | Ford | Mustang | Base |
| 1969 - 1971 | Ford | Mustang | Boss 302 |
| 1971 - 1972 | Ford | Mustang | Boss 351 |
| 1969 - 1970 | Ford | Mustang | Boss 429 |
| 1970 - 1973 | Ford | Mustang | Mach 1, Grande |
| 1965 - 1970 | Ford | Mustang | Shelby GT-350 |
| 1966 | Ford | Mustang | Shelby GT-350H |
| 1967 - 1970 | Ford | Mustang | Shelby GT-500 |
| 1968 | Ford | Mustang | Shelby GT-500KR |
| 1970 - 1971 | Ford | Ranchero | 500, GT, Base, Squire |
| 1971 | Ford | Torino | 500 |
| 1970 - 1971 | Ford | Torino | Base, Brougham, GT, Squire, Cobra, Super Cobra Jet |
| 1971 - 1977 | Mercury | Comet | Base |
| 1969 - 1970 | Mercury | Cougar | Boss 429 |
| 1969 - 1971 | Mercury | Cougar | Cobra Jet, Boss 302 |
| 1967 - 1973 | Mercury | Cougar | XR-7, Base |
| 1970 - 1971 | Mercury | Cyclone | GT, Base, Spoiler |
| 1970 - 1971 | Mercury | Montego | Villager, MX Brougham, MX, Base |
Moog Ball Joint
Sale price$50.44 USD
