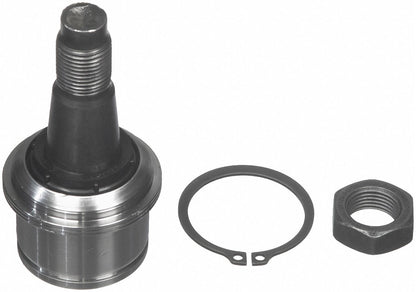

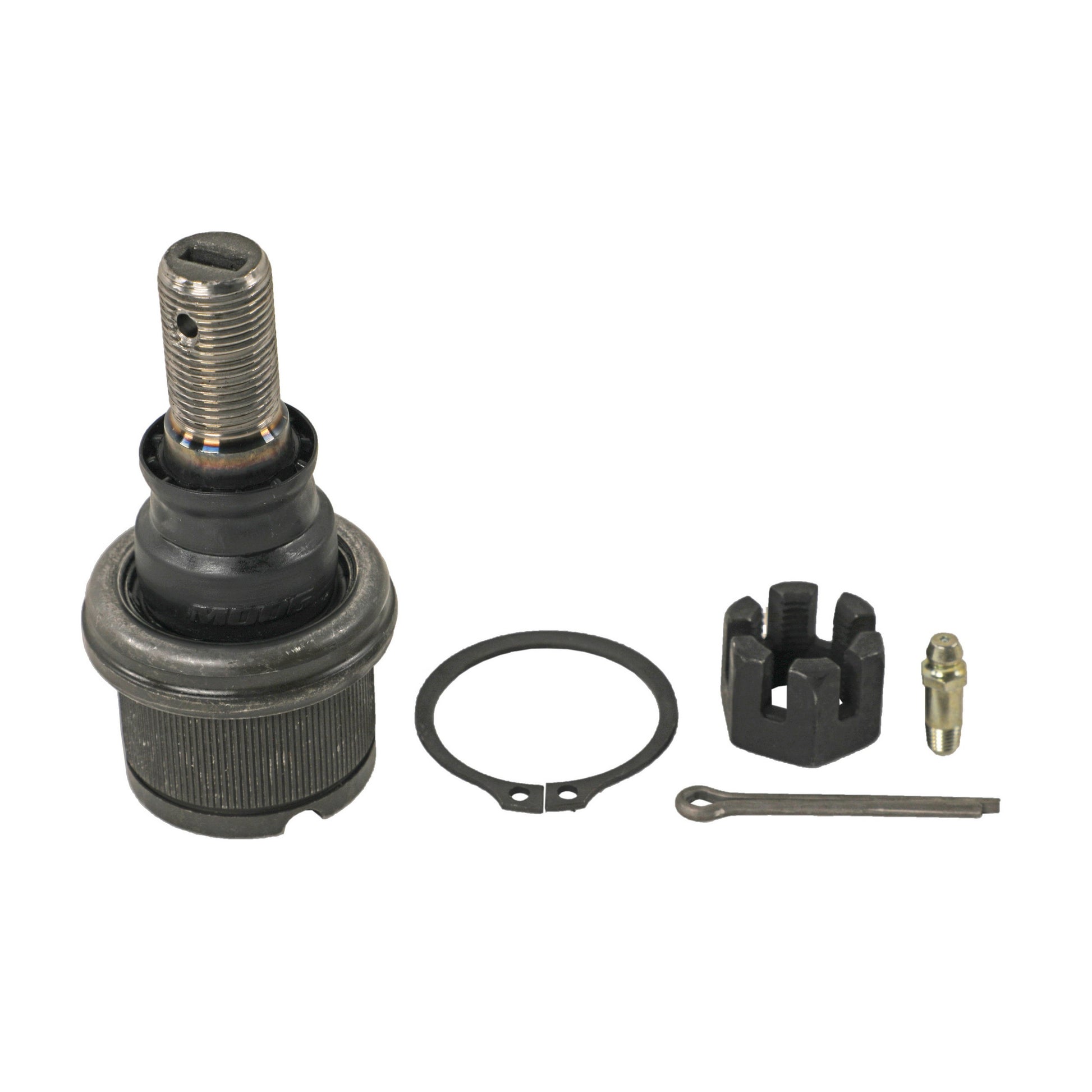

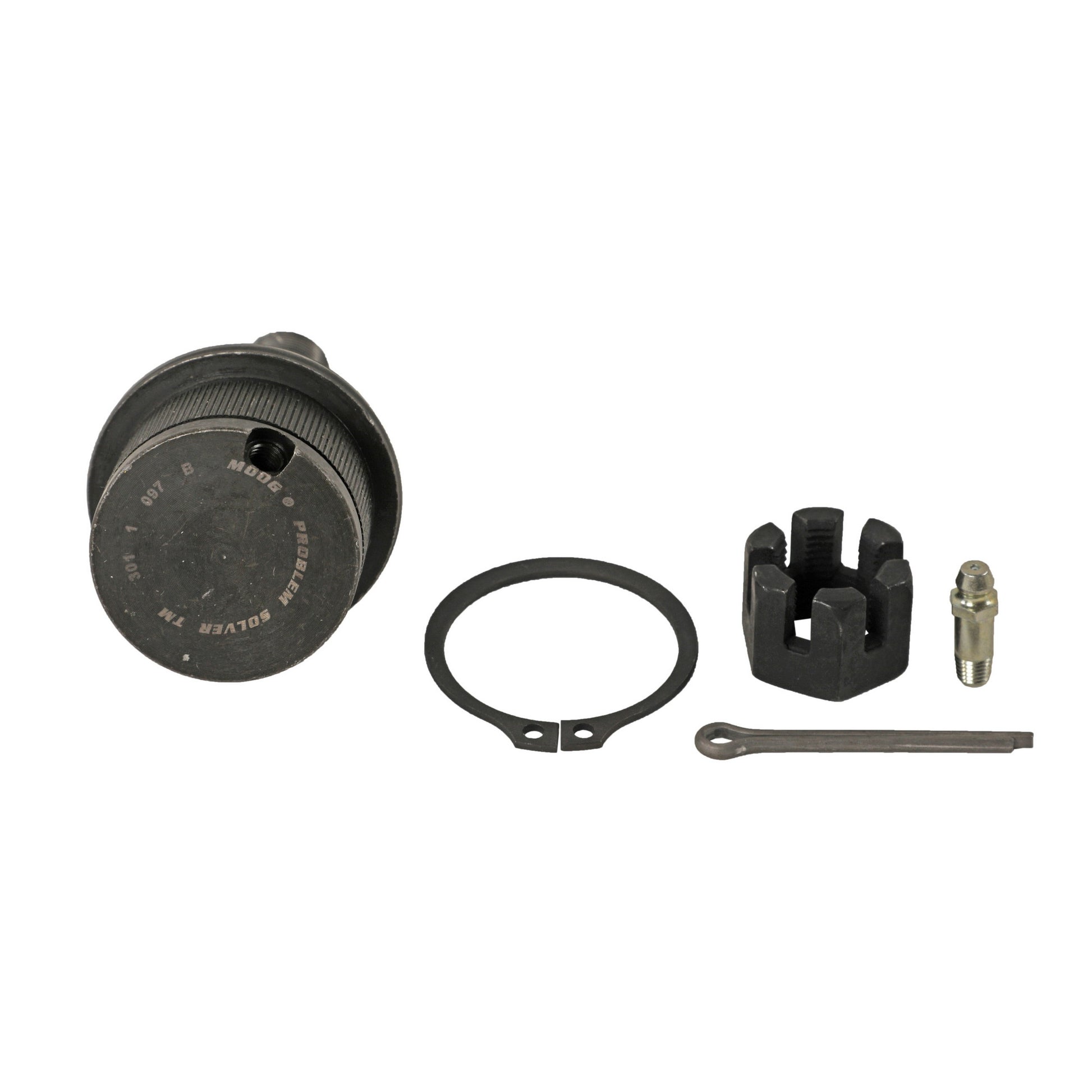

Moog Ball Joint:Lower, Dodge, Pickup, 4WD
Ball Joint
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Hardened ball stud made of OE equivalent or better materials to withstand higher loads.
- Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
- Premium forged housing with increased cross section of up to 52% more material in key areas.
- Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance.
- Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants.
Specifications
Ball Joint Specifications
Ball Joint Attachment Type: Press In
Mount Type: Press In
Greasable Design: Yes
Includes Grease Fitting/s: Yes
Includes Bolts: No
Includes Nuts: No
Includes Castle Nut: Yes
Includes Cotter Pin: Yes
Includes Cotter Pin Hole: Yes
Includes Hardware: Yes
Includes Bushings: No
Quantity of Bushings: 0
Includes Mount Plate: No
Includes Washers: No
Adjustable: No
Boot Material: Neoprene
Heavy Duty: No
Height (Inch): 3.950
Outer Diameter (Inch): 2.140
Inner Diameter (Inch): 1.810
Length (Inch): 3.950
Stud Taper Per Foot: 0.046
Stud Thread: 0.750-16
Type of Suspension: Standard
Meets/Exceeds OE Manufacturer Specs: Yes
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2000 - 2002 | Dodge | Ram 2500 | SLT, Custom, Base |
2000 - 2002 | Dodge | Ram 3500 | Custom, Base |
Moog Ball Joint:Lower, Dodge, Pickup, 4WD
Sale price$82.74 USD
