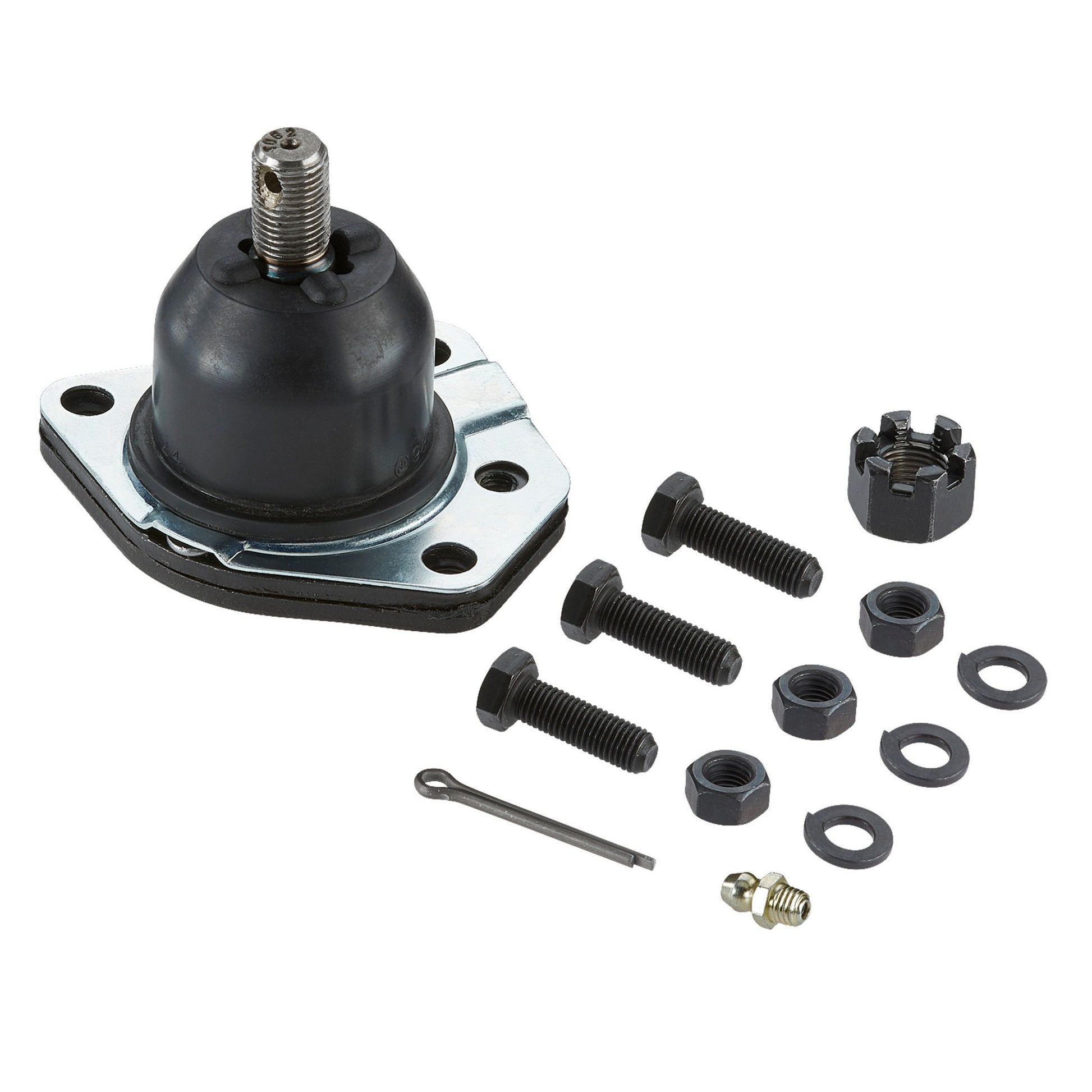

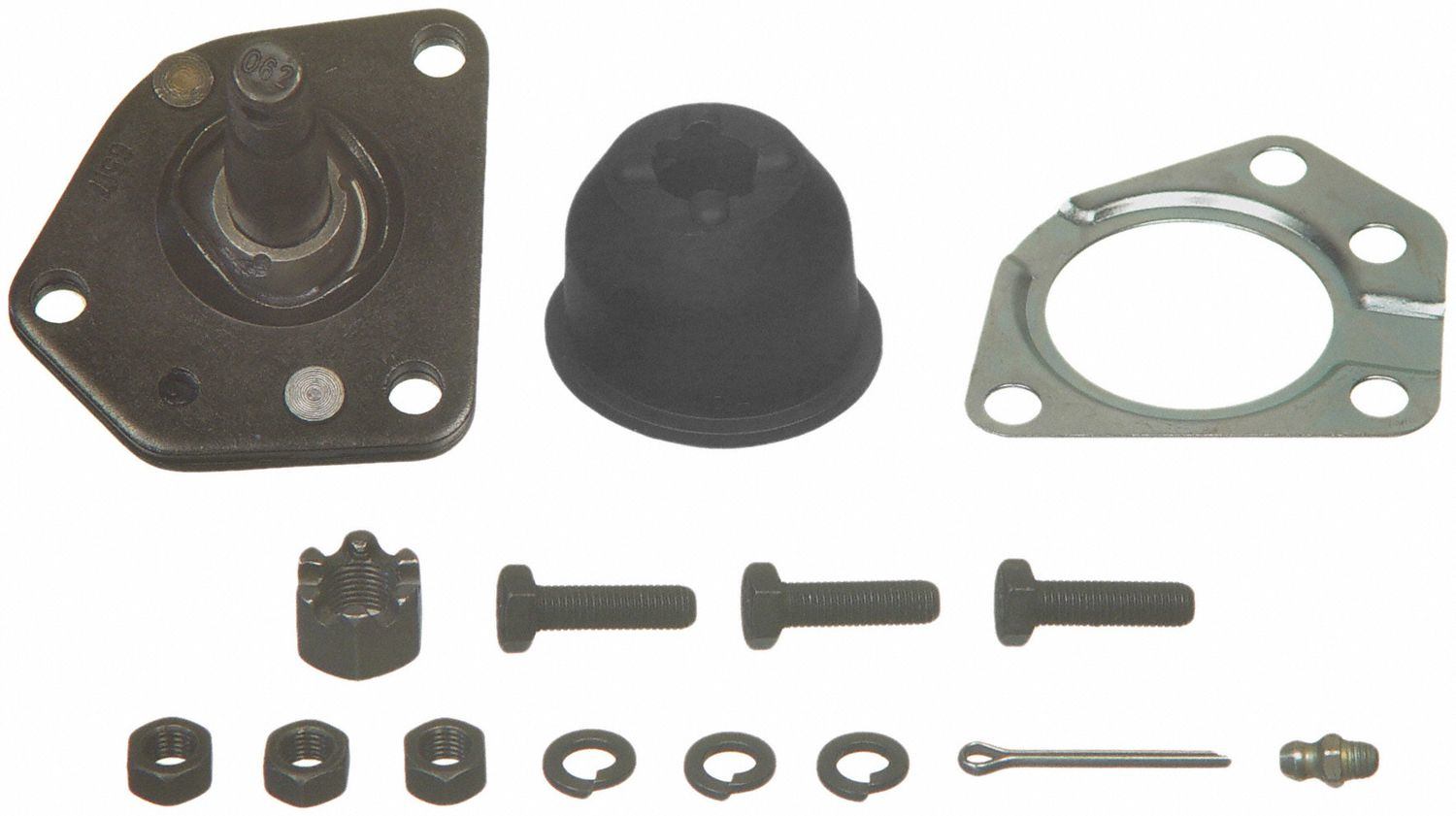

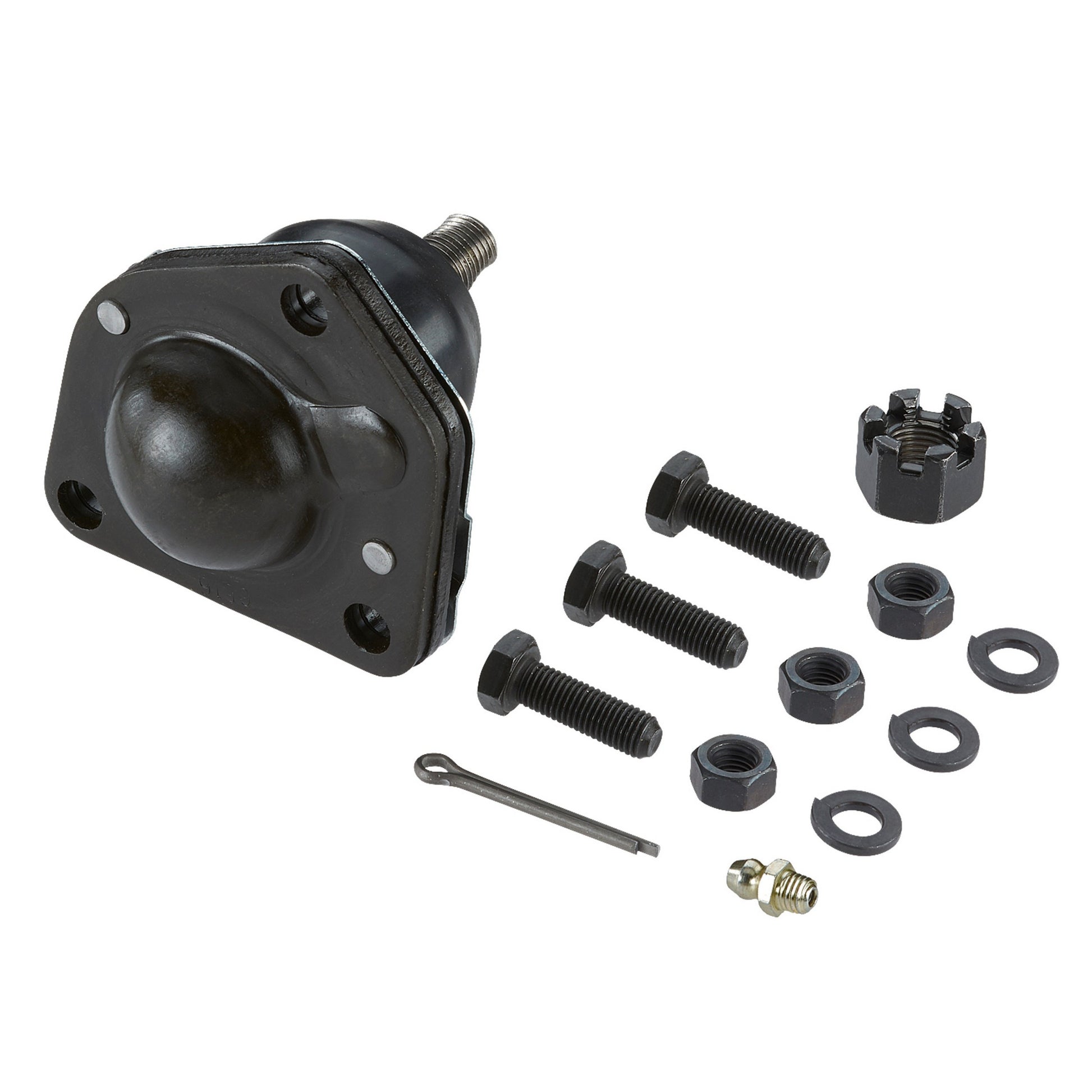

Moog Ball Joint:Upper, Chevy

Moog Ball Joint:Upper, Chevy

sku: 14MPX | mpn: K692
$77.10
$108.36 $77.10
Sale Sold out
Shipping calculated at checkout.

25 in stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Ball Joint

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Hardened ball stud made of OE equivalent or better materials to withstand higher loads.
  • Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
  • Premium forged housing with increased cross section of up to 52% more material in key areas.
  • Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance.
  • Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants.

Specifications
Ball Joint Specifications
Ball Joint Attachment Type: Bolt-On
Mount Type: Bolt-On
Greasable Design: Yes
Includes Grease Fitting/s: Yes
Includes Bolts: No
Includes Nuts: No
Includes Castle Nut: Yes
Includes Cotter Pin: Yes
Includes Cotter Pin Hole: Yes
Includes Hardware: Yes
Includes Bushings: No
Quantity of Bushings: 0
Includes Mount Plate: Yes
Mount Hole Quantity: 3
Includes Washers: Yes
Adjustable: No
Bolt Length (Inch): 1.000
Bolt Thread Size: 0.312-24
Boot Material: Neoprene
Heavy Duty: No
Height (Inch): 2.370
Length (Inch): 2.840
Stud Taper Per Foot: 0.045
Stud Thread: 0.500-20
Type of Suspension: Standard
Meets/Exceeds OE Manufacturer Specs: Yes


Vehicle Fitments:

Year Make Model Submodel
1962 - 1967 Chevrolet Chevy II Base, Nova
1964 - 1967 Chevrolet Chevy II Nova SS
