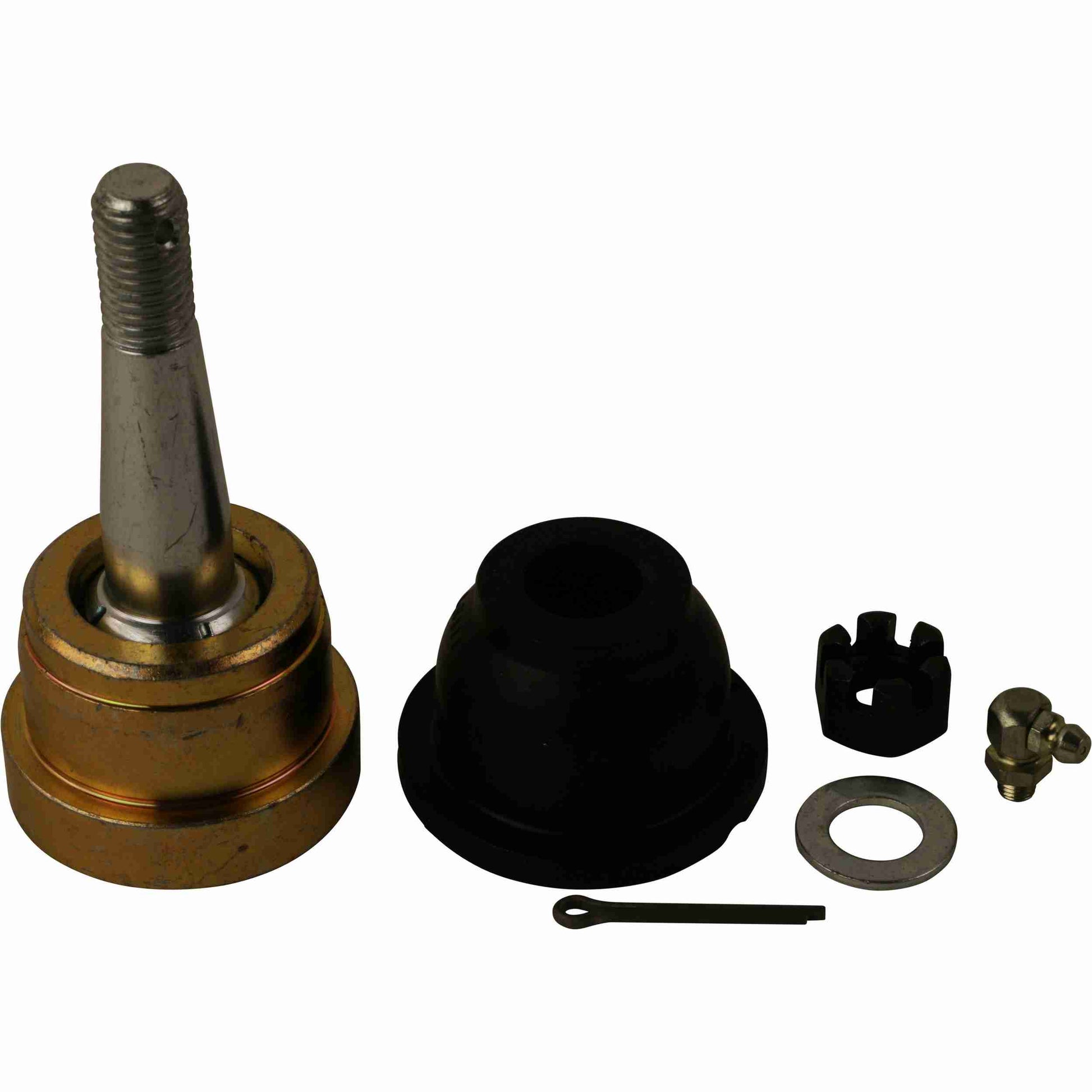

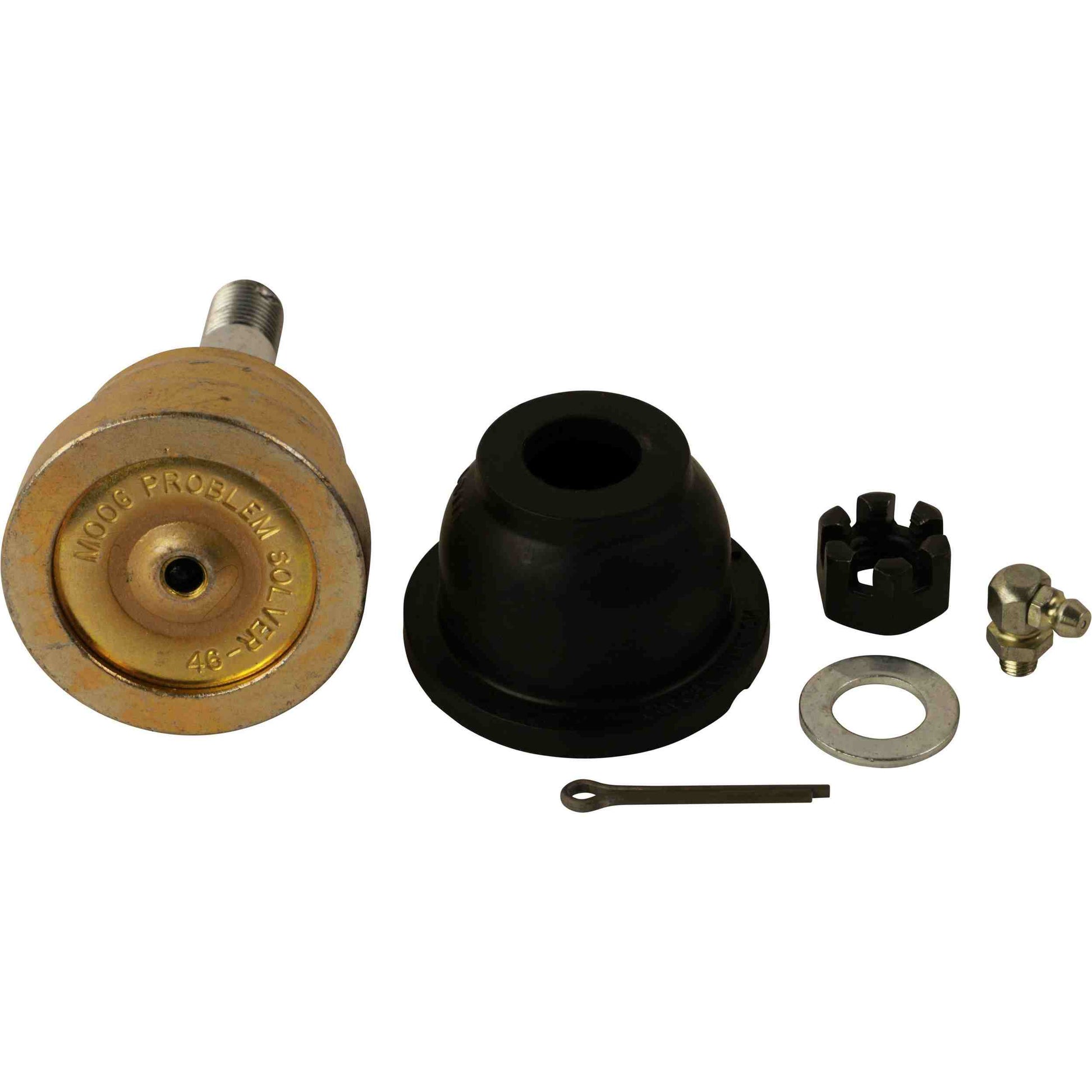

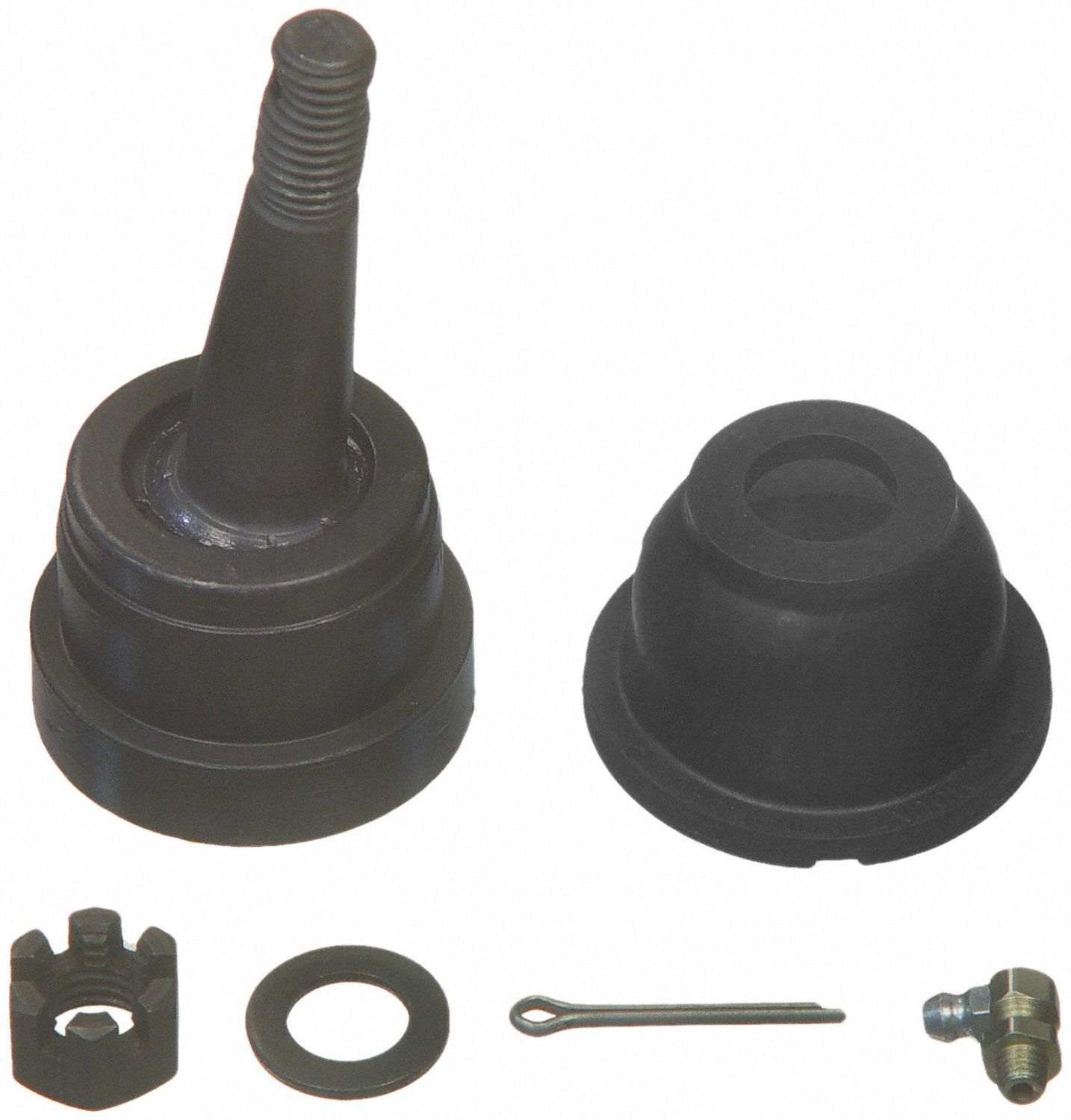

Moog Ball Joint,:Lower,Chevy
Ball Joint
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Hardened ball stud made of OE equivalent or better materials to withstand higher loads.
- Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
- Premium forged housing with increased cross section of up to 52% more material in key areas.
- Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance.
- Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants.
Ball Joint Specifications
Ball Joint Attachment Type: Press-In
Mount Type: Press-In
Greasable Design: Yes
Includes Grease Fitting/s: Yes
Includes Bolts: No
Includes Nuts: No
Includes Castle Nut: Yes
Includes Cotter Pin: Yes
Includes Cotter Pin Hole: Yes
Includes Hardware: Yes
Includes Bushings: No
Quantity of Bushings: 0
Includes Washers: Yes
Adjustable: No
Boot Material: Neoprene
Heavy Duty: No
Height (Inch): 3.970
Outer Diameter (Inch): 2.180
Inner Diameter (Inch): 1.920
Length (Inch): 3.970
Stud Taper Per Foot: 0.046
Type of Suspension: Standard
Meets/Exceeds OE Manufacturer Specs: Yes
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2008 | Cadillac | XLR | Base |
| 2008 - 2009 | Cadillac | XLR | Platinum |
| 2006 - 2009 | Cadillac | XLR | V |
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06 |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition Pace Car, 50th Anniversary Edition |
| 1997 - 2013 | Chevrolet | Corvette | Base |
| 2010 - 2019 | Chevrolet | Corvette | Grand Sport |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 2013 | Chevrolet | Corvette | LT, 427 |
| 2014 - 2019 | Chevrolet | Corvette | Stingray |
| 2001 - 2019 | Chevrolet | Corvette | Z06 |
| 2011 | Chevrolet | Corvette | Z06 Carbon |
| 2014 - 2016 | Chevrolet | Corvette | Z51 |
| 2009 - 2019 | Chevrolet | Corvette | ZR1 |
| 2006 - 2007 | Pontiac | Solstice | Base, GT, SE |
| 2007 | Pontiac | Solstice | GXP |
Moog Ball Joint,:Lower,Chevy
Sale price$143.51 USD
