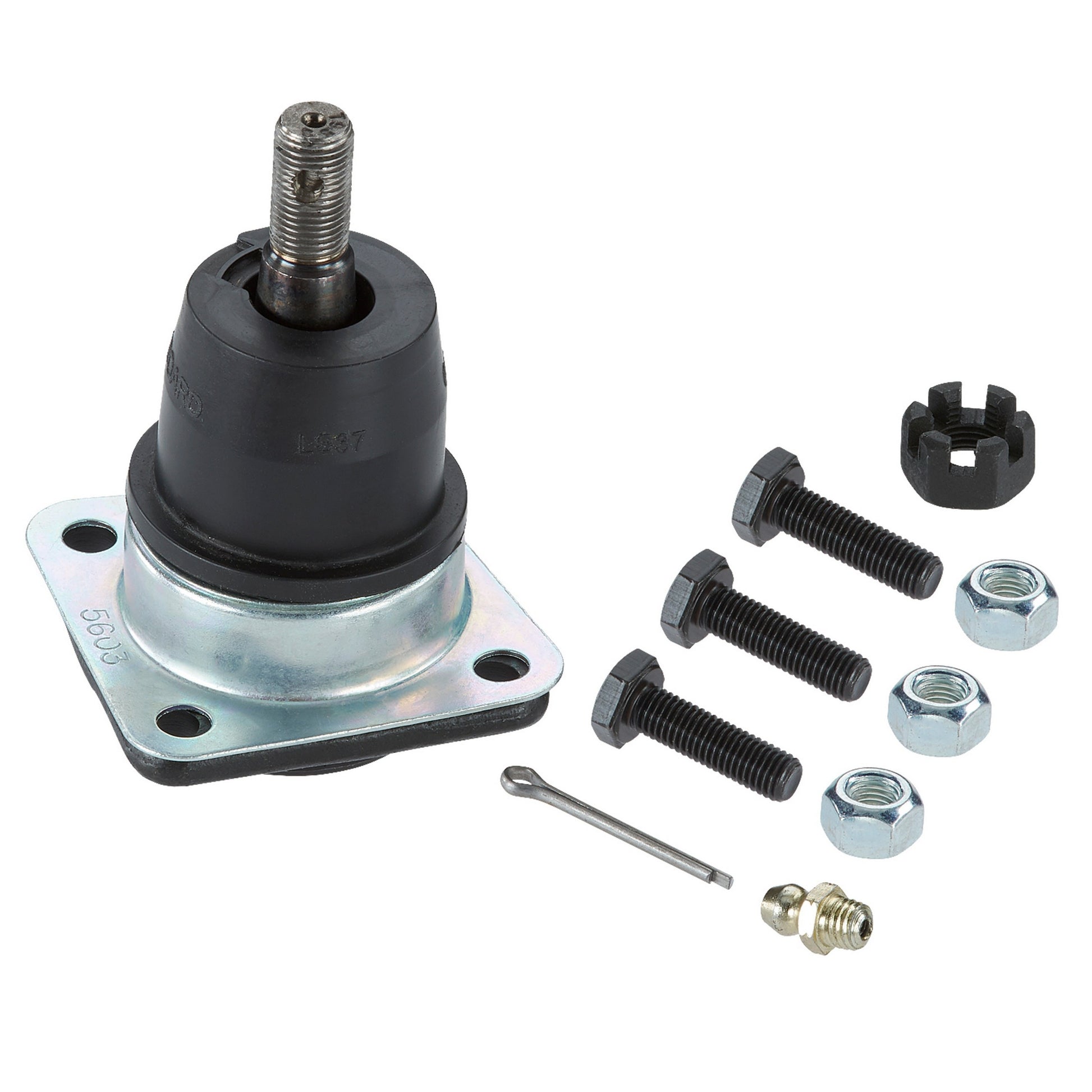

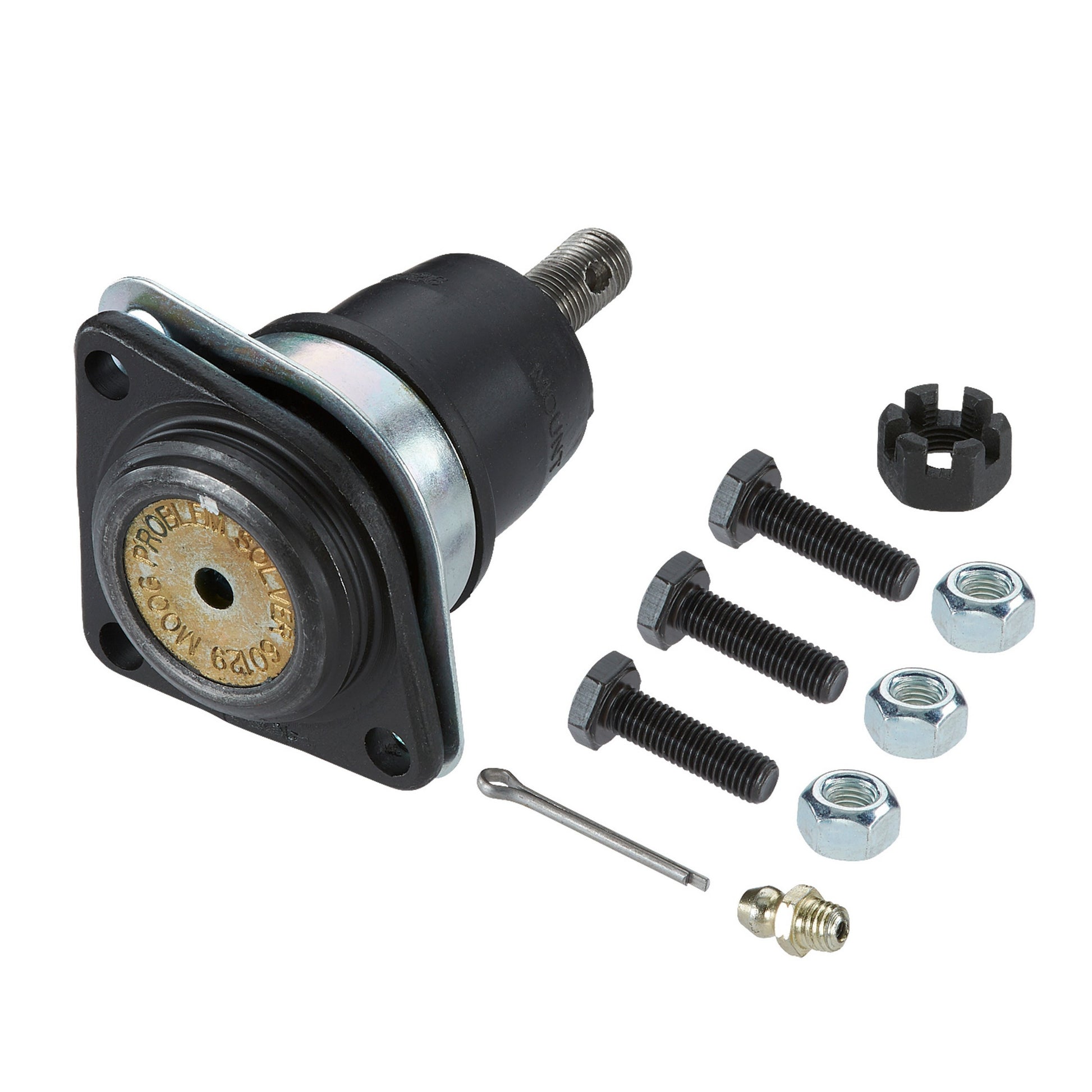

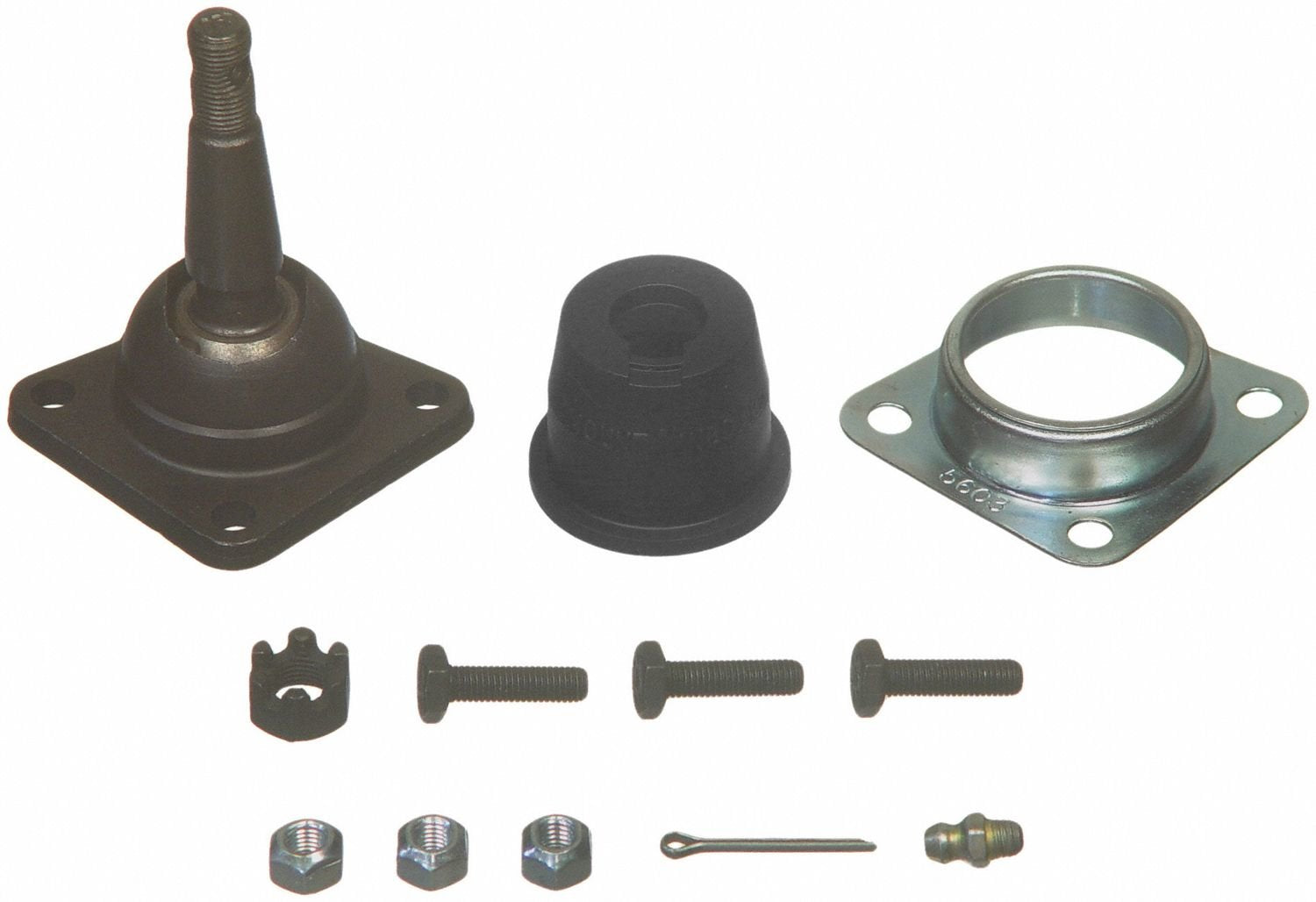

Moog Ball Joint GM 93-95
Ball Joint
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Hardened ball stud made of OE equivalent or better materials to withstand higher loads.
- Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
- Premium forged housing with increased cross section of up to 52% more material in key areas.
- Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance.
- Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants.
Ball Joint Specifications
Ball Joint Attachment Type: Bolt On
Mount Type: Bolt On
Greasable Design: Yes
Includes Grease Fitting/s: Yes
Includes Bolts: Yes
Includes Nuts: Yes
Includes Castle Nut: Yes
Includes Cotter Pin: Yes
Includes Cotter Pin Hole: Yes
Includes Hardware: Yes
Includes Bushings: No
Quantity of Bushings: 0
Includes Mount Plate: Yes
Mount Hole Quantity: 3
Includes Washers: No
Adjustable: No
Bolt Length (Inch): 1.130
Bolt Thread Size: M6x1
Boot Material: Neoprene
Heavy Duty: No
Height (Inch): 3.410
Length (Inch): 2.850
Stud Taper Per Foot: 0.046
Stud Thread: M10x1
Type of Suspension: Standard
Meets/Exceeds OE Manufacturer Specs: Yes
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993 - 2002 | Chevrolet | Camaro | Base, Z28 |
| 1993 | Chevrolet | Camaro | Indianapolis 500 Pace Car |
| 1996 - 1998 | Chevrolet | Camaro | Lujo |
| 1996 - 1997 | Chevrolet | Camaro | RS |
| 1998 - 2002 | Chevrolet | Camaro | Z28 SS |
| 1994 | Pontiac | Firebird | Trans Am GT |
| 1993 - 2002 | Pontiac | Firebird | Trans Am, Base, Formula |
Moog Ball Joint GM 93-95
Sale price$68.01 USD
Regular price$68.01 USD (/)
