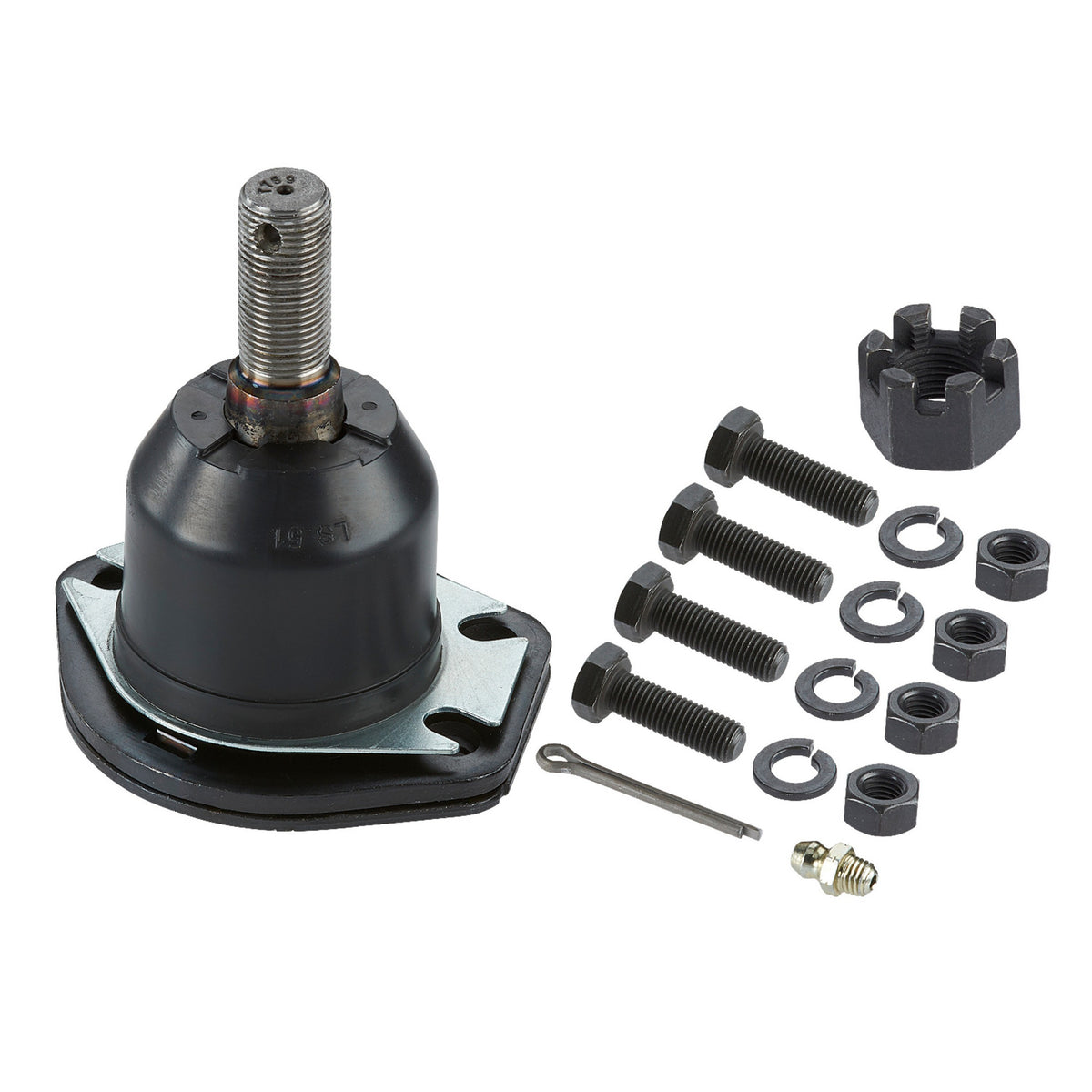

Moog Ball Joint:Greasable,Upper,Chevy,GMC
Ball Joint
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Hardened ball stud made of OE equivalent or better materials to withstand higher loads.
- Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
- Premium forged housing with increased cross section of up to 52% more material in key areas.
- Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance.
- Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants.
Ball Joint Specifications
Ball Joint Attachment Type: Bolt On
Mount Type: Bolt On
Greasable Design: Yes
Includes Grease Fitting/s: Yes
Includes Bolts: Yes
Includes Nuts: Yes
Includes Castle Nut: Yes
Includes Cotter Pin: Yes
Includes Cotter Pin Hole: Yes
Includes Hardware: Yes
Includes Bushings: No
Quantity of Bushings: 0
Includes Mount Plate: Yes
Mount Hole Quantity: 4
Includes Washers: Yes
Adjustable: No
Bolt Length (Inch): 1.180
Bolt Thread Size: M8x1.25
Boot Material: Neoprene
Heavy Duty: No
Height (Inch): 3.890
Outer Diameter(Inch): 3.560
Length (Inch): 2.810
Stud Taper Per Foot: 0.046
Stud Thread: 0.625-18
Type of Suspension: Standard
Meets/Exceeds OE Manufacturer Specs: Yes
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1975 - 1999 | Chevrolet | P30 | Base |
| 1975 - 1990 | Chevrolet | P30 | Step-Van |
| 1973 - 1974 | Chevrolet | P30 Van | Base |
| 1975 - 1978 | GMC | P35 | Value Van, Base |
| 1973 - 1974 | GMC | P35/P3500 Van | Base |
| 1974 | GMC | P35/P3500 Van | Motorhome |
| 1979 - 1999 | GMC | P3500 | Base |
| 1979 - 1990 | GMC | P3500 | Value Van |
Moog Ball Joint:Greasable,Upper,Chevy,GMC
Sale price$50.90 USD
