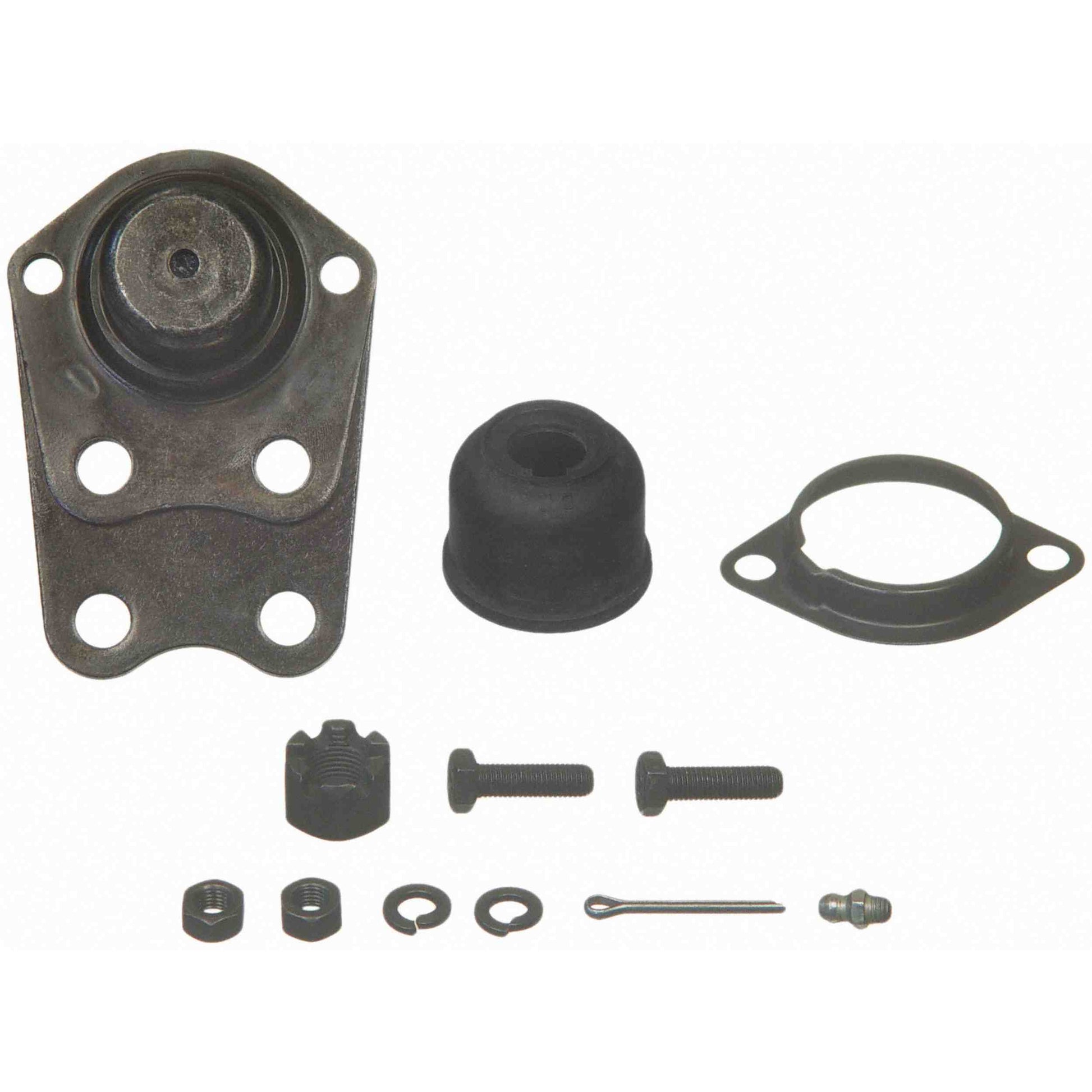

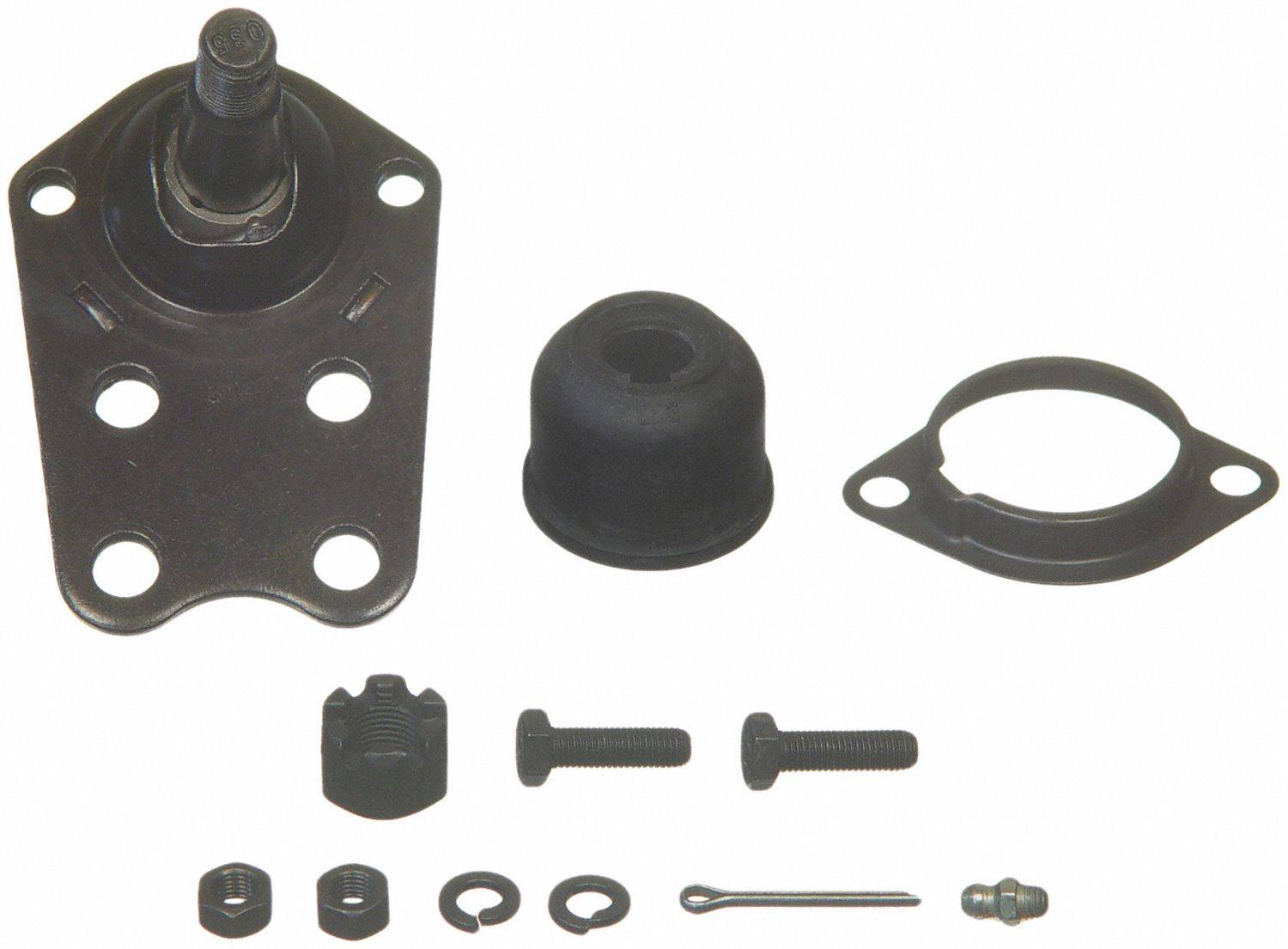

Moog Ball Joint:Lower,AMC
Ball Joint
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Hardened ball stud made of OE equivalent or better materials to withstand higher loads.
- Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
- Premium forged housing with increased cross section of up to 52% more material in key areas.
- Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance.
- Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants.
Specifications
Ball Joint Specifications
Ball Joint Attachment Type: Bolt On
Mount Type: Bolt On
Greasable Design: Yes
Includes Grease Fitting/s: Yes
Includes Bolts: Yes
Includes Nuts: Yes
Includes Castle Nut: Yes
Includes Cotter Pin: Yes
Includes Cotter Pin Hole: Yes
Includes Hardware: Yes
Includes Bushings: No
Quantity of Bushings: 0
Includes Mount Plate: Yes
Mount Hole Quantity: 4
Includes Washers: Yes
Adjustable: No
Bolt Length (Inch): 1.000
Bolt Thread Size: 0.312-24
Boot Material: Neoprene
Heavy Duty: No
Height (Inch): 2.530
Length (Inch): 2.920
Stud Taper Per Foot: 0.045
Type of Suspension: Standard
Meets/Exceeds OE Manufacturer Specs: Yes
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1970 | American Motors | Ambassador | Base |
| 1971 - 1974 | American Motors | Ambassador | Brougham |
| 1970 - 1971 | American Motors | Ambassador | DPL |
| 1970 - 1972 | American Motors | Ambassador | SST |
| 1970 - 1980 | American Motors | AMX | Base |
| 1978 - 1983 | American Motors | Concord | Base |
| 1979 - 1983 | American Motors | Concord | Limited, DL |
| 1970 - 1978 | American Motors | Gremlin | Base |
| 1976 - 1978 | American Motors | Gremlin | Custom |
| 1977 | American Motors | Hornet | AMX |
| 1970 - 1977 | American Motors | Hornet | Base |
| 1971 | American Motors | Hornet | SC/360 |
| 1971 - 1977 | American Motors | Hornet | Sportabout |
| 1970 - 1972 | American Motors | Hornet | SST |
| 1971 - 1974 | American Motors | Javelin | AMX |
| 1970 - 1974 | American Motors | Javelin | Base |
| 1970 - 1972 | American Motors | Javelin | SST |
| 1970 | American Motors | Javelin | SST Trans Am, SST Mark Donohue |
| 1971 - 1978 | American Motors | Matador | Base |
| 1974 | American Motors | Matador | X, Brougham |
| 1970 | American Motors | Rebel | The Machine, Base, SST |
| 1979 - 1982 | American Motors | Spirit | Base |
| 1980 - 1983 | American Motors | Spirit | DL |
| 1983 | American Motors | Spirit | GT |
| 1980 | American Motors | Spirit | Limited |
Moog Ball Joint:Lower,AMC
Sale price$45.58 USD
