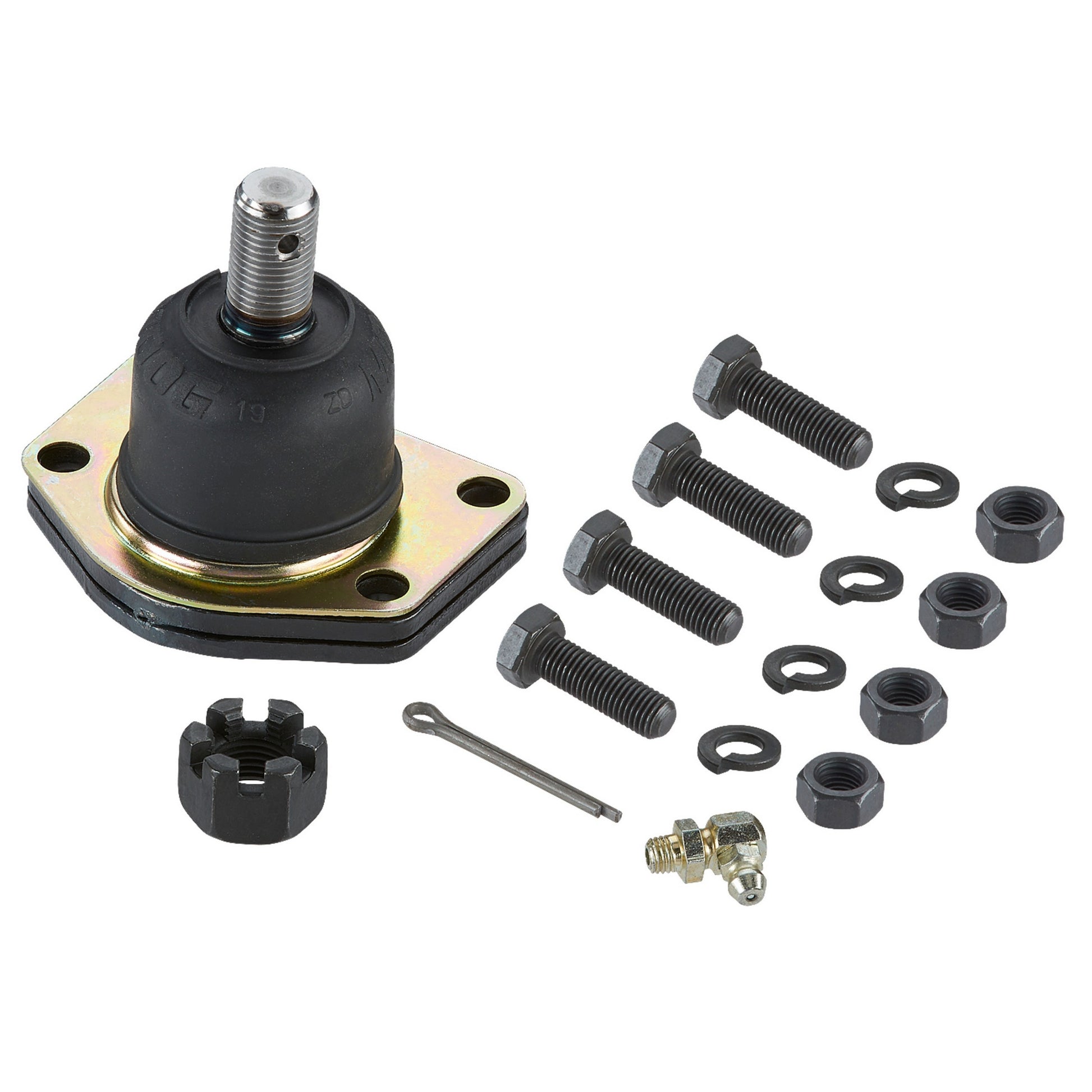

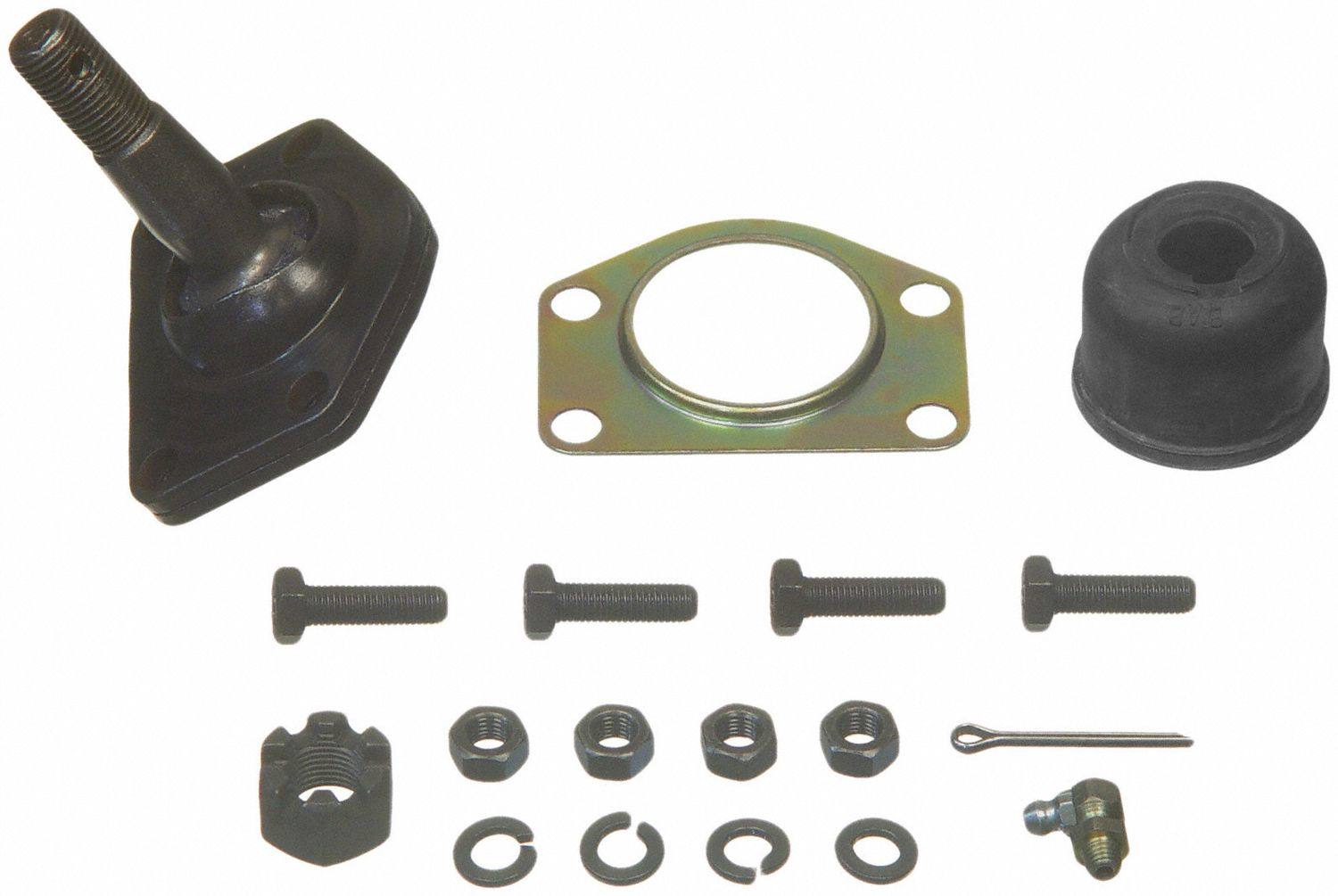

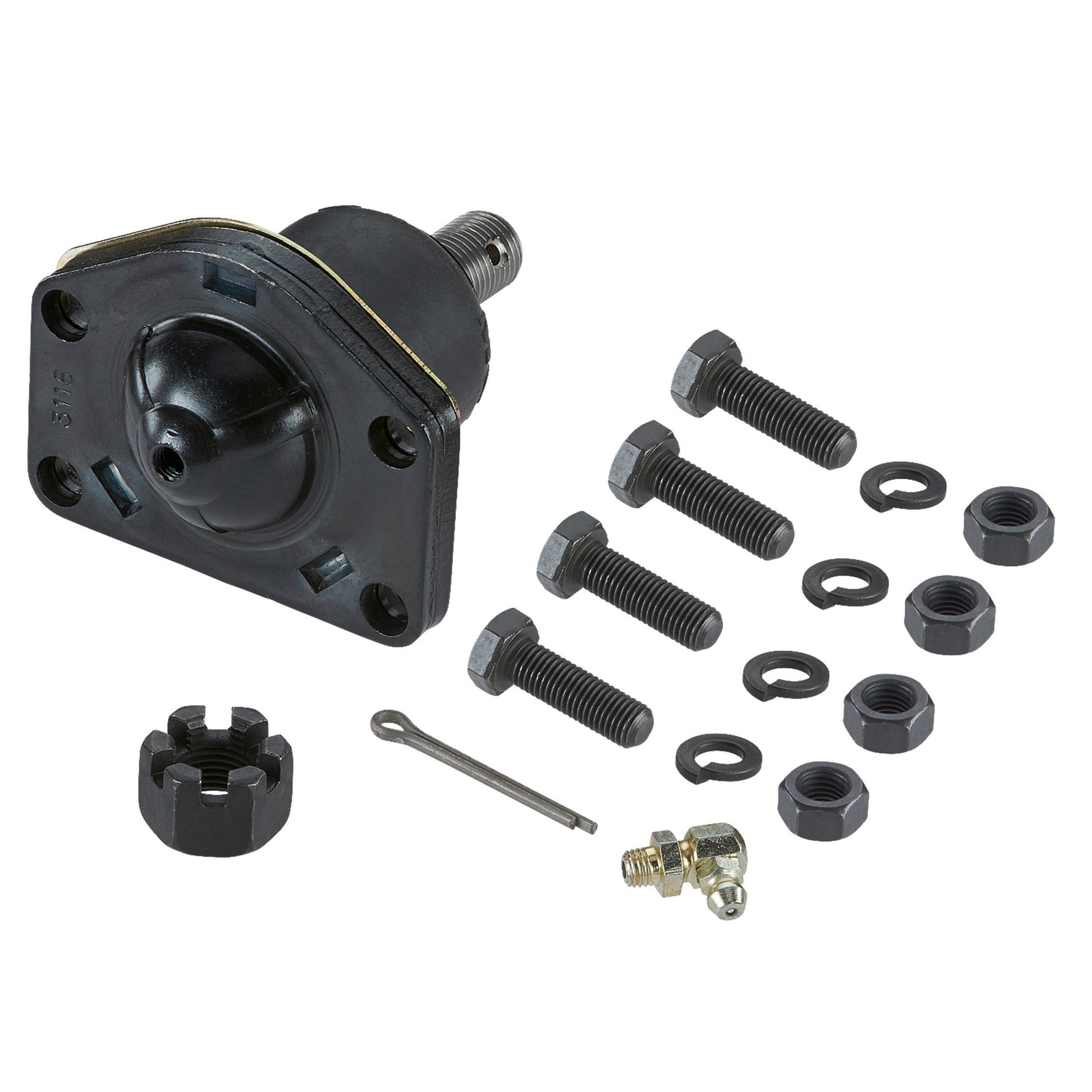

Moog Ball Joint:Upper,AMC
Ball Joint
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Hardened ball stud made of OE equivalent or better materials to withstand higher loads.
- Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
- Premium forged housing with increased cross section of up to 52% more material in key areas.
- Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance.
- Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants.
Specifications
Ball Joint Specifications
Ball Joint Attachment Type: Bolt On
Mount Type: Bolt On
Greasable Design: Yes
Includes Grease Fitting/s: Yes
Includes Bolts: Yes
Includes Nuts: Yes
Includes Castle Nut: Yes
Includes Cotter Pin: Yes
Includes Cotter Pin Hole: Yes
Includes Hardware: Yes
Includes Bushings: No
Quantity of Bushings: 0
Includes Mount Plate: Yes
Mount Hole Quantity: 4
Includes Washers: Yes
Adjustable: No
Bolt Length (Inch): 1.180
Bolt Thread Size: M8x1.25
Boot Material: Neoprene
Heavy Duty: No
Height (Inch): 3.390
Outer Diameter(Inch): 2.490
Length (Inch): 3.390
Stud Taper Per Foot: 0.047
Stud Thread: 0.562-18
Type of Suspension: Standard
Meets/Exceeds OE Manufacturer Specs: Yes
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1970 | American Motors | Ambassador | Base |
| 1971 - 1974 | American Motors | Ambassador | Brougham |
| 1970 - 1971 | American Motors | Ambassador | DPL |
| 1970 - 1972 | American Motors | Ambassador | SST |
| 1970 - 1980 | American Motors | AMX | Base |
| 1978 - 1983 | American Motors | Concord | Base |
| 1979 - 1983 | American Motors | Concord | Limited, DL |
| 1981 - 1988 | American Motors | Eagle | Base |
| 1981 - 1983 | American Motors | Eagle | DL SX4, SX4 |
| 1981 - 1982 | American Motors | Eagle | Kammback, DL Kammback |
| 1980 - 1987 | American Motors | Eagle | Limited |
| 1980 | American Motors | Eagle | Sport, DL |
| 1970 - 1978 | American Motors | Gremlin | Base |
| 1976 - 1978 | American Motors | Gremlin | Custom |
| 1977 | American Motors | Hornet | AMX |
| 1970 - 1977 | American Motors | Hornet | Base |
| 1971 | American Motors | Hornet | SC/360 |
| 1971 - 1977 | American Motors | Hornet | Sportabout |
| 1970 - 1972 | American Motors | Hornet | SST |
| 1971 - 1974 | American Motors | Javelin | AMX |
| 1969 - 1974 | American Motors | Javelin | Base |
| 1969 - 1972 | American Motors | Javelin | SST |
| 1970 | American Motors | Javelin | SST Mark Donohue, SST Trans Am |
| 1971 - 1978 | American Motors | Matador | Base |
| 1974 | American Motors | Matador | Brougham, X |
| 1970 | American Motors | Rebel | Base, The Machine, SST |
| 1979 - 1982 | American Motors | Spirit | Base |
| 1980 - 1983 | American Motors | Spirit | DL |
| 1983 | American Motors | Spirit | GT |
| 1980 | American Motors | Spirit | Limited |
Moog Ball Joint:Upper,AMC
Sale price$48.69 USD
