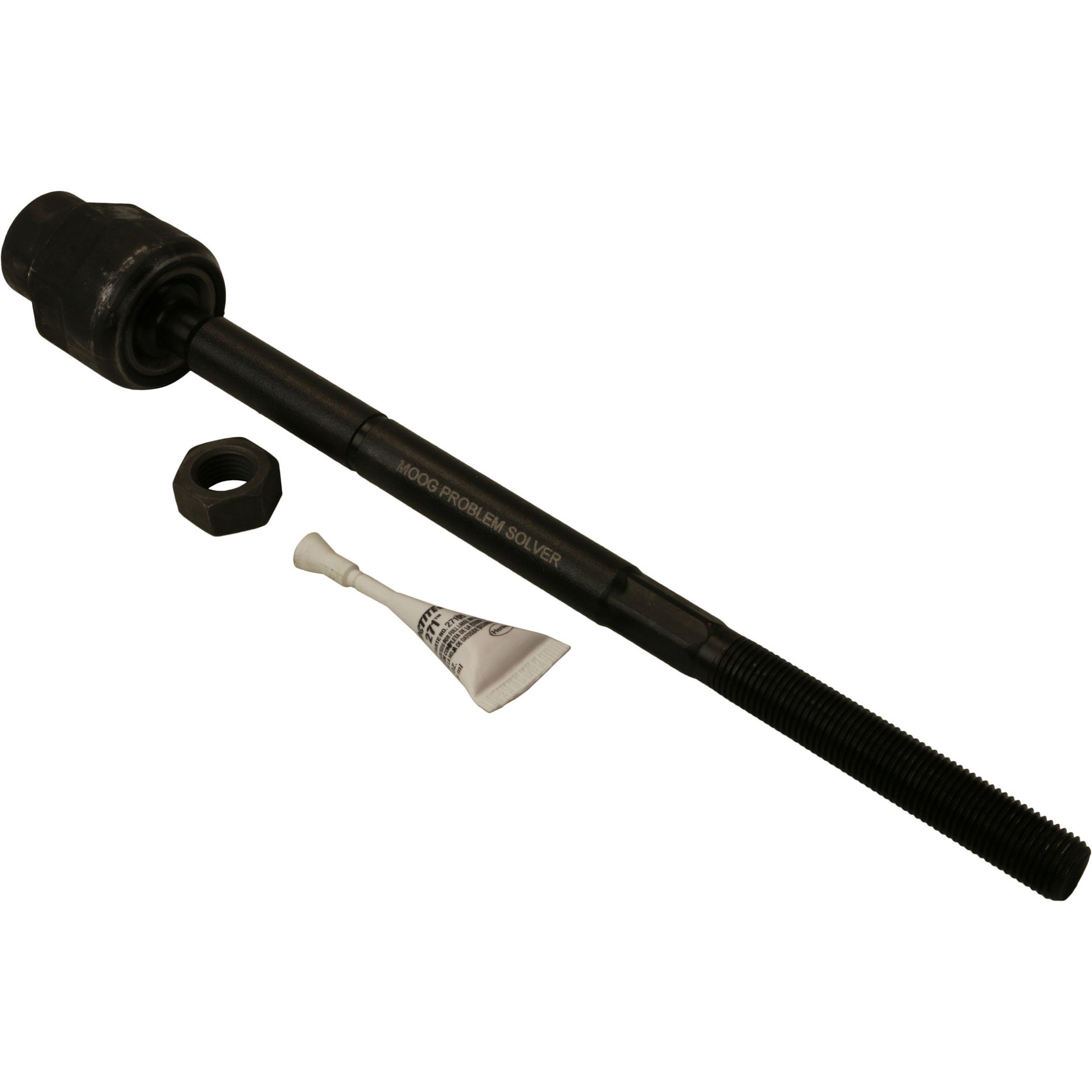

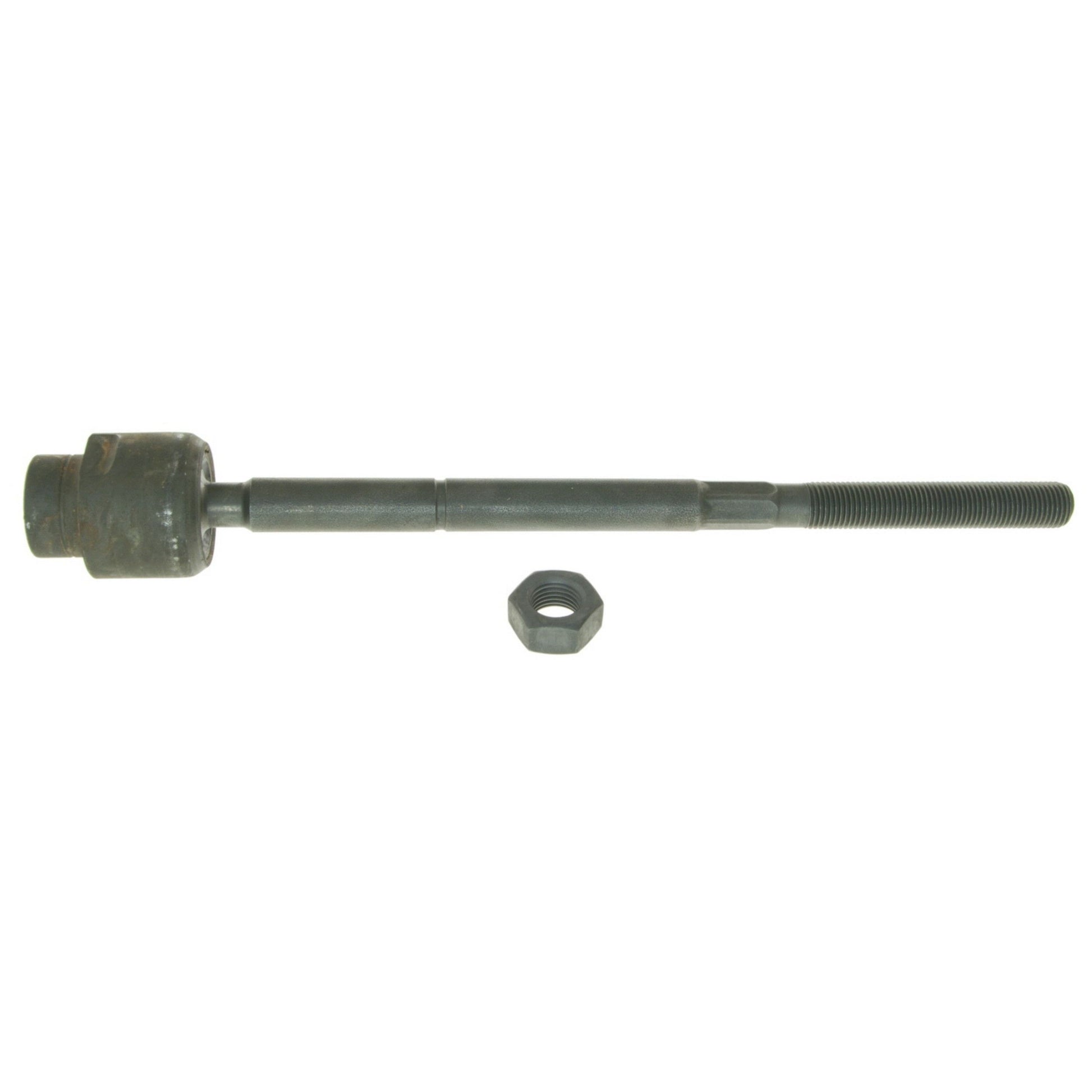

Moog Tie Rod End:Inner, Buick, Chevy, Pontiac, Saturn

Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Length (in): 11.380
Outer Tie Rod Thread: M14-1.5R
Shaft Diameter (in): 0.545
Rack End Thread: M14-1.5R
Rack End Type (Male / Female): FEMALE
Specification Image Reference: INNERTIEROD.tif
End 1 Thread Pitch (MM): 1.500
End 2 Thread Diameter (MM): 14.0
End 2 Thread Pitch (MM): 1.5
End 2 Thread Direction: Clockwise
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2004 - 2009 | Chevrolet | Malibu | Base |
2008 | Chevrolet | Malibu | Classic LT, Classic LS |
2008 - 2010 | Chevrolet | Malibu | Hybrid |
2004 - 2012 | Chevrolet | Malibu | LT, LS |
2006 - 2012 | Chevrolet | Malibu | LTZ |
2004 | Chevrolet | Malibu | Maxx |
2004 - 2007 | Chevrolet | Malibu | Maxx LS, Maxx LT |
2006 - 2007 | Chevrolet | Malibu | Maxx LTZ, SS, Maxx SS |
2005 - 2010 | Pontiac | G6 | GT, Base |
2006 - 2007 | Pontiac | G6 | GTP |
2008 - 2009 | Pontiac | G6 | GXP |
2005 - 2009 | Pontiac | G6 | SE |
2007 - 2008 | Saturn | Aura | Green Line |
2009 | Saturn | Aura | Hybrid |
2007 - 2009 | Saturn | Aura | XE, XR |

Moog Tie Rod End:Inner, Buick, Chevy, Pontiac, Saturn
Sale price$54.30 USD
Regular price$58.48 USD
