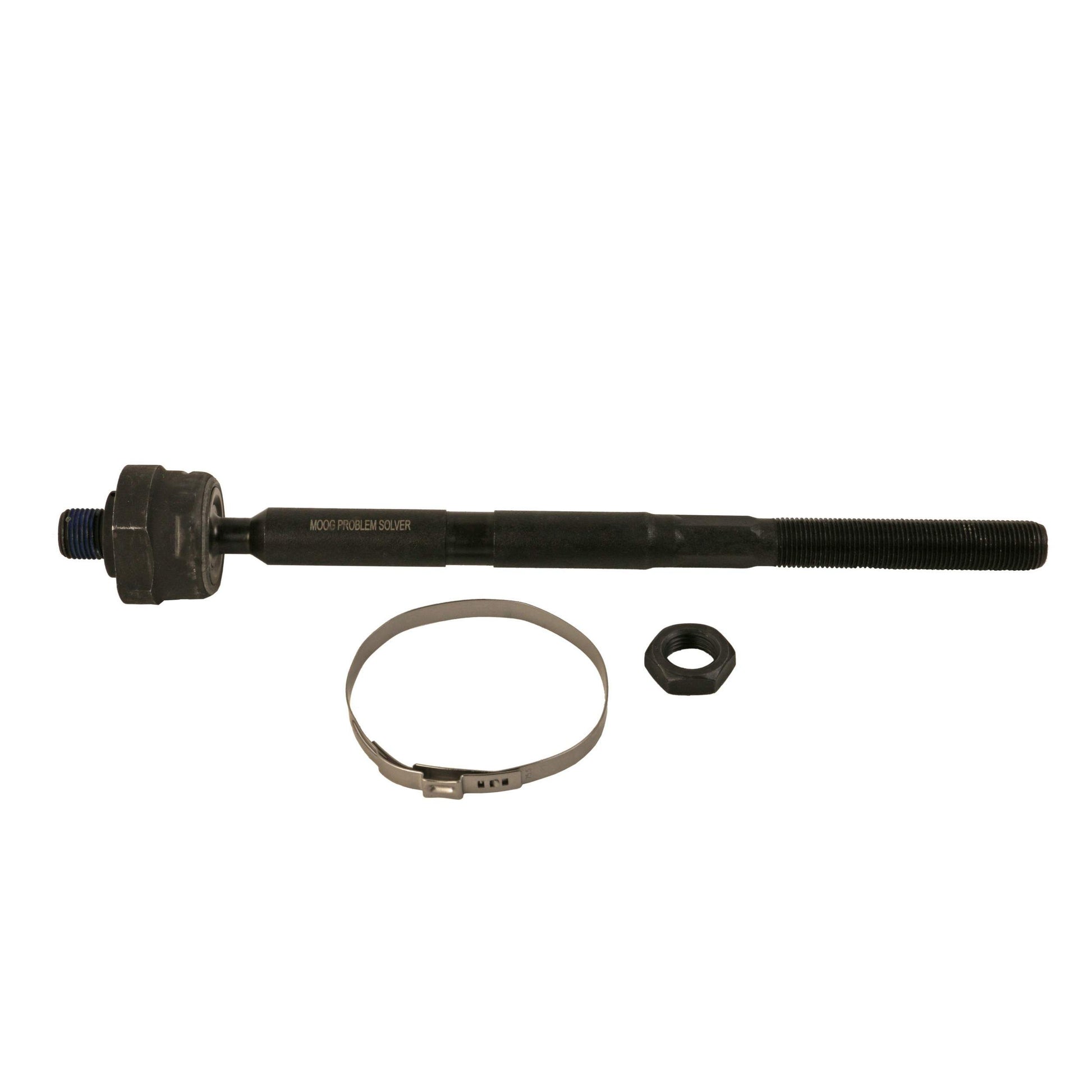

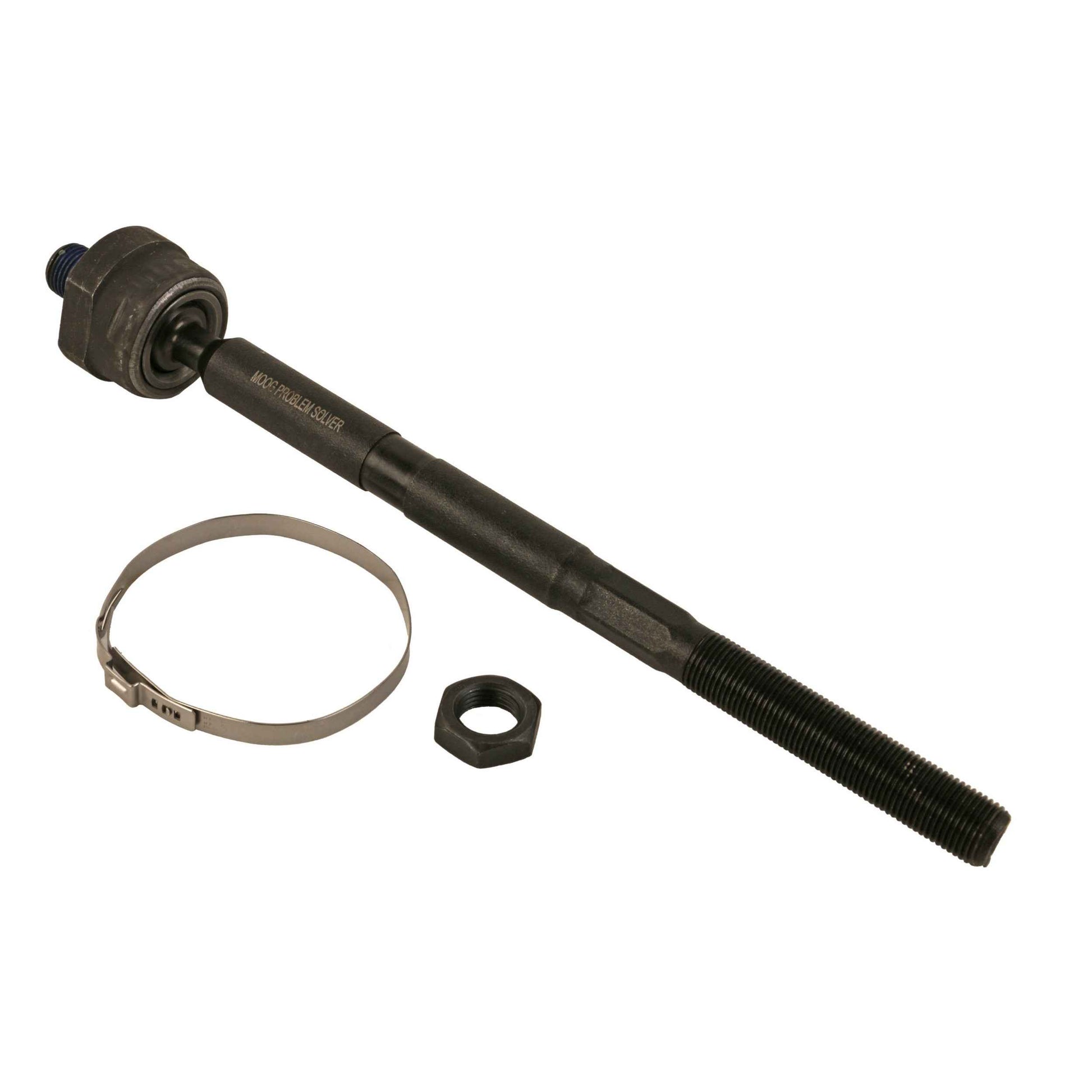

Moog Tie Rod End, Inner, Jeep

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Length (in)                               11.400

Outer Tie Rod Thread                M16 x 1.5R

Shaft Diameter (in)                   0.658

Rack End Thread                       M16 x 1.5R

Rack End Type                          Male

Specification Image Reference   INNERTIEROD.tif

End 1 Thread Pitch (MM)           1.500

End 2 Thread Diameter (MM)     16.0

End 2 Thread Pitch (MM)            1.5

End 2 Thread Direction              Clockwise

Vehicle Fitments:
