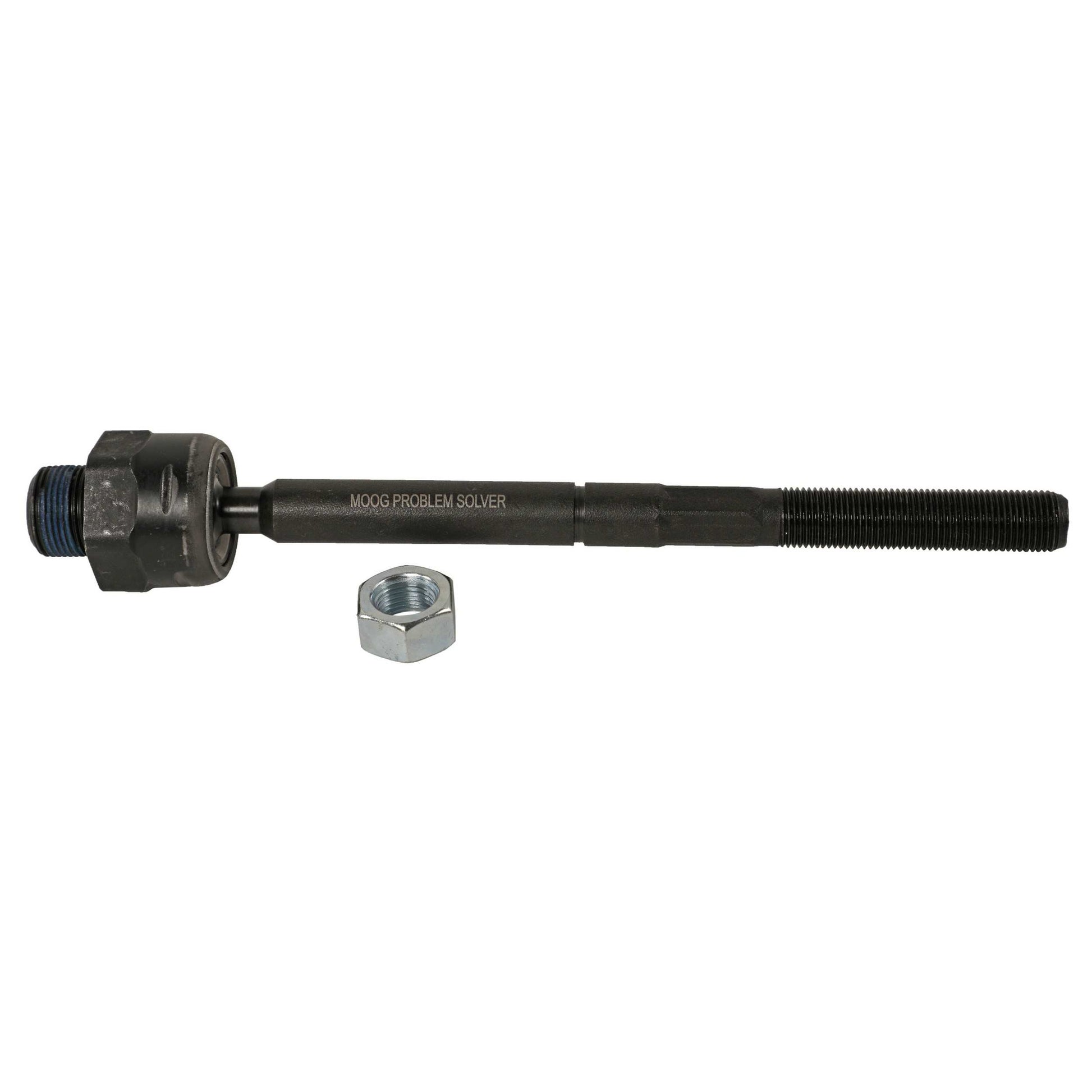

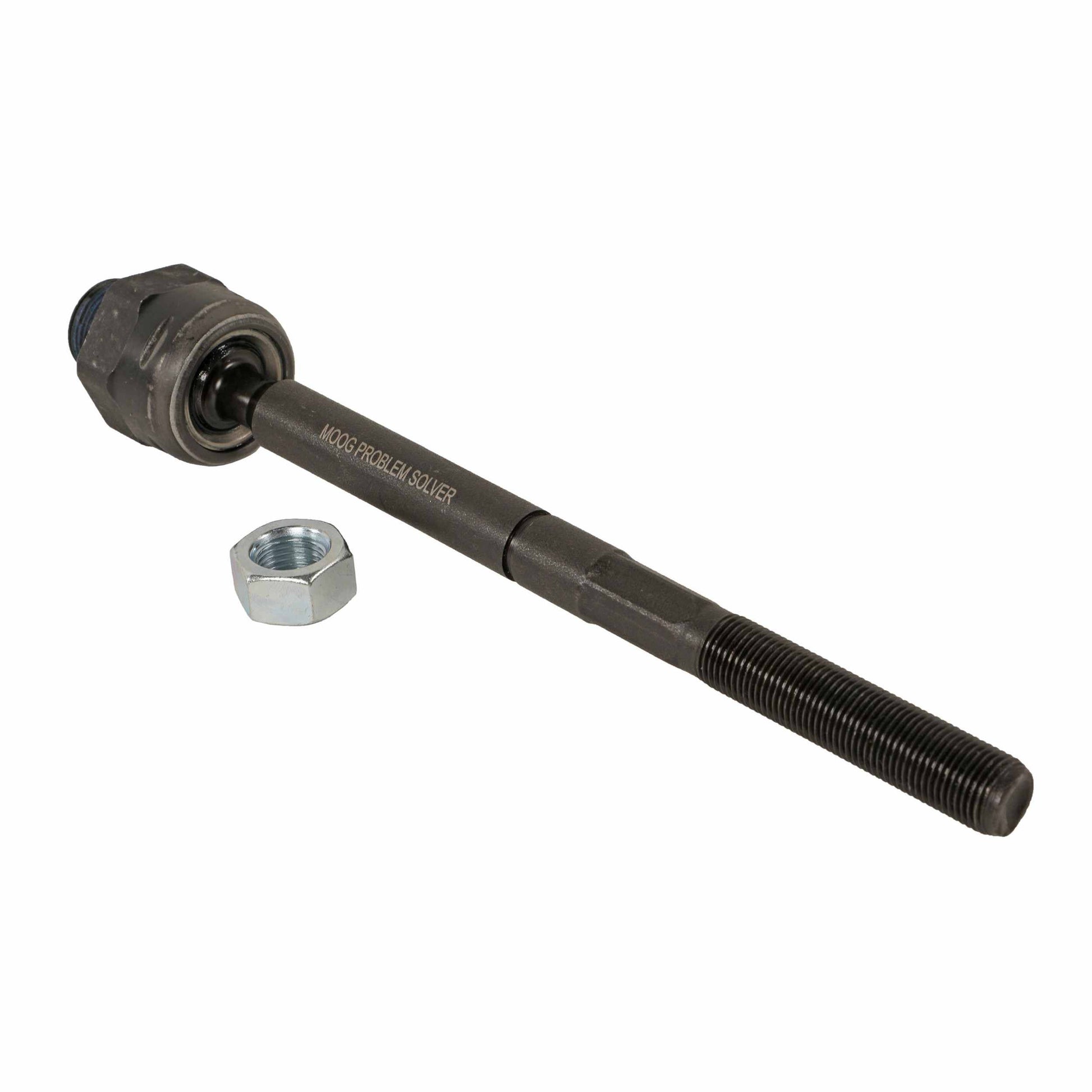

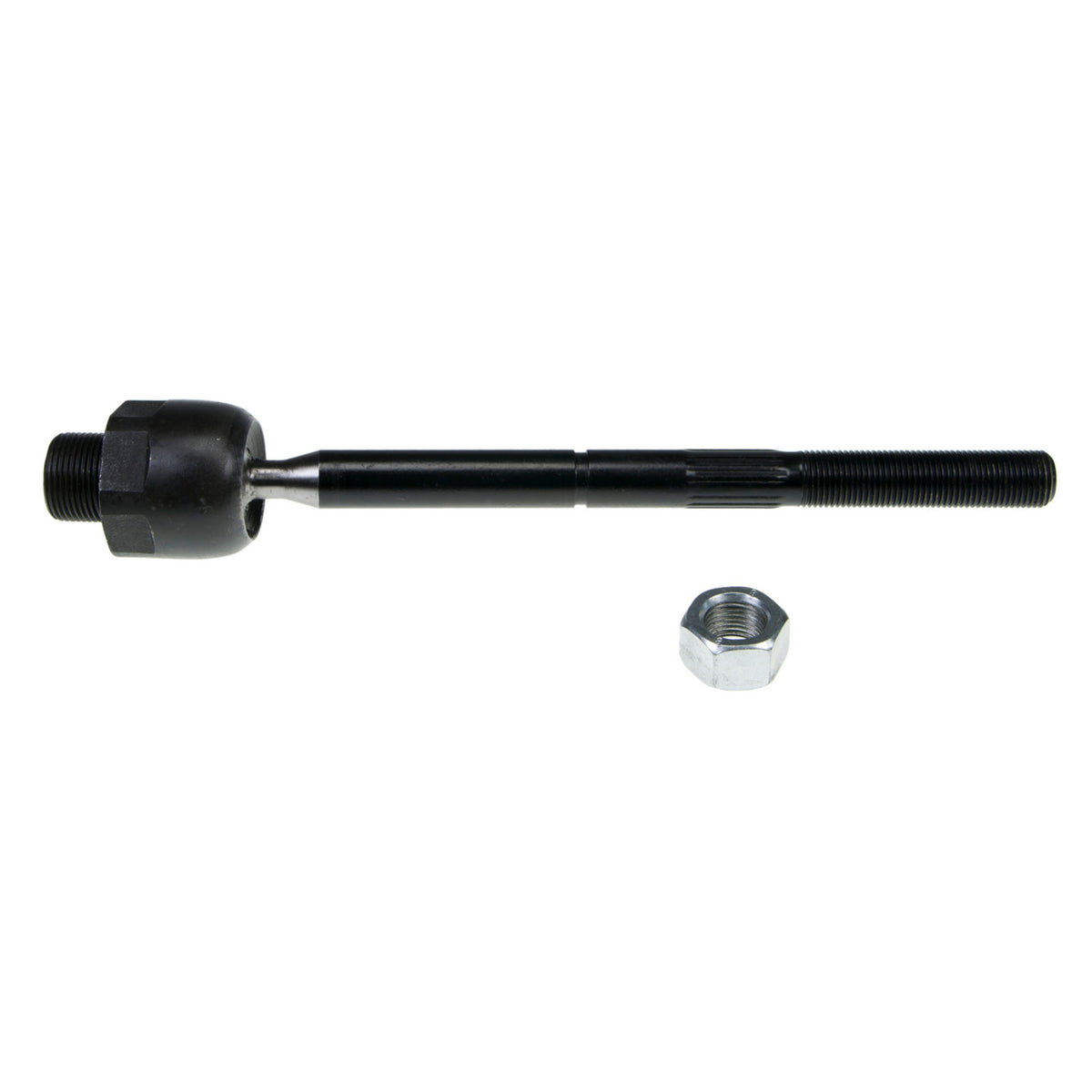

Moog Tie Rod End, Greasable, Inner, Dodge

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Length (in)                            8.930

Outer Tie Rod Thread             M16-1.5

Shaft Diameter (in)                0.641

Rack End Thread                    M24-1.5

Rack End Type                         Male

End 2 Thread Diameter (MM)      24.0

End 2 Thread Pitch (MM)            1.5

Vehicle Fitments:
