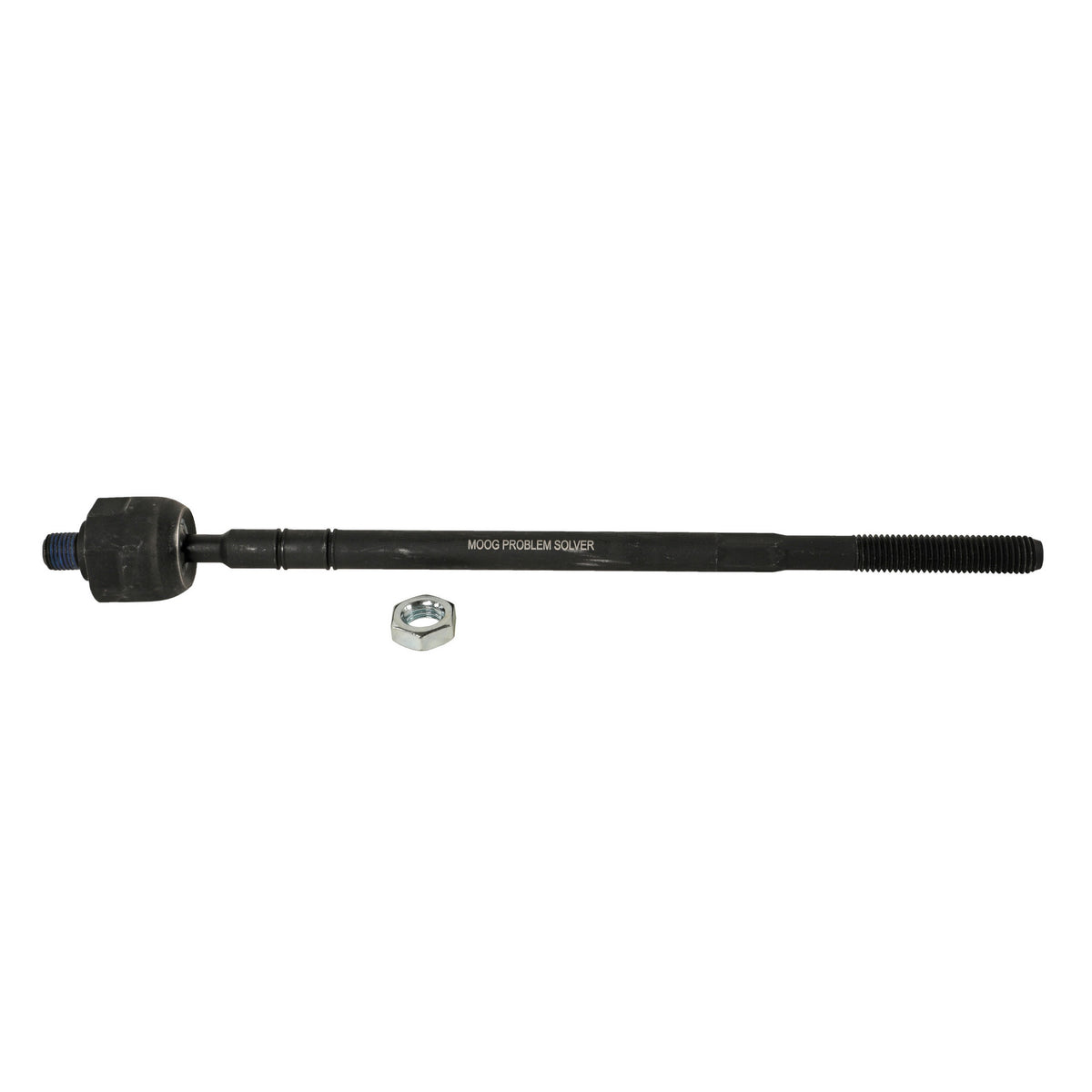

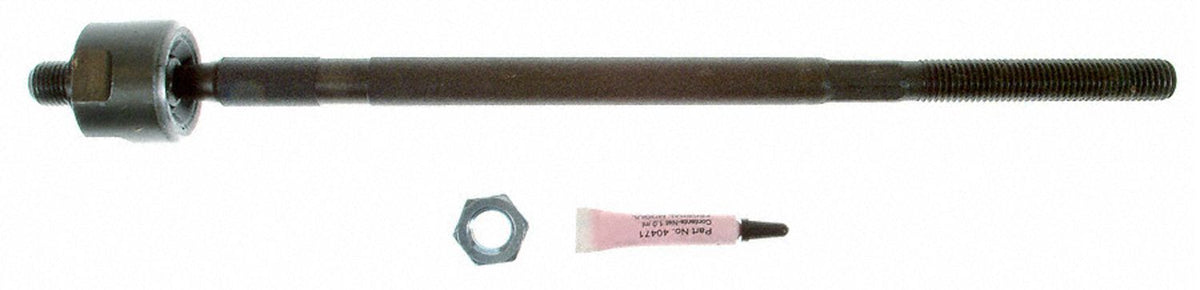

Moog Tie Rod End, OE Replacement, Ford

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Lenght (in)                                          14.100

Outer Tie Rod Thread                           M14-2.0-6G RH

Shaft Diameter(in)                               0.594

Rack End Thread                                 M14x1.56G RH

Rack End Type                                    Male

End 2 Thread Diameter (MM)               14.0

End 2 Thread Pitch (MM)                     6.0

Vehicle Fitments:
