MOOG Chassis Products

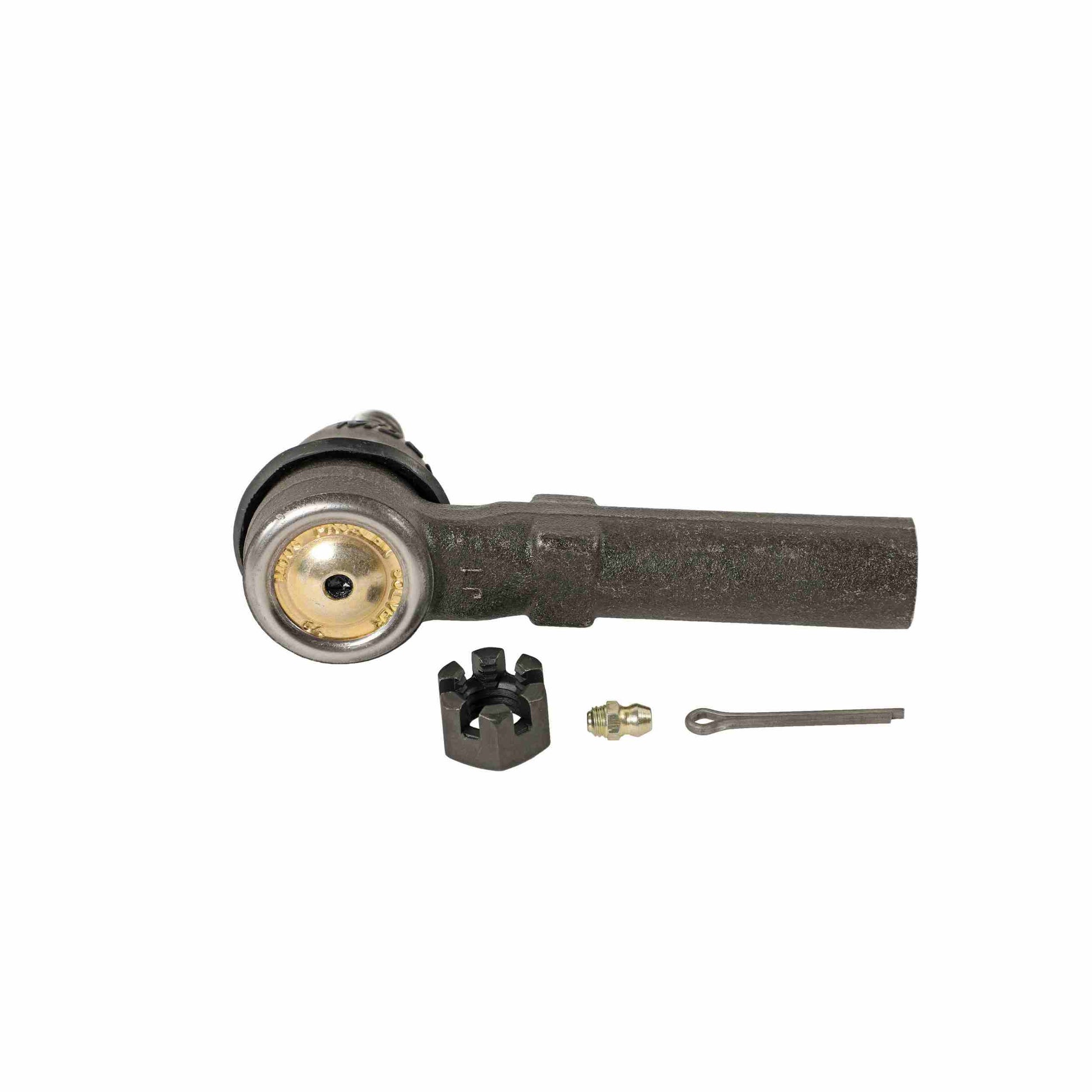

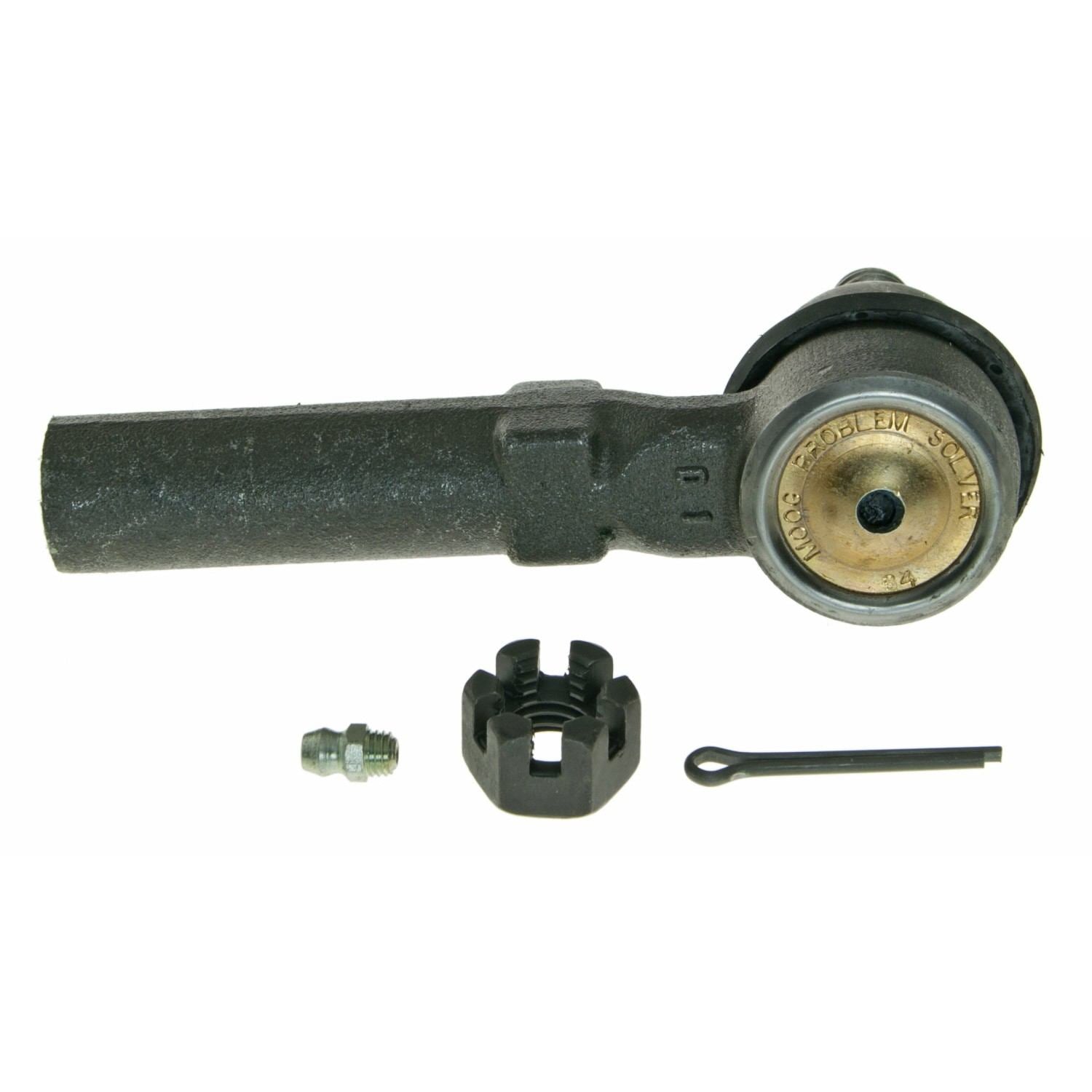

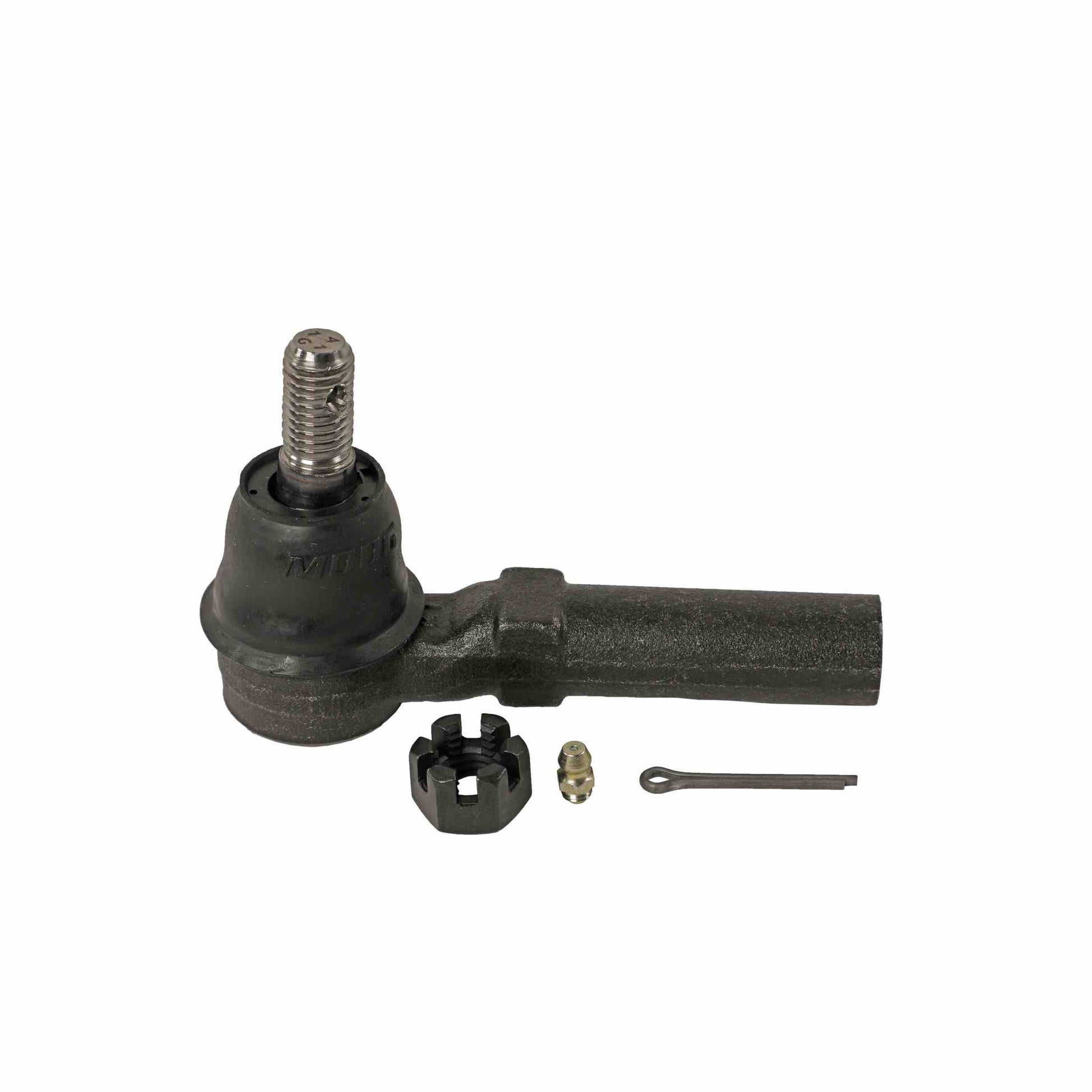

Moog Tie Rod End

Moog Tie Rod End

sku: 14NGN | mpn: ES80761
$48.20
$48.20 $48.20
Sale Sold out
Shipping calculated at checkout.

136 in stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear
  • Exclusive cover plate protects against contaminants leaking into the bearing surface
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Specifications

Tie Rods

Greaseable Yes
Stud Center to End (in) 4.540
Rod Thread M14 X 1.50
Configuration STRAIGHT
Rod Type (Male / Female) FEMALE
Stud Diameter Dimension (top in.) 0.586
Stud Diameter Dimension (bottom in.) 0.713
Stud Thread M14 X 2.00
Rack End Thread M14 X 2.00
Specification Image Reference OUTERTIEROD.tif
Dust Boot Included Yes
End 1 Thread Diameter (MM) 14.000
End 1 Thread Pitch (MM) 1.500
End 1 Thread Direction R
End 2 Thread Diameter (MM) 14
End 2 Thread Pitch (MM) 2


Vehicle Fitments:

Year Make Model Submodel
2004 - 2007 Chevrolet Colorado Base, LS
2006 - 2007 Chevrolet Colorado LT, WT
2004 - 2005 Chevrolet Colorado Sport LS, Z71 LS, Z85, Z71, Sport, Z85 LS
2007 GMC Canyon Base
2004 - 2007 GMC Canyon SL, SLE
2006 - 2007 GMC Canyon SLT, WT
2004 - 2005 GMC Canyon Z71 SLE, Z85 SL, Z71 SL, Z71 Fleet, Z85 SLE
2006 Isuzu i-280 Base
2006 Isuzu i-350 Base
