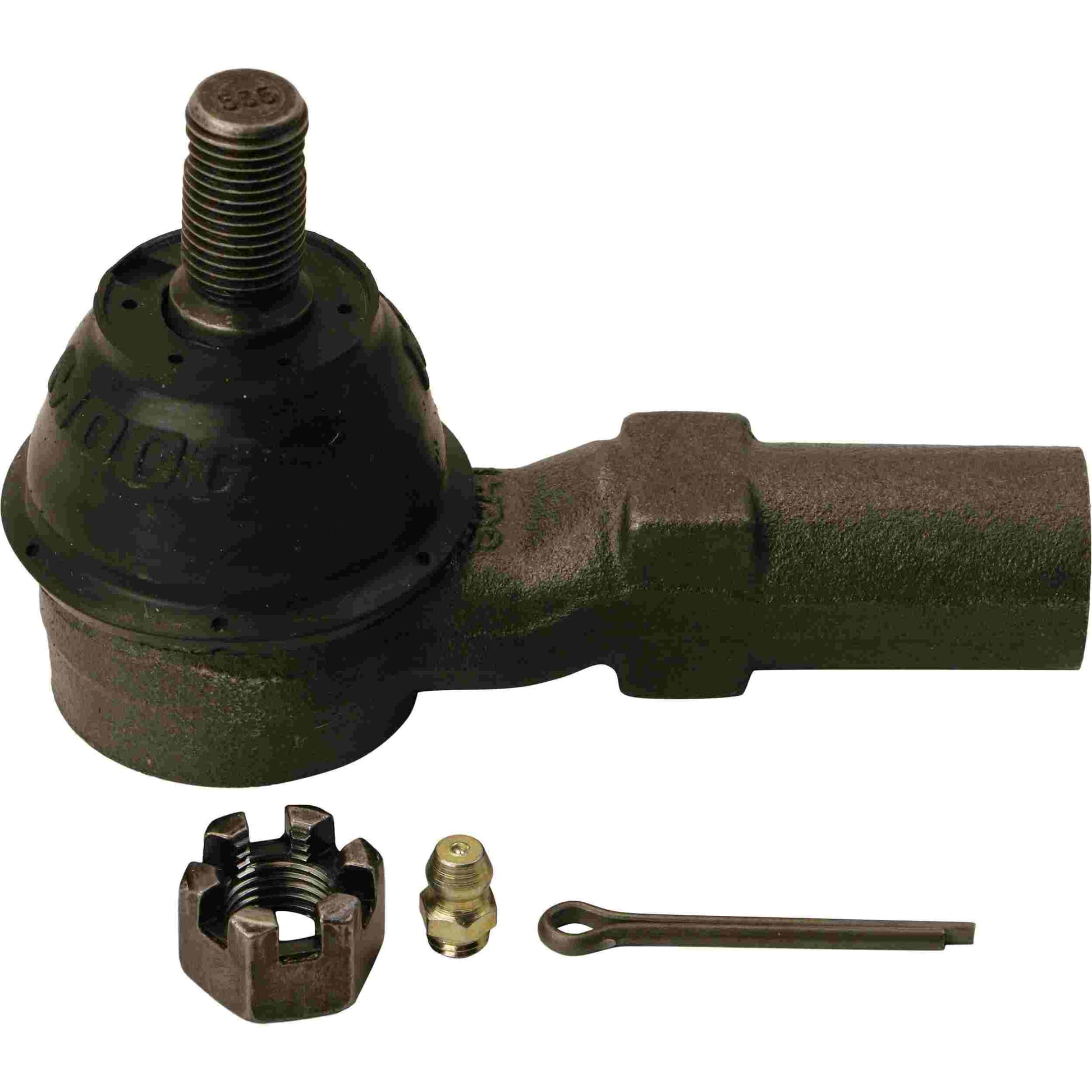

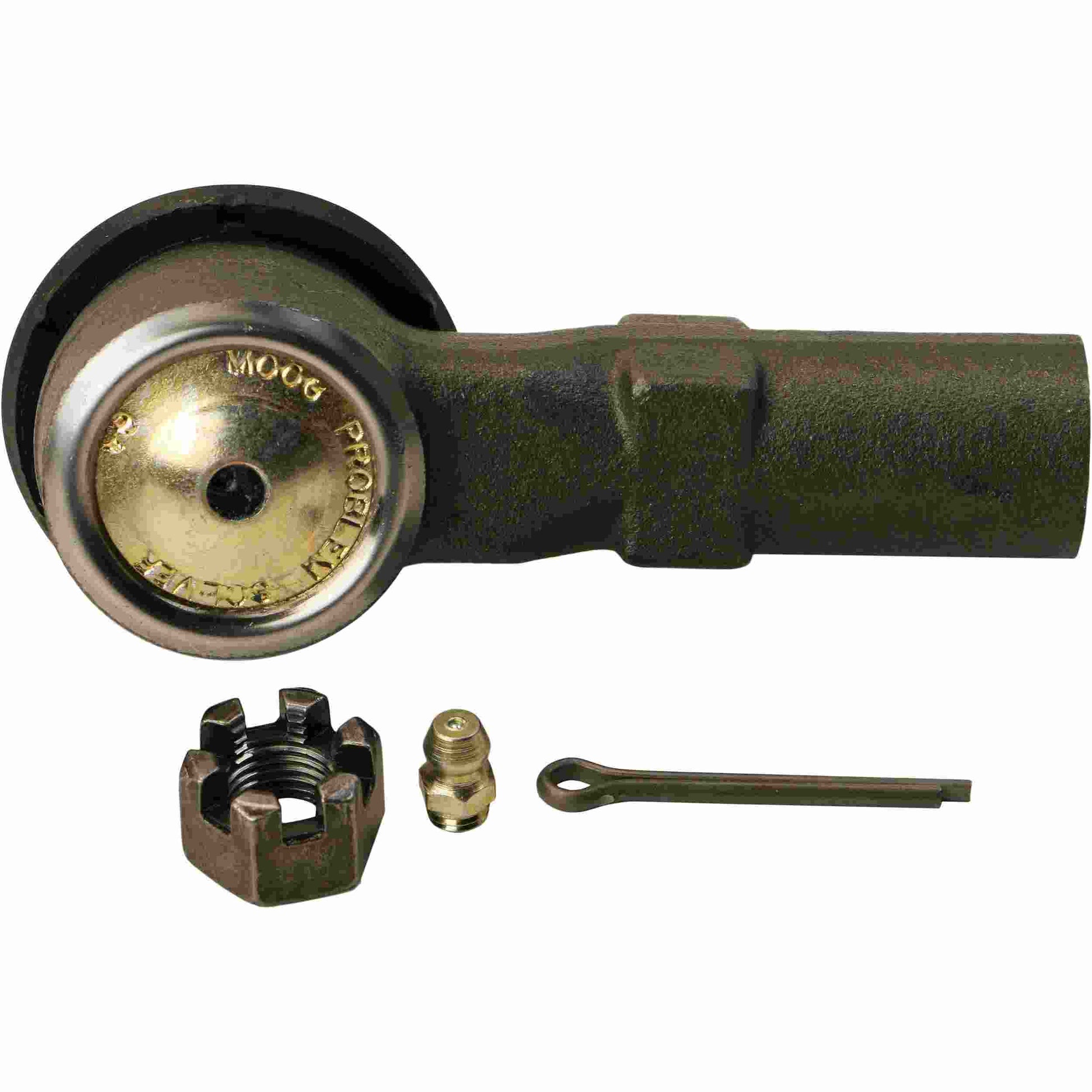

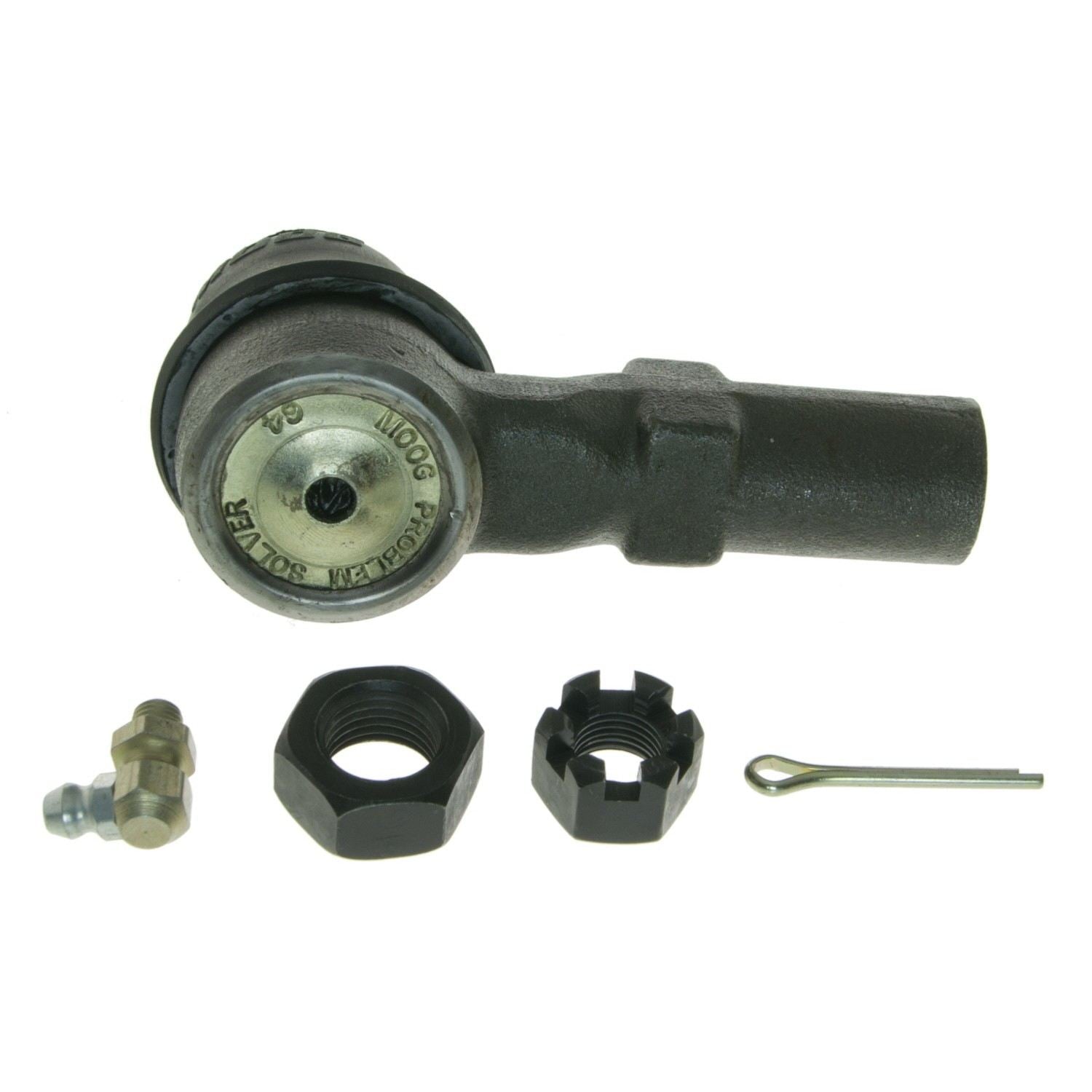

Moog Tie Rod End, Greasable, Outer, Toyota,

• Loose or worn chassis parts can lead to premature tire wear
• Exclusive cover plate protects against contaminants leaking into the bearing surface
• Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
• Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
• Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
• Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications:

Greasable: Yes

Stud Center to End (in): 3.300

Rod Thread: M15X1.5

Configuration: STRAIGHT

Rod Type (Male / Female): FEMALE

Stud Diameter Dimension (top in.): 0.548

Stud Diameter Dimension (bottom in.): 0.593

Stud Thread: M12X1.25

Rack End Thread: M12X1.25

Specification Image Reference: OUTERTIEROD.tif

Dust Boot INcluded: Yes

End 1 Thread Diameter (MM): 15.0

End 1 Thread Pitch (MM): 1.5

End 1 Thread Direction: R

End 2 Thread Diameter (MM): 12.0

End 2 Thread Pitch (MM): 1.25
