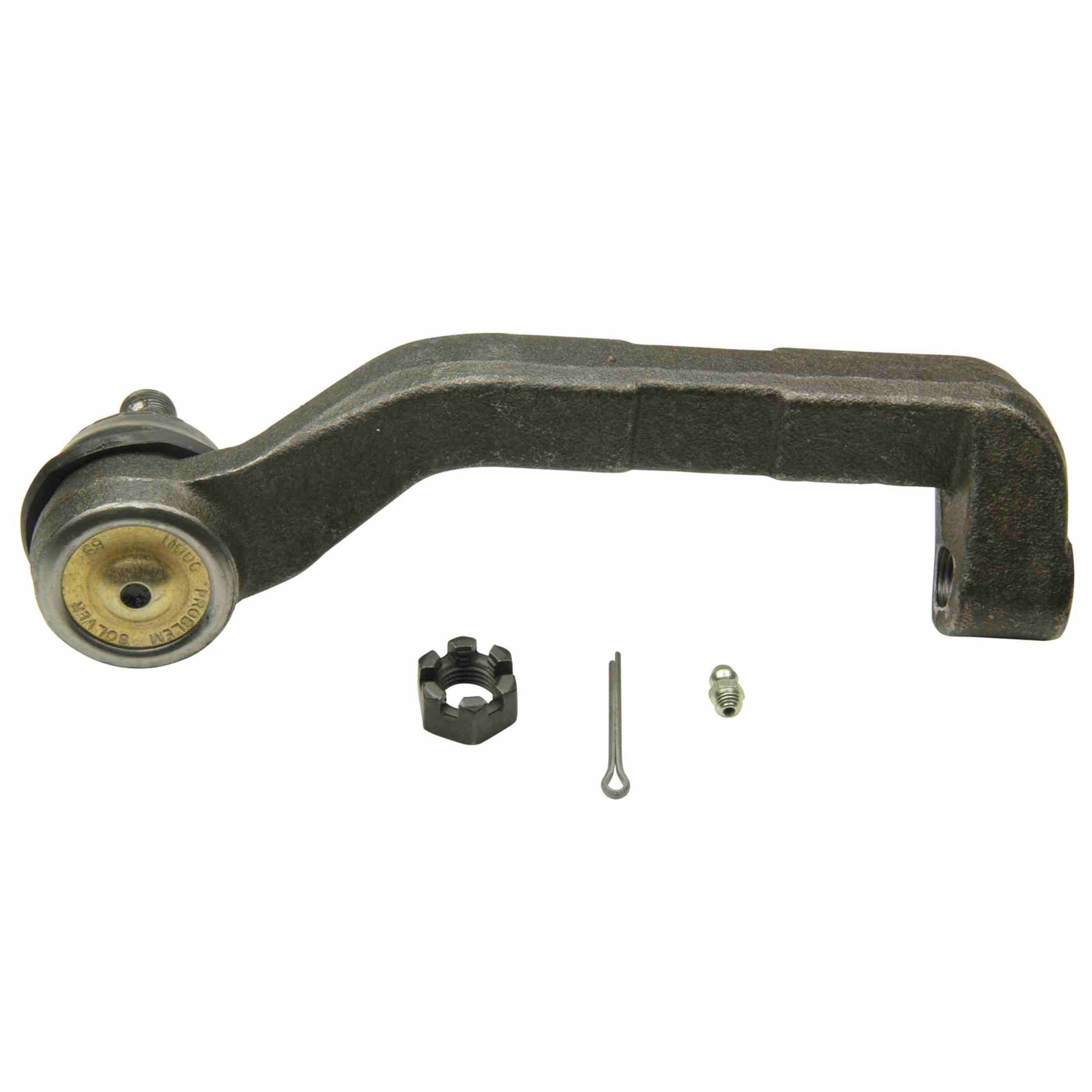

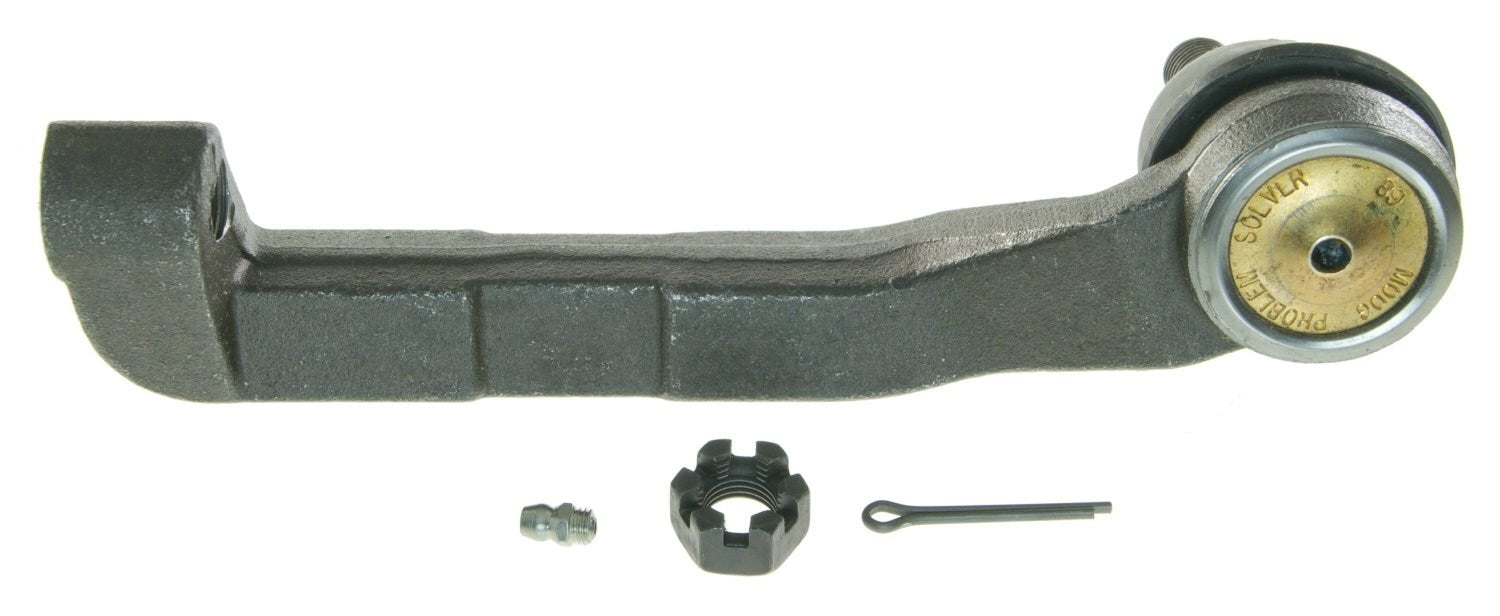

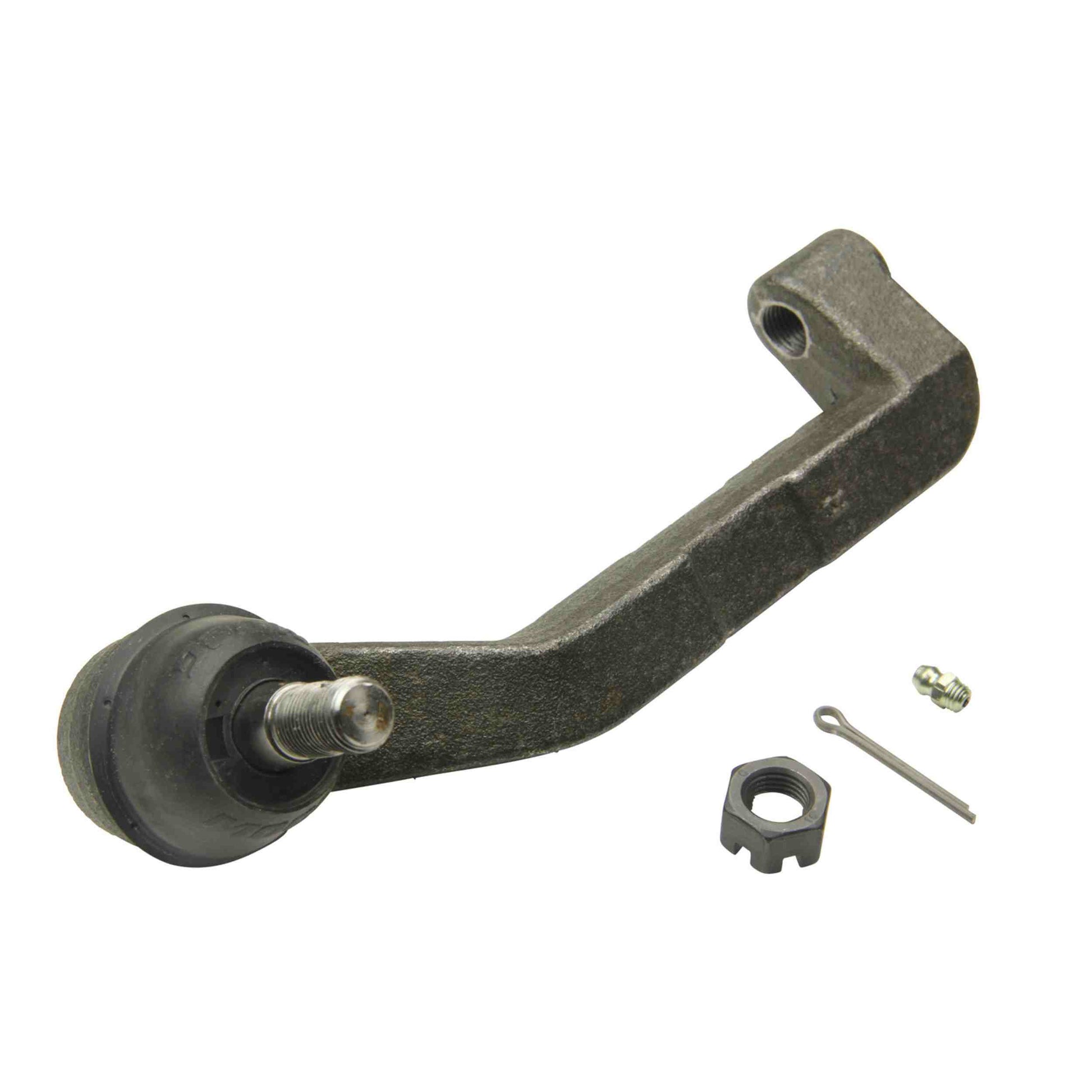

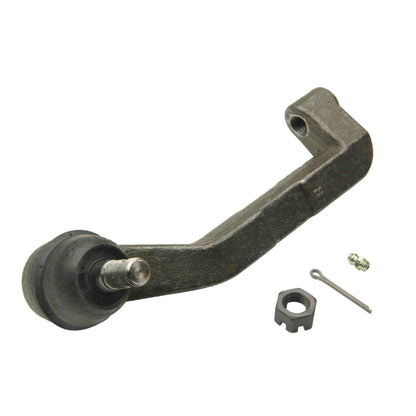

Moog Tie Rod End, Greasable, Passenger Side Outer, Chrysler, Dodge

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Greasable                                           Yes

Stud Center to End (in)                       8.05

Rod Thread                                       M15 x 1.50

Configuration                                   OFFSET

Rod Type                                         Female

Stud Diameter Dimension(top in)       0.59

Stud Diameter Dimension(bottom in) 0.74

Stud Thread                                    M14 x 1.50

Rack End Thread                             M14 x 1.50

Specification Image Reference         OUTERTIEROD.tif

Dust Boot Included                         Yes

End 1 Thread Diameter (MM)          15.000

End 1 Thread Pitch (MM)                1.500

End 1 Thread Direction                   R

End 2 Thread Diameter (MM)          14.0

End 2 Thread Pitch (MM)                 1.5

Vehicle Fitments:
