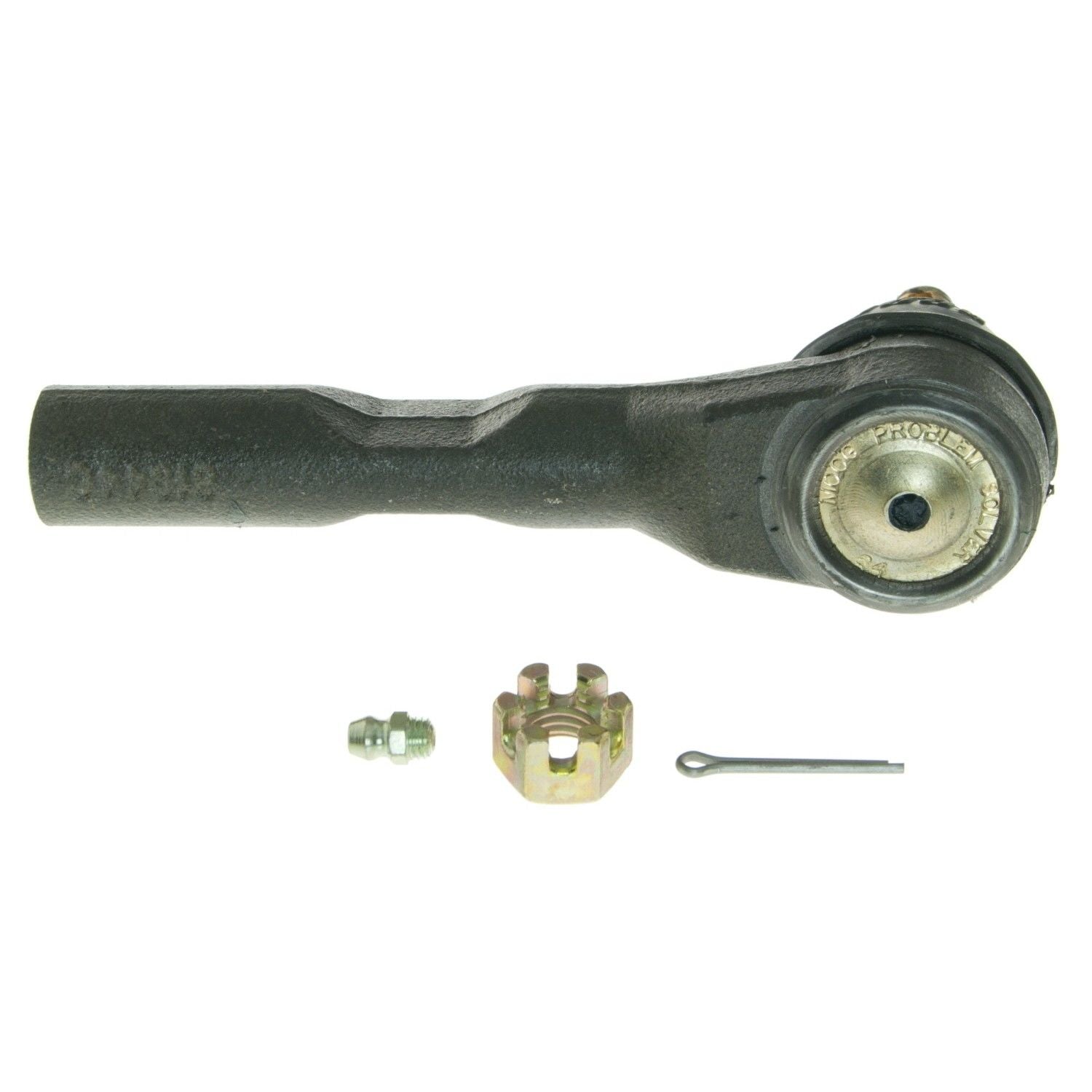

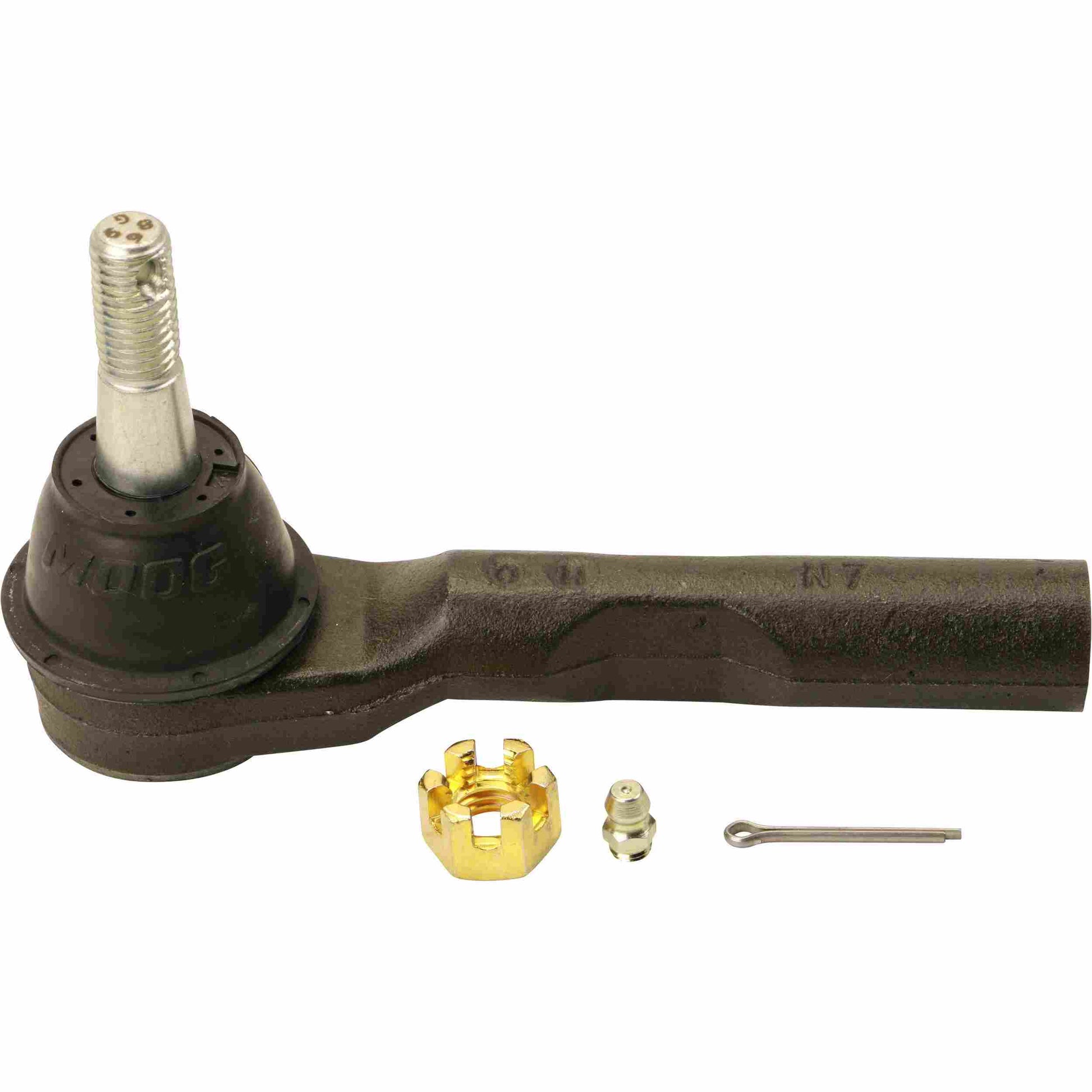

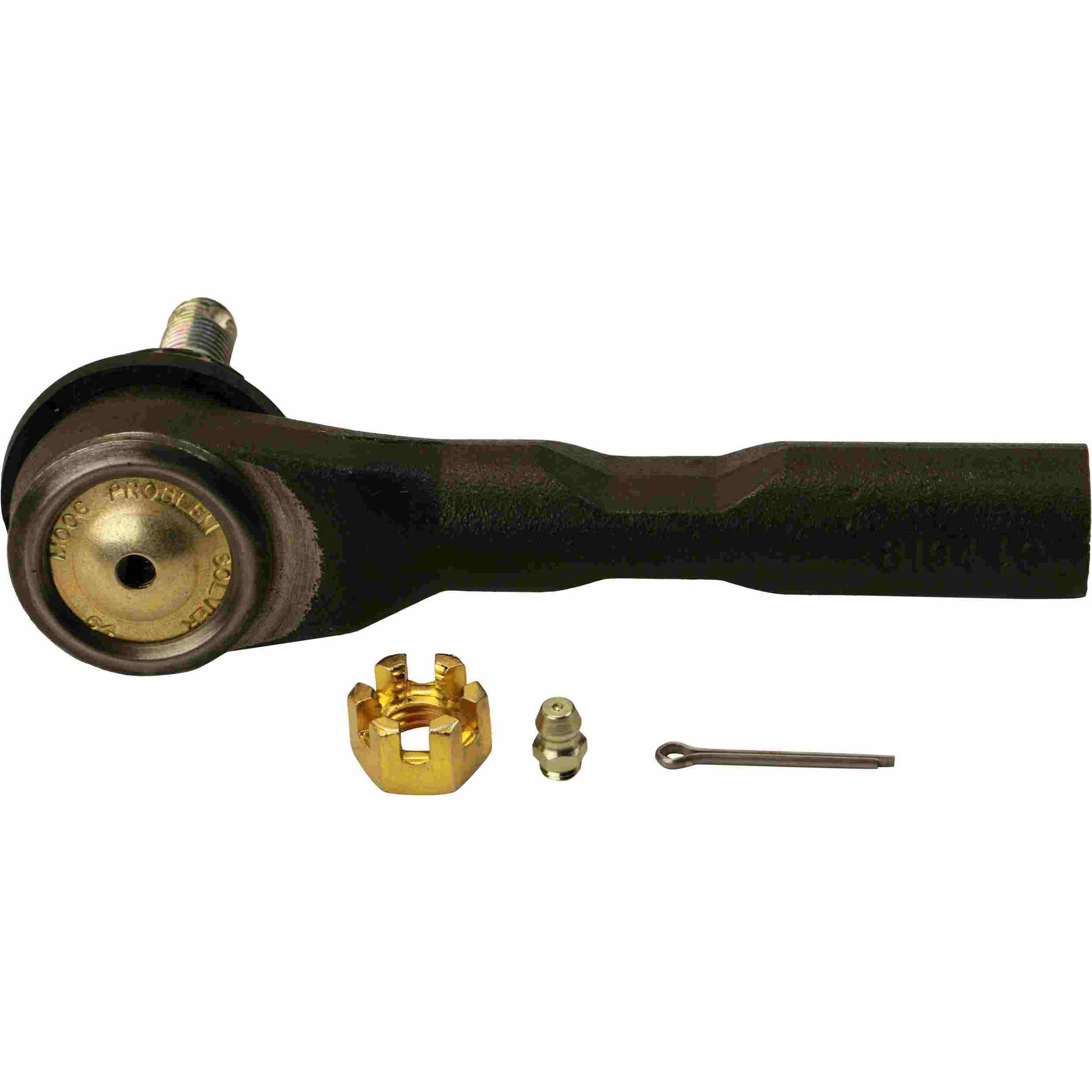

Moog Tie Rod End:Outer, Chevy, Pontiac, Saturn
Moog Tie Rod End:Outer, Chevy, Pontiac, Saturn
sku: 3T9O5 | mpn: ES800086
Regular price
$52.89
Regular price
$52.89
Sale price
$52.89
Shipping calculated at checkout.
Low stock: 2 left
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 5.370
Rod Thread: M14 X 1.50
Configuration: STRAIGHT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.487
Stud Diameter Dimension (bottom in.): 0.630
Stud Thread: M12 X 1.75
Rack End Thread: M12 X 1.75
Specification Image Reference: OUTERTIEROD.tif
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 14.000
End 1 Thread Pitch (MM): 1.500
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 12
End 2 Thread Pitch (MM): 1.75
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2009 | Chevrolet | Malibu | Base |
| 2008 | Chevrolet | Malibu | Classic LT, Classic LS |
| 2008 - 2010 | Chevrolet | Malibu | Hybrid |
| 2004 - 2012 | Chevrolet | Malibu | LS, LT |
| 2006 - 2012 | Chevrolet | Malibu | LTZ |
| 2004 | Chevrolet | Malibu | Maxx |
| 2004 - 2007 | Chevrolet | Malibu | Maxx LS, Maxx LT |
| 2006 - 2007 | Chevrolet | Malibu | SS, Maxx LTZ, Maxx SS |
| 2005 - 2010 | Pontiac | G6 | GT, Base |
| 2006 - 2007 | Pontiac | G6 | GTP |
| 2008 - 2009 | Pontiac | G6 | GXP |
| 2005 - 2009 | Pontiac | G6 | SE |
| 2007 - 2008 | Saturn | Aura | Green Line |
| 2009 | Saturn | Aura | Hybrid |
| 2007 - 2009 | Saturn | Aura | XR, XE |
