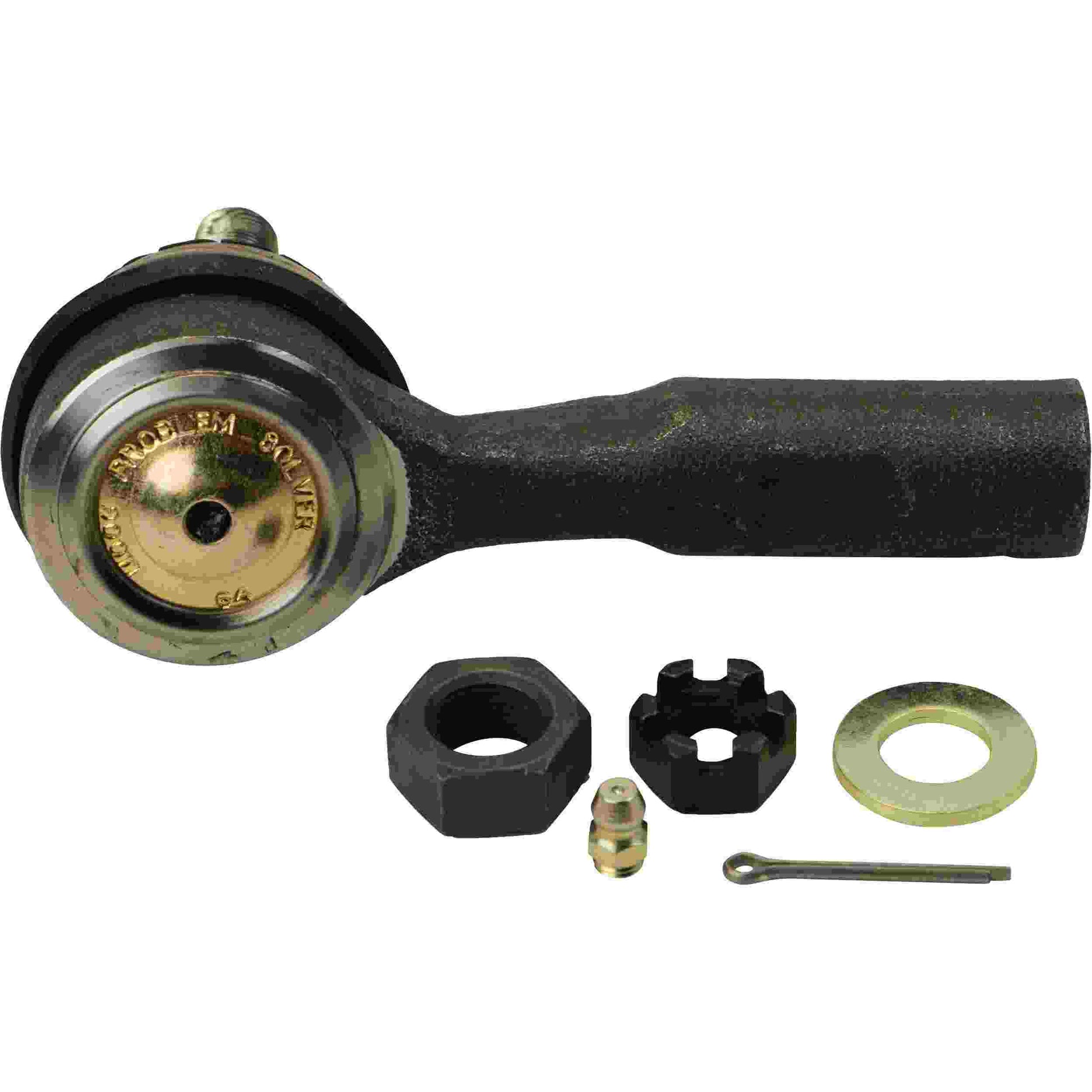

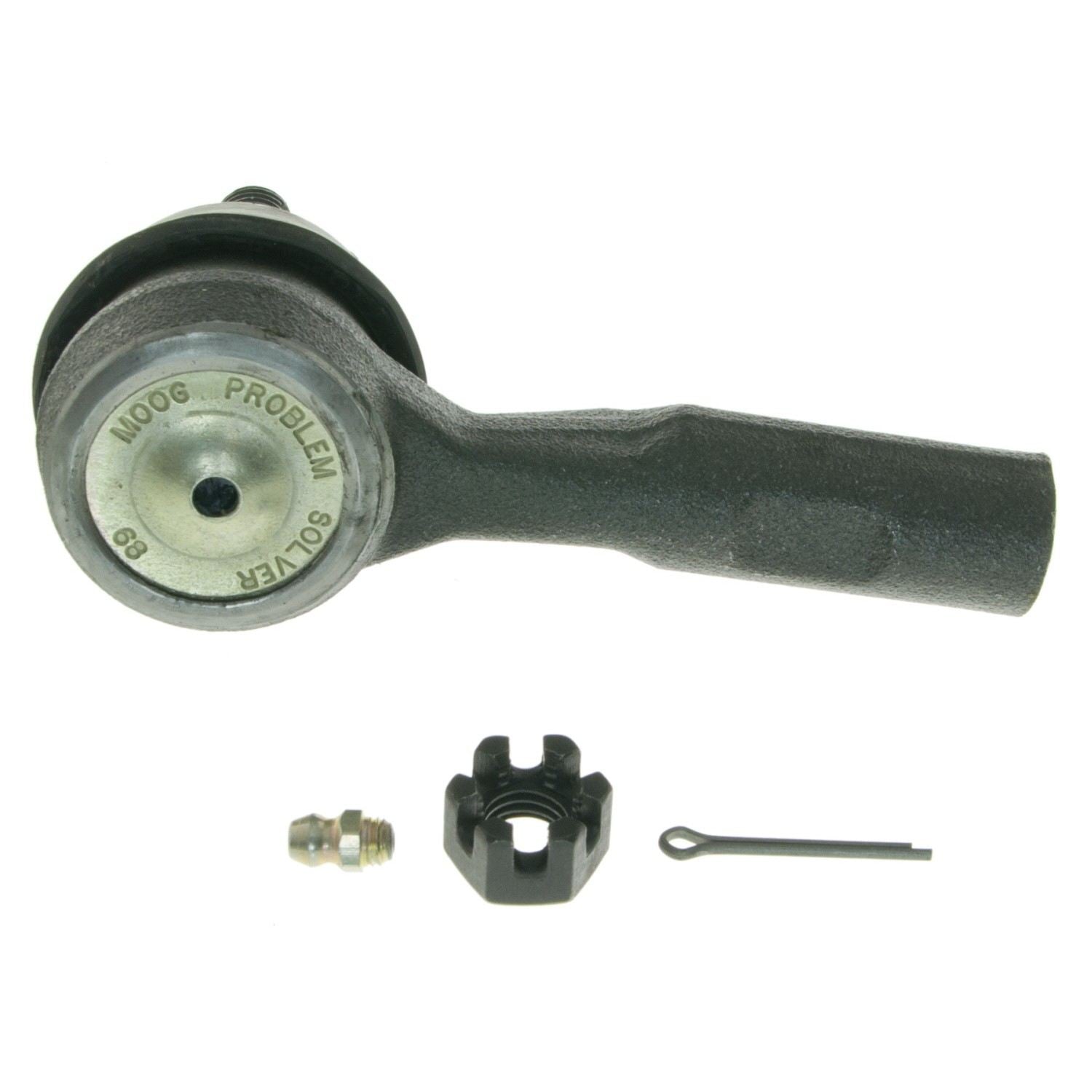

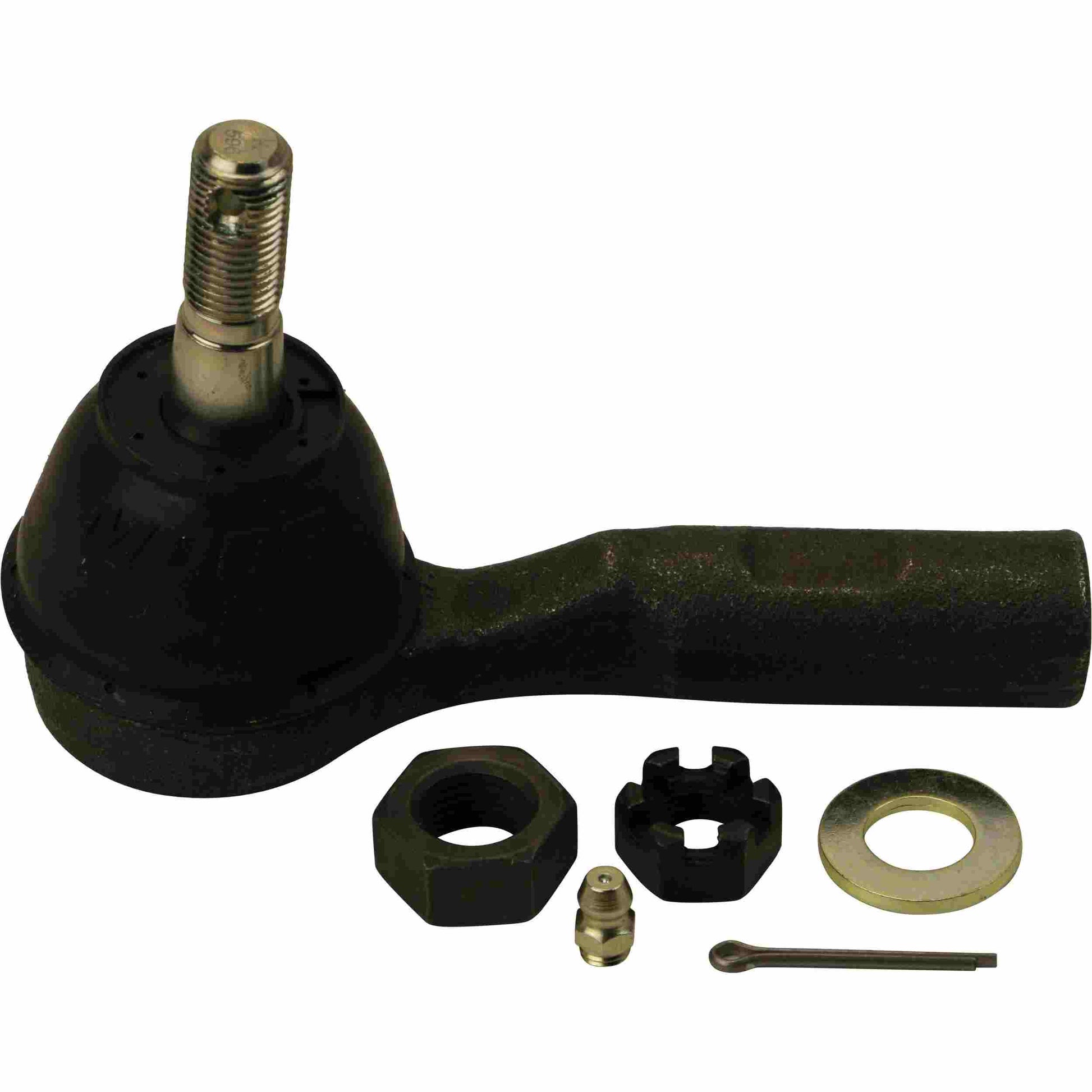

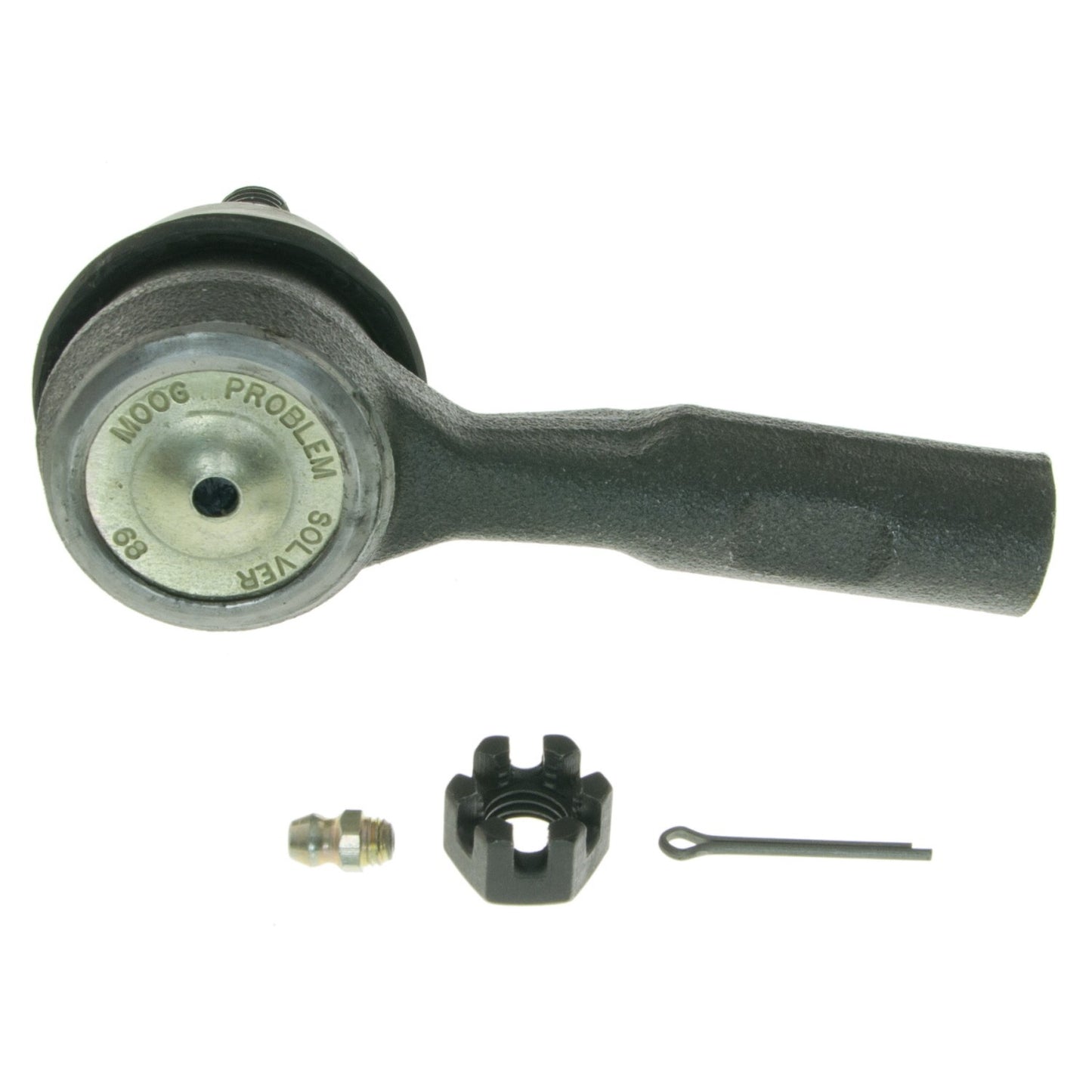

Moog Tie Rod End,Outer, Chevy, Pontiac, Saturn

SKU: 3V3CH | MPN:  ES800030
In stock
Sale price$50.08 USD

p>Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Greaseable                                          Yes

Stud Center to End (in)                        4.250

Rod Thread                                         M14 x 1.50

Configuration                                      Straight

Rod Type                                            Female

Stud Diameter Dimension(top in)         0.489

Stud Diameter Dimension(buttom in)   0.644

Stud Thread                                      M12 x 1.75

Rack End Thread                               M12 x 1.75

Specification Image Reference            Outer Tie Rod.tif

Dush Boot Included                           Yes

End 1 Thread Diameter (MM)             14.000

End 1 Pitch (MM)                              1.500

End 1 Direction                                R

End 2 Thread Diameter (MM)            12

End 2 Pitch (MM)                             1.75



Vehicle Fitments:

Year Make Model Submodel
2005 - 2010 Chevrolet Cobalt Base, LS, LT, SS
2010 Chevrolet Cobalt LT Team Canada
2006 - 2007 Chevrolet Cobalt LTZ
2008 Chevrolet Cobalt Sport
2005 - 2009 Chevrolet Equinox LS, LT
2008 - 2009 Chevrolet Equinox Sport, LTZ
2007 Chevrolet HHR Edicion Especial
2006 - 2008 Chevrolet HHR Elegance LT, Comfort LT
2007 - 2011 Chevrolet HHR LS Panel
2007 - 2010 Chevrolet HHR LT Panel
2006 - 2011 Chevrolet HHR LT, LS
2008 - 2010 Chevrolet HHR SS
2009 Chevrolet HHR SS Panel
2007 - 2009 Pontiac G5 Basico, LS
2007 - 2010 Pontiac G5 SE, Base, GT
2005 - 2006 Pontiac Pursuit Base
2006 Pontiac Pursuit SE, GT
2006 - 2009 Pontiac Torrent Base
2008 Pontiac Torrent GT
2008 - 2009 Pontiac Torrent GXP
2006 - 2008 Pontiac Torrent LT, LS
2007 Pontiac Torrent Sport
2003 - 2005 Saturn Ion 1
2003 - 2007 Saturn Ion 3, 2
2004 - 2007 Saturn Ion Red Line
2002 - 2007 Saturn Vue Base
2007 - 2008 Saturn Vue Green Line
2009 Saturn Vue Hybrid
2004 - 2009 Saturn Vue Red Line
2008 - 2009 Saturn Vue XR, XE
