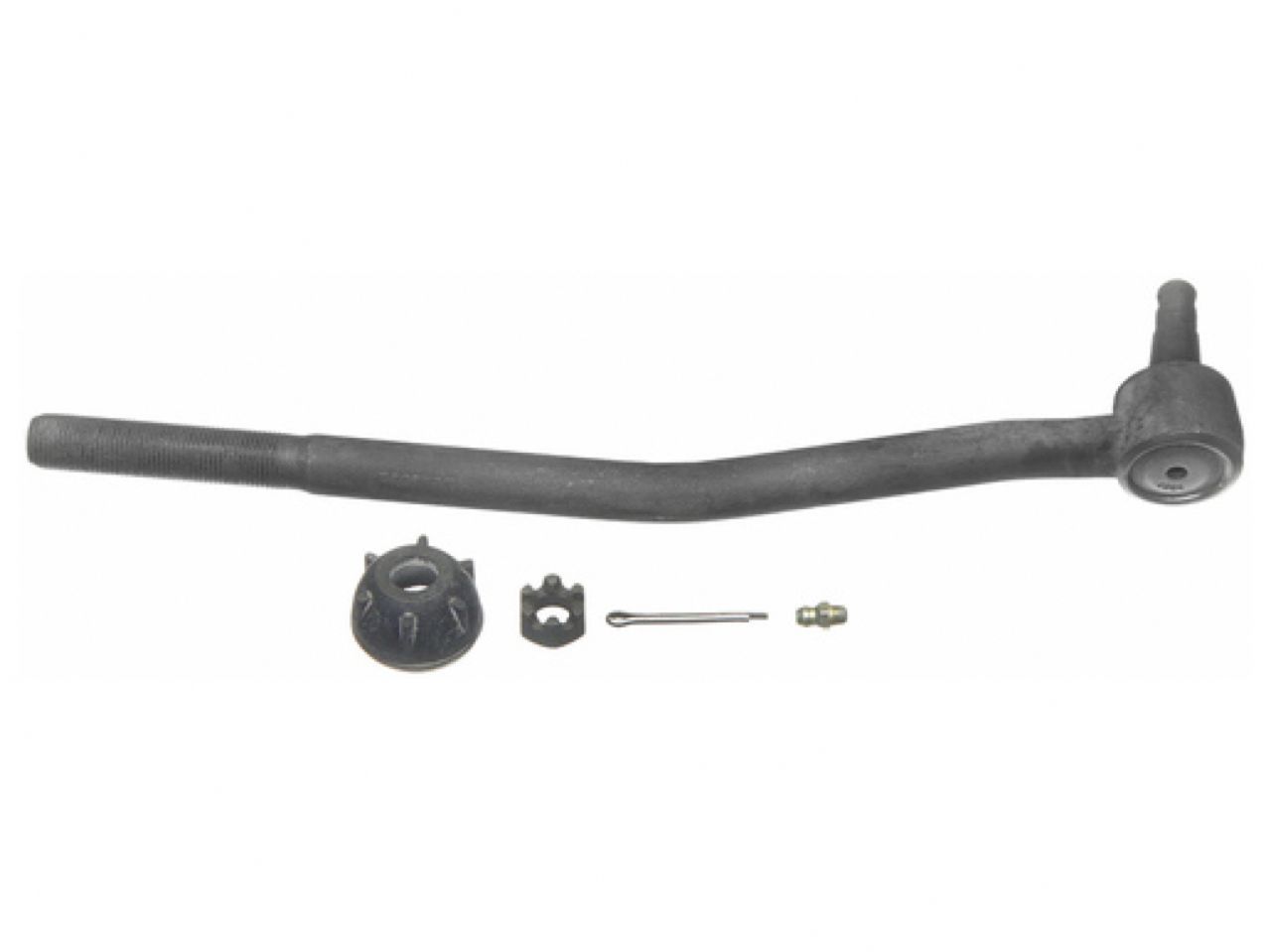

• Moog Tie Rod Ends ES671 Item Image
1 1
MOOG Chassis Products

Moog Tie Rod End:Greasable,Inner,Cadillac

Moog Tie Rod End:Greasable,Inner,Cadillac

sku: 14P33 | mpn: ES671
$51.73
$51.73 $51.73
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 13.250
Rod Thread: 11/16-18 UNS-2A
Configuration: BENT
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.556
Stud Diameter Dimension (bottom in.): 0.622
Stud Thread: M12X1.75
Rack End Thread: M12X1.75
Dust Boot Included: Yes
End 1 Thread Diameter (in): 11/16
End 1 Threads Per Inch: 18
End 1 Thread Direction: L
End 2 Thread Diameter (mm): 12.0
End 2 Thread Pitch (MM): 1.75
