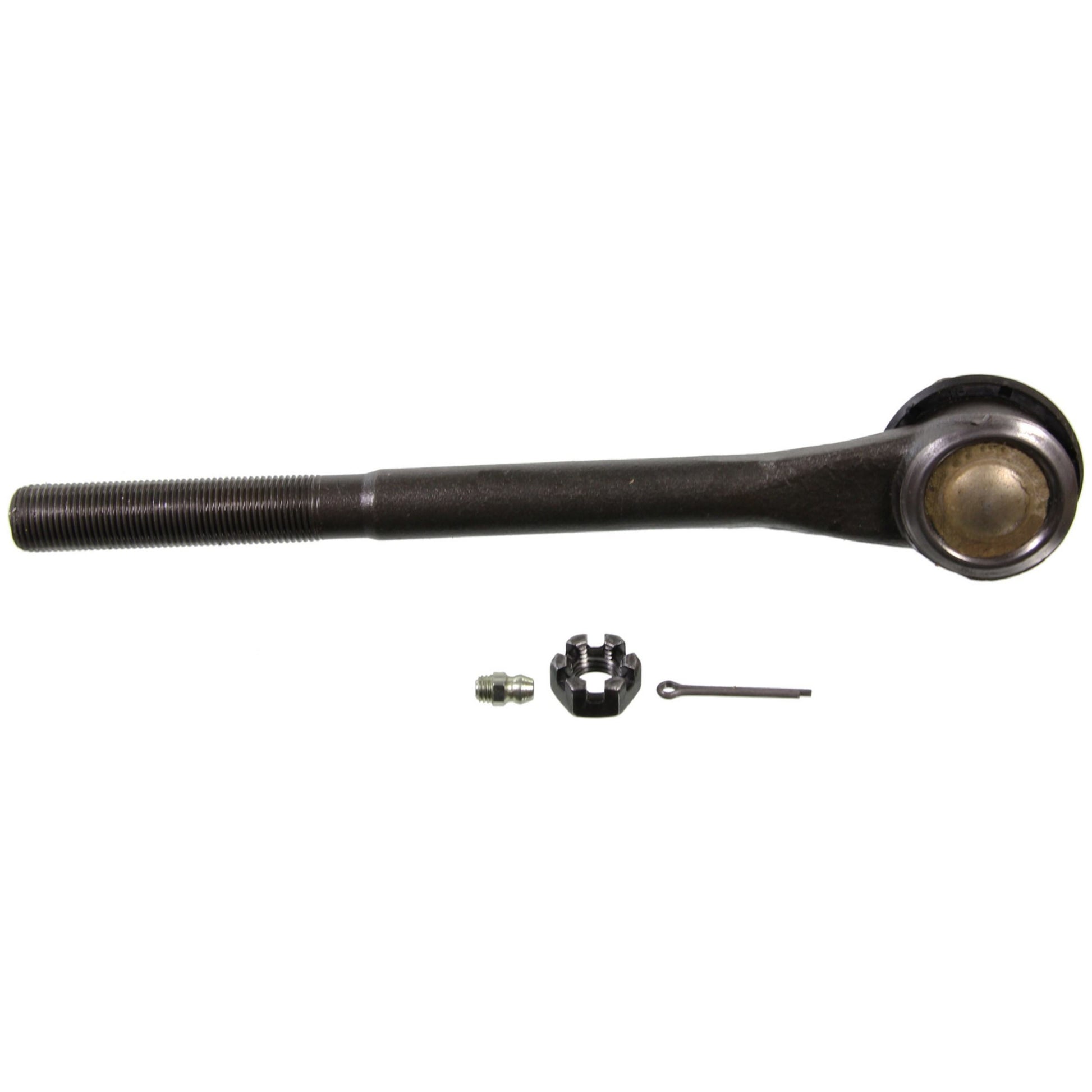

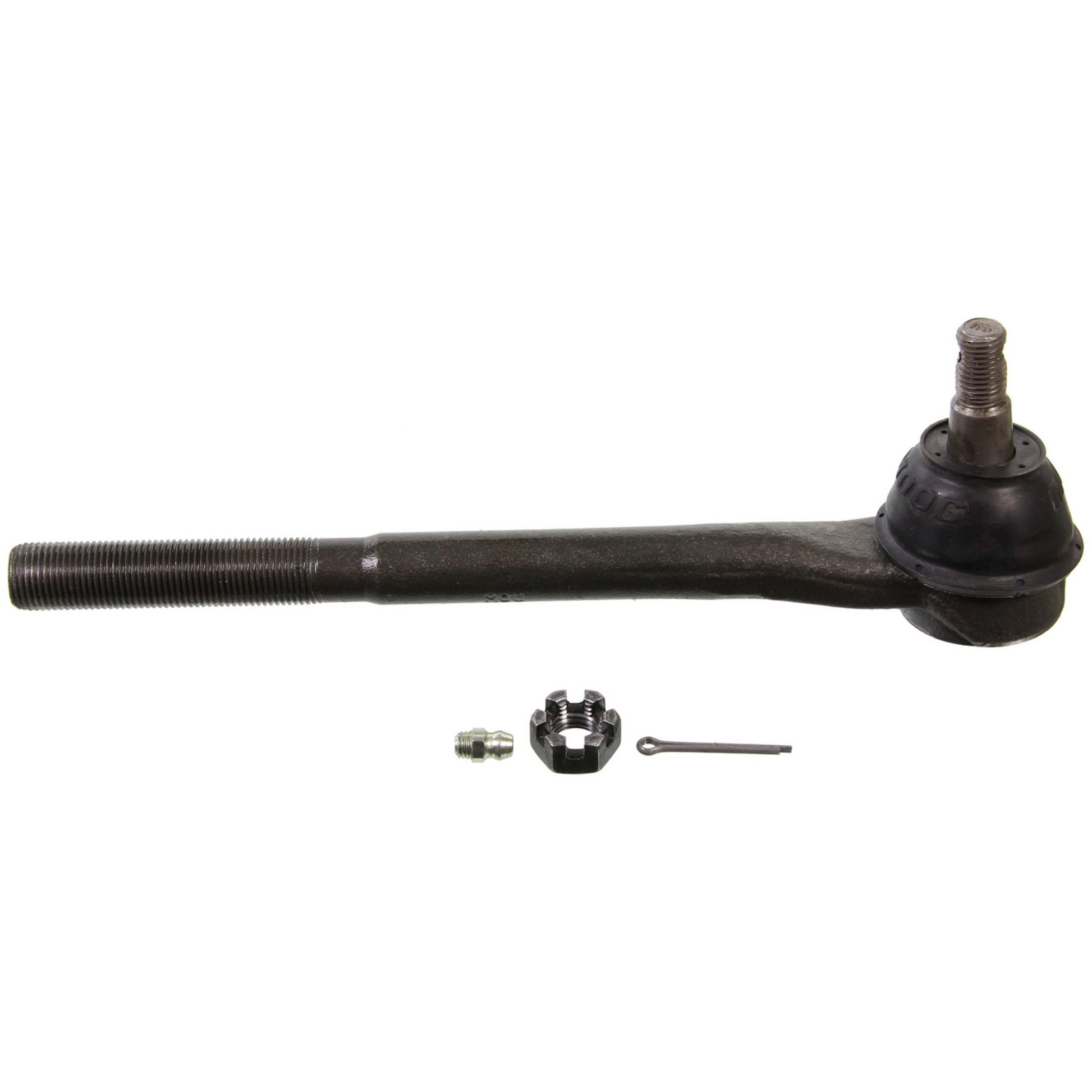

Moog Tie Rod End:Greasable,Inner,Chevy,C10 Pickup/P10 Series/1000
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 8.660
Rod Thread: 5/8-18 UNF-2A
Configuration: STRAIGHT
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.516
Stud Diameter Dimension (bottom in.): 0.592
Stud Thread: 7/16-20 UNF-2A
Rack End Thread: 7/16-20 UNF-2A
Dust Boot Included: Yes
End 1 Thread Diameter (IN): 5/8
End 1 Thread Direction: R
End 1 Threads Per Inch: 18
End 2 Thread Diameter (IN): 7/16
End 2 Threads Per Inch: 20
Moog Tie Rod End:Greasable,Inner,Chevy,C10 Pickup/P10 Series/1000
Sale price$35.11 USD
