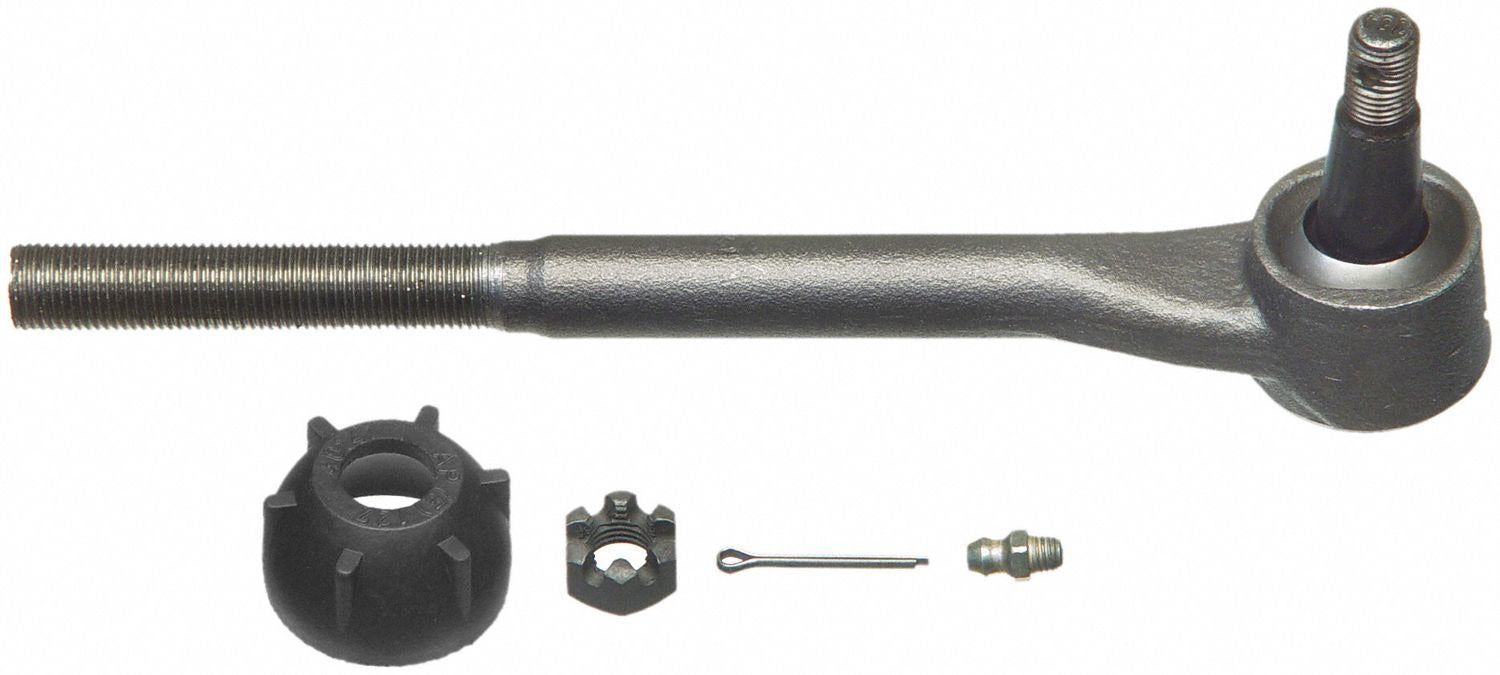

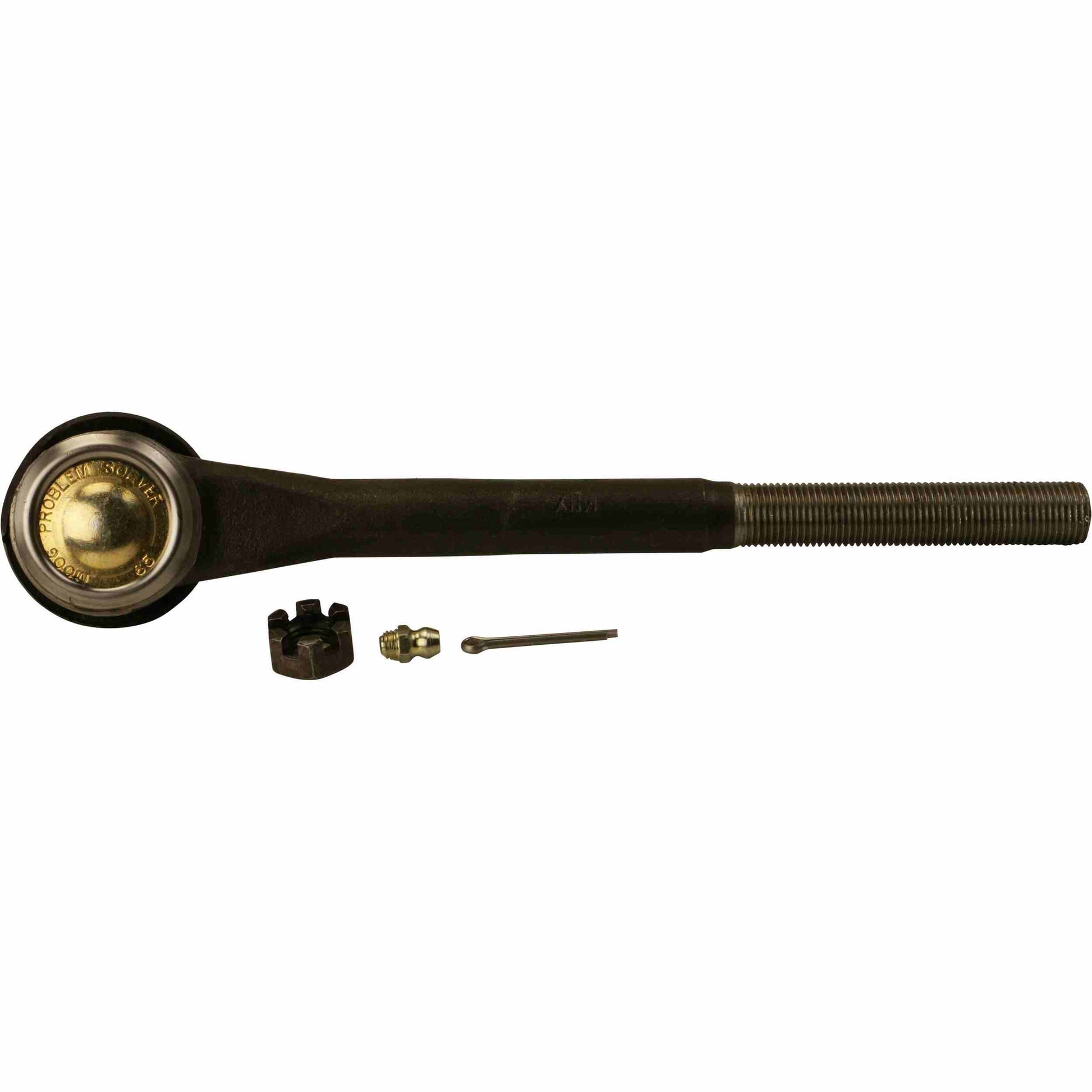

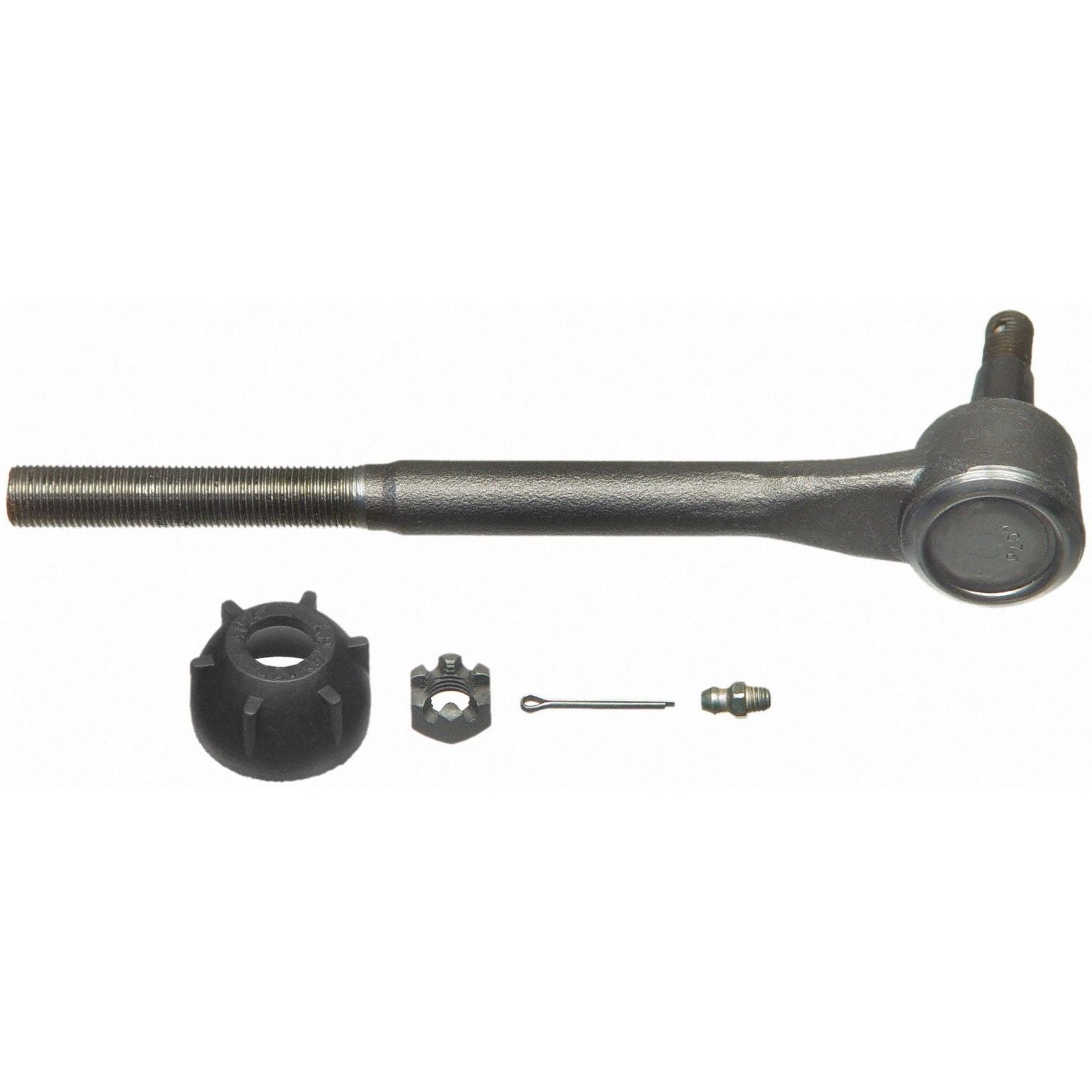

Moog Tie Rod End, Greasable Inner Chevy

Loose or worn chassis parts can lead to premature tire wear
Exclusive cover plate protects against contaminants leaking into the bearing surface
Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Greaseable No
Stud Center to End (in) 6.13
Rod Thread 9/16-18UNL2A
Configuration Straight
Rod Type Male
Stud Diameter Dimension(top in) 0.516
Stud Diameter Dimension(buttom in) 0.623
Stud Thread 9/16-20-RH
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1955 - 1957 | Chevrolet | Bel Air | Base, Nomad |
1955 - 1956 | Chevrolet | Bel Air | Beauville |
1957 | Chevrolet | Del Ray | Base |
1955 - 1957 | Chevrolet | Nomad | Base |
1955 - 1957 | Chevrolet | One-Fifty Series | Base |
1955 - 1957 | Chevrolet | Sedan Delivery | Base |
1955 - 1957 | Chevrolet | Two-Ten Series | Base, Del Ray |
