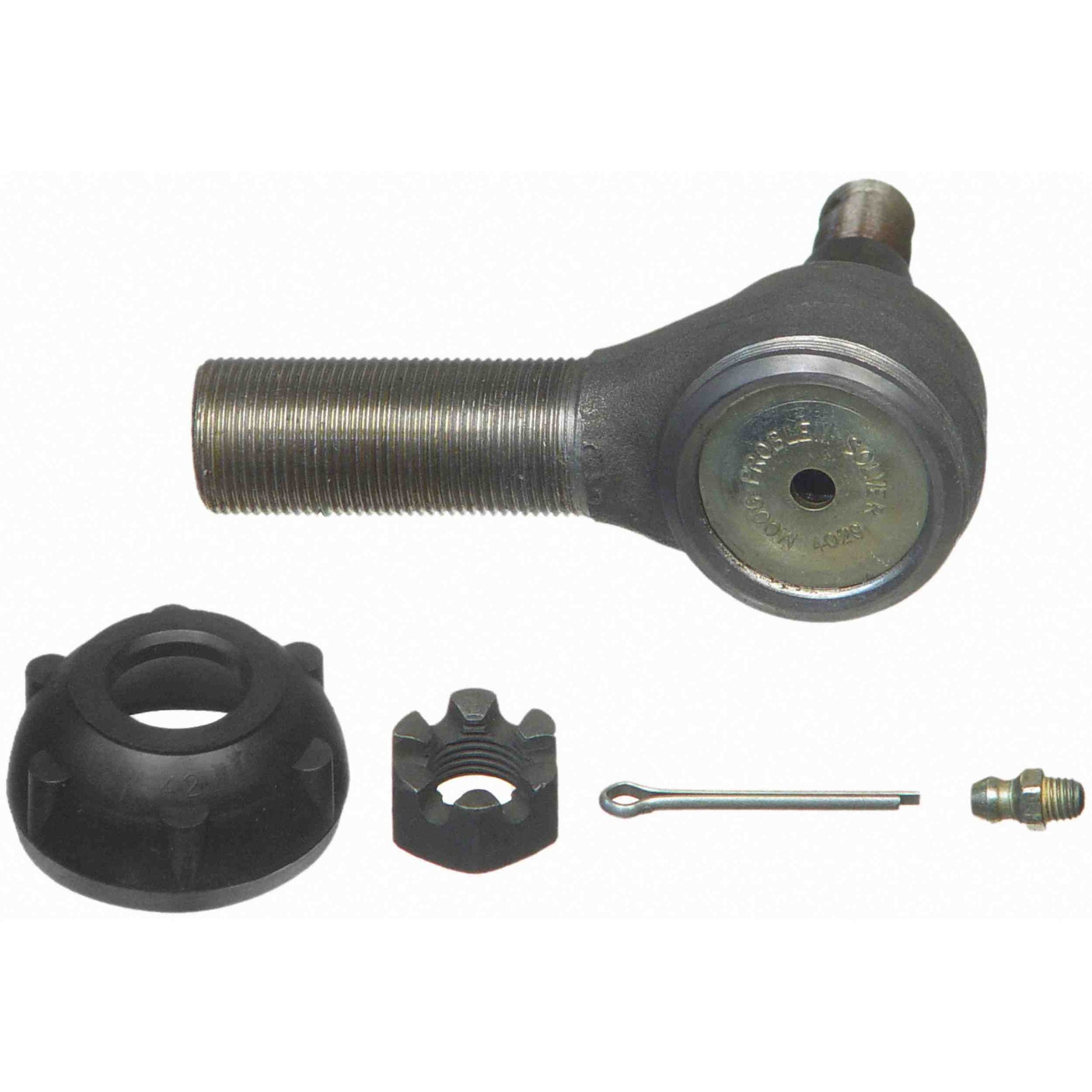

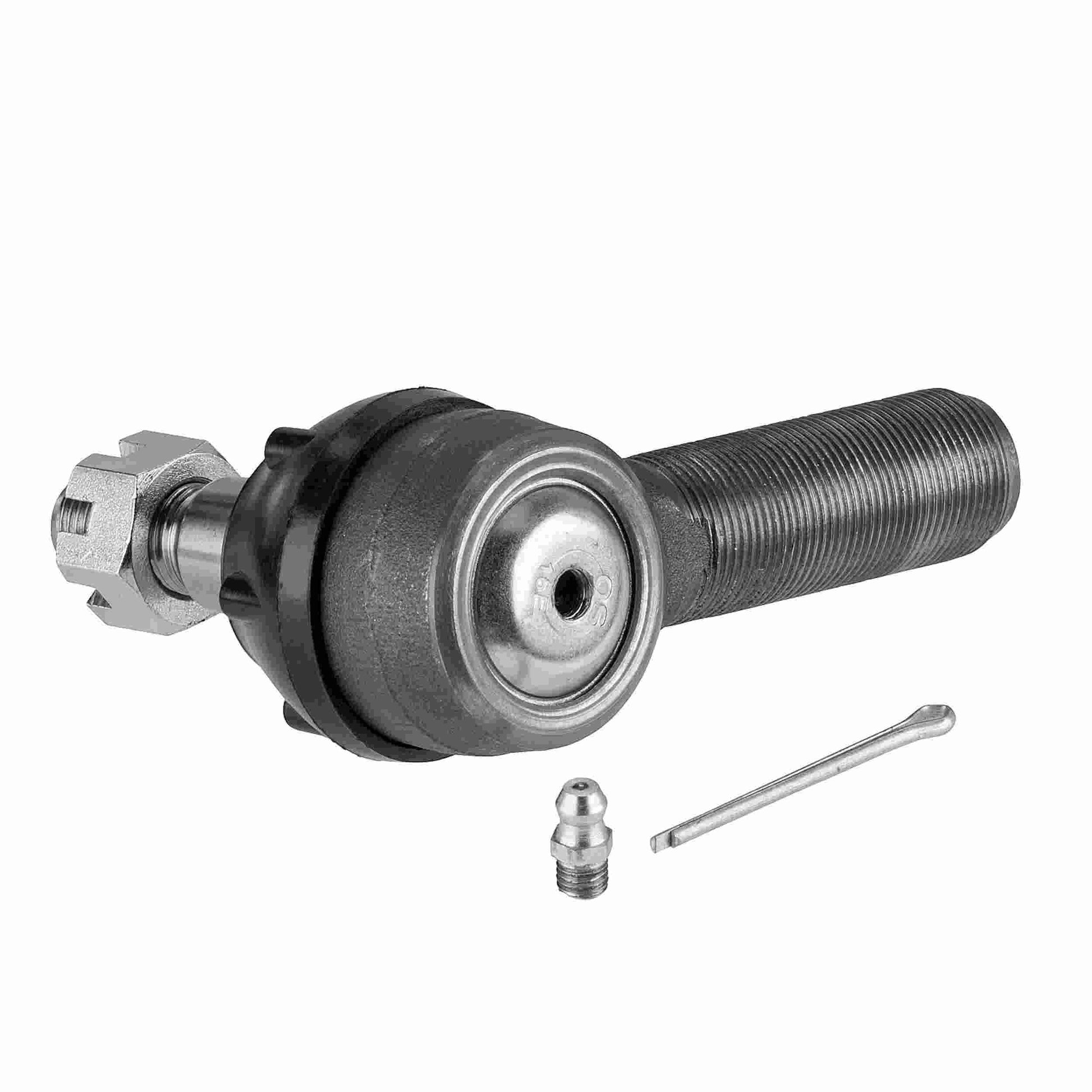

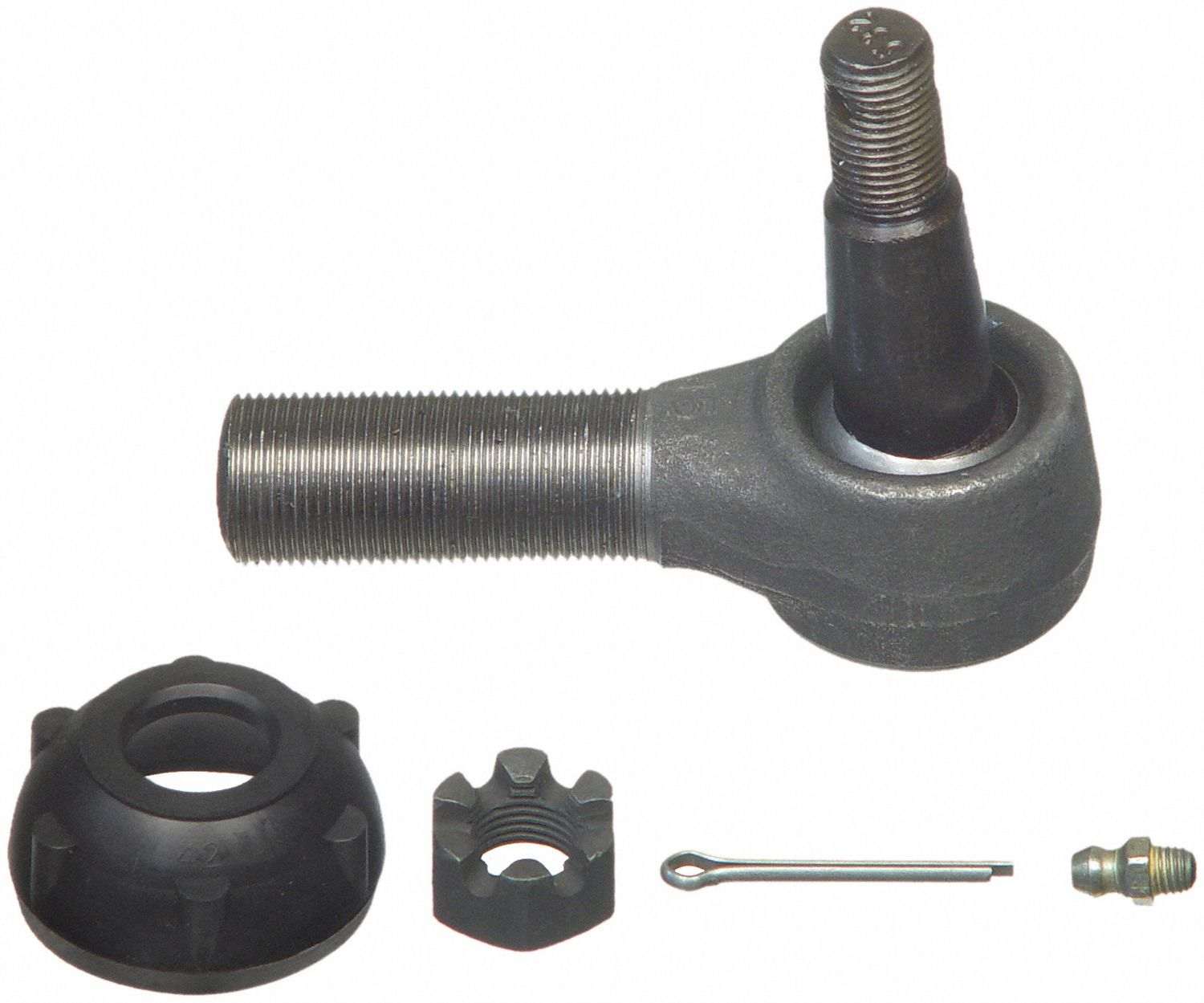

Moog Tie Rod End, Greasable, Outer, Jeep,

• Loose or worn chassis parts can lead to premature tire wear
• Exclusive cover plate protects against contaminants leaking into the bearing surface
• Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
• Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
• Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
• Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications:

Stud Center to End (in): 3.380

Rod Thread: .875-18L

Configuration: STRAIGHT

Rod Type (Male / Female): MALE

Stud Diameter Dimension (top in.): 0.675

Stud Diameter Dimension (bottom in.): 0.765

Stud Thread: 9/16-19

Specification Image Reference: OUTERTIEROD.tif

End 1 Thread Diameter (IN): 0.875

End 1 Thread Direction: L

End 1 Threads Per Inch: 18

End 2 Thread Diameter (IN): 9/16

End 2 Threads Per Inch: 19
