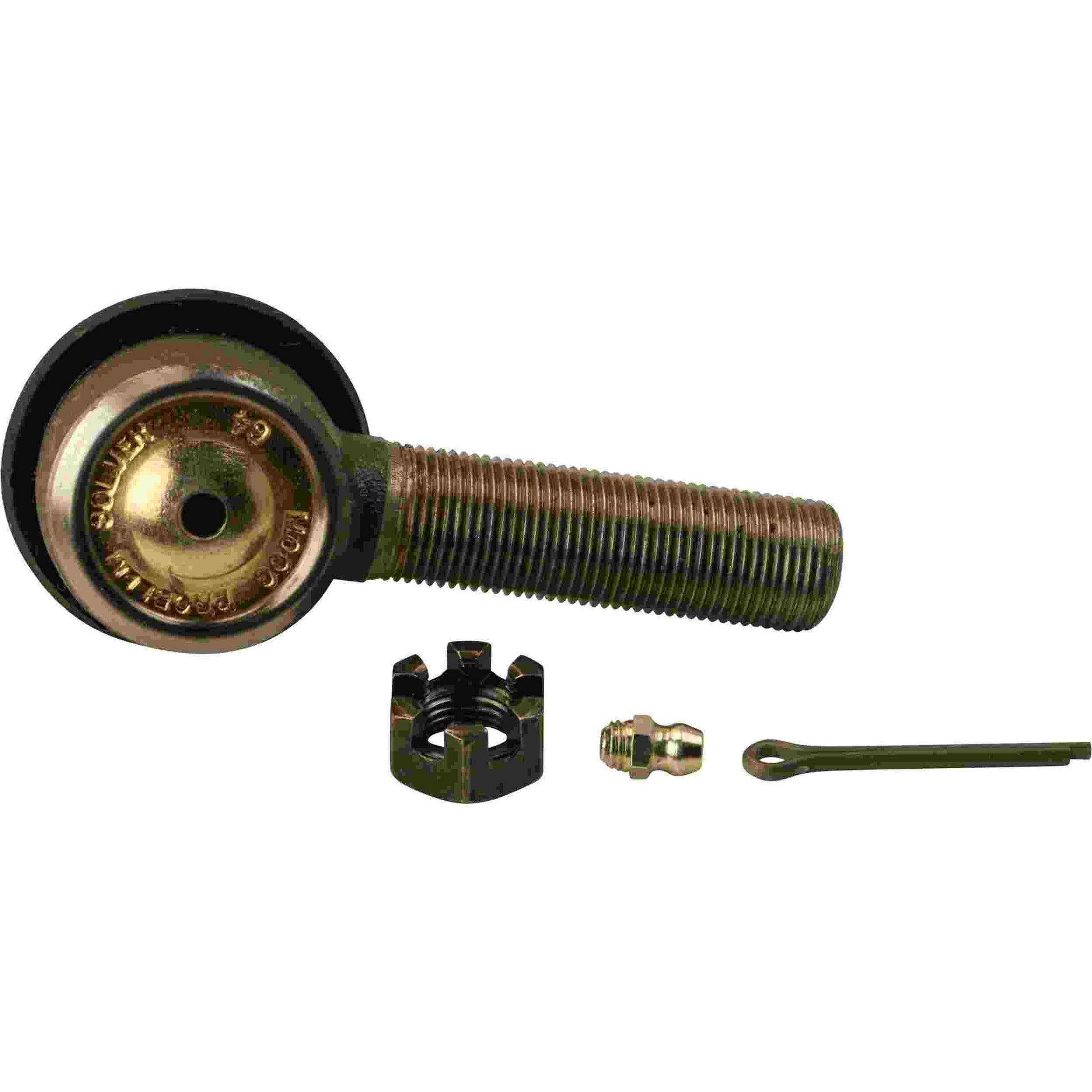

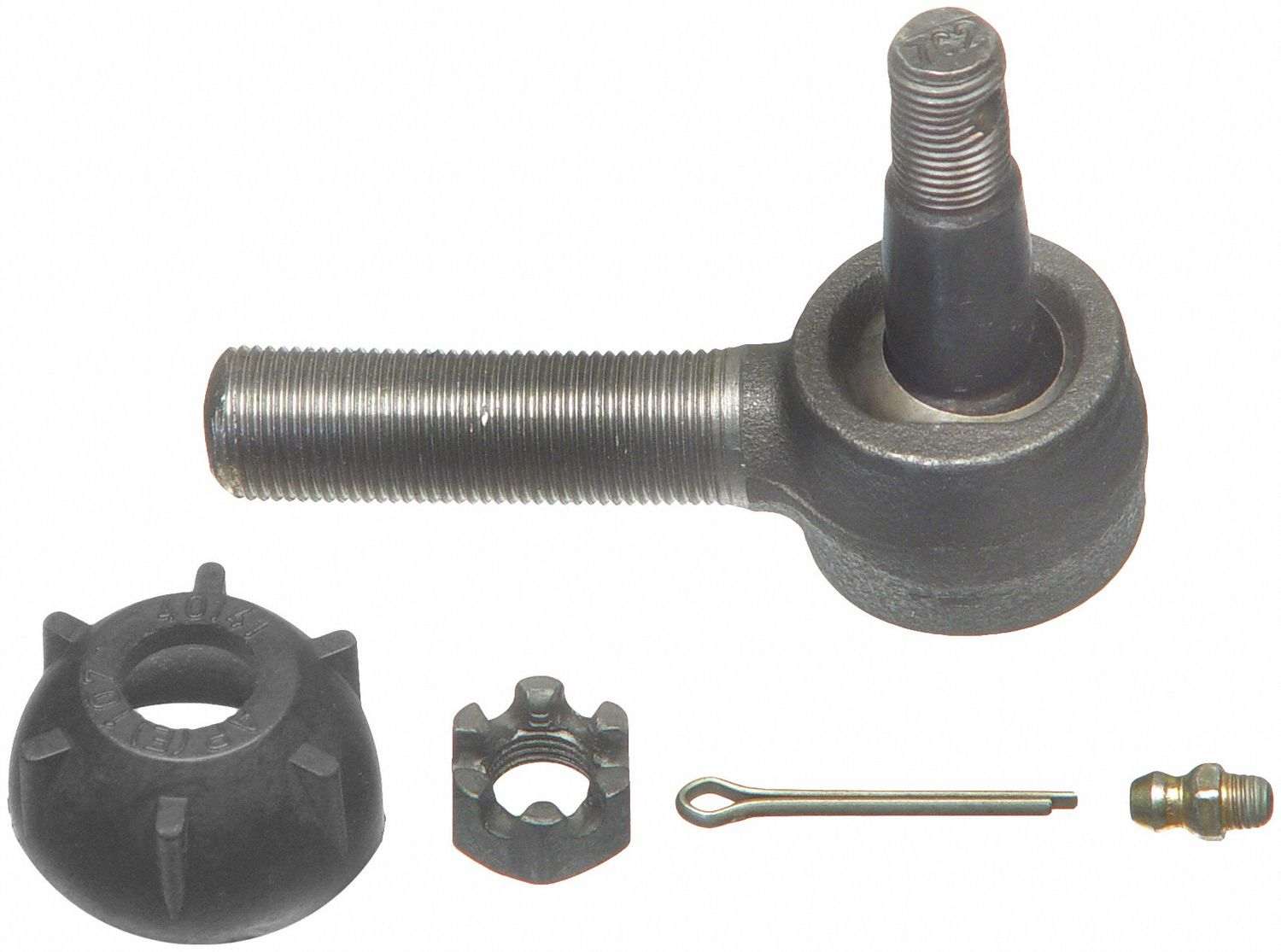

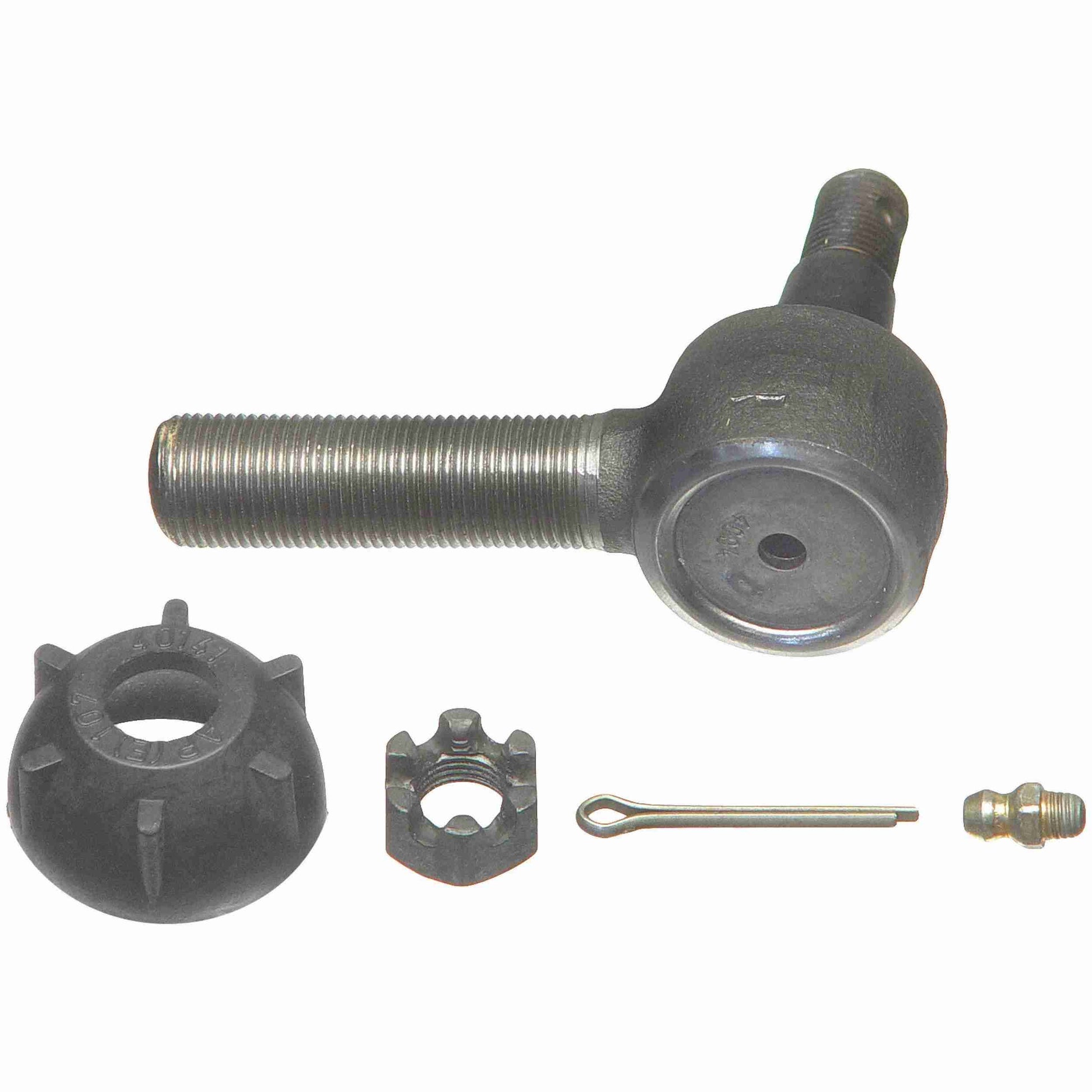

Moog Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Specifications
Tie Rods
Rod Thread | .687-18R |
Configurations | STRAIGHT |
Rod Type (Male / Female) | MALE |
Stud Diameter Dimension (top in.) | 0.568 |
Stud Diameter Dimension (bottom in.) | 0.623 |
Stud Thread | 1/2-20 |
End 1 Thread Diameter (IN) | 0.687 |
End 1 Thread Direction | R |
End 1 Threads Per Inch | 18 |
End 2 Thread Diameter (IN) | 1/2 |
End 2 Threads Per Inch | 20 |
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1945 | Ford | 1/2 Ton Pickup | 1/2 Ton |
1936 - 1947 | Ford | 1/2 Ton Pickup | Base |
1962 - 1963 | Ford | Club Wagon | Deluxe, Base |
1939 - 1948 | Ford | Deluxe | Base |
1961 - 1963 | Ford | Econoline | Base |
1953 - 1964 | Ford | F-100 | Base |
1953 - 1964 | Ford | F-250 | Base |
1948 - 1952 | Ford | F1 | Base |
1941 | Ford | Model 1 GA Truck | Base |
1941 | Ford | Model 11 A | Base |
1942 | Ford | Model 2 GA Special | Base |
1942 | Ford | Model 21 A Deluxe | Base |
1935 | Ford | Model 48 | Base, Standard, Deluxe |
1936 | Ford | Model 68 | Base |
1937 | Ford | Model 74 | Base |
1937 | Ford | Model 78 | Base |
1938 | Ford | Model 81 A | Deluxe, Standard, Base |
1938 | Ford | Model 82 A | Base |
1960 - 1967 | Ford | P-100 | Base |
1937 - 1940 | Ford | Sedan Delivery | Base |
1939 - 1940 | Ford | Standard | Base |
1962 - 1963 | Ford | Station Bus | Base |
1941 - 1948 | Ford | Super Deluxe | Base |
1946 - 1948 | Mercury | Mercury | Base |
1941 | Mercury | Series 19A | Base |
1942 | Mercury | Series 29A | Base |
1939 | Mercury | Series 99A | Base |
1940 | Mercury | Series O9A | Base |

Moog Tie Rod End
Sale price$48.83 USD
