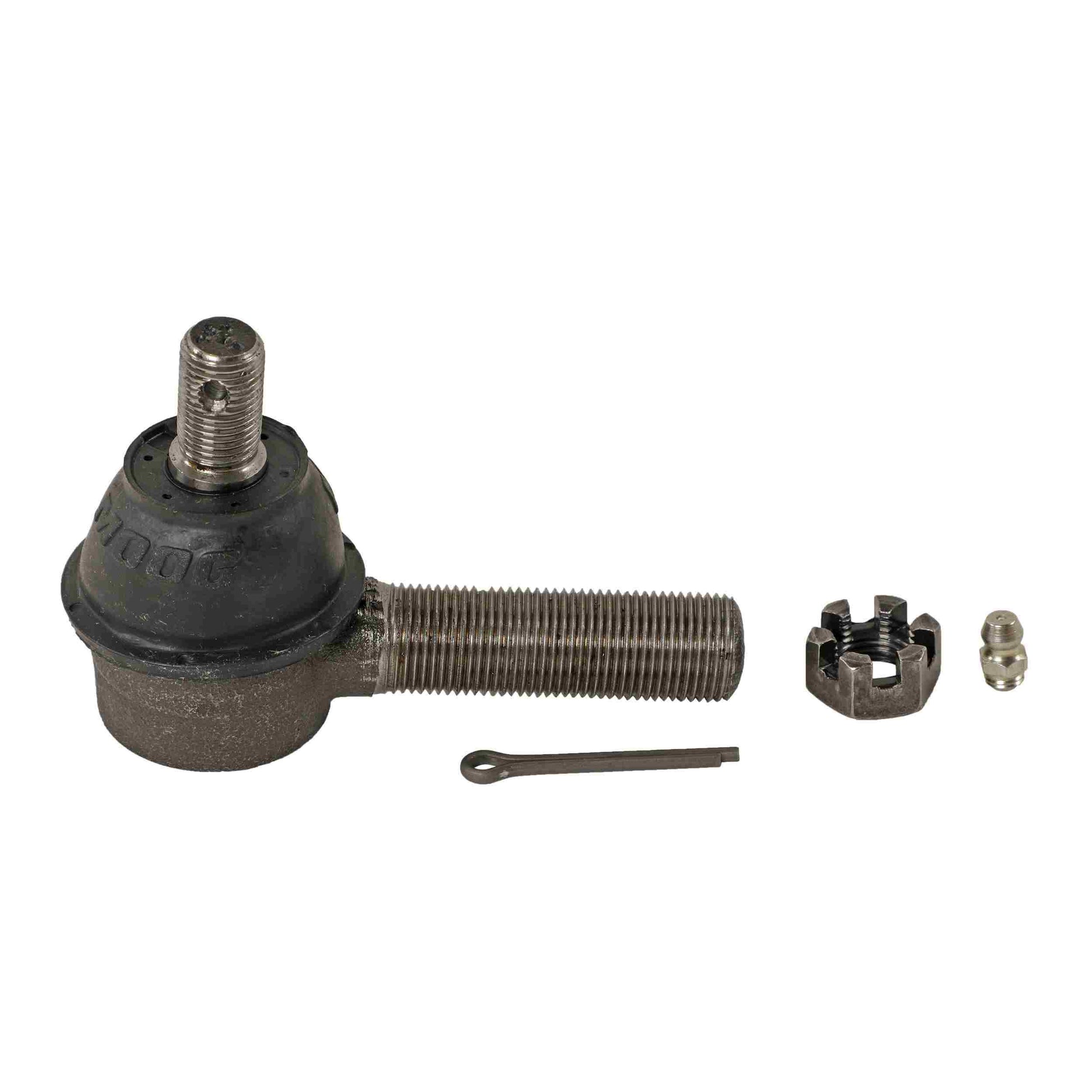

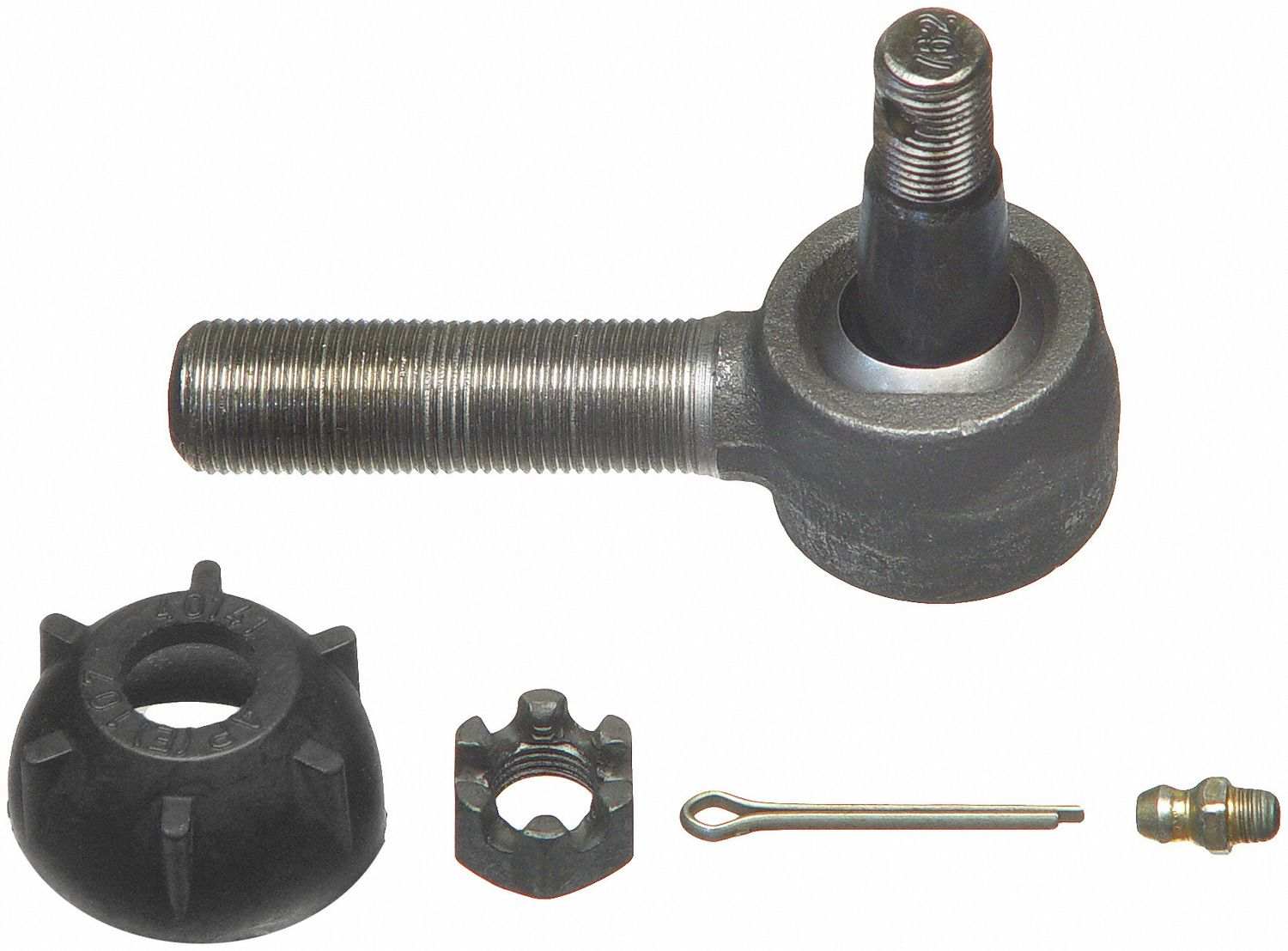

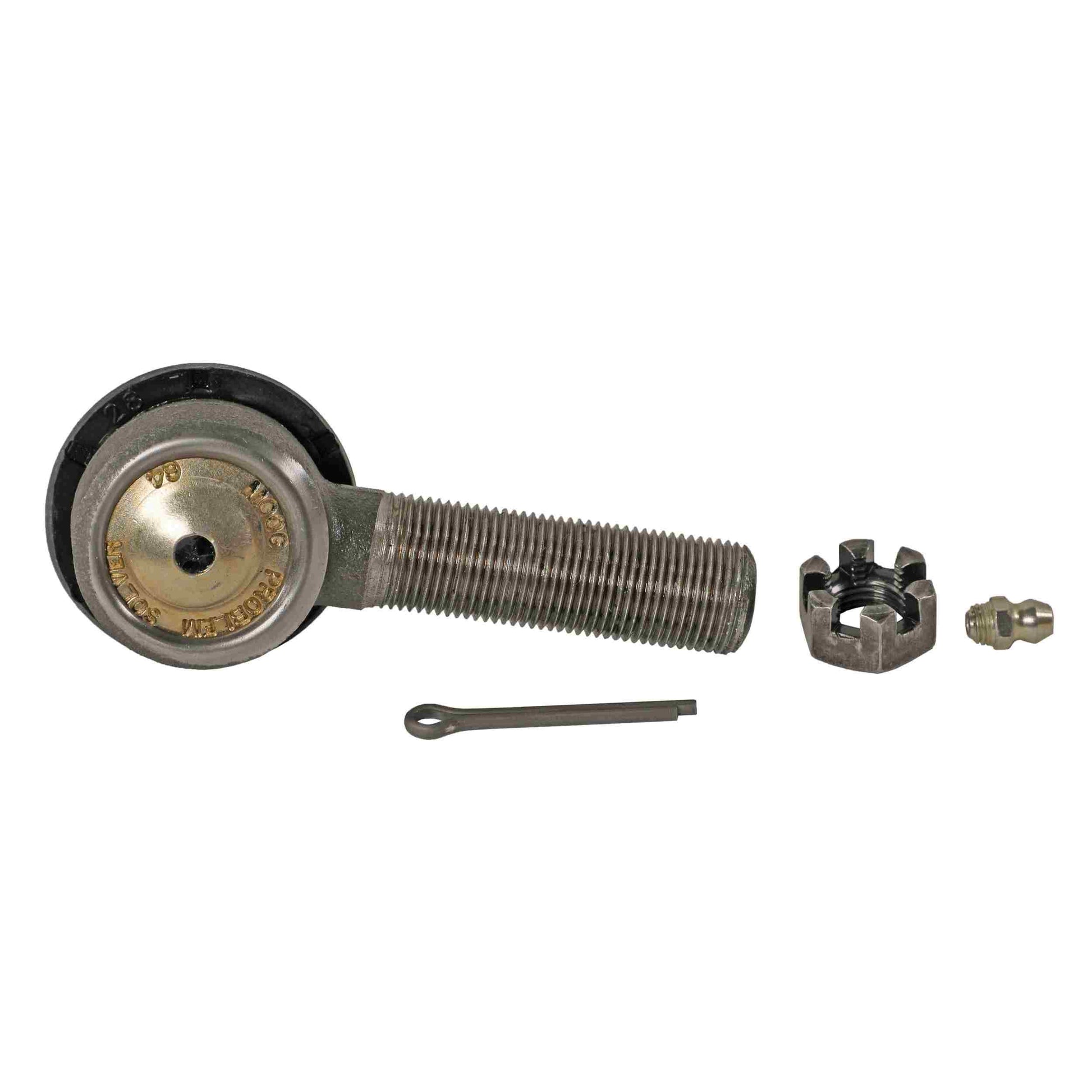

Moog Tie Rod End, Greasable, Outer, Ford, Mercury,
MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications:
Rod Thread: .687-18L
Configuration: STRAIGHT
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.568
Stud Diameter Dimension (bottom in.): 0.623
Stud Thread: 1/2-20
End 1 Thread Diameter (IN): 0.687
End 1 Thread Direction: L
End 1 Thread Per Inch: 18
End 2 Thread Diameter (IN: 1/2
End 2 Thread Per Inch: 20
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1959 | Edsel | Corsair | Base |
| 1958 | Edsel | Pacer | Base |
| 1958 - 1959 | Edsel | Ranger | Base |
| 1959 | Edsel | Villager | Base |
| 1945 | Ford | 1/2 Ton Pickup | 1/2 Ton |
| 1936 - 1947 | Ford | 1/2 Ton Pickup | Base |
| 1953 - 1959 | Ford | Club | Base |
| 1962 - 1963 | Ford | Club Wagon | Base, Deluxe |
| 1952 - 1960 | Ford | Country Sedan | Base |
| 1950 - 1960 | Ford | Country Squire | Base |
| 1950 - 1954 | Ford | Crestline | Base |
| 1949 - 1957 | Ford | Custom | Base |
| 1957 - 1959 | Ford | Custom 300 | Base |
| 1952 - 1956 | Ford | Customline | Base |
| 1957 - 1958 | Ford | Del Rio Wagon | Base |
| 1939 - 1951 | Ford | Deluxe | Base |
| 1961 - 1963 | Ford | Econoline | Base |
| 1953 - 1964 | Ford | F-100 | Base |
| 1953 - 1964 | Ford | F-250 | Base |
| 1948 - 1952 | Ford | F1 | Base |
| 1957 - 1960 | Ford | Fairlane | 500 |
| 1955 - 1960 | Ford | Fairlane | Base |
| 1949 | Ford | Ford | Base |
| 1959 - 1960 | Ford | Galaxie | Base |
| 1960 | Ford | Galaxie | Special |
| 1952 - 1956 | Ford | Mainline | Base |
| 1941 | Ford | Model 1 GA Truck | Base |
| 1941 | Ford | Model 11 A | Base |
| 1942 | Ford | Model 2 GA Special | Base |
| 1942 | Ford | Model 21 A Deluxe | Base |
| 1935 | Ford | Model 48 | Standard, Base, Deluxe |
| 1936 | Ford | Model 68 | Base |
| 1937 | Ford | Model 74 | Base |
| 1937 | Ford | Model 78 | Base |
| 1938 | Ford | Model 81 A | Deluxe, Base, Standard |
| 1938 | Ford | Model 82 A | Base |
| 1960 - 1967 | Ford | P-100 | Base |
| 1956 | Ford | Park Lane Wagon | Base |
| 1952 - 1960 | Ford | Ranch Wagon | Base |
| 1937 - 1940 | Ford | Sedan Delivery | Base |
| 1954 - 1959 | Ford | Skyliner | Base |
| 1956 - 1960 | Ford | Squire | Base |
| 1939 - 1940 | Ford | Standard | Base |
| 1960 | Ford | Starliner | Base |
| 1962 - 1963 | Ford | Station Bus | Base |
| 1952 - 1959 | Ford | Sunliner | Base |
| 1941 - 1948 | Ford | Super Deluxe | Base |
| 1956 - 1960 | Ford | Thunderbird | Base |
| 1951 - 1960 | Ford | Victoria | Base |
| 1961 - 1962 | International | C100 | Base |
| 1963 - 1964 | International | C1000 | Base |
| 1961 - 1962 | International | C102 | Base |
| 1961 - 1962 | International | C110 | Base |
| 1963 - 1964 | International | C1100 | Base |
| 1961 - 1962 | International | C112 | Base |
| 1949 | Lincoln | 9EL Series | Base |
| 1949 - 1951 | Lincoln | Cosmopolitan | Base |
| 1950 - 1951 | Lincoln | Lincoln | Base |
| 1957 - 1960 | Mercury | Colony Park | Base |
| 1952 - 1956 | Mercury | Custom | Base |
| 1956 - 1958 | Mercury | Medalist | Base |
| 1946 - 1951 | Mercury | Mercury | Base |
| 1955 - 1958 | Mercury | Montclair | Base |
| 1958 | Mercury | Montclair | Turnpike Cruiser |
| 1950 - 1960 | Mercury | Monterey | Base |
| 1954 | Mercury | Monterey | Sun Valley |
| 1958 | Mercury | Park Lane | Base |
| 1941 | Mercury | Series 19A | Base |
| 1942 | Mercury | Series 29A | Base |
| 1939 | Mercury | Series 99A | Base |
| 1940 | Mercury | Series O9A | Base |
| 1957 | Mercury | Turnpike Cruiser | Base |
| 1957 | Mercury | Voyager | Base |
Moog Tie Rod End, Greasable, Outer, Ford, Mercury,
Sale price$27.08 USD
