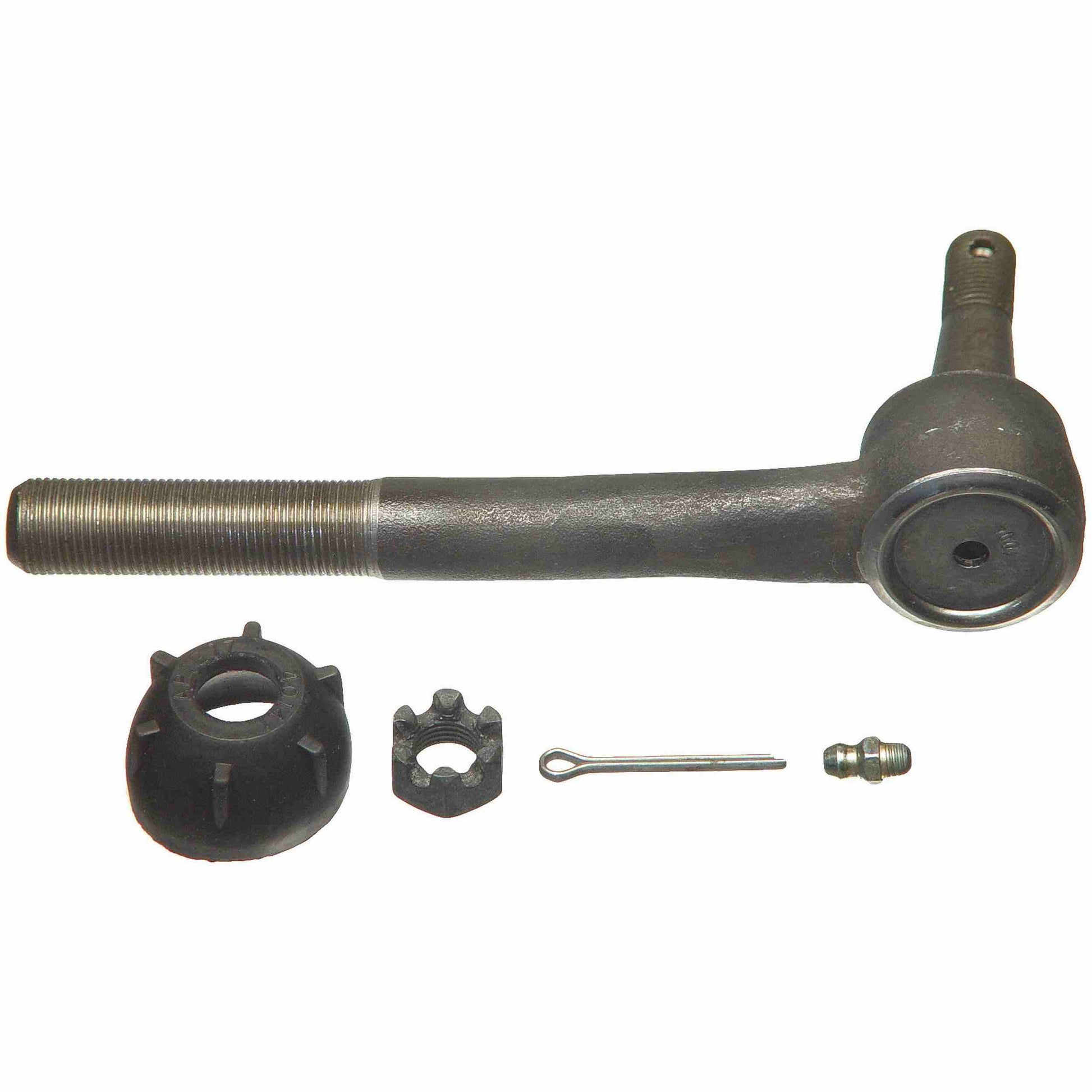

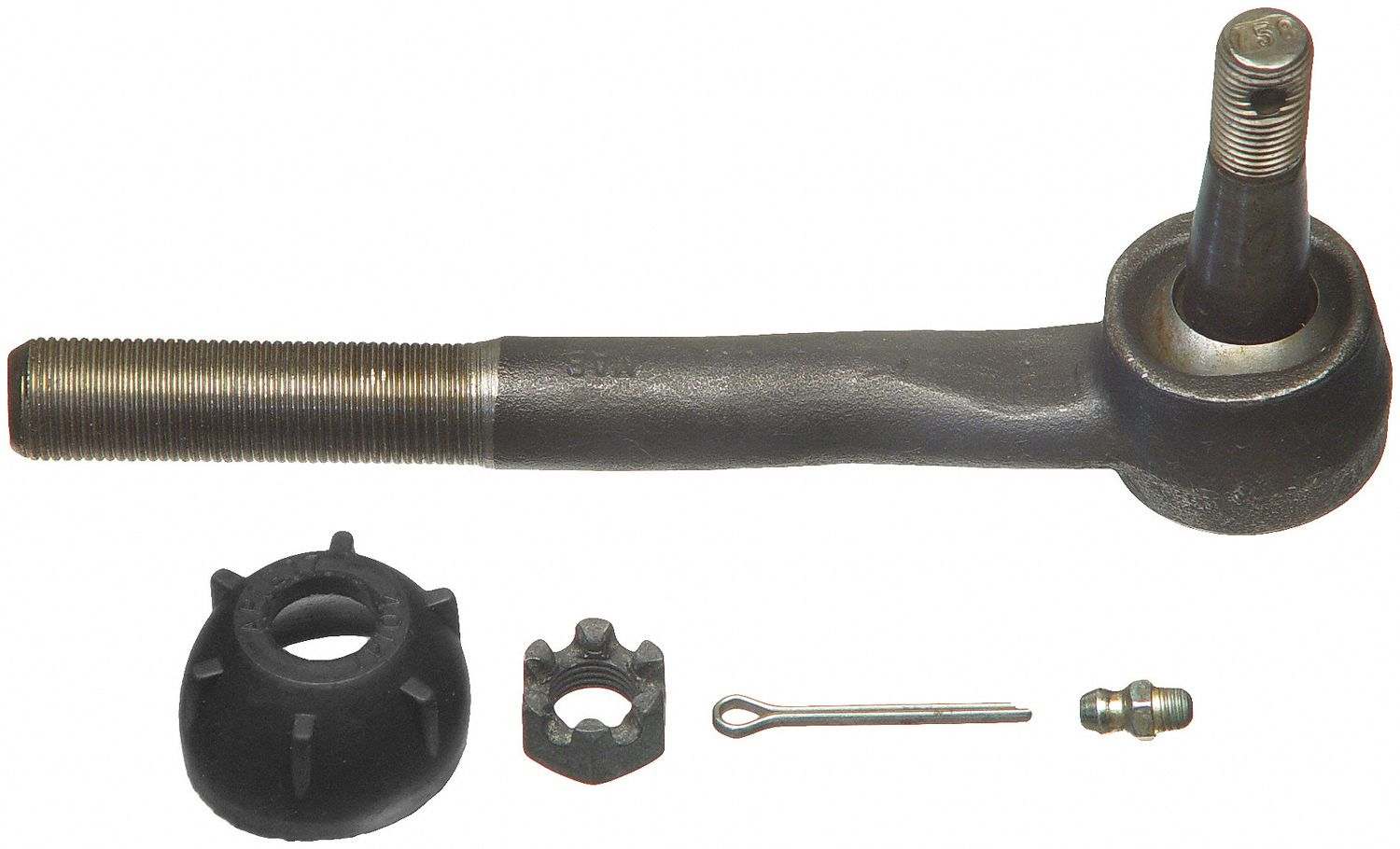

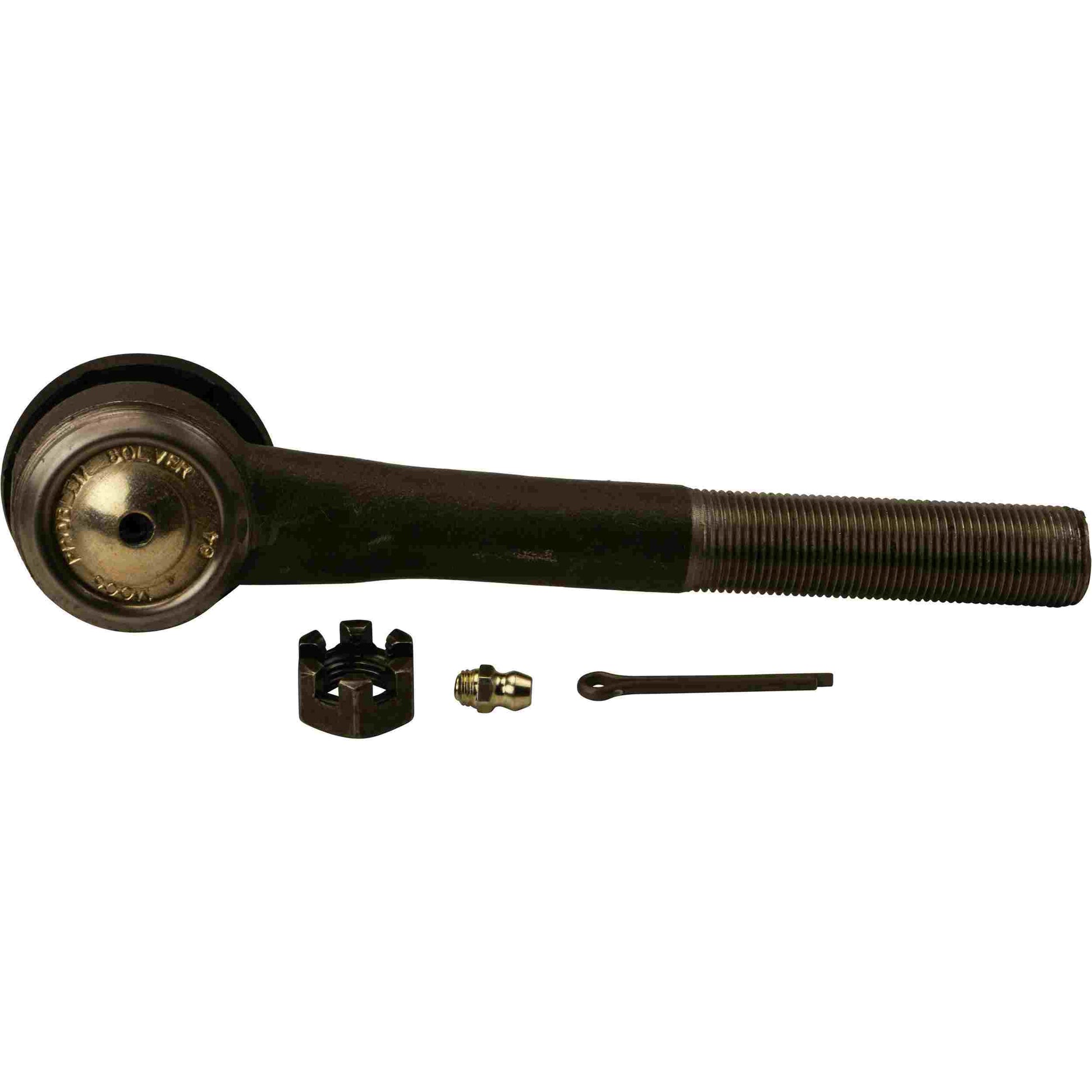

Moog Tie Rod End:Greasable,Outer,Chevy,GMC,RWD
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 6.385
Rod Thread: 11/16-18 RH
Configuration: STRAIGHT
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.507
Stud Diameter Dimension (bottom in.): 0.625
Stud Thread: 1/2 20
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1971 - 1972 | Chevrolet | Blazer | Base |
| 1971 - 1972 | Chevrolet | C10 Pickup | Base |
| 1971 - 1972 | Chevrolet | C10 Suburban | Base |
| 1971 - 1972 | Chevrolet | G10 Van | Sportvan, Base |
| 1971 - 1972 | Chevrolet | P10 Van | Base |
| 1971 - 1972 | GMC | C15/C1500 Pickup | Base |
| 1971 - 1972 | GMC | C15/C1500 Suburban | Base |
| 1971 | GMC | G15/G1500 Van | Base |
| 1971 - 1972 | GMC | G15/G1500 Van | Vandura, Rally |
| 1971 - 1972 | GMC | Jimmy | Base |
| 1971 - 1972 | GMC | P15/P1500 Van | Base |
Moog Tie Rod End:Greasable,Outer,Chevy,GMC,RWD
Sale price$51.20 USD
