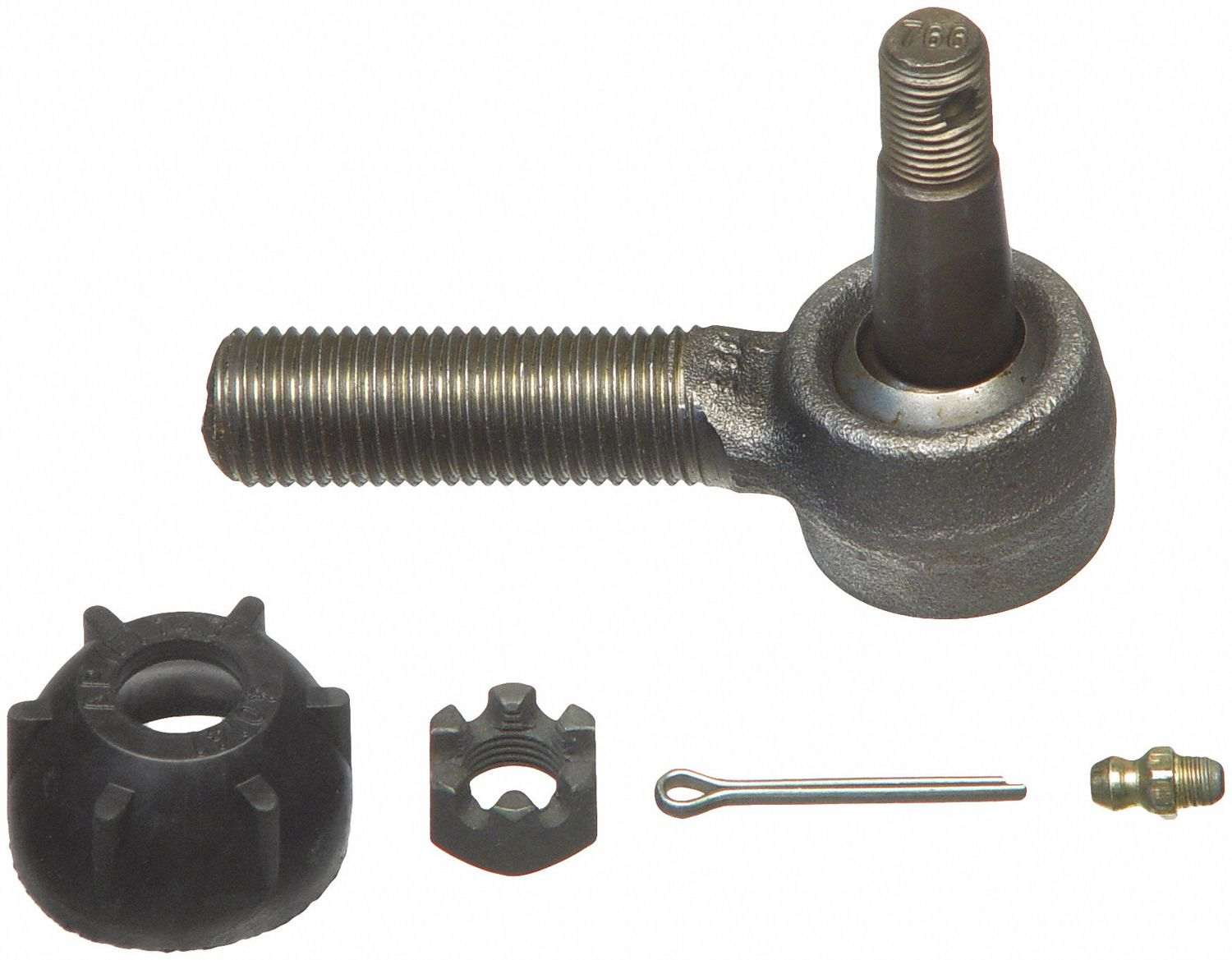

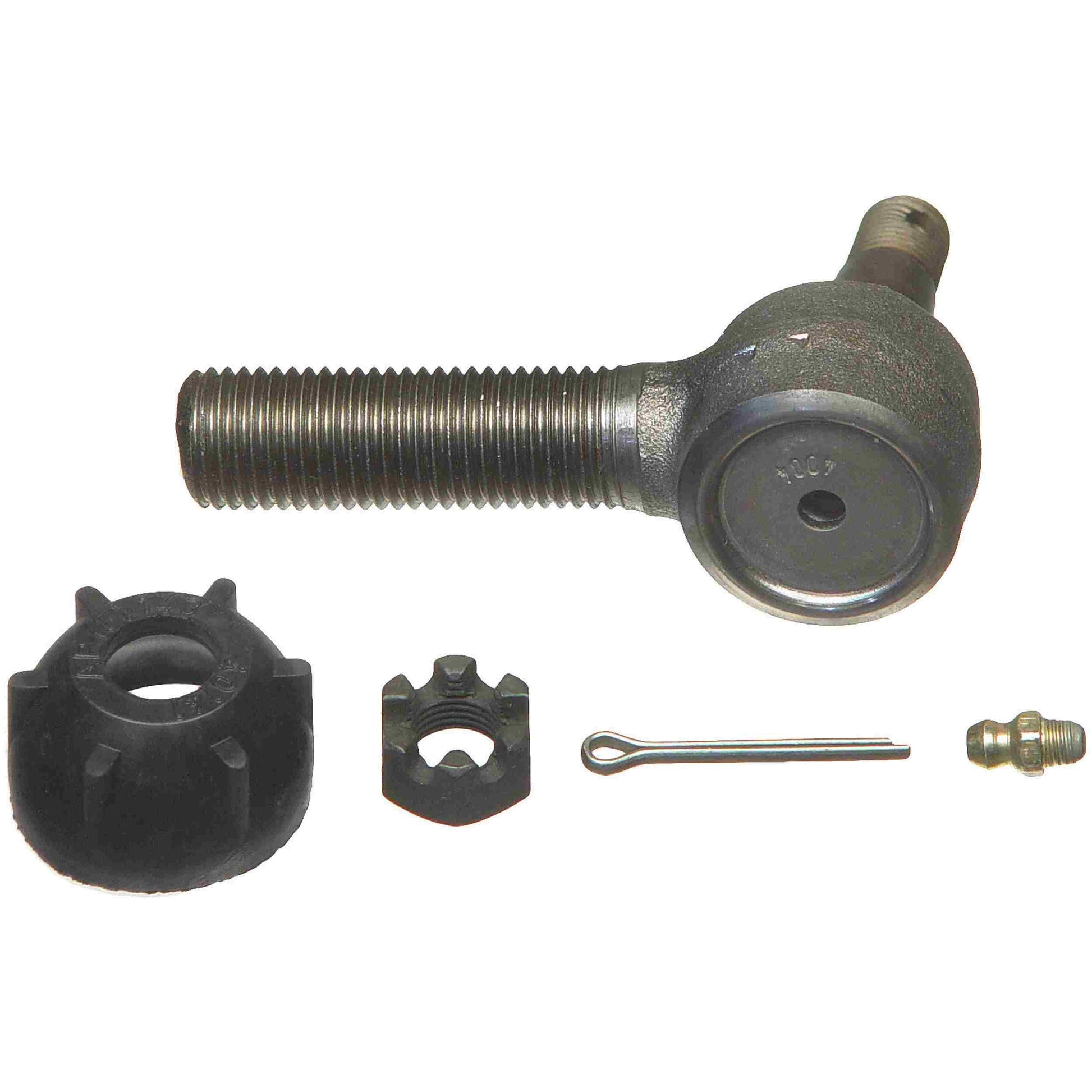

Moog Tie Rod End, Greasable, Outer, Dodge, Plymouth,
MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications:
Greasable: Yes
Stud Center to End (in): 3.280
Rod Thread: 3/4"-12"
Configuration: STRAIGHT
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.543
Stud Diameter Dimension (bottom in.): 0.626
Stud Thread: 1/2"-20"
Rack End Thread: 1/2"-20"
Specification Image Reference: OUTERTIEROD.tif
Dust Boot INcluded: Yes
End 1 Thread Diameter (IN): 3/4
End 1 Thread Direction: R
End 1 Thread Per Inch: 12
End 2 Thread Diameter (IN): 1/2
End 2 Thread Per Inch: 20
Moog Tie Rod End, Greasable, Outer, Dodge, Plymouth,
Sale price$14.05 USD
