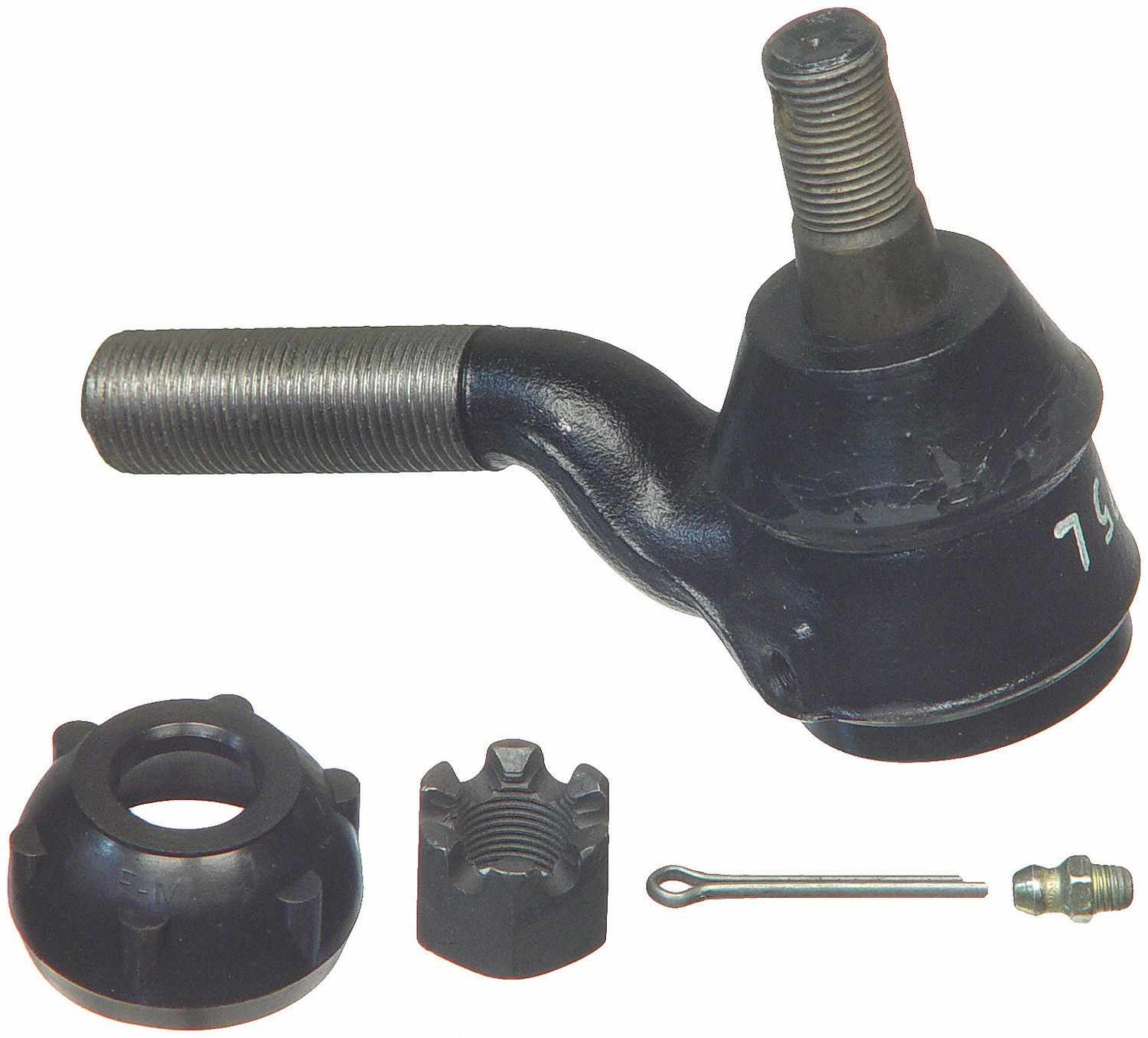

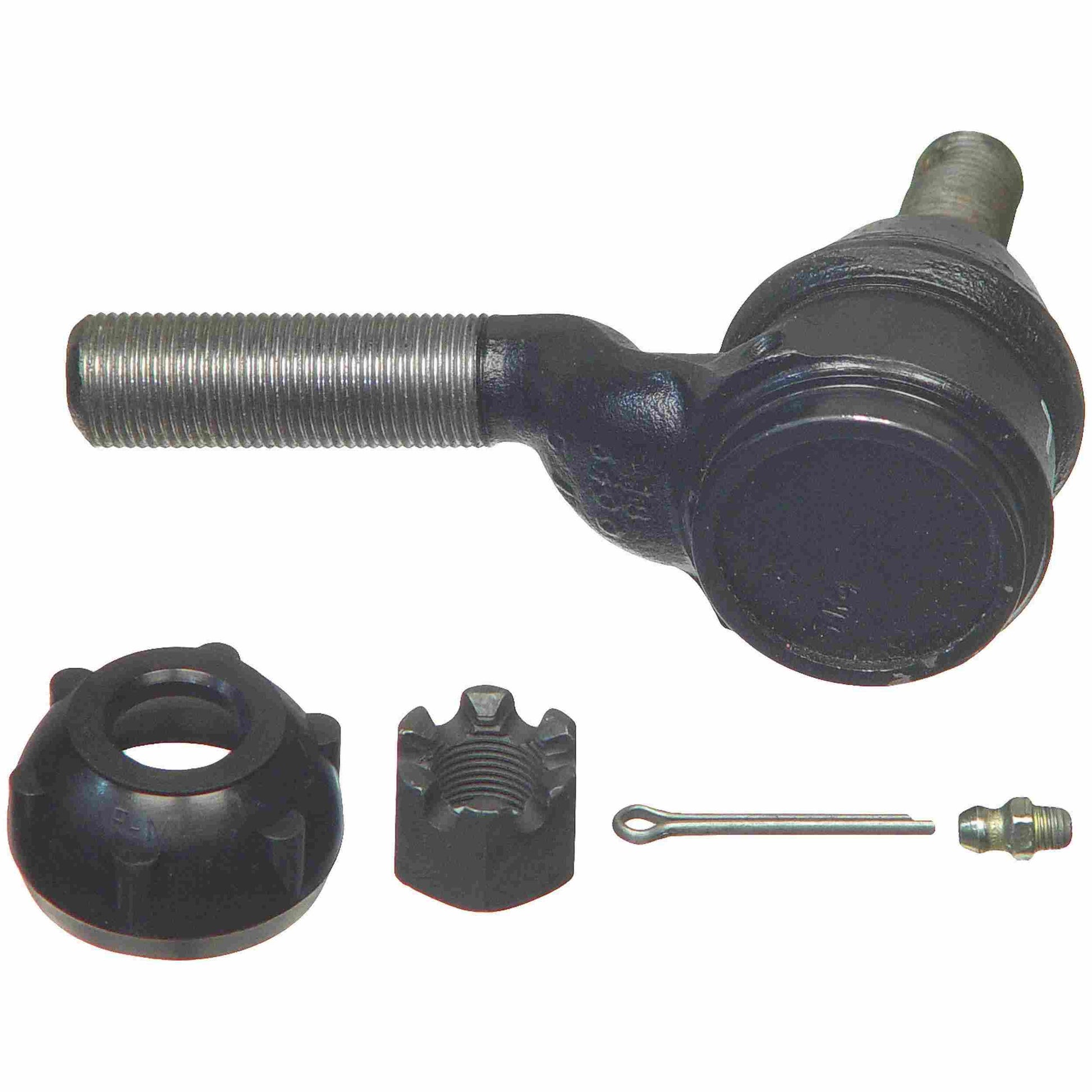

Moog Tie Rod End:Greasable,Outer,Chevy,GMC,4WD
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 4.380
Rod Thread: 3/4" - 16"
Configuration: BENT
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.664
Stud Diameter Dimension (bottom in.): 0.776
Stud Thread: 5/8" - 18"
Rack End Thread: 5/8" - 18"
Dust Boot Included: Yes
End 1 Thread Diameter (in): 3/4
End 1 Threads Per Inch: 16
End 1 Thread Direction: R
End 2 Thread Diameter (in): 5/8
End 2 Threads Per Inch: 18
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1969 - 1972 | Chevrolet | Blazer | Base |
| 1967 - 1972 | Chevrolet | K10 Pickup | Base |
| 1967 - 1972 | Chevrolet | K10 Suburban | Base |
| 1967 | Chevrolet | K20 Panel | Base |
| 1967 - 1972 | Chevrolet | K20 Pickup | Base |
| 1968 - 1972 | Chevrolet | K20 Suburban | Base |
| 1970 - 1972 | GMC | Jimmy | Base |
| 1967 - 1972 | GMC | K15/K1500 Pickup | Base |
| 1967 - 1972 | GMC | K15/K1500 Suburban | Base |
| 1967 - 1972 | GMC | K25/K2500 Pickup | Base |
| 1967 - 1972 | GMC | K25/K2500 Suburban | Base |
Moog Tie Rod End:Greasable,Outer,Chevy,GMC,4WD
Sale price$68.11 USD
