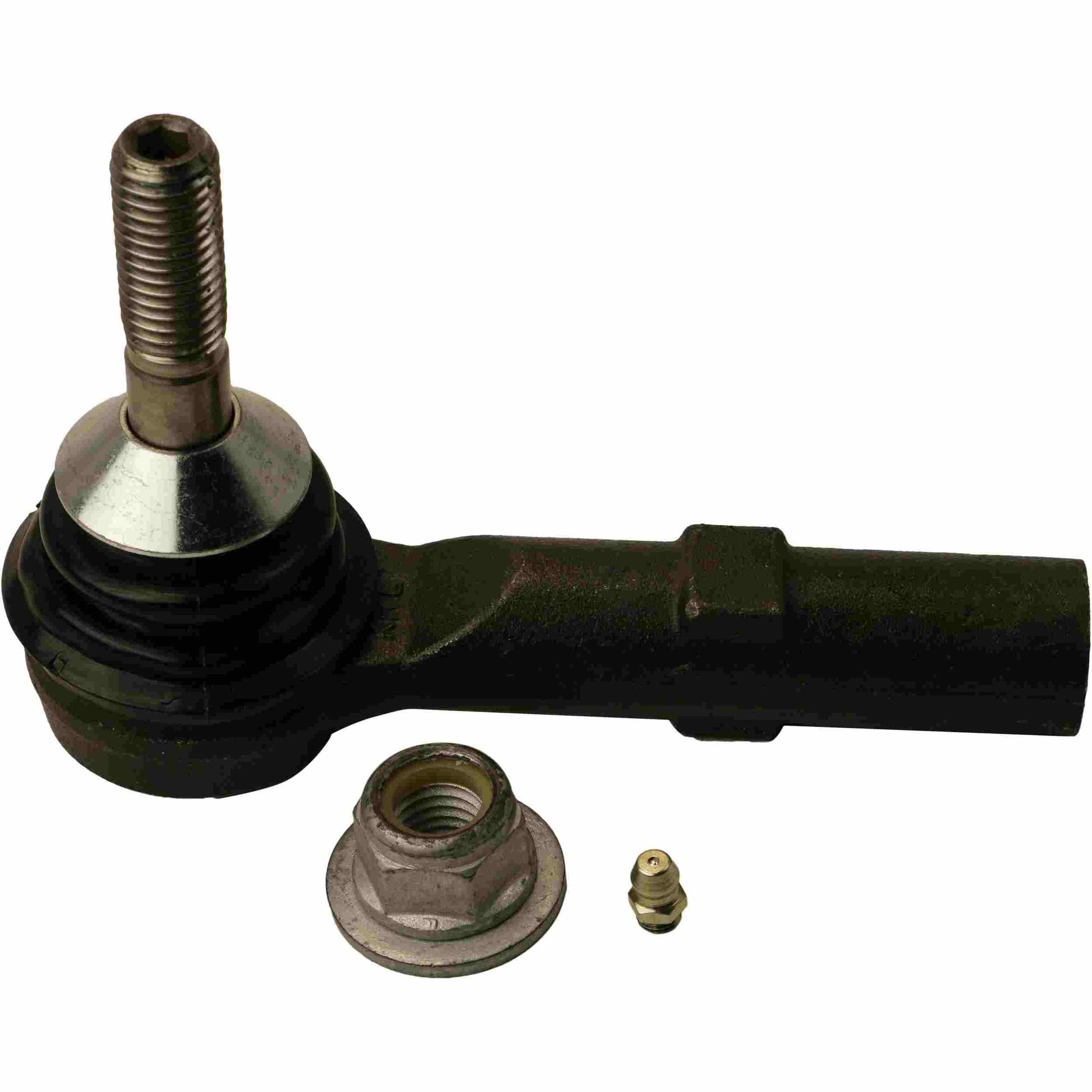

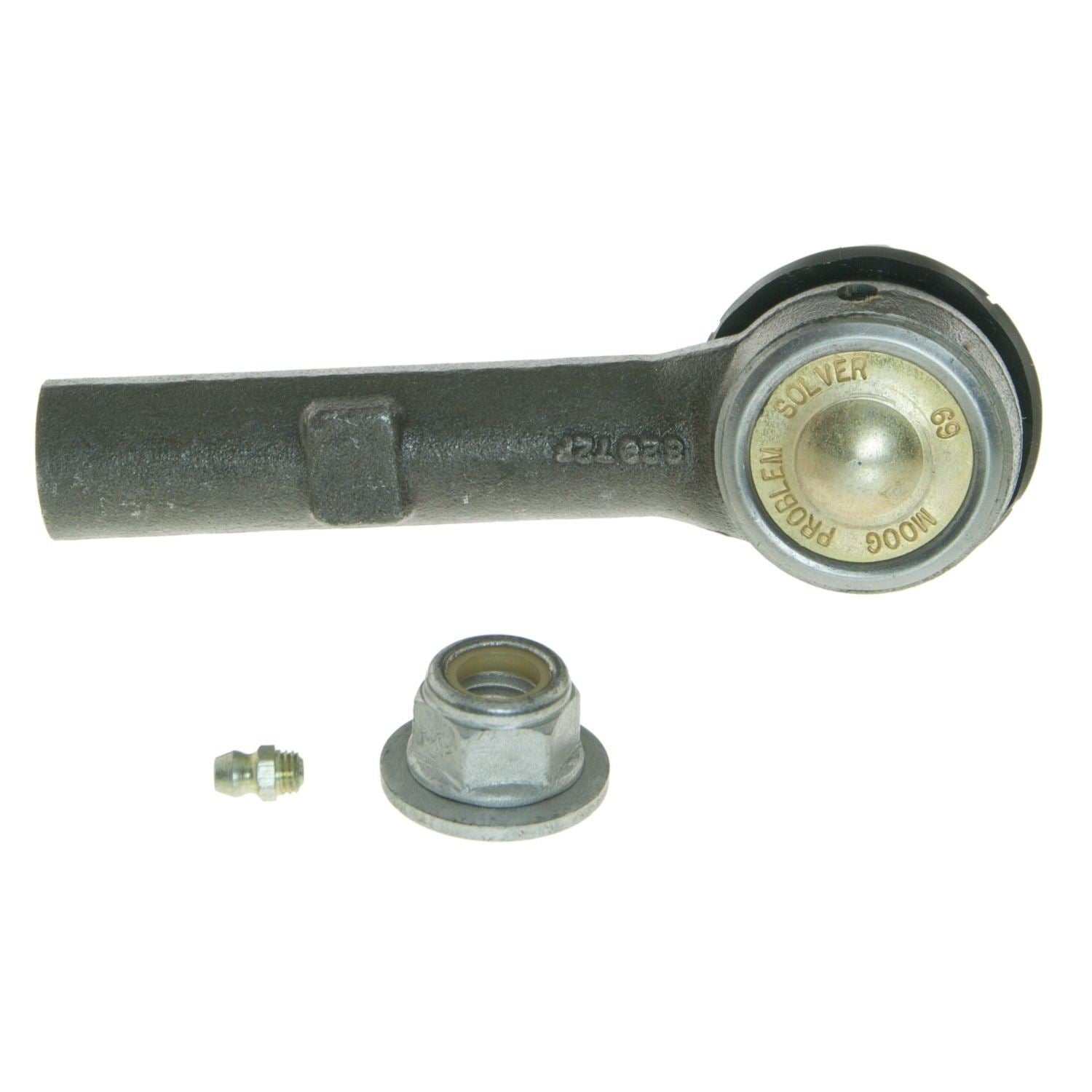

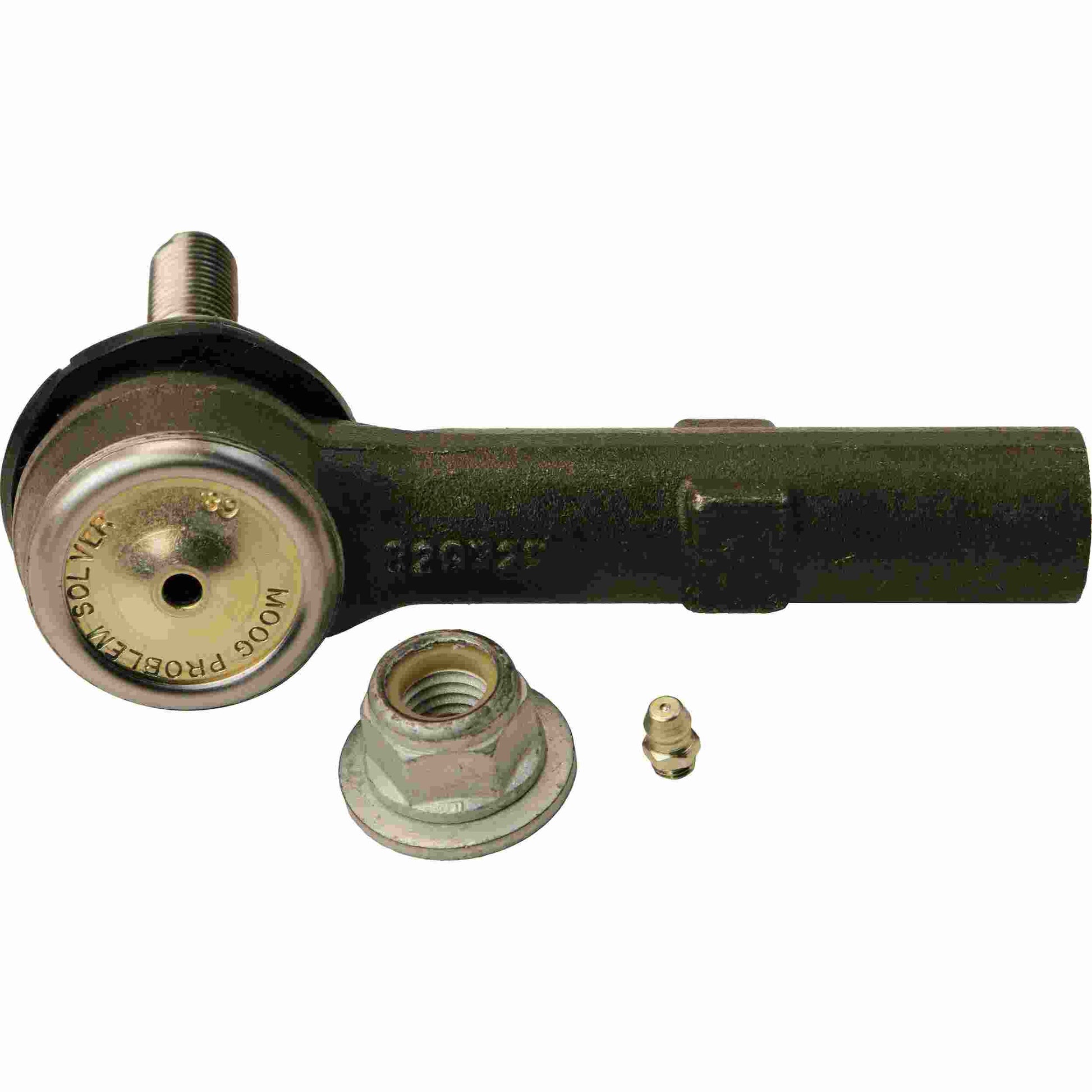

Moog Tie Rod End, Greasable, Outer, Ford, Lincoln,
SKU: 14NNH | MPN:
ES3695
Sale price$42.91 USD
Regular price$56.34 USDSave $13.43
| Greasable |
YES |
| Stud Center to End (in) |
4.850 |
| Rod thread |
M16 X 1.50 |
| Configuration |
STRAIGHT |
| Rod Type (male/female) |
FEMALE |
| Stud Diameter Dimension (top in) |
0.541 |
| Stud Diameter Dimension (bottom in) |
Cone Adaptor |
| stud thread |
M14 X 2.00 |
| Rack End Thread |
M14 X 2.00 |
| Specification Image Reference |
OUTERTIEROD.tif |
| Dust Boot Included |
YES |
| End 1 Thread Diameter (IN) |
16.000 |
| End 1 Threads Pitch (MM) |
1.500 |
| End 1 Thread Direction |
R |
| End 2 Thread Diameter (MM) |
14.0 |
| End 2 TThreads Pitch (MM) |
2 |
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 2003 - 2006 |
Ford |
Expedition |
Eddie Bauer, XLT |
| 2005 - 2006 |
Ford |
Expedition |
King Ranch, Limited |
| 2004 |
Ford |
Expedition |
NBX |
| 2004 - 2006 |
Ford |
Expedition |
XLT Sport, XLS |
| 2003 - 2005 |
Lincoln |
Navigator |
Base |
| 2006 |
Lincoln |
Navigator |
Luxury |
| 2004 - 2006 |
Lincoln |
Navigator |
Ultimate |
