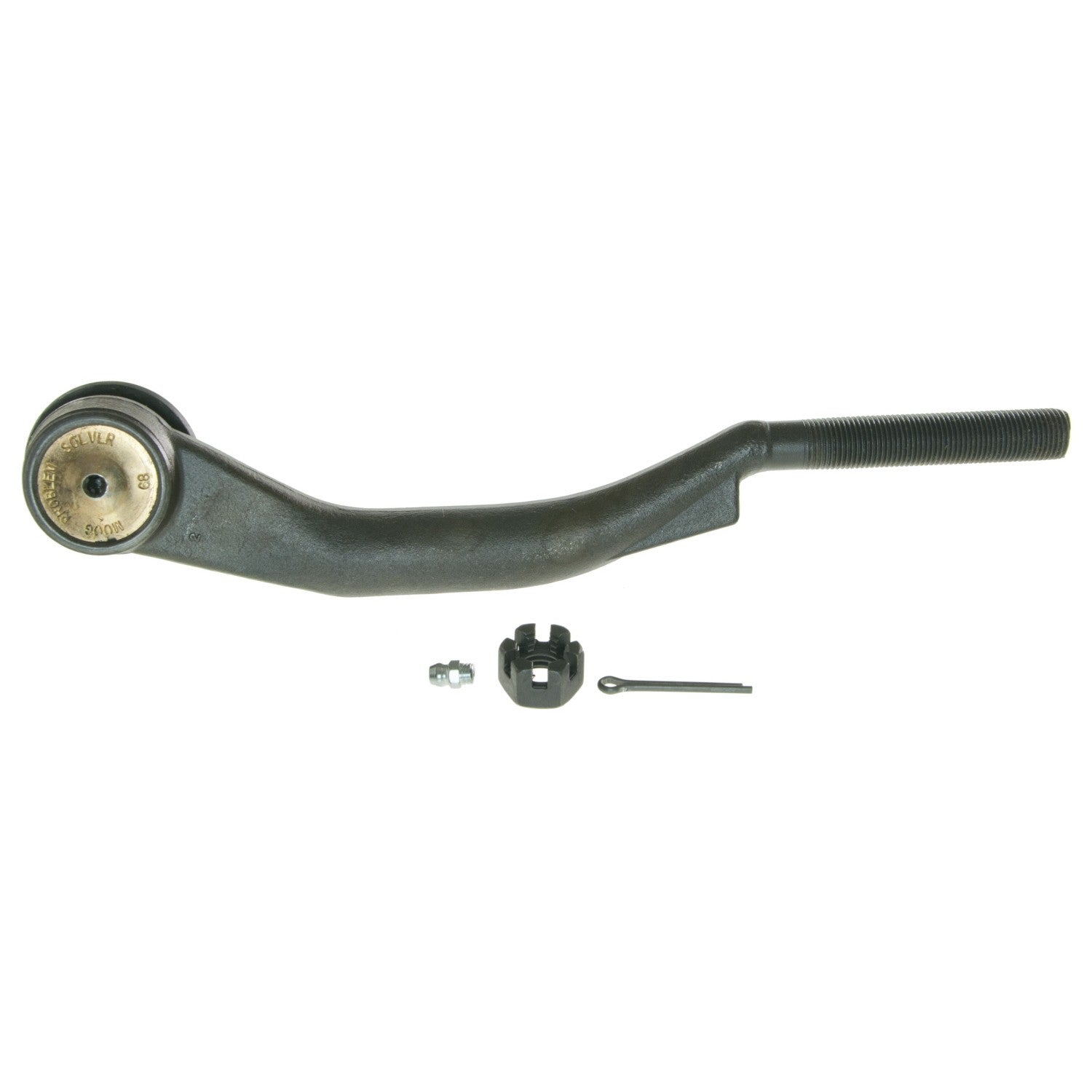

Moog Tie Rod End, Driver Side Outer, Buick, Chevy, GMC, Oldsmobile, Saab,
Specifications:
| Greasable | YES |
| stud center to End (in) | 11.090 |
| Rod Thread | M16X1.50 |
| configuration | BENT |
| Rod type (Male / Female) | MALE |
| stud Diameter Dimension(top in) | 0.562 |
| stud Diameter Dimension(bottom in) | 0.718 |
| stud thread | M14X2.00 |
| Rack end Thread | M14X2.00 |
| Specification Image Reference | OUTERTIEROD,tif |
| Dust Boot included | YES |
| End 1 Thread diameter (MM) | 16.000 |
| End 1 Thread Pitch (MM) | 1.500 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2007 | Buick | Rainier | CXL |
| 2004 - 2005 | Buick | Rainier | CXL Plus |
| 2003 - 2006 | Chevrolet | SSR | Base |
| 2004 - 2007 | Chevrolet | Trailblazer | B, A |
| 2003 - 2008 | Chevrolet | Trailblazer | Base |
| 2002 - 2007 | Chevrolet | Trailblazer | LS |
| 2002 - 2009 | Chevrolet | Trailblazer | LT |
| 2002 - 2003 | Chevrolet | Trailblazer | LTZ |
| 2002 - 2004 | Chevrolet | Trailblazer | North Face |
| 2005 | Chevrolet | Trailblazer | R, Q |
| 2006 - 2009 | Chevrolet | Trailblazer | SS |
| 2003 - 2006 | Chevrolet | Trailblazer EXT | LS |
| 2002 - 2006 | Chevrolet | Trailblazer EXT | LT |
| 2002 - 2004 | Chevrolet | Trailblazer EXT | North Face |
| 2005 - 2009 | GMC | Envoy | Denali |
| 2002 - 2009 | GMC | Envoy | SLE, SLT |
| 2005 - 2006 | GMC | Envoy XL | Denali |
| 2002 - 2006 | GMC | Envoy XL | SLE, SLT |
| 2004 - 2005 | GMC | Envoy XUV | SLT, SLE |
| 2003 - 2005 | Isuzu | Ascender | Limited |
| 2003 - 2006 | Isuzu | Ascender | LS, Base |
| 2004 - 2008 | Isuzu | Ascender | S |
| 2002 - 2004 | Oldsmobile | Bravada | Base |
| 2006 - 2009 | Saab | 9-7x | 4.2i, 5.3i |
| 2008 - 2009 | Saab | 9-7x | Aero |
| 2005 | Saab | 9-7x | Linear, Arc |
Moog Tie Rod End, Driver Side Outer, Buick, Chevy, GMC, Oldsmobile, Saab,
Sale price$84.59 USD
