Moog Tie Rod End

Moog Tie Rod End

sku: 14NNG | mpn: ES3631
$44.58
$44.58 $44.58
Sale Sold out
Shipping calculated at checkout.

900 in stock
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

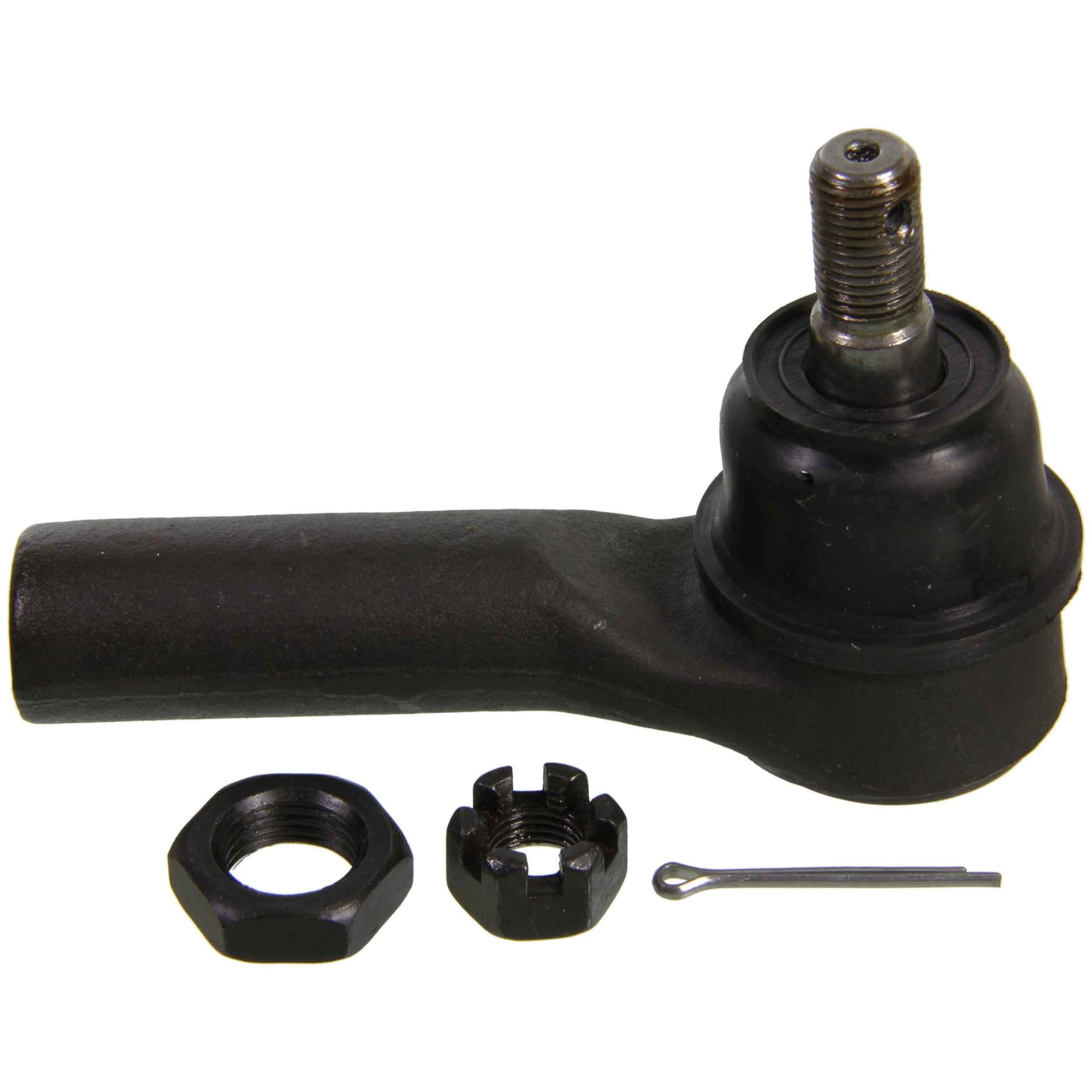

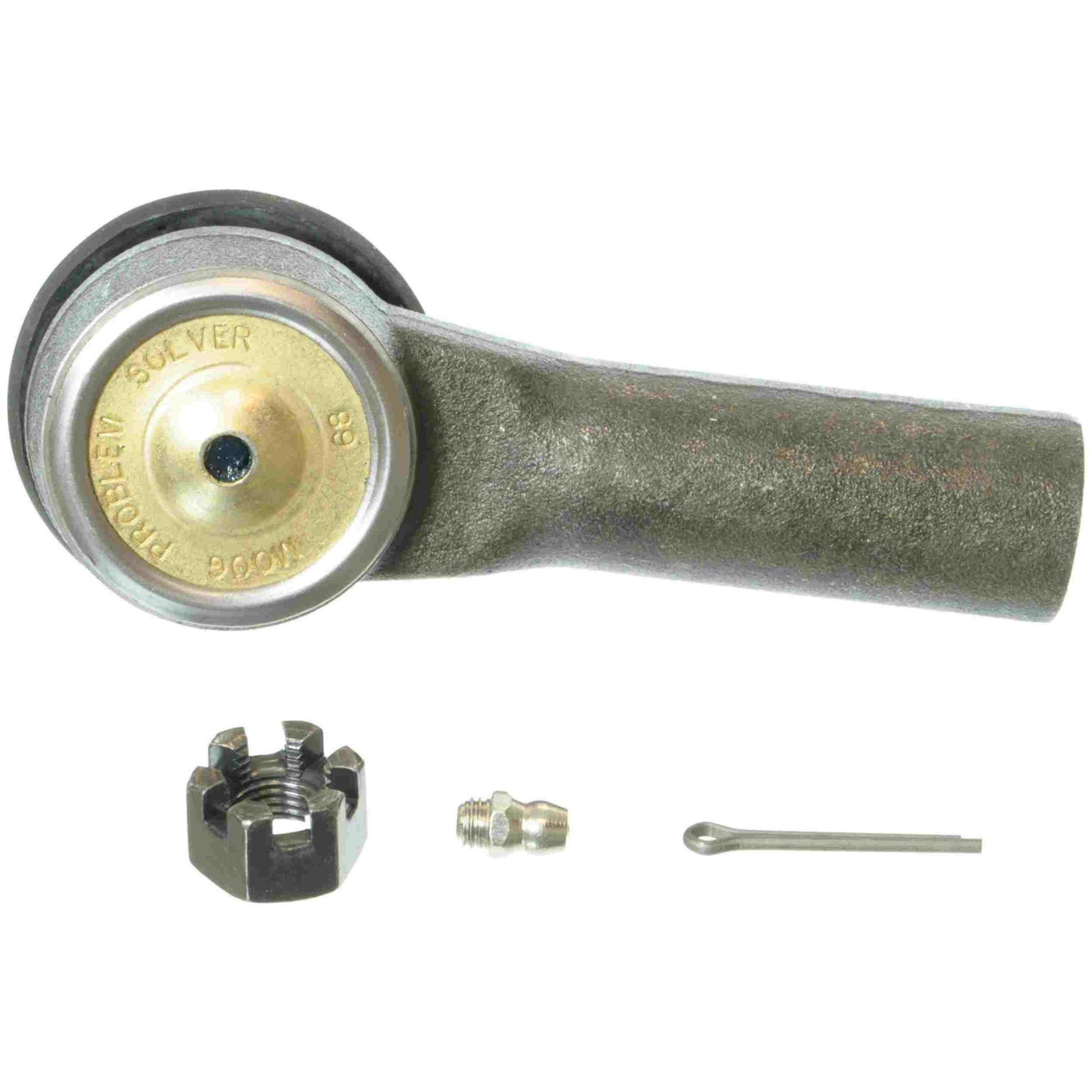

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 3.94
Rod Thread: M16 X 1.50
Configuration: STRAIGHT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 1.526
Stud Diameter Dimension (bottom in.): 1.526
Stud Thread: M12 X 1.25
Rack End Thread: M12 X 1.25
Specification Image Reference: OUTERTIEROD.tif
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 16.000
End 1 Thread Pitch (MM): 1.500
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 12.0
End 2 Thread Pitch (MM): 1.25


Vehicle Fitments:

Year Make Model Submodel
2005 - 2009 Ford Escape Hybrid
2003 - 2009 Ford Escape Limited
2009 Ford Escape Limited Hybrid
2005 - 2007 Ford Escape XLT Deportivo
2005 Ford Escape XLT Sport, XLT No Boundaries
2001 - 2009 Ford Escape XLT, XLS
2001 - 2004 Mazda Tribute DX, LX, ES
2009 Mazda Tribute GS
2008 - 2009 Mazda Tribute GX, Hybrid
2005 - 2009 Mazda Tribute i, S
2005 - 2009 Mercury Mariner Base, Premier
2006 - 2009 Mercury Mariner Hybrid
2006 - 2007 Mercury Mariner Luxury, Convenience
