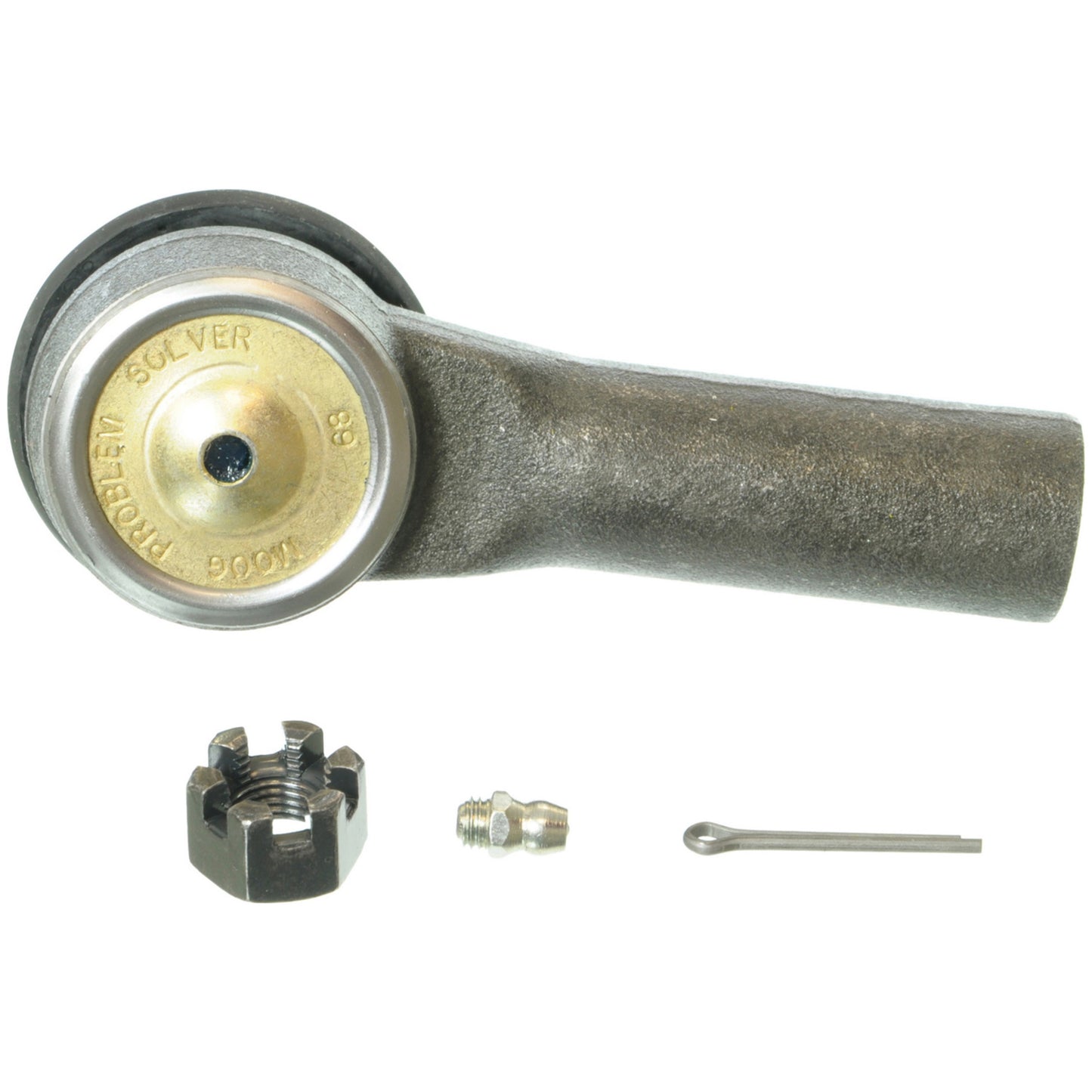

Moog Tie Rod End
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 3.94
Rod Thread: M16 X 1.50
Configuration: STRAIGHT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 1.526
Stud Diameter Dimension (bottom in.): 1.526
Stud Thread: M12 X 1.25
Rack End Thread: M12 X 1.25
Specification Image Reference: OUTERTIEROD.tif
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 16.000
End 1 Thread Pitch (MM): 1.500
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 12.0
End 2 Thread Pitch (MM): 1.25
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005 - 2009 | Ford | Escape | Hybrid |
| 2003 - 2009 | Ford | Escape | Limited |
| 2009 | Ford | Escape | Limited Hybrid |
| 2005 - 2007 | Ford | Escape | XLT Deportivo |
| 2005 | Ford | Escape | XLT Sport, XLT No Boundaries |
| 2001 - 2009 | Ford | Escape | XLT, XLS |
| 2001 - 2004 | Mazda | Tribute | DX, LX, ES |
| 2009 | Mazda | Tribute | GS |
| 2008 - 2009 | Mazda | Tribute | GX, Hybrid |
| 2005 - 2009 | Mazda | Tribute | i, S |
| 2005 - 2009 | Mercury | Mariner | Base, Premier |
| 2006 - 2009 | Mercury | Mariner | Hybrid |
| 2006 - 2007 | Mercury | Mariner | Luxury, Convenience |
Moog Tie Rod End
Sale price$32.88 USD
