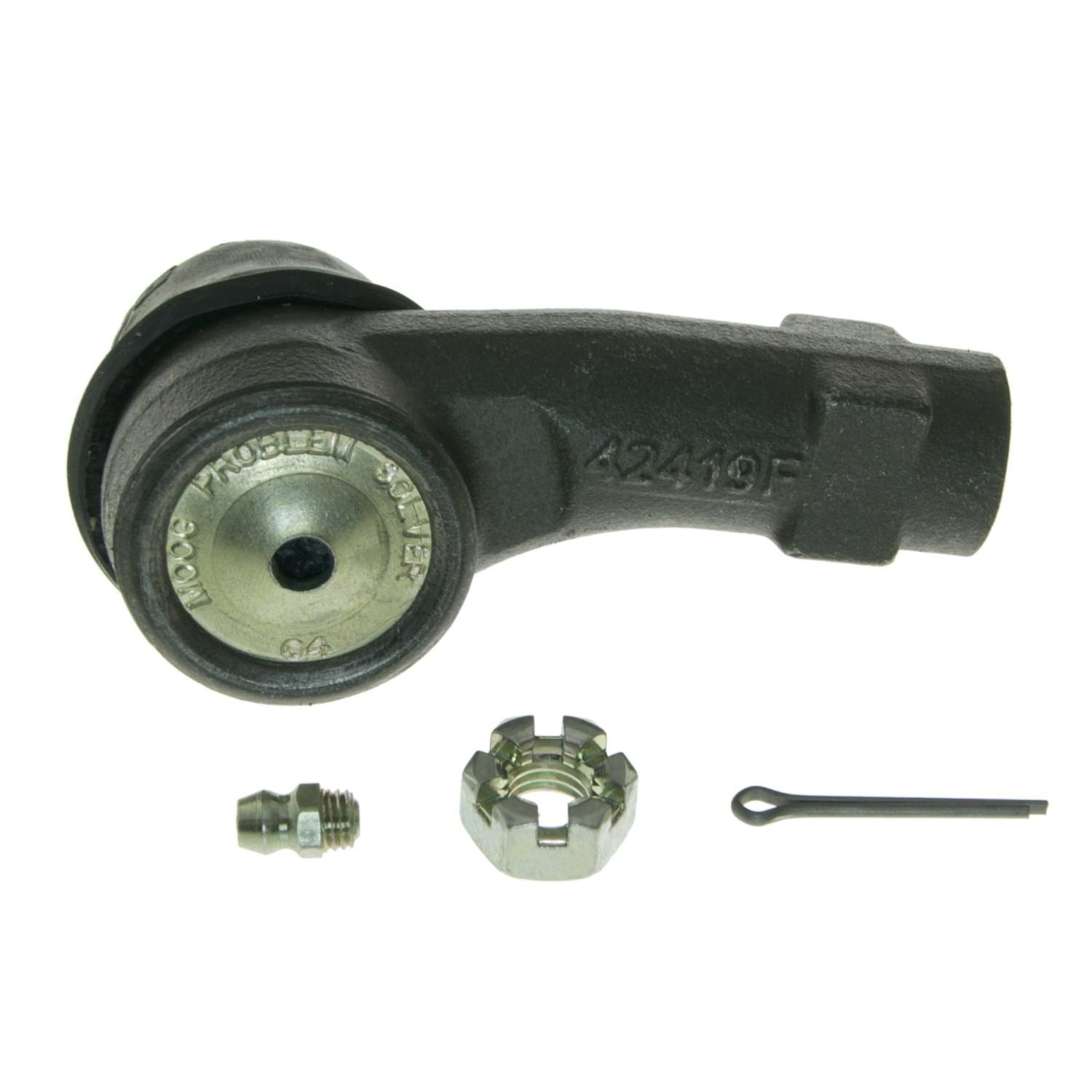

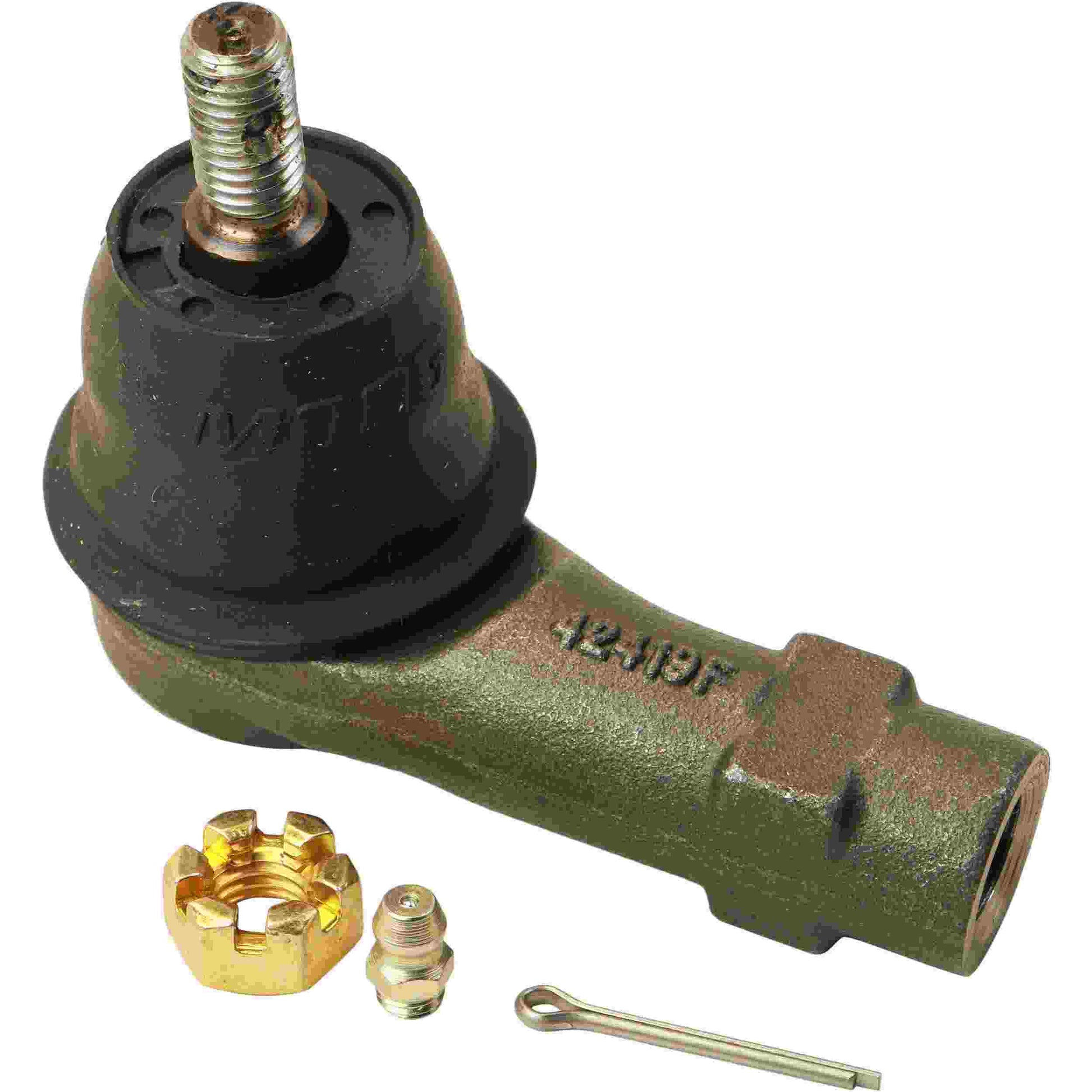

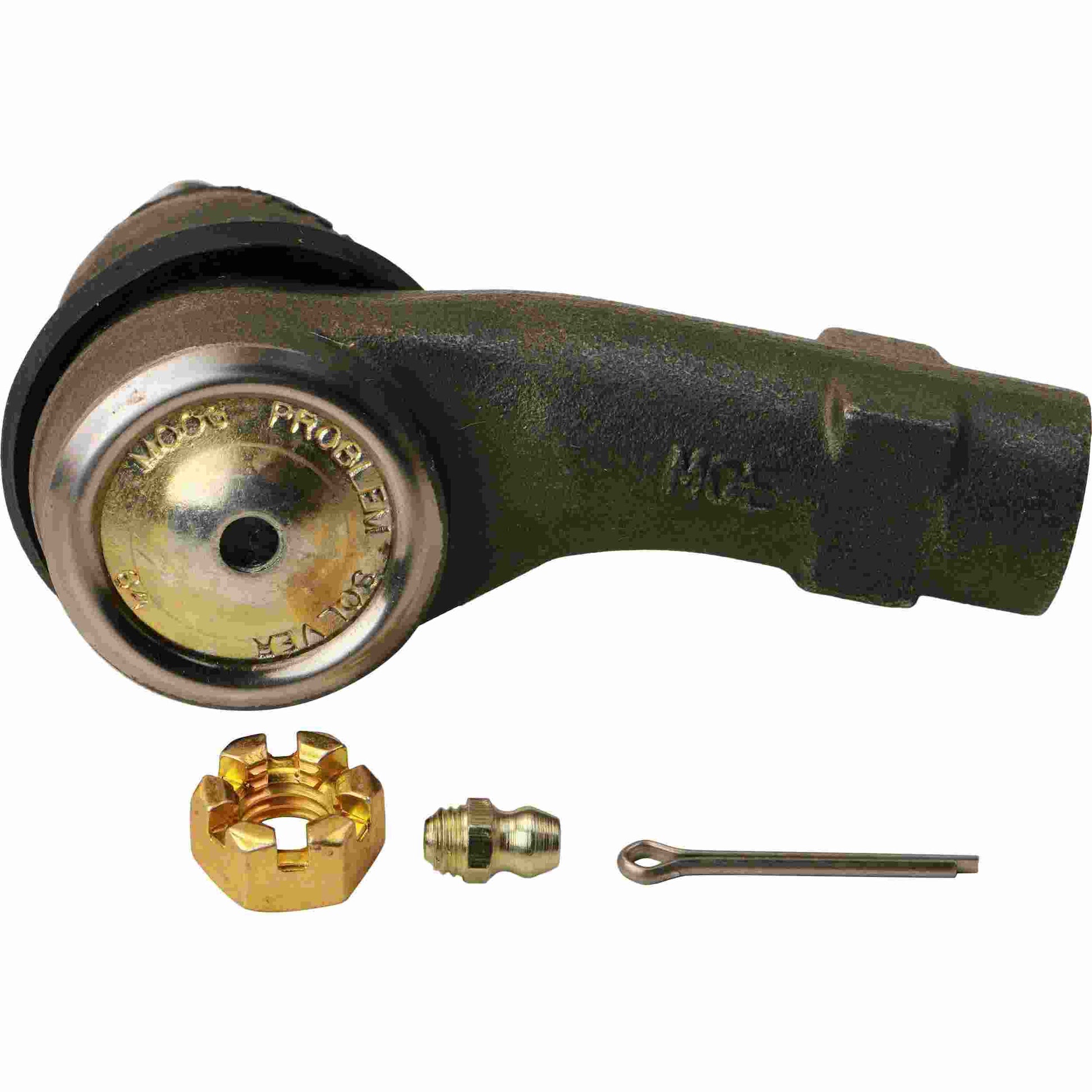

Moog Tie Rod End, Greasable, Outer, Ford

SKU: 14P4Z | MPN:  ES3587
In stock
Sale price$48.68 USD

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Greasable                                               Yes

Stud Center to End (in)                        2.900

Rod Thread                                            M14 x 2.00

Configuration                                        OFFSET

Rod Type                                                Female

Stud Diameter Dimension(top in)              0.508

Stud Diameter Dimension(bottom in)        0.624

Stud Thread                                            M10 x 1.50

Rack End Thread                                     M10 x 1.50

Specification Image Reference                 OUTERTIEROD.tif

Dust Boot Included                                  Yes

End 1 Thread Diameter (MM)                   14.000

End 1 Thread Pitch (MM)                          2.000

End 1 Thread Direction                             R

End 2 Thread Diameter (MM)                  10.0

End 2 Thread Pitch (MM)                         1.5



Vehicle Fitments:

Year Make Model Submodel
2003 - 2004 Ford Focus High, Mid
2005 - 2006 Ford Focus LX Austero, ZXW, ZX4 ST, SE Tipico, ZX4
2000 - 2004 Ford Focus LX, SE, ZTS
2002 Ford Focus Manual, Base
2000 Ford Focus Sony Limited Edition
2002 - 2004 Ford Focus ZTW, SVT
2000 - 2006 Ford Focus ZX3
2002 - 2006 Ford Focus ZX5
