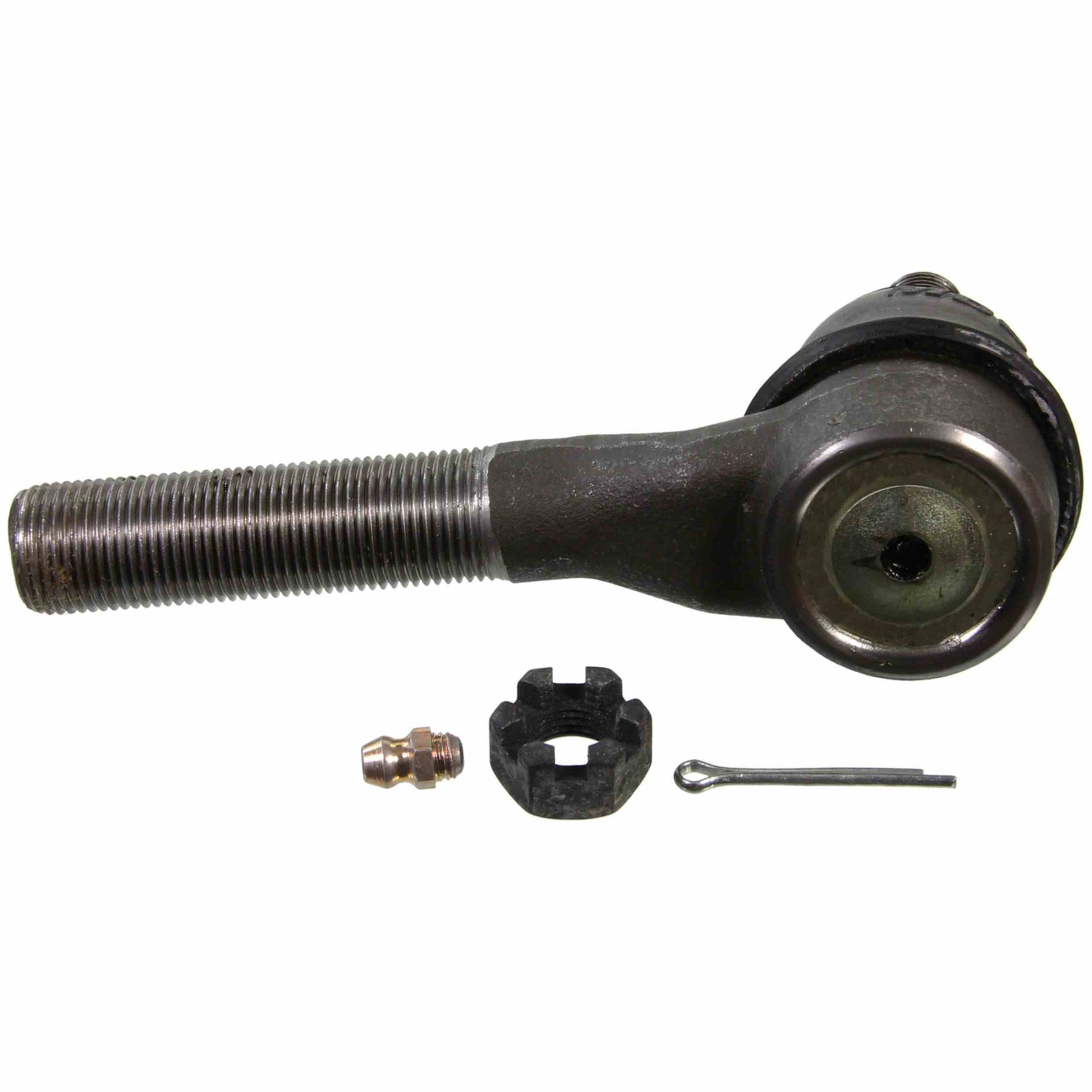

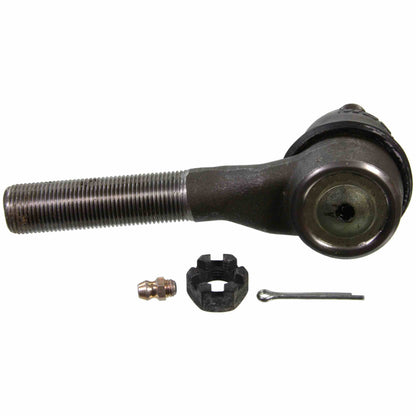

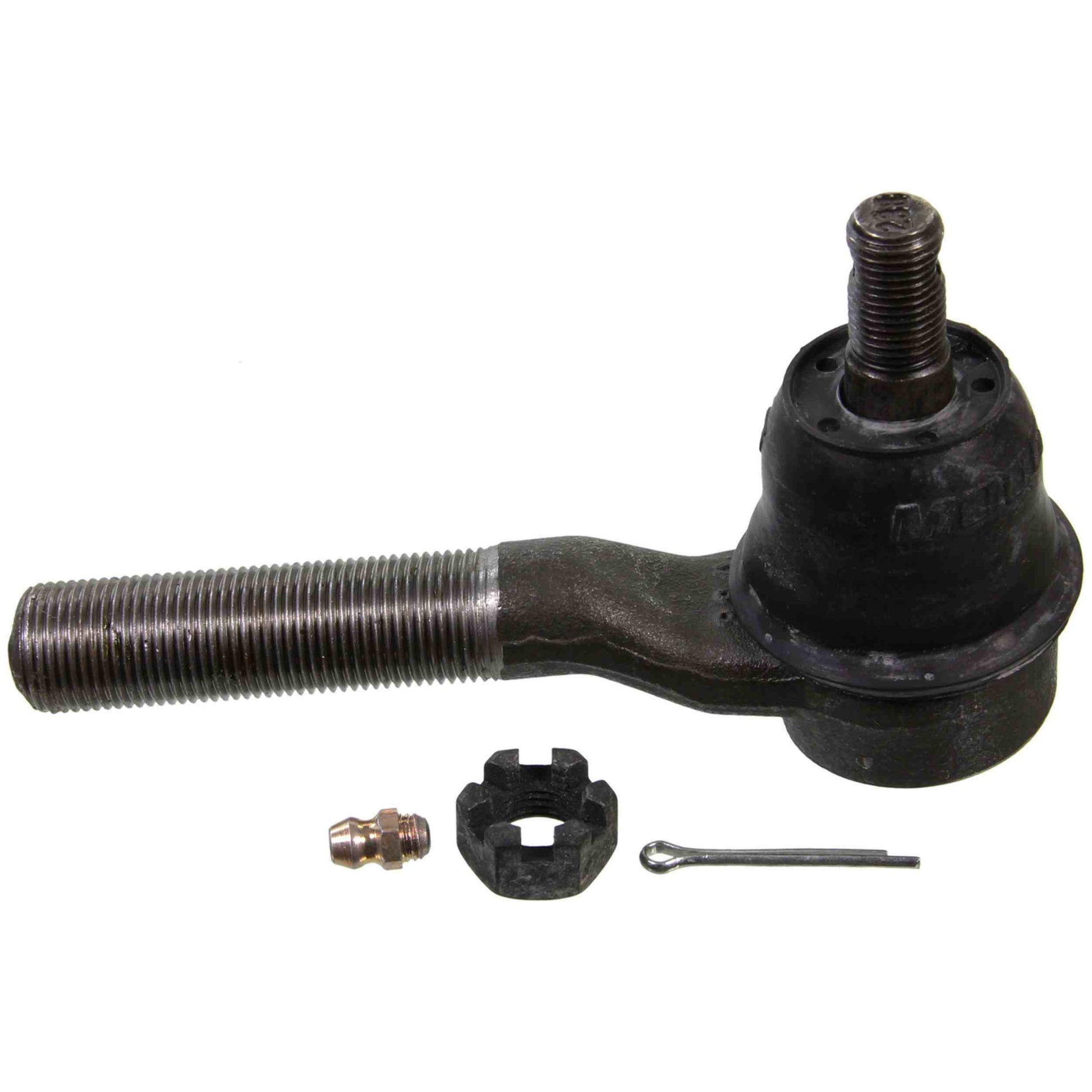

Moog Tie Rod End, Inner, Chevy, GMC

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Stud Center to End (in)                             4.530

Rod Thread                                             11/16-18L

Configuration                                            Offset

Stud Diameter Dimension(top in)                0.509

Stud Diameter Dimension(bottom in)          0.593

Stud Thread                                              M12-1.25

Specification Image Reference              OUTERTIEROD.tif

End 1 Thread Diameter (IN)                      11/16

End 1 Thread Direction                               L

End  1 Threads Per Inch                             18

End 2 Thread Diameter (MM)                     12.0

End 2 Thread Pitch  (MM)                           1.3

Vehicle Fitments:
