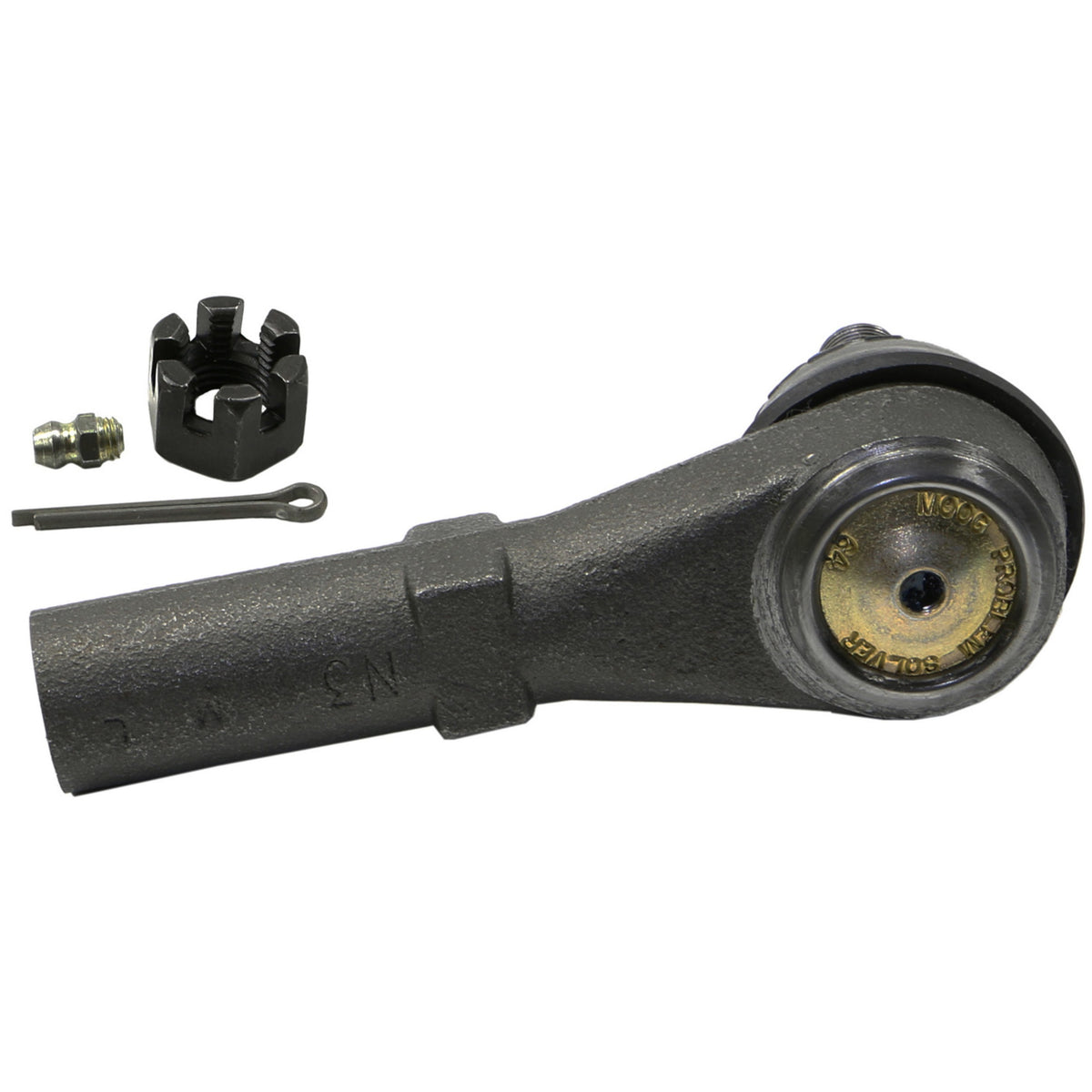

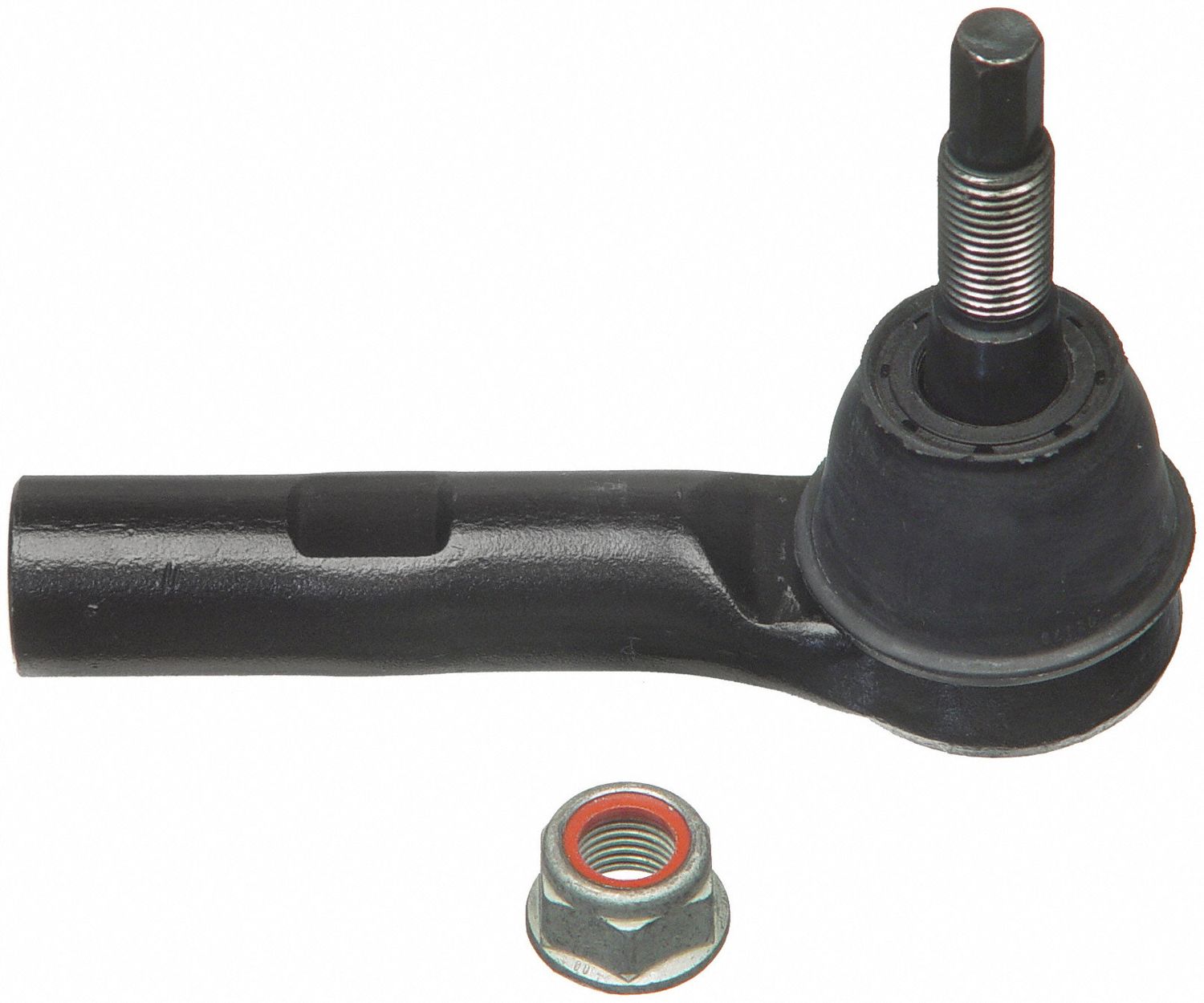

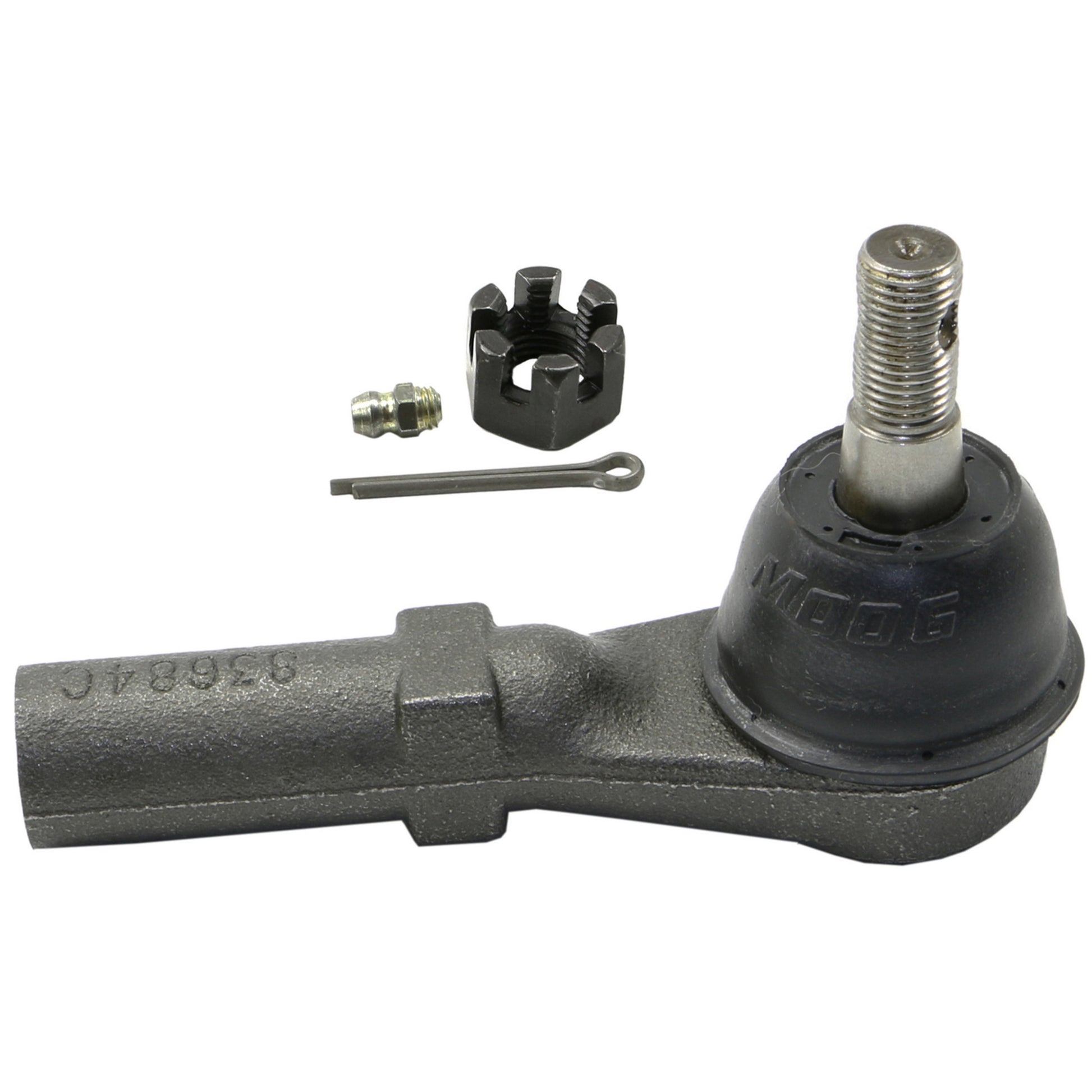

Moog Tie Rod End:Greasable, Outer, Dodge, RWD
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 4.720
Rod Thread: M15 X 1.50
Configuration: STRAIGHT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.59
Stud Diameter Dimension (bottom in.): 1.74
Stud Thread: M14 X 1.50
Rack End Thread: M14 X 1.50
Specification Image Reference: OUTERTIEROD.tif
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 15
End 1 Thread Pitch (MM): 1.500
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 14.0
End 2 Thread Pitch (MM): 1.5
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006 | Chrysler | 300 | C Heritage |
| 2007 | Chrysler | 300 | C Heritage Edition II |
| 2007 - 2010 | Chrysler | 300 | C Lujo |
| 2005 - 2010 | Chrysler | 300 | Limited, C SRT8, Base, Touring, C |
| 2008 - 2009 | Chrysler | 300 | LX |
| 2010 | Chrysler | 300 | S |
| 2009 | Chrysler | 300 | Signature Series |
| 2008 - 2010 | Dodge | Challenger | SRT8 |
| 2009 - 2010 | Dodge | Challenger | SXT, R/T, SE |
| 2006 - 2007 | Dodge | Charger | Base |
| 2006 | Dodge | Charger | Daytona R/T |
| 2006 - 2010 | Dodge | Charger | R/T, SE, SXT, SRT8, Pursuit |
| 2007 - 2008 | Dodge | Charger | SRT8 Super Bee |
| 2000 - 2004 | Dodge | Dakota | Base |
| 2005 - 2010 | Dodge | Dakota | Laramie, ST |
| 2009 - 2010 | Dodge | Dakota | Lone Star, Big Horn |
| 2000 - 2003 | Dodge | Dakota | R/T |
| 2000 - 2010 | Dodge | Dakota | SLT |
| 2000 - 2008 | Dodge | Dakota | Sport |
| 2004 | Dodge | Dakota | Sport Plus, SLT Plus |
| 2002 - 2010 | Dodge | Dakota | SXT |
| 2008 | Dodge | Dakota | TRX |
| 2008 - 2010 | Dodge | Dakota | TRX4 |
| 2000 - 2001 | Dodge | Durango | Base |
| 2000 - 2003 | Dodge | Durango | R/T, SLT Plus, Sport, SLT |
| 2003 | Dodge | Durango | SXT |
| 2005 - 2008 | Dodge | Magnum | SE, SXT, R/T |
| 2006 - 2008 | Dodge | Magnum | SRT8 |
| 2005 | Dodge | Magnum | SXT Special Edition |
| 2006 - 2007 | Mitsubishi | Raider | DuroCross |
| 2006 - 2009 | Mitsubishi | Raider | LS |
| 2007 | Mitsubishi | Raider | SE |
| 2006 | Mitsubishi | Raider | XLS |
| 2011 | Ram | Dakota | TRX, Big Horn, TRX4, SXT, Laramie, ST, SLT |
Moog Tie Rod End:Greasable, Outer, Dodge, RWD
Sale price$91.18 USD
