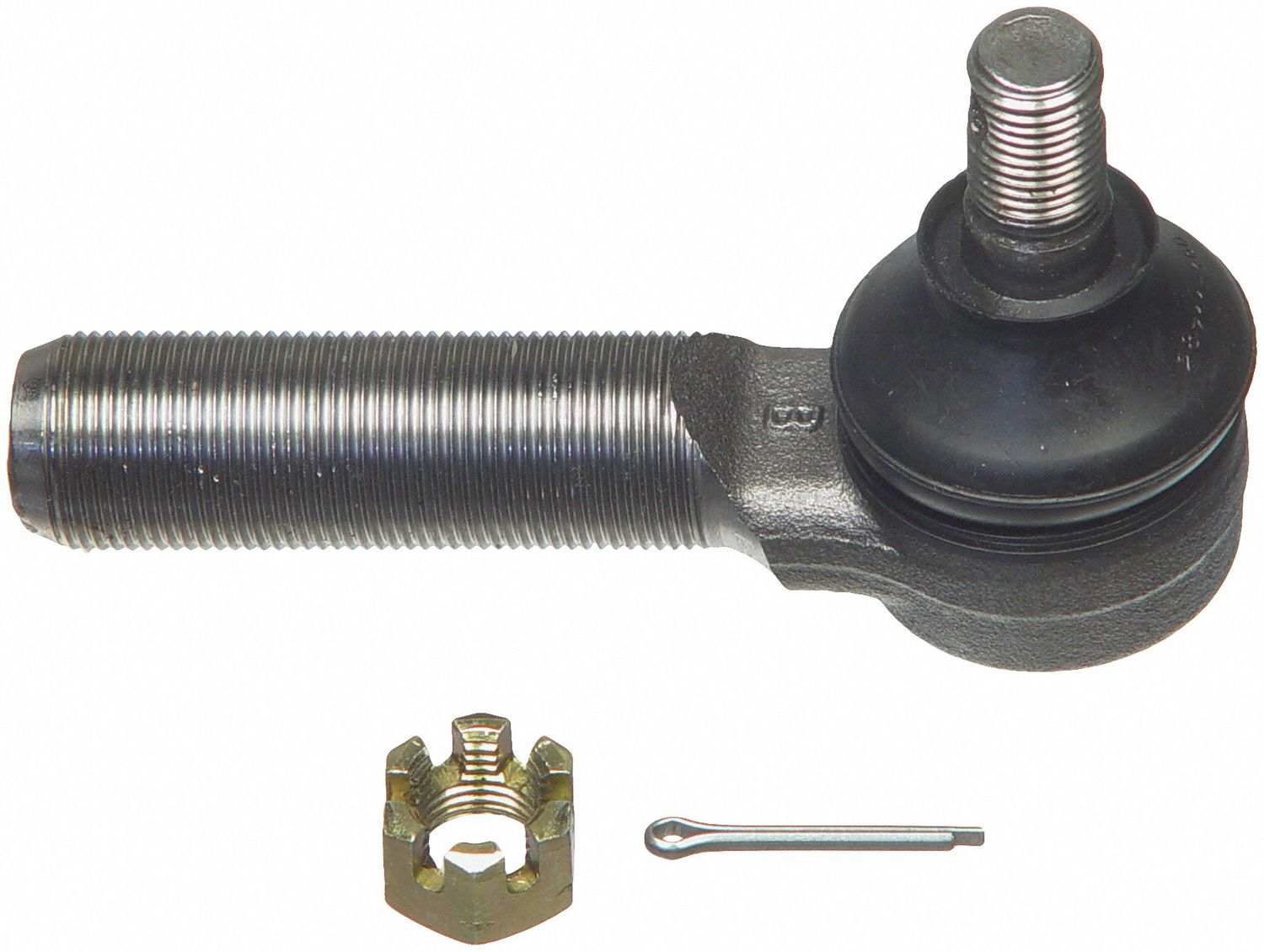

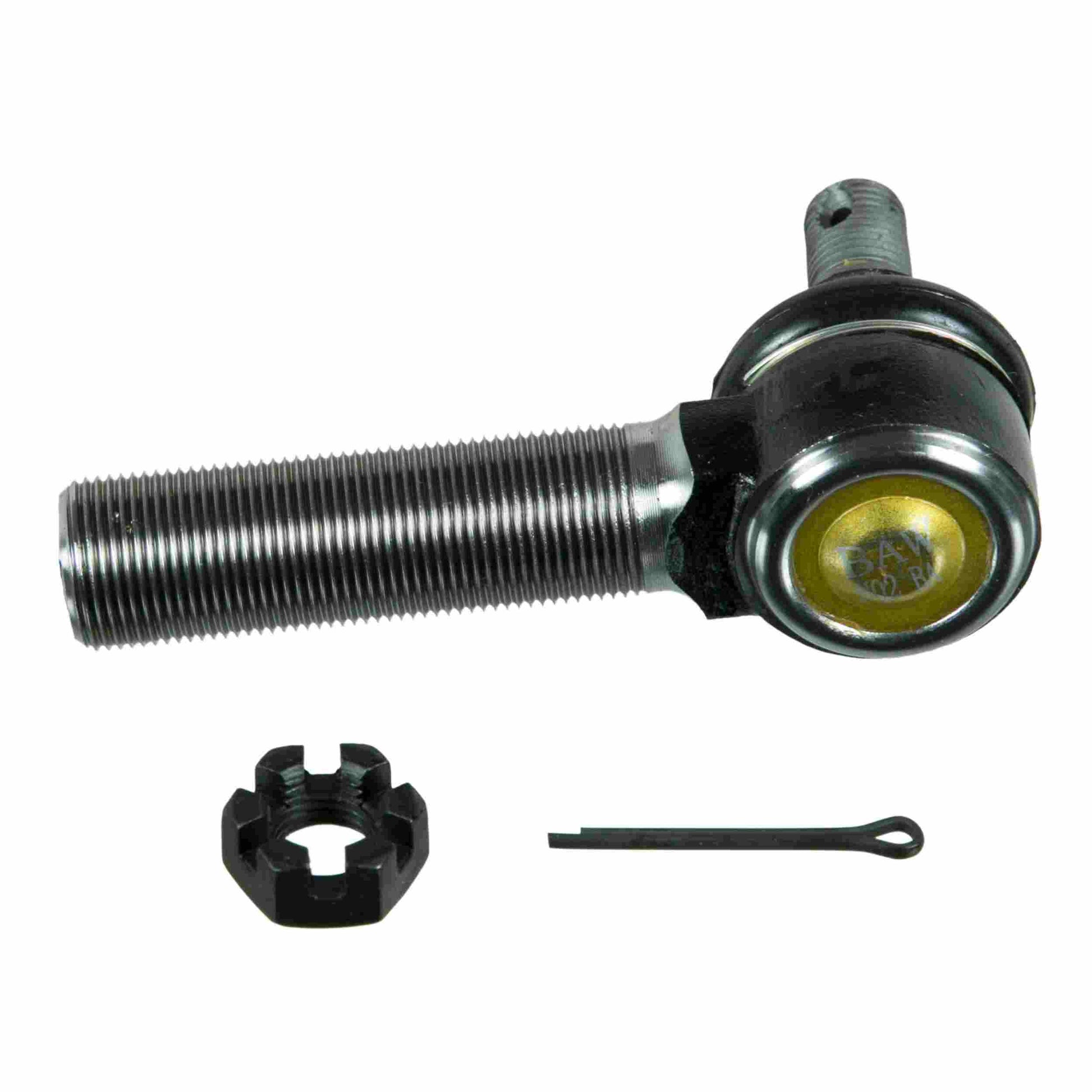

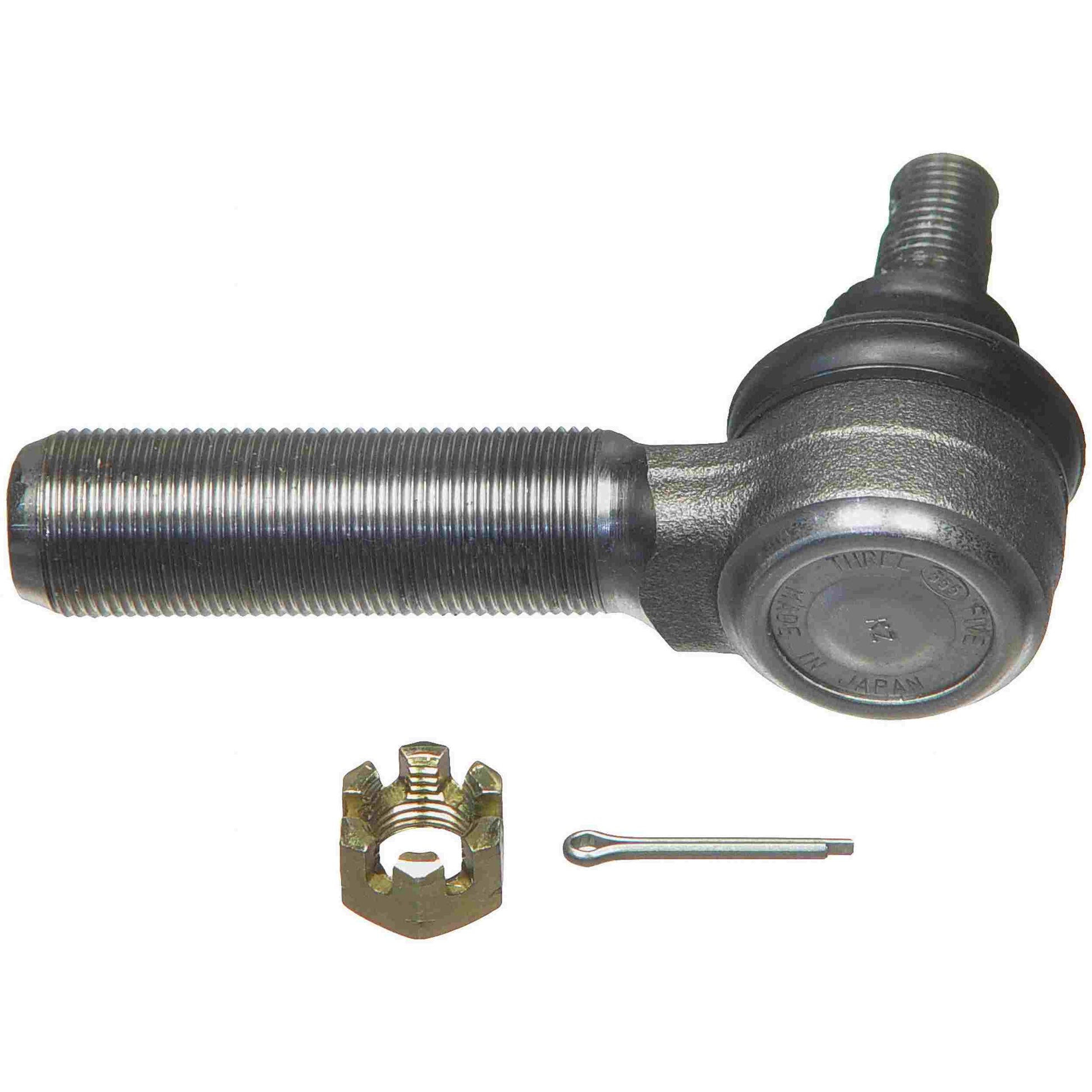

Moog Tie Rod End:Driver Side Outer,Toyota,Each
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Stud Center to End (in): 4.090
Rod Thread: M23-1.5
Configuration: STRAIGHT
Rack End Type (Male/Female): Male
Stud Diameter Dimension (top in.): 0.576
Stud Diameter Dimension (bottom in.): 0.627
Stud Thread: M14-1.5
End 1 Thread Diameter (MM): 23.0
End 1 Thread Pitch (MM): 1.5
End 2 Thread Diameter (MM): 14.0
End 2 Thread Pitch (MM): 1.5
Moog Tie Rod End:Driver Side Outer,Toyota,Each
Sale price$41.39 USD
