MOOG Chassis Products

Moog Tie Rod End

Moog Tie Rod End

sku: 14N3E | mpn: ES3546
$66.10
$66.10
Sale Sold out
Shipping calculated at checkout.

98 in stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

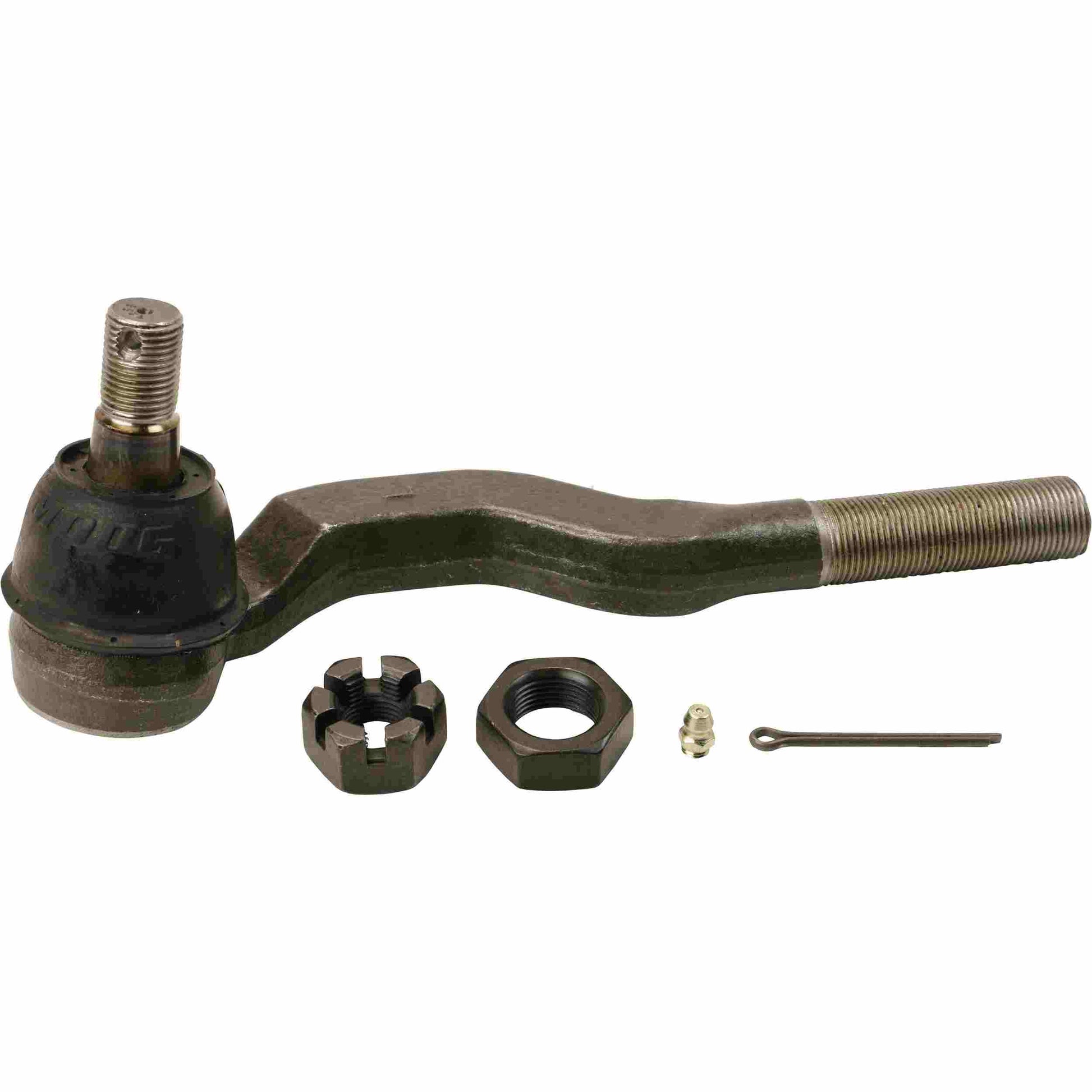

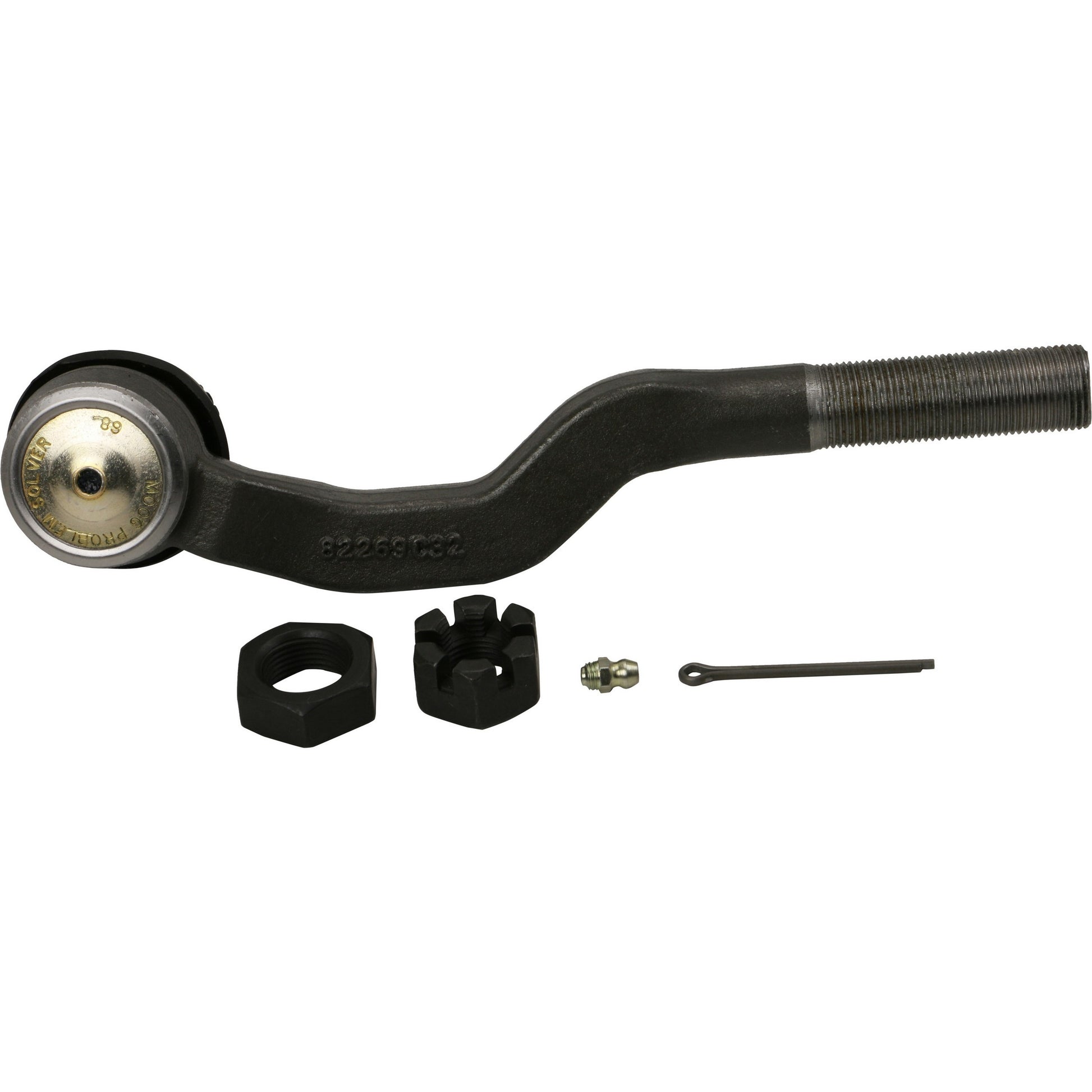

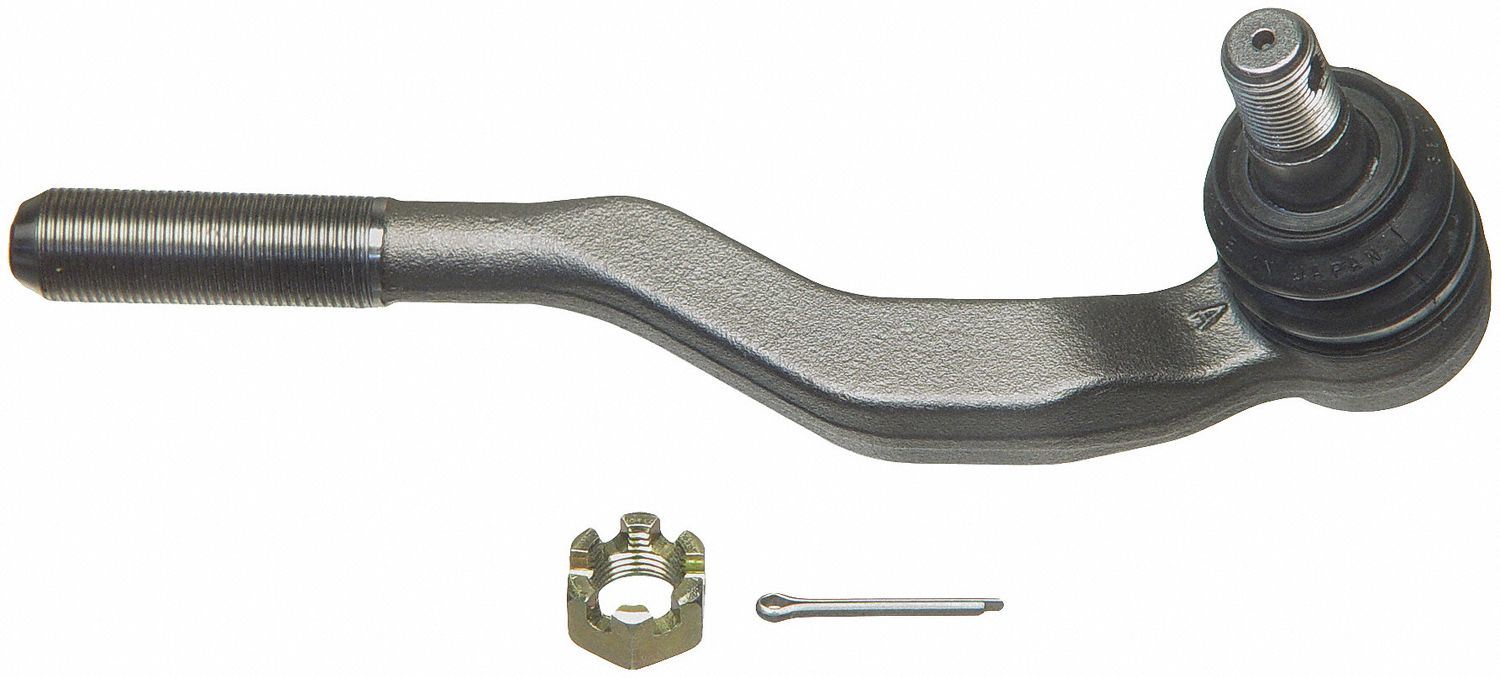

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 8.720
Rod Thread: M20 X 1.50
Configuration: BENT
Rack End Type (Male/Female): Male
Stud Diameter Dimension (top in.): 0.687
Stud Diameter Dimension (bottom in.): 0.789
Stud Thread: M16 X 1.50
Rack End Thread: M16 X 1.50
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 20.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 16.0
End 2 Thread Pitch (MM): 1.5


Vehicle Fitments:

Year Make Model Submodel
1995 - 2004 Toyota Tacoma Base
1995 - 2003 Toyota Tacoma DLX
1998 - 2000 Toyota Tacoma Limited
1998 - 2004 Toyota Tacoma Pre Runner
2001 - 2004 Toyota Tacoma S-Runner
1995 - 2000 Toyota Tacoma SR5
