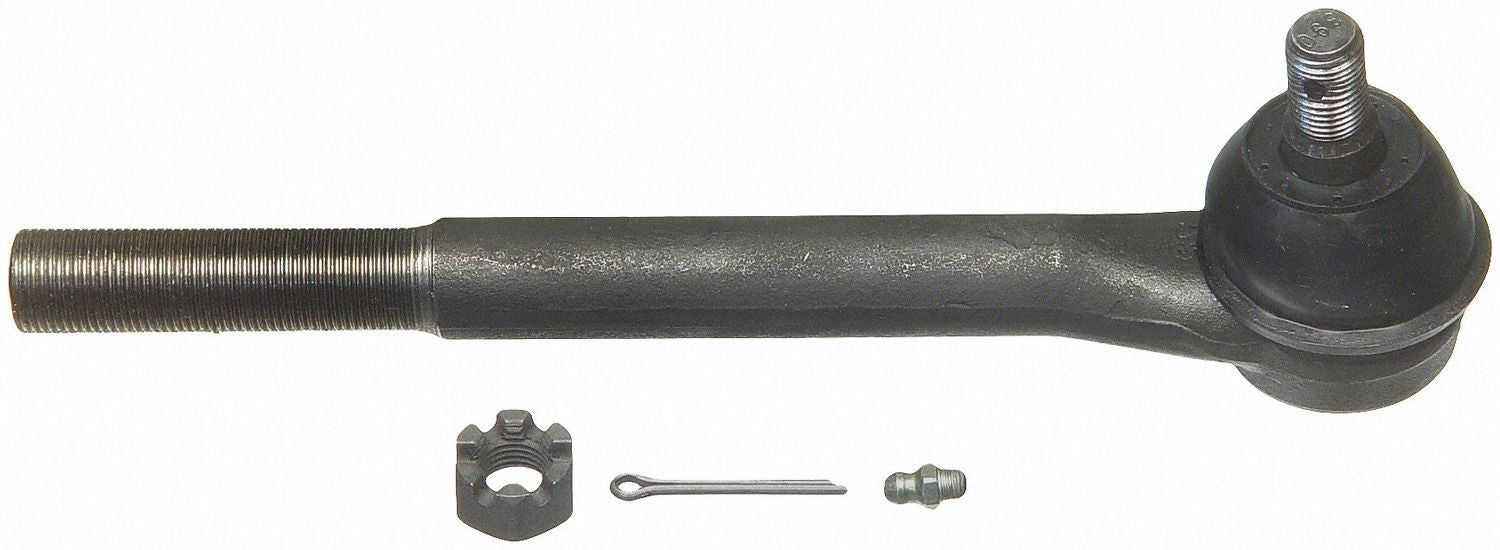

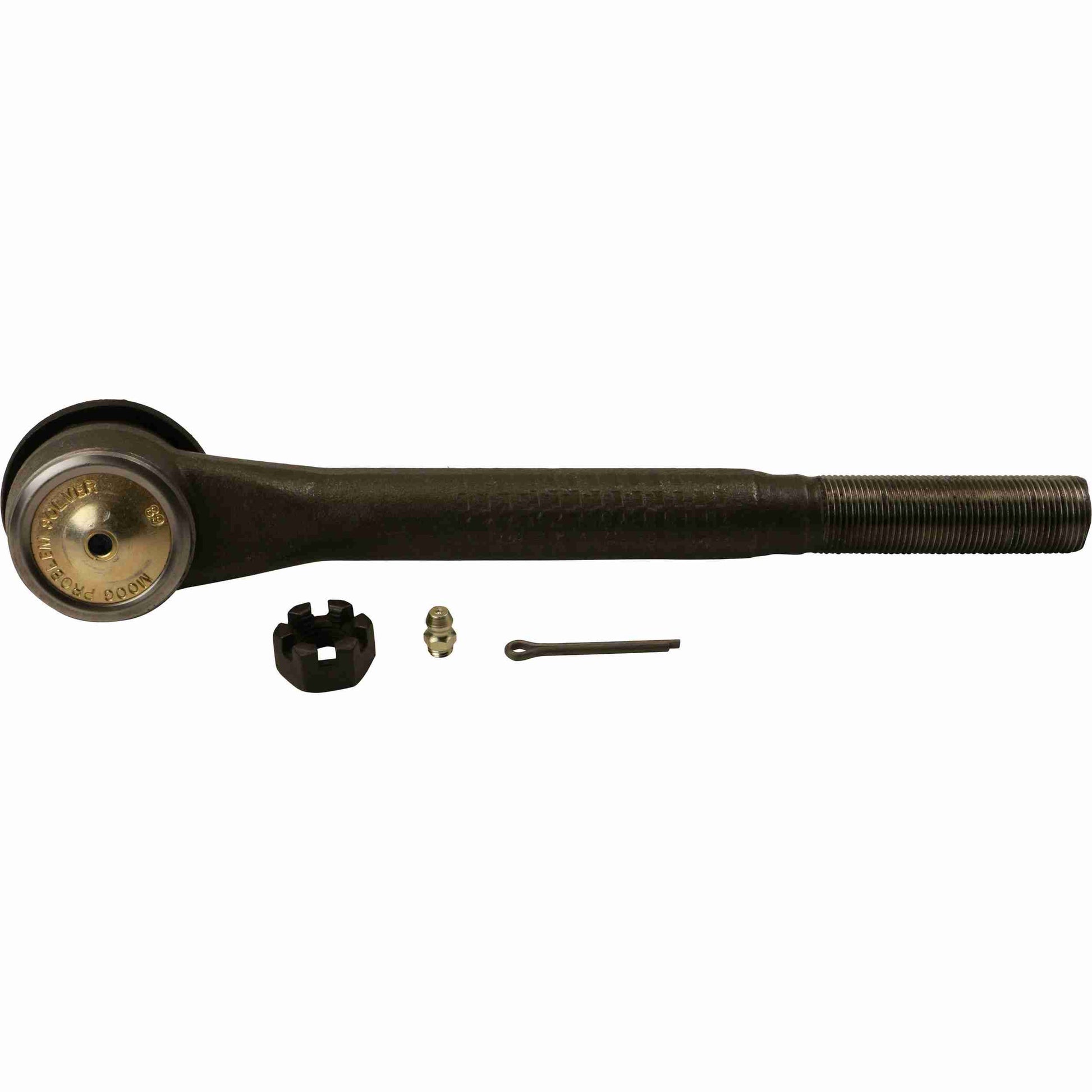

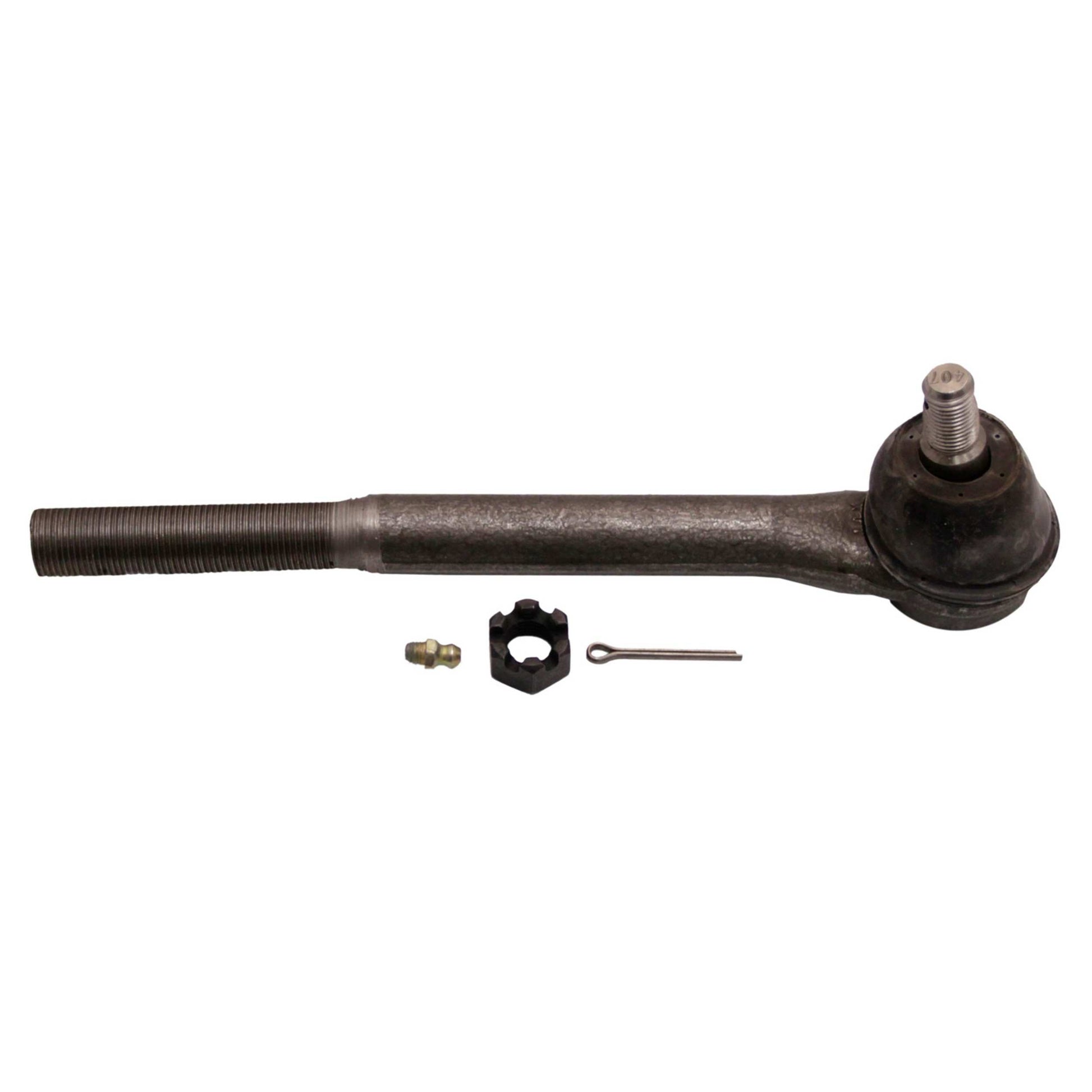

Moog Tie Rod End, Greasable, Inner, Dodge, Pickup, RWD,
SKU: 3QLQ3 | MPN:
ES3539
| Greasable |
YES |
| Stud Center to End (in) |
9.390 |
| Rod thread |
M20 X 1.50 |
| Configuration |
STRAIGHT |
| Rod Type (male/female) |
MALE |
| Stud Diameter Dimension (top in) |
0.654 |
| Stud Diameter Dimension (bottom in) |
0.740 |
| stud thread |
M14 X 1.50 |
| Rack End Thread |
M14 X 1.50 |
| Specification Image Reference |
OUTERTIEROD.tif |
| Dust Boot Included |
YES |
| End 1 Thread Diameter (IN) |
20.000 |
| End 1 Threads Pitch (MM) |
1.500 |
| End 1 Thread Direction |
L |
| End 2 Thread Diameter (MM) |
14.0 |
| End 2 TThreads Pitch (MM) |
1.5 |
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 2000 - 2001 |
Dodge |
Ram 1500 |
Custom, R/T, ST, SLT, Laramie, Sport, WS |
| 2000 - 2002 |
Dodge |
Ram 2500 |
Custom, SLT, Base |
| 2000 - 2002 |
Dodge |
Ram 3500 |
Custom, Base |
