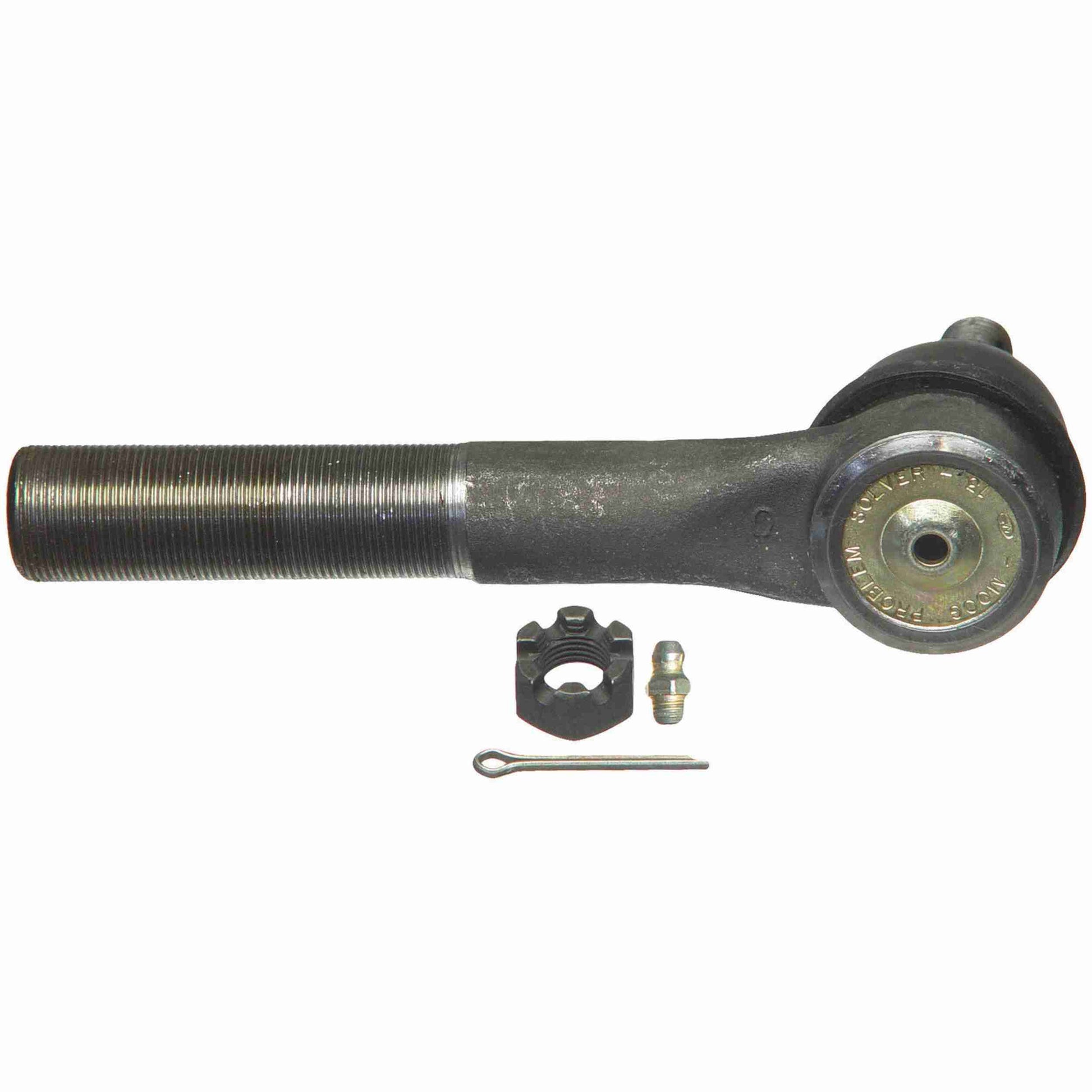

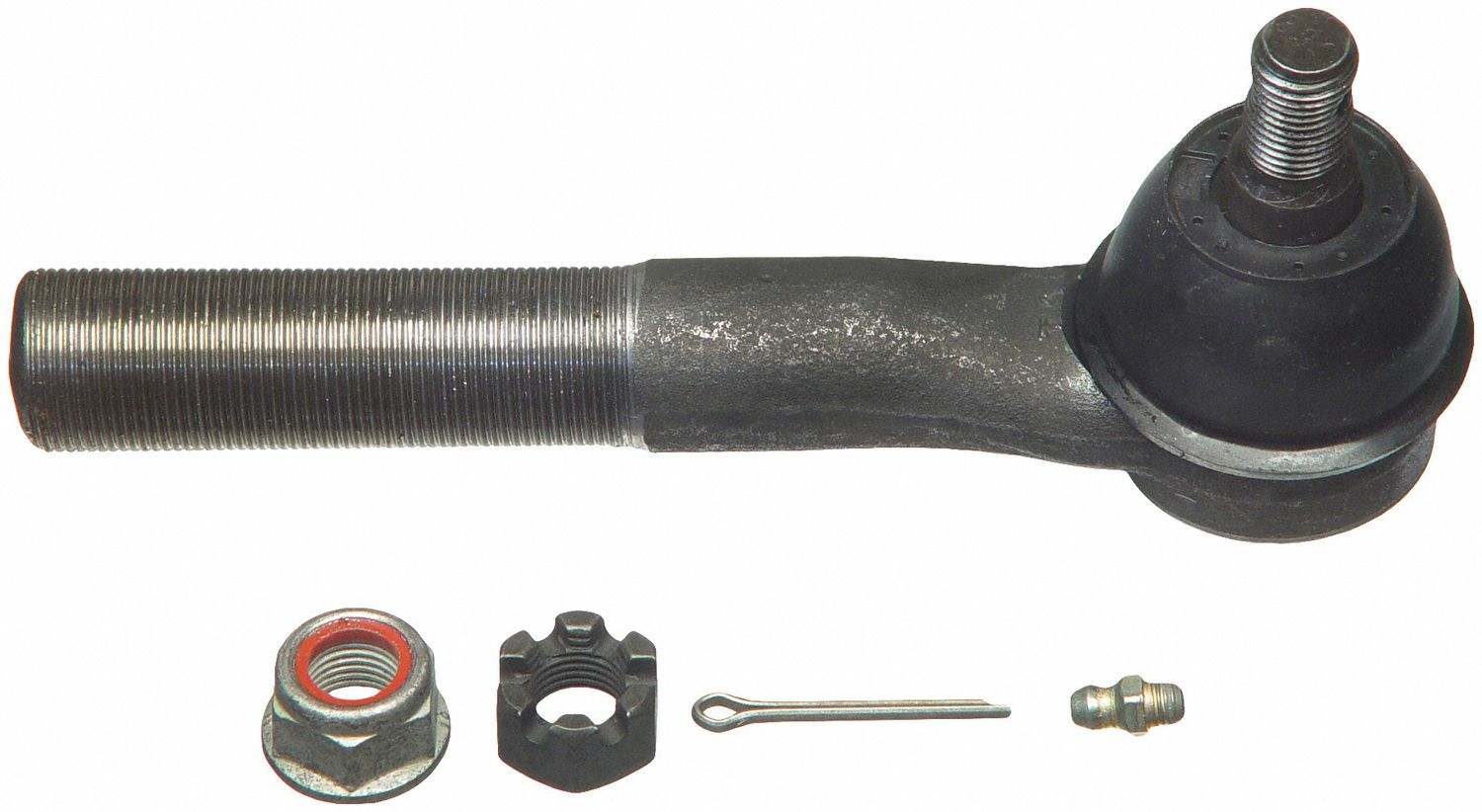

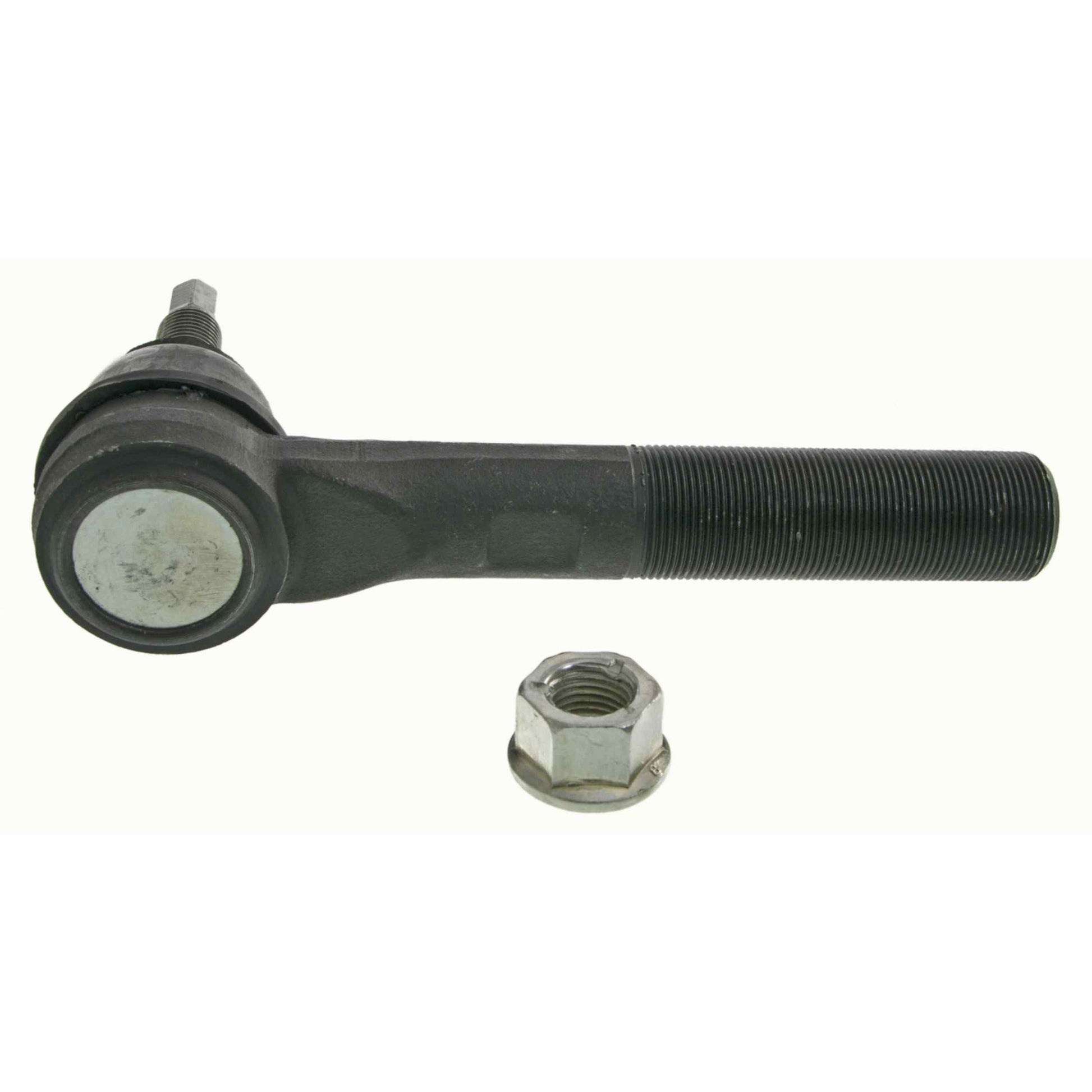

Moog Tie Rod End, Greasable, Outer, Dodge, Pickup,
SKU: 14MQ3 | MPN:
ES3527
| Stud Center to End (in) |
6.540 |
| Rod thread |
1.0-18R |
| Rod Type (male/female) |
MALE |
| Stud Diameter Dimension (top in) |
0.654 |
| Stud Diameter Dimension (bottom in) |
0.740 |
| stud thread |
M14 X 1.50 |
| Specification Image Reference |
COUTERTIEROD.tif |
| End 1 Thread Diameter (IN) |
1.000 |
| End 1 Thread Direction |
Clockwise |
| End 2 Threads Per Inch |
18 |
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 2000 - 2001 |
Dodge |
Ram 1500 |
ST, Custom, WS, Laramie, SLT, Sport, R/T |
| 2000 - 2002 |
Dodge |
Ram 2500 |
SLT, Custom, Base |
| 2000 - 2002 |
Dodge |
Ram 3500 |
Custom, Base |
