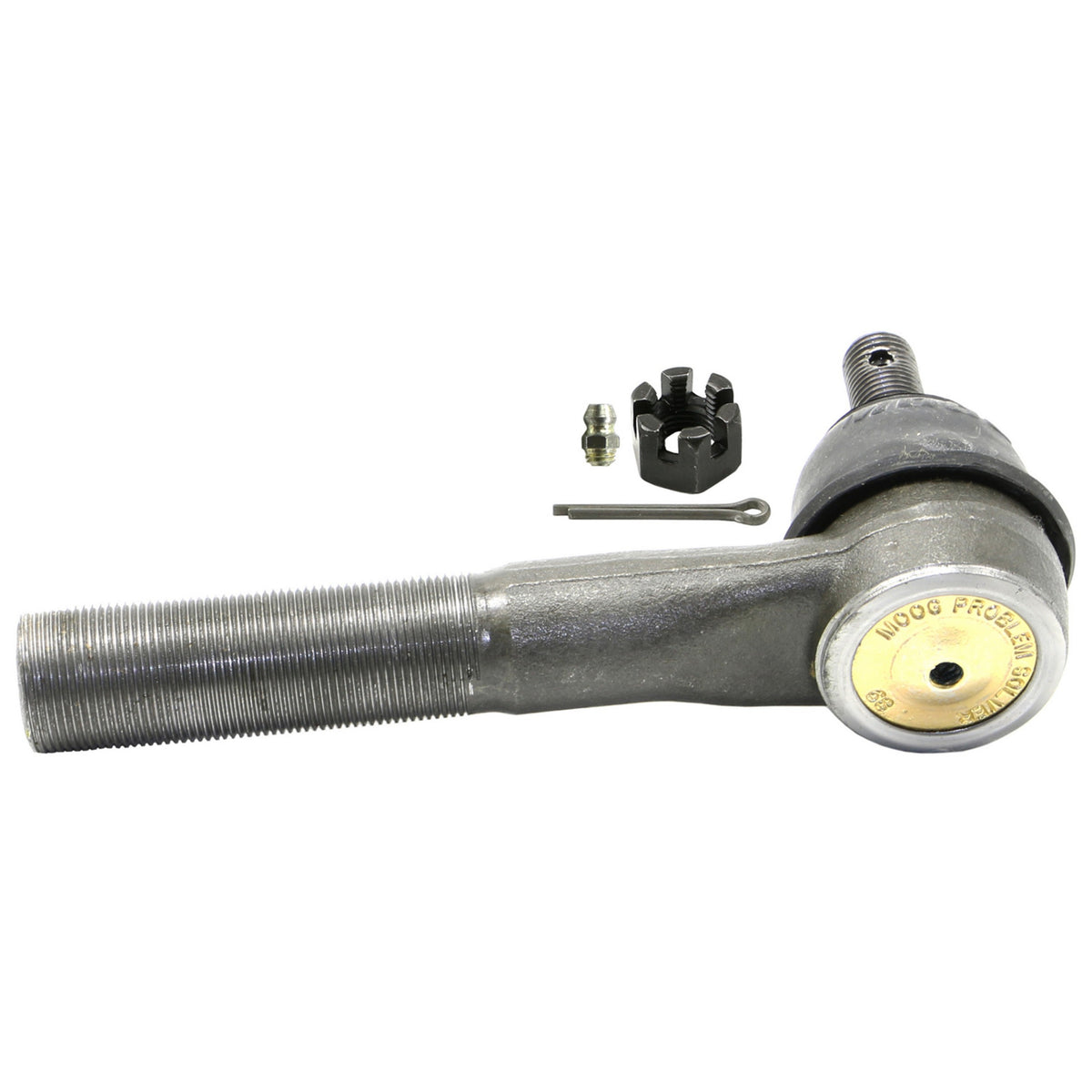

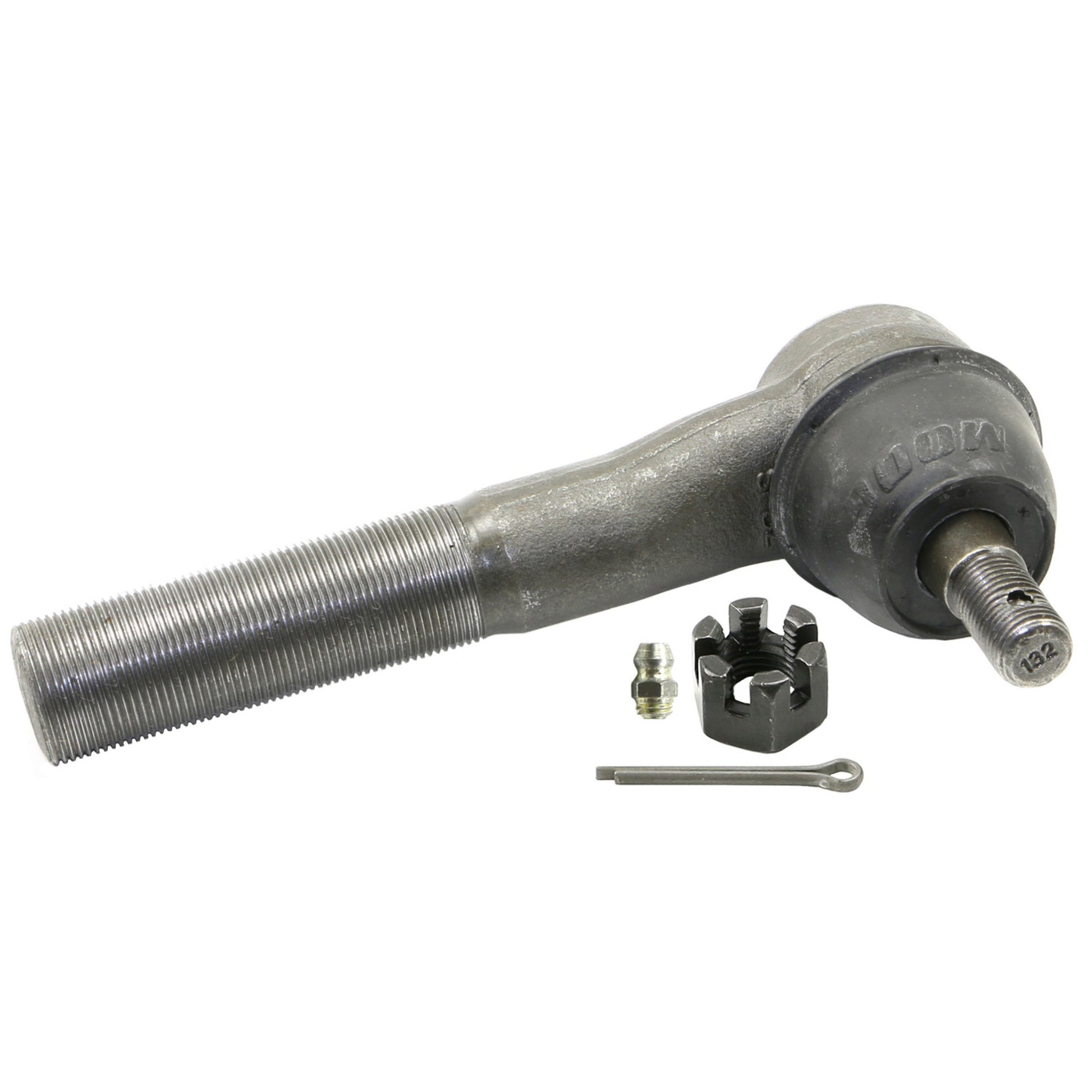

Moog Tie Rod End, Greasable, Outer, Dodge

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Stud Center to End (in)                        6.150

Rod Thread                                         10-18R

Rod Type                                             Male

Stud Diameter Dimension(top in)         0.518

Stud Thread                                       M14-1.5

Specification Image Reference           OUTERTIEROD.tif

End 1 Thread Diameter (IN)                1.000

End 1 Thread Direction                      Clockwise

End  1 Threads Per Inch                        18
