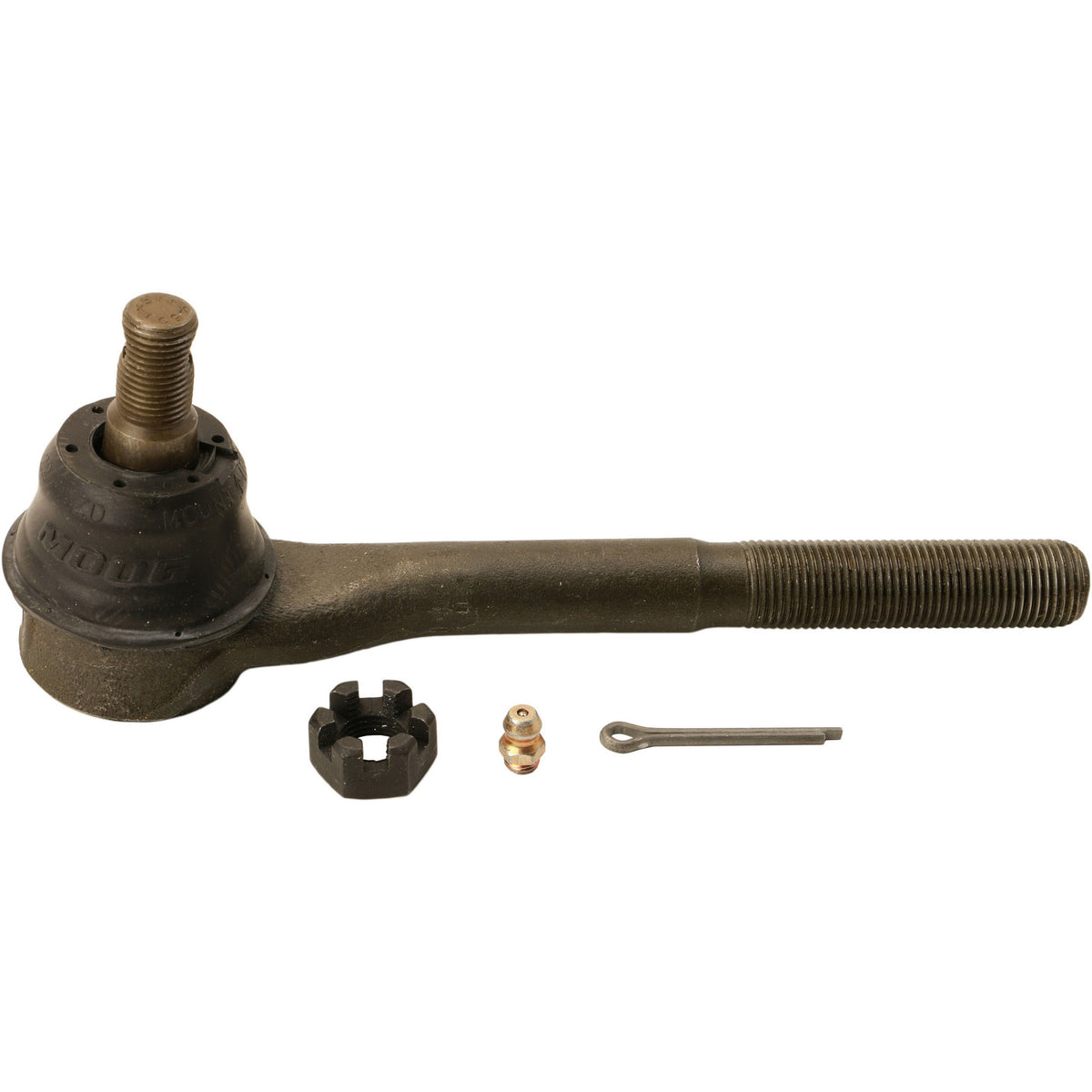

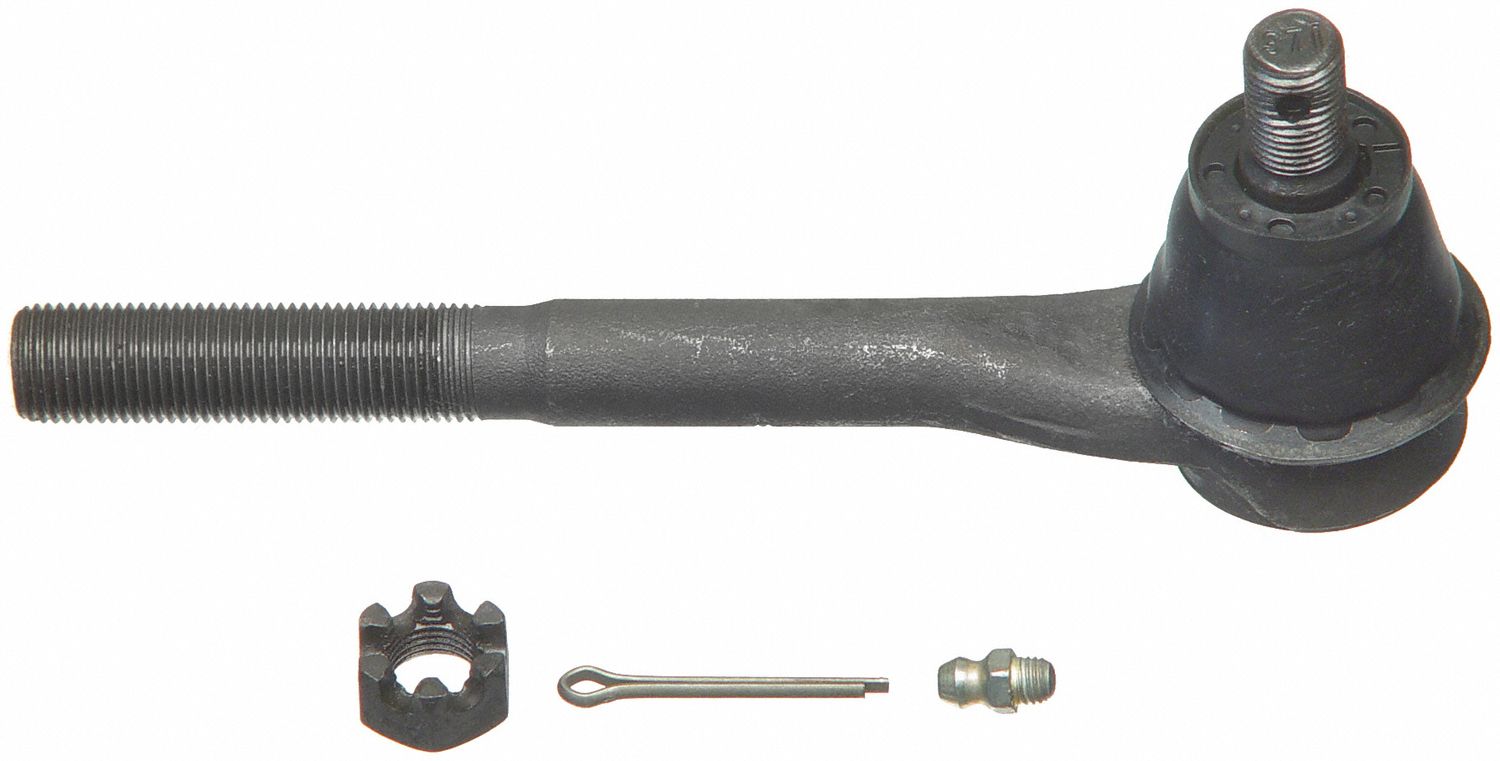

Moog Tie Rod End, Inner, Ford, Lincoln, Mercury,

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Greaseable                                          Yes

Stud Center to End (in)                        6.530

Rod Thread                                         M16 x 1.50

Configuration                                      Straight

Rod Type                                            Male

Stud Diameter Dimension(top in)         0.581

Stud Diameter Dimension(buttom in)   0.650

Stud Thread                                       1/2" - 20"

Rack End Thread                                1/2" - 20"

Specification Image Reference             Outer Tie Rod.tif

Dush Boot Included                            Yes

End 1 Thread Diameter (MM)              16.000

End 1 Pitch (MM)                               1.500

End 1 Direction                                 R

End 2 Thread Diameter (in)               1/2

End 2 Pitch (per inch)                       20

Vehicle Fitments:
