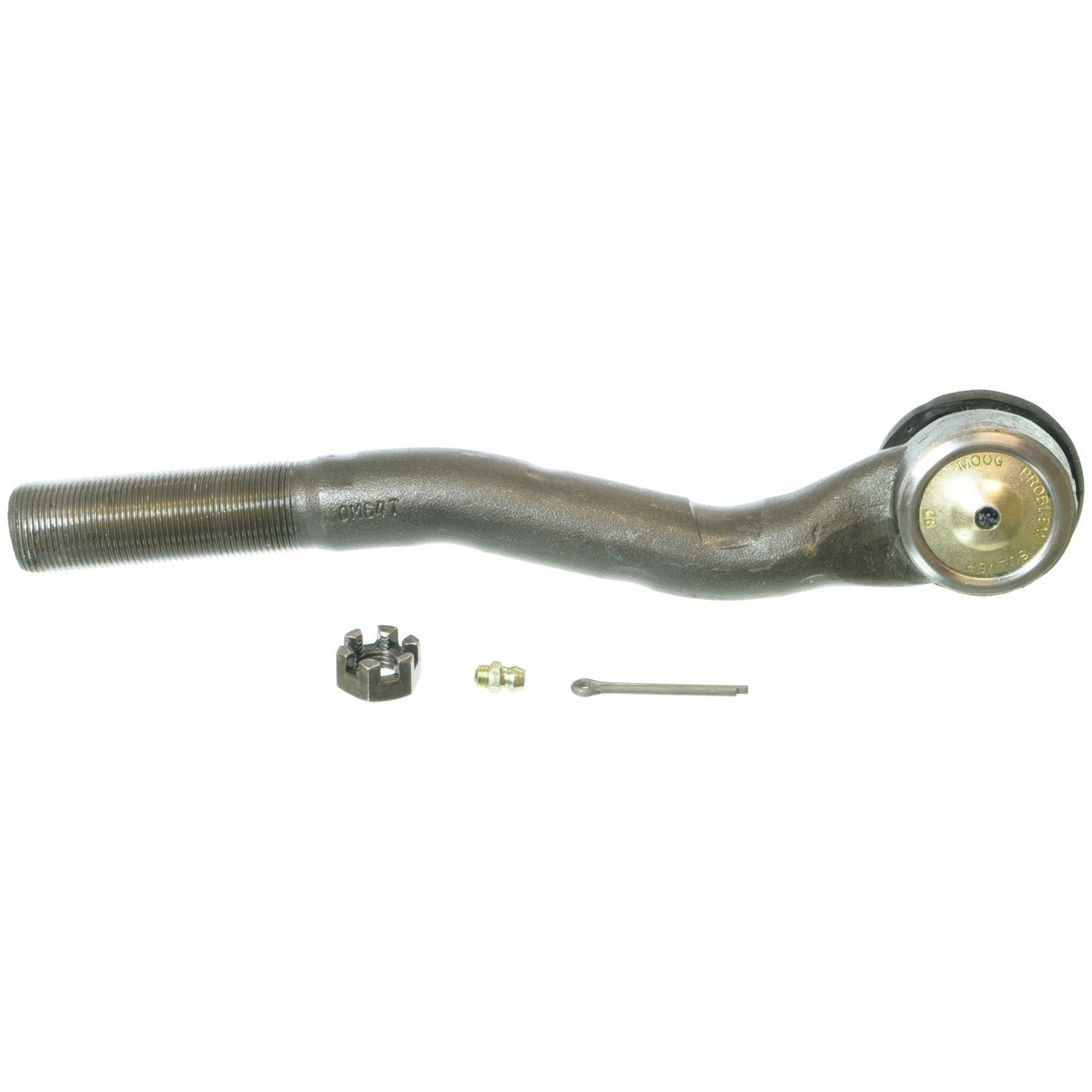

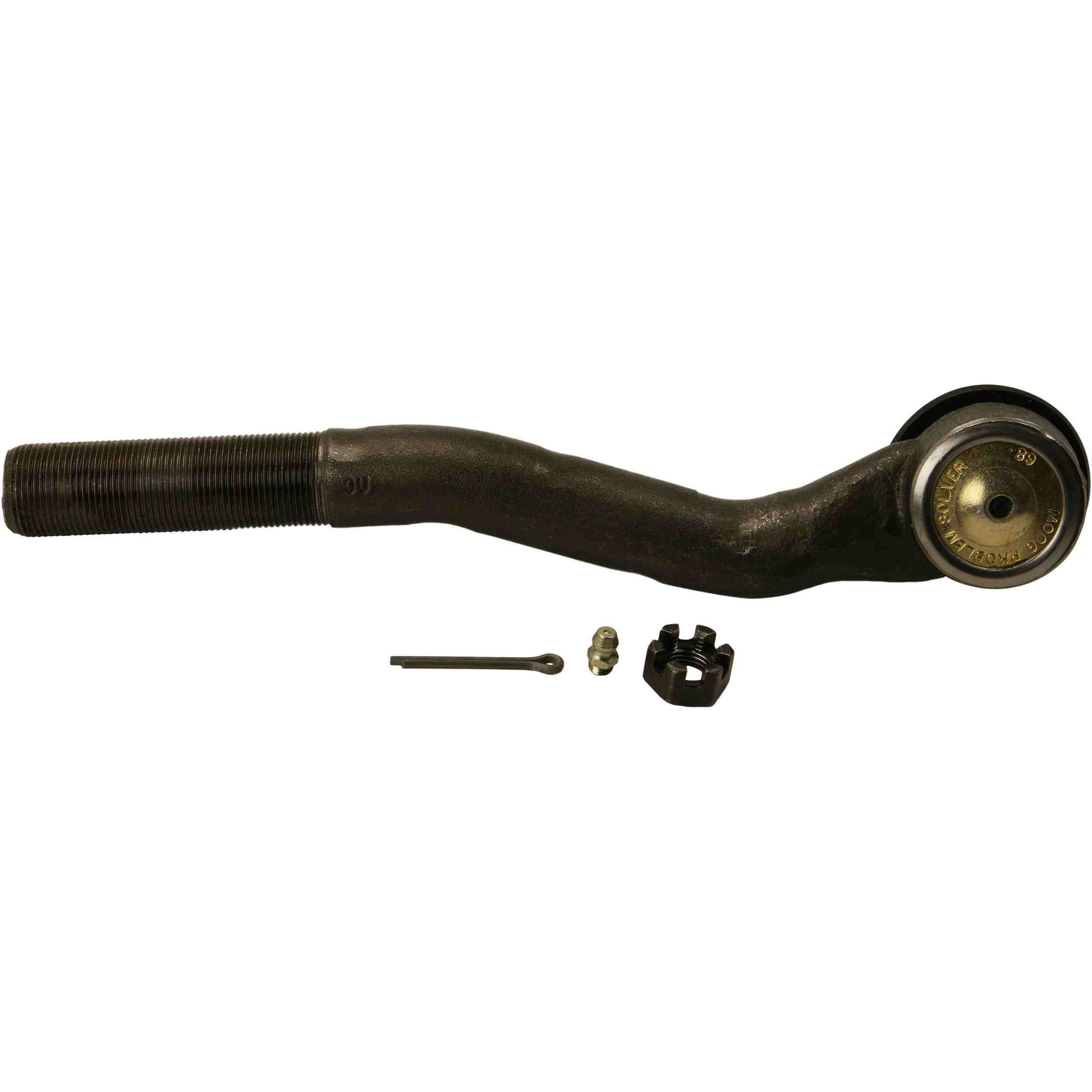

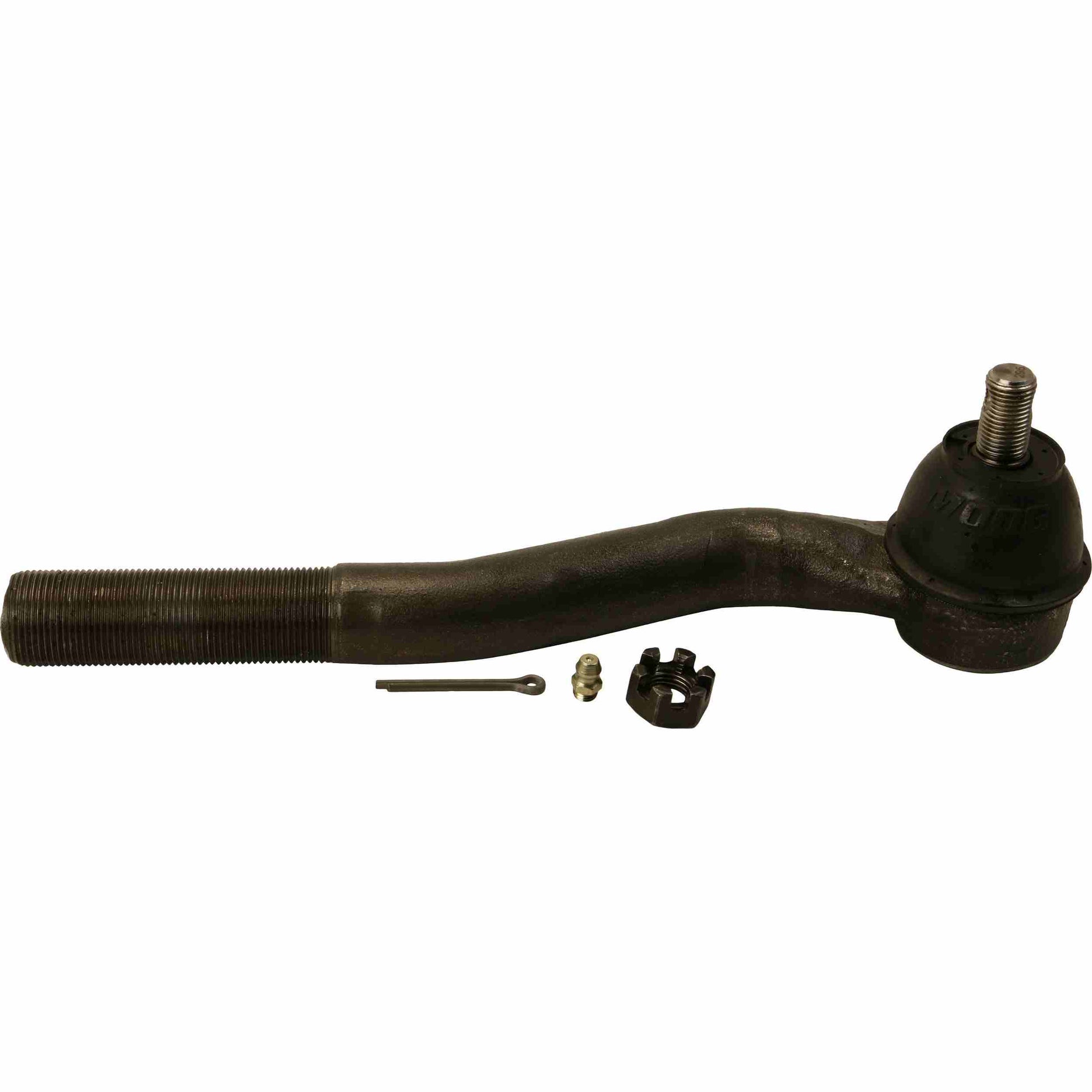

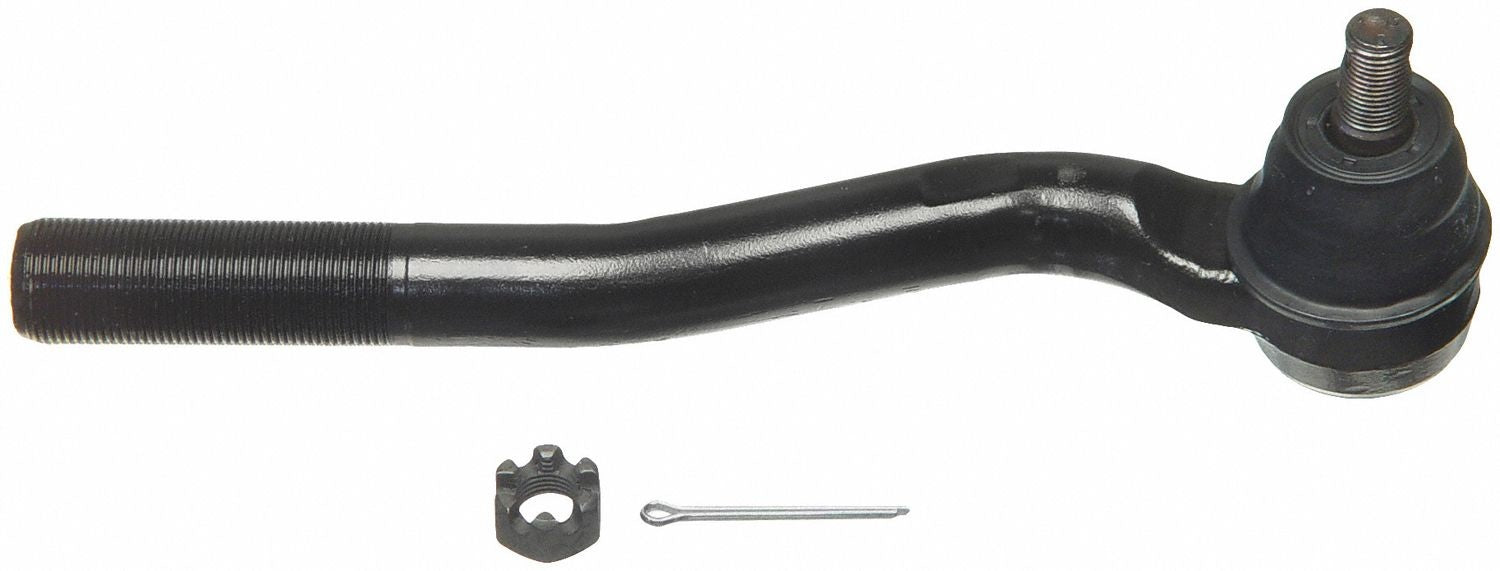

Moog Tie Rod End, Greasable, Outer, Jeep

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Greasable                                               Yes

Stud Center to End (in)                            9.510

Rod Thread                                             M24 x 1.50

Configuration                                          Bent

Rod Type                                                Male

Stud Diameter Dimension(top in)              0.56

Stud Diameter Dimension(bottom in)        0.625

Stud Thread                                            1/2" - 20"

Rack End Thread                                     1/2" - 20"

Specification Image Reference               OUTERTIEROD.tif

Dust Boot Included                                  Yes

End 1 Thread Diameter (MM)                  24.000

End 1 Thread Pitch (MM)                         1.500

End 1 Thread Direction                             L

End 2 Thread Diameter (IN)                   1/2

End 2 Thread Per Inch                             20

Vehicle Fitments:
