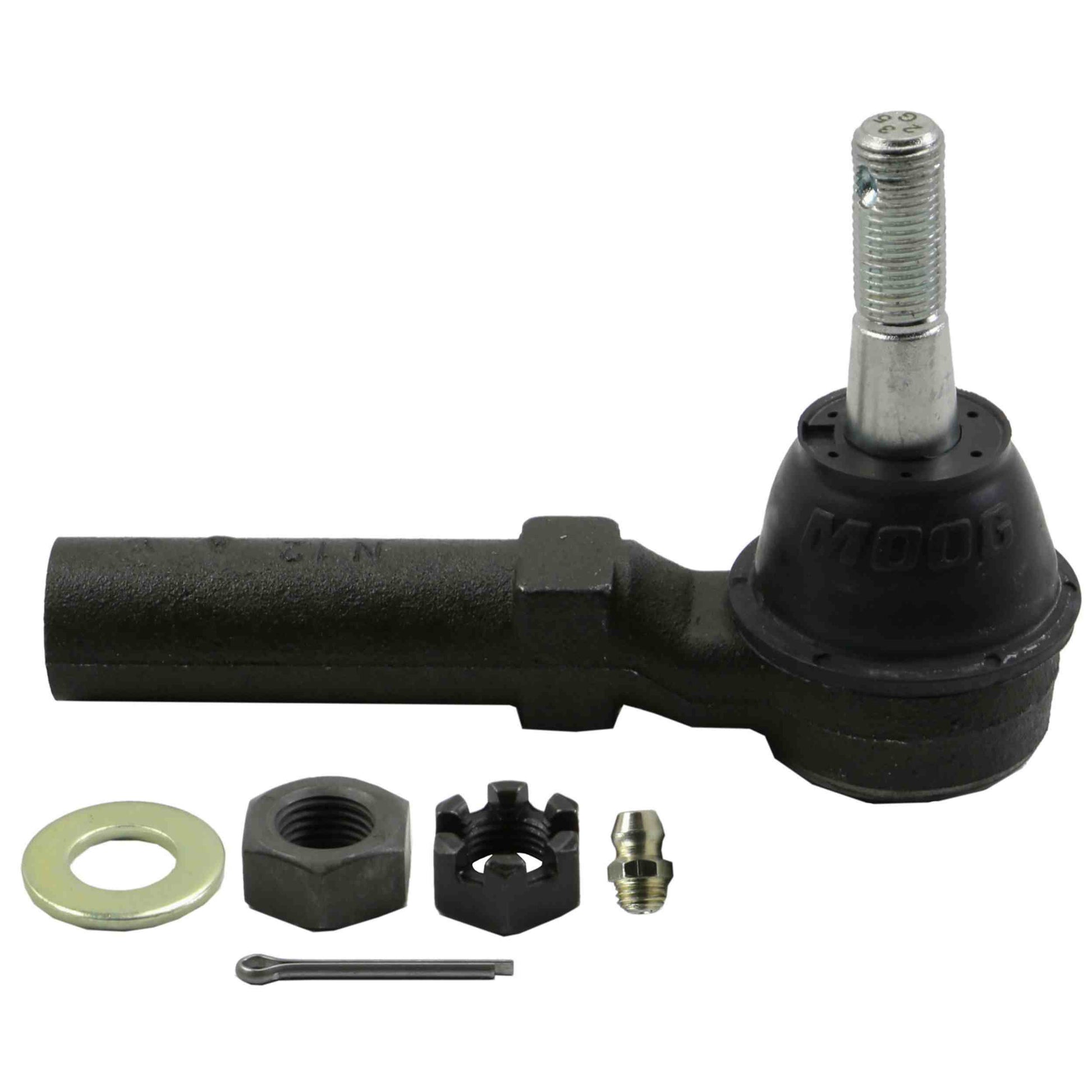

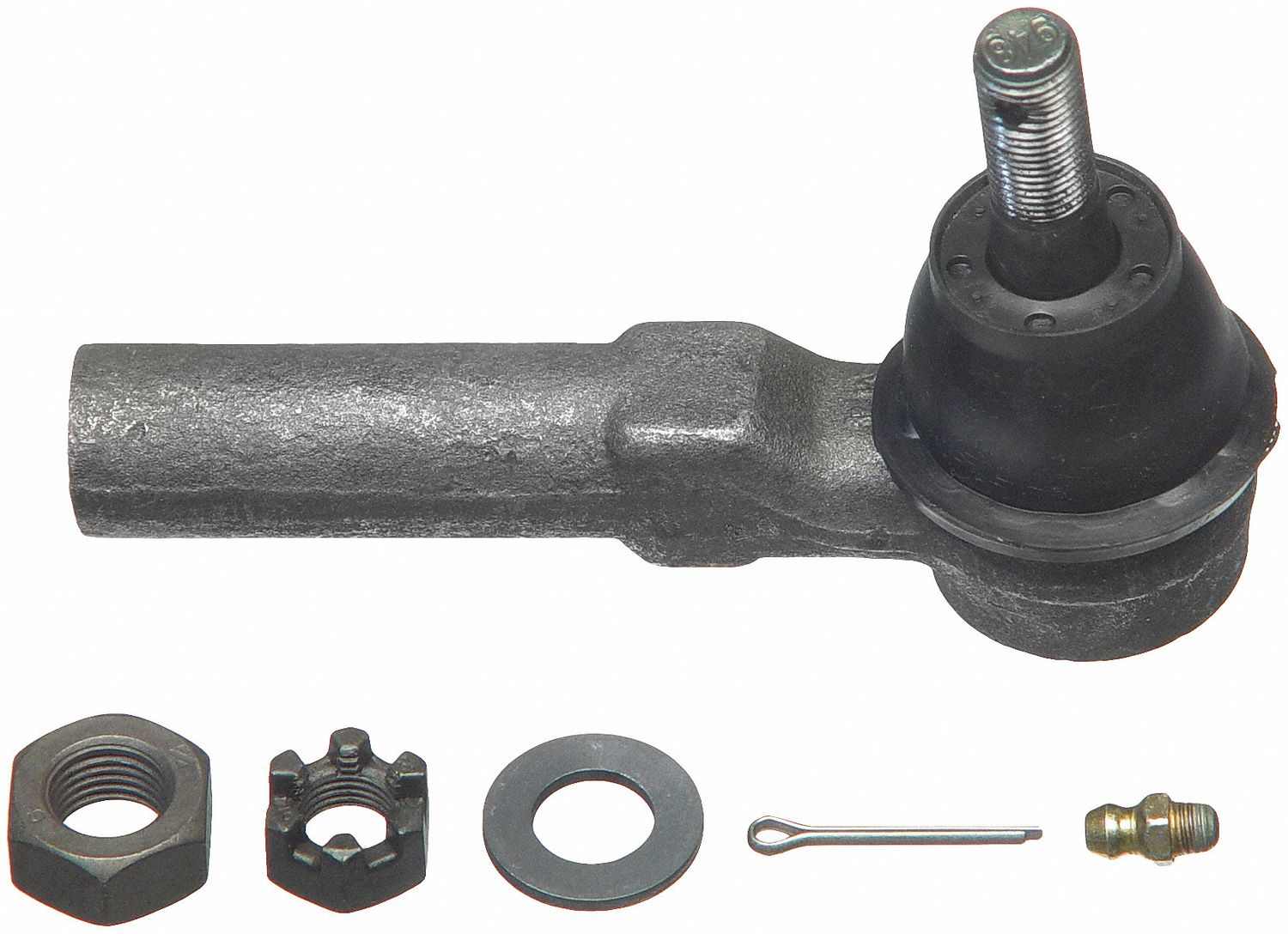

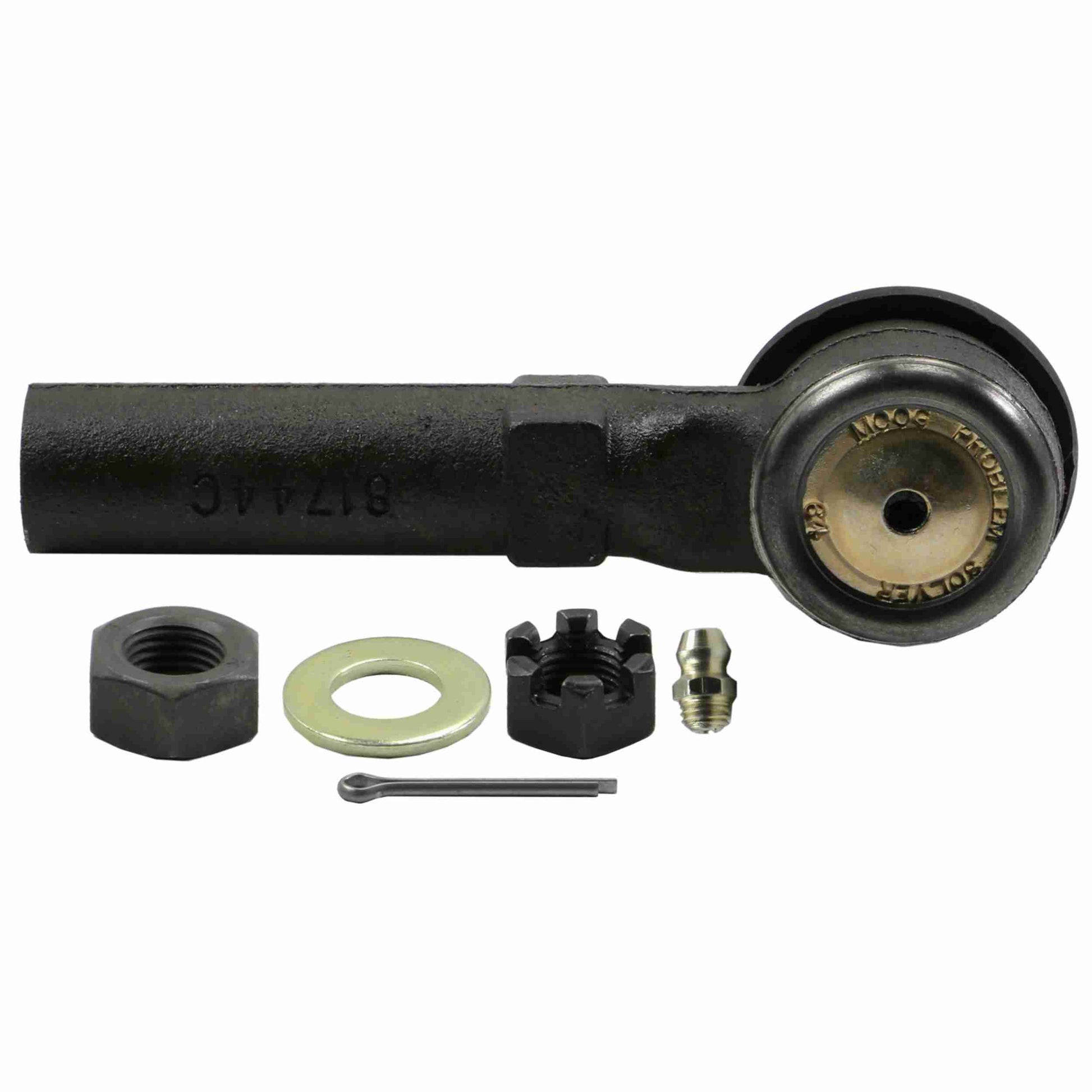

Moog Tie Rod End:Greasable, Outer, Buick, Oldsmobile, Chevy, Pontiac
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 4.500
Rod Thread: M14 X 1.50
Configuration: STRAIGHT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.483
Stud Diameter Dimension (bottom in.): 0.630
Stud Thread: M12 X 1.25
Rack End Thread: M12 X 1.25
Specification Image Reference: OUTERTIEROD.tif
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 14.000
End 1 Thread Pitch (MM): 1.500
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 12
End 2 Thread Pitch (MM): 1.25
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005 - 2009 | Buick | Allure | CXL, CX |
| 2005 - 2008 | Buick | Allure | CXS |
| 2008 - 2009 | Buick | Allure | Super |
| 1997 - 2005 | Buick | Century | Custom, Limited |
| 2005 | Buick | Century | Special Edition |
| 2005 - 2009 | Buick | LaCrosse | CX, CXL |
| 2005 - 2008 | Buick | LaCrosse | CXS |
| 2008 - 2009 | Buick | LaCrosse | Super |
| 1998 | Buick | Regal | 25th Anniversary Edition |
| 1997 - 2004 | Buick | Regal | GS, LS |
| 2000 | Buick | Regal | GSE, LSE |
| 2008 | Chevrolet | Impala | 50th Anniversary Edition |
| 2000 - 2005 | Chevrolet | Impala | Base |
| 2000 - 2013 | Chevrolet | Impala | LS |
| 2003 | Chevrolet | Impala | LS Sport |
| 2006 - 2013 | Chevrolet | Impala | LTZ, LT |
| 2003 - 2013 | Chevrolet | Impala | Police |
| 2004 - 2009 | Chevrolet | Impala | SS |
| 2014 - 2016 | Chevrolet | Impala Limited | LT, LS, Police, LTZ |
| 2003 | Chevrolet | Monte Carlo | LS Sport, SS Pace Car, SS High Sport, LS Competition |
| 2000 - 2007 | Chevrolet | Monte Carlo | LS, SS |
| 2005 - 2007 | Chevrolet | Monte Carlo | LT |
| 2006 | Chevrolet | Monte Carlo | LTZ |
| 2002 | Chevrolet | Monte Carlo | SS Dale Earnhardt Signature Edition, SS 35th Anniversary Edition |
| 1998 | Oldsmobile | Intrigue | Base |
| 1998 - 2002 | Oldsmobile | Intrigue | GLS, GL |
| 1999 - 2002 | Oldsmobile | Intrigue | GX |
| 2005 - 2007 | Pontiac | Grand Prix | GT |
| 2004 | Pontiac | Grand Prix | GT2, GT1 |
| 2004 - 2005 | Pontiac | Grand Prix | GTP |
| 2005 - 2008 | Pontiac | Grand Prix | GXP, Base |
Moog Tie Rod End:Greasable, Outer, Buick, Oldsmobile, Chevy, Pontiac
Sale price$50.00 USD
