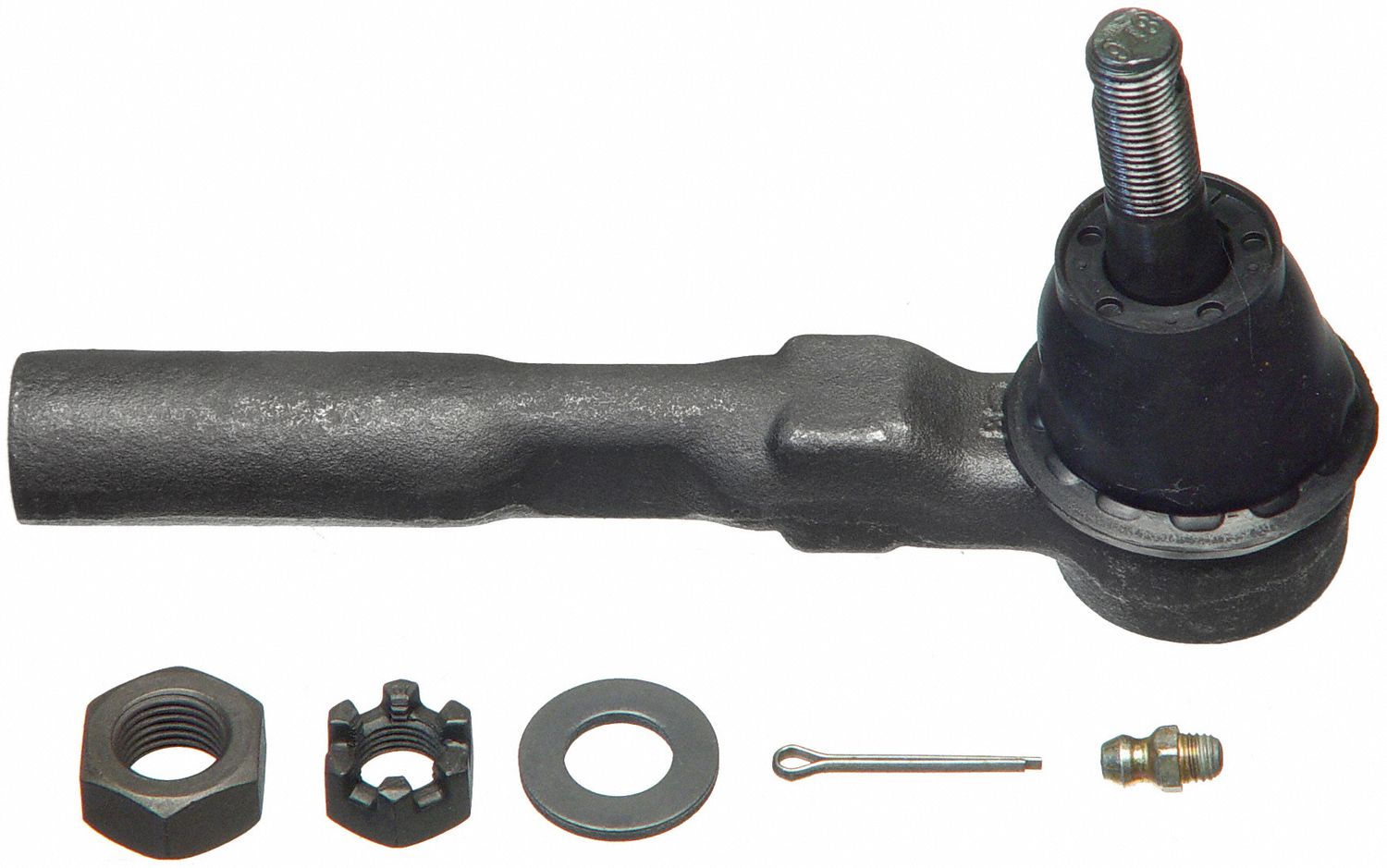

Moog Tie Rod End, Outer, Chevy, Oldsmobile, Pontiac/Buick

SKU: 14NKP | MPN:  ES3455
In stock
Sale price$43.05 USD

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Greasable                                               Yes

Stud Center to End (in)                            5.780

Rod Thread                                             M14 x 1.50

Configuration                                          Straight

Rod Type                                                Female

Stud Diameter Dimension(top in)              0.483

Stud Diameter Dimension(bottom in)        0.630

Stud Thread                                          M12 x 1.25

Rack End Thread                                   M12 x 1.25

Specification Image Reference               OUTERTIEROD.tif

Dust Boot Included                                  Yes

End 1 Thread Diameter (MM)                  14.000

End 1 Thread Pitch (MM)                         1.500

End 1 Thread Direction                             R

End 2 Thread Diameter (MM)                   12

End 2 Thread Pitch (MM)                         1.25



Vehicle Fitments:

Year Make Model Submodel
2002 - 2005 Buick Rendezvous CX Plus, CXL Plus
2002 - 2007 Buick Rendezvous CXL, CX
2004 - 2005 Buick Rendezvous Ultra
2005 - 2007 Buick Terraza CXL, CX
2004 - 2005 Chevrolet Classic Base
2004 Chevrolet Classic LS
1997 - 2003 Chevrolet Malibu Base, LS
1997 Chevrolet Malibu LX
2005 - 2009 Chevrolet Uplander LS, Base, LT
1999 - 2004 Oldsmobile Alero GLS, GX, GL
1997 - 1998 Oldsmobile Cutlass Base
1999 Oldsmobile Cutlass GL
1997 - 1999 Oldsmobile Cutlass GLS
2001 - 2005 Pontiac Aztek Base
2001 Pontiac Aztek GT
2004 - 2005 Pontiac Aztek Rally
2002 - 2003 Pontiac Aztek V
2003 Pontiac Grand Am Base
2000 - 2005 Pontiac Grand Am GT1
1999 - 2005 Pontiac Grand Am SE, GT
2000 - 2004 Pontiac Grand Am SE1, SE2
2005 Pontiac Montana Base
2005 - 2009 Pontiac Montana SV6
2007 Saturn Relay 1
2005 - 2007 Saturn Relay 2, 3
